Description et caractéristiques

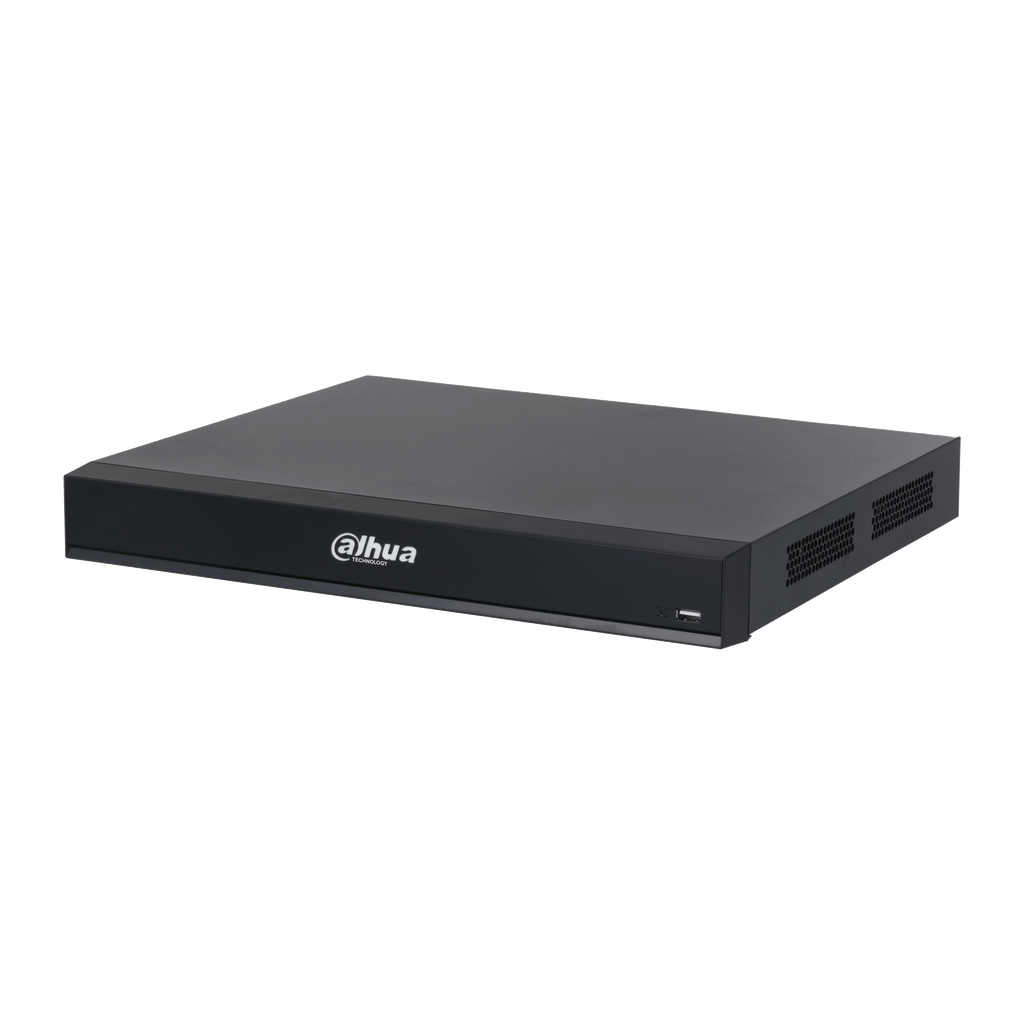

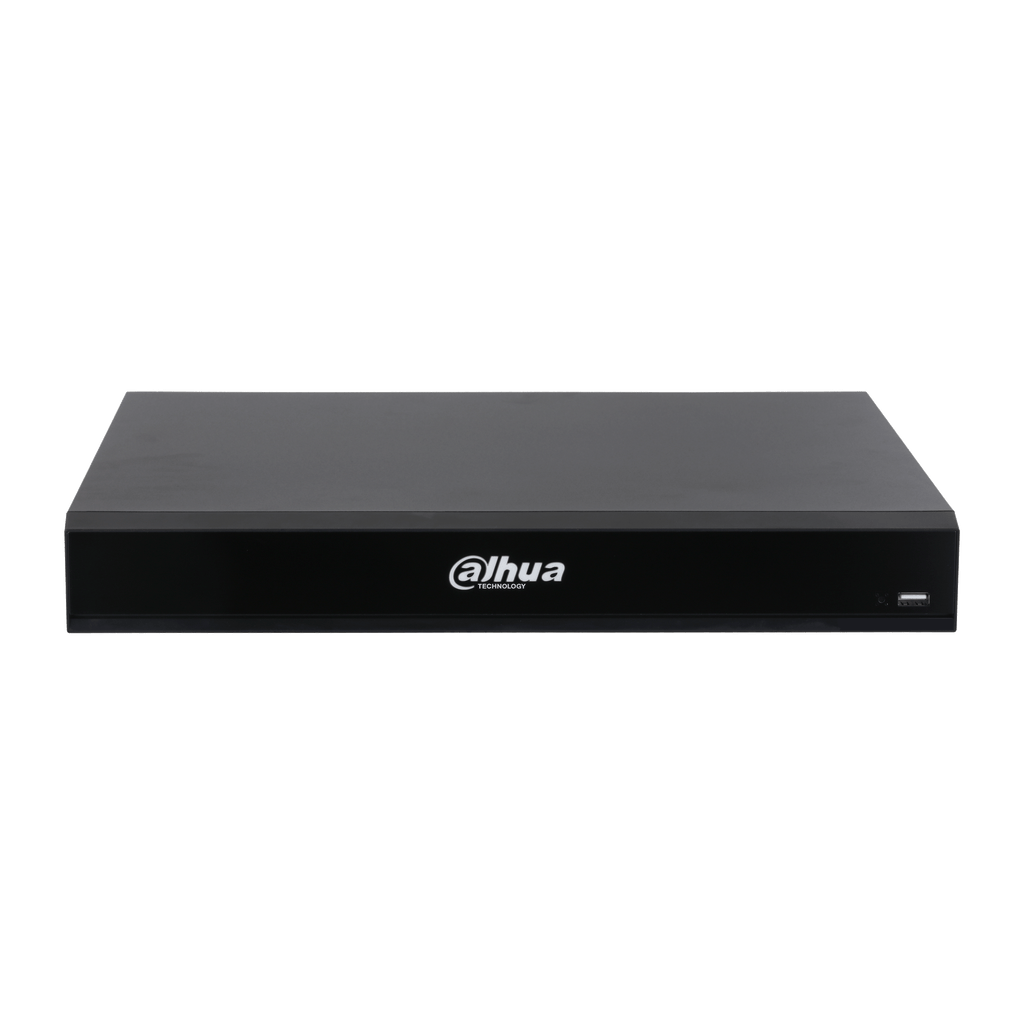

Enregistreur XVR Penta-brid
- sortie de l'enregistreur HDMI/VGA
- 2 ports SATA
- 8 MP
- IA WizSense
Caractéristiques principales
- Technologie d'enregistreur : Enregistreurs analogiques
- Nombre de voies vidéo : 16 voies
- IA de l'enregistreur : WizSense, Protection périmétrique, Reconnaissance faciale, SMD Plus
- Résolution maximum : 8 MP
- Compatibilité de l'enregistreur : Compatible AHD, Compatible CVBS, Compatible HDCVI, Compatible HDTVI, Compatible IP
Fiche technique
| Processeur | Industrial-grade processor |
|---|---|
| Système d'exploitation | Embedded Linux |
| Operating Interface | Web; Local GUI |
| QuickPick 2.0 AI by Recorder (Number of Channels) | 6 channels |
| Face Attributes | 6 attributes |
| Face Database Capacity | Up to 10 face databases with 20,000 images. |
| SMD Plus by Recorder | 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 32 channels |
| AI Video Quality Analytics by Recorder | 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white |
| Scene Changing by Recorder | 1 channel |
| Irregular Black Block Masking by Recorder | 1 channel |
| EPTZ by Recorder | 1 channel |

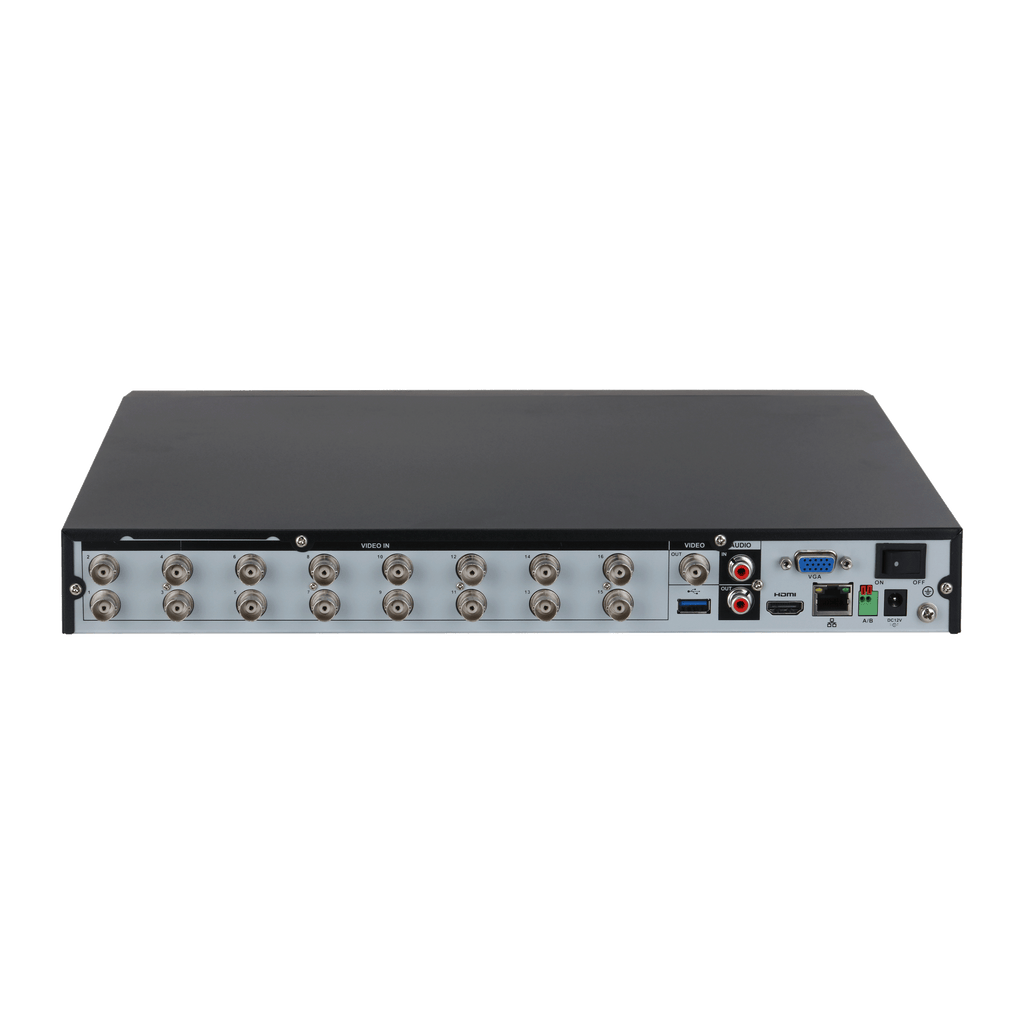

| Analog Camera Input | 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 4K@25/30 fps; 4K@12.5/15 fps; 6 MP@20 fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps. 2. TVI: 4K@15 fps; 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
| Dual-stream | Yes |
| Débit vidéo | 32 kbps–8192 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 1 HDMI, 1 VGA, 1 CVBS HDMI : 3840 × 2160,1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression vidéo | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Compression audio | G.711a; G.711u; PCM |
| Protocoles réseau | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interopérabilité | ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Navigateur | Chrome; IE; Safari; Edge; Firefox |
| Record Mode | General; alarm; motion detection; intelligent; POS |
| Recording Playback | 1/4/9/16 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Disk Group | Yes |
| General Alarm | Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email |
| CVBS Output | 1 channel |
| Entrée audio | 1-channel RCA 16-channel BNC (Coaxial Audio) |
| Sortie audio | 1-channel RCA |
| Audio bidirectionnel | Yes (share the same audio input with the first channel) |
| Disk Interface | 2 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature. |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Port réseau | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Alimentation | 12 VDC, 5 A |
| Consommation | <32 W (without HDD) |
| Poids net | 2.40 kg (5.30 lb) |
| Poids brut | 4.00 kg (8.82 lb) |
| Dimensions | 375.0 mm × 332.0 mm × 53.0 mm (14.76'' × 13.08'' × 2.09'') (W × D × H) |
| Packaging Dimensions | 449.0 mm × 170.0 mm × 421.0 mm (17.68" × 6.70" × 16.58") (W × D × H) |
| Température de fonctionnement | –10 °C to +55 °C (+14 °F to +131 °F) |
| Température de stockage | –20 °C to +60 °C (–4 °F to +140 °F) |
| Humidité de fonctionnement | 10%–90% (RH), non-condensing |
| Installation | Desktop |
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : XVR7216AN-4K-I3 · Marque : Dahua
