Description et caractéristiques

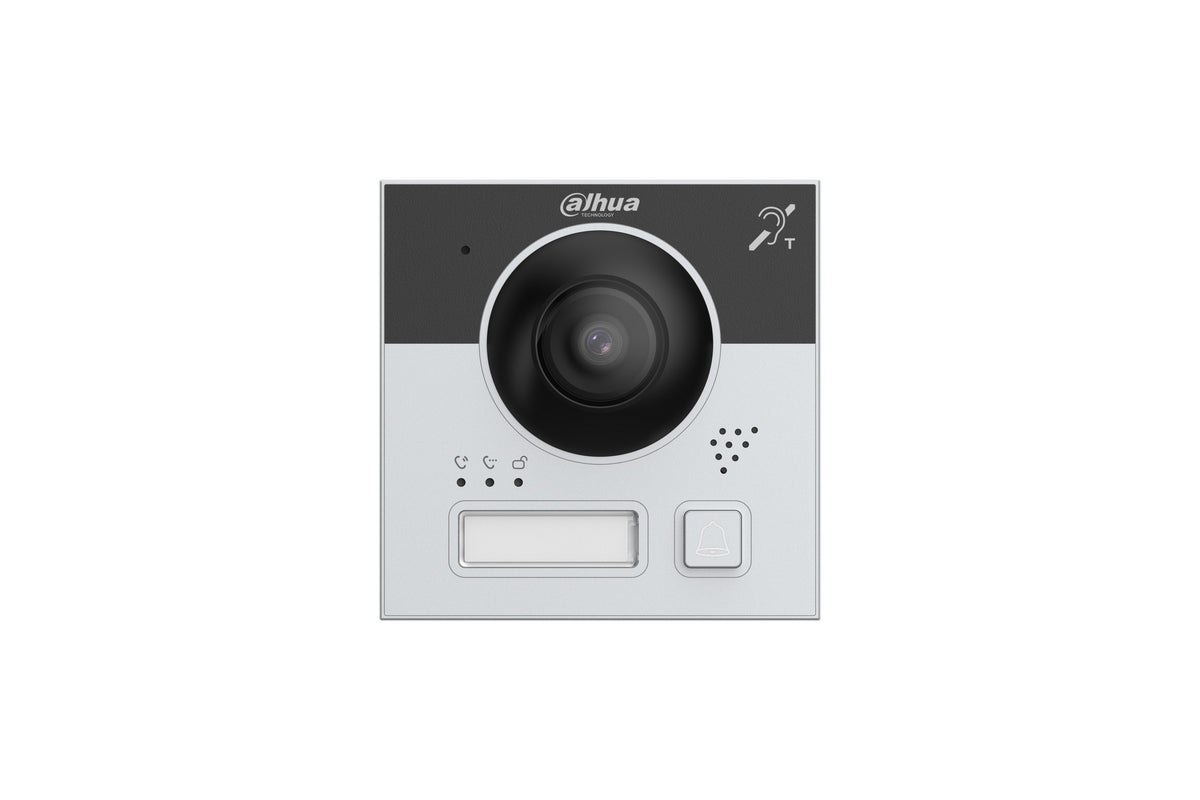

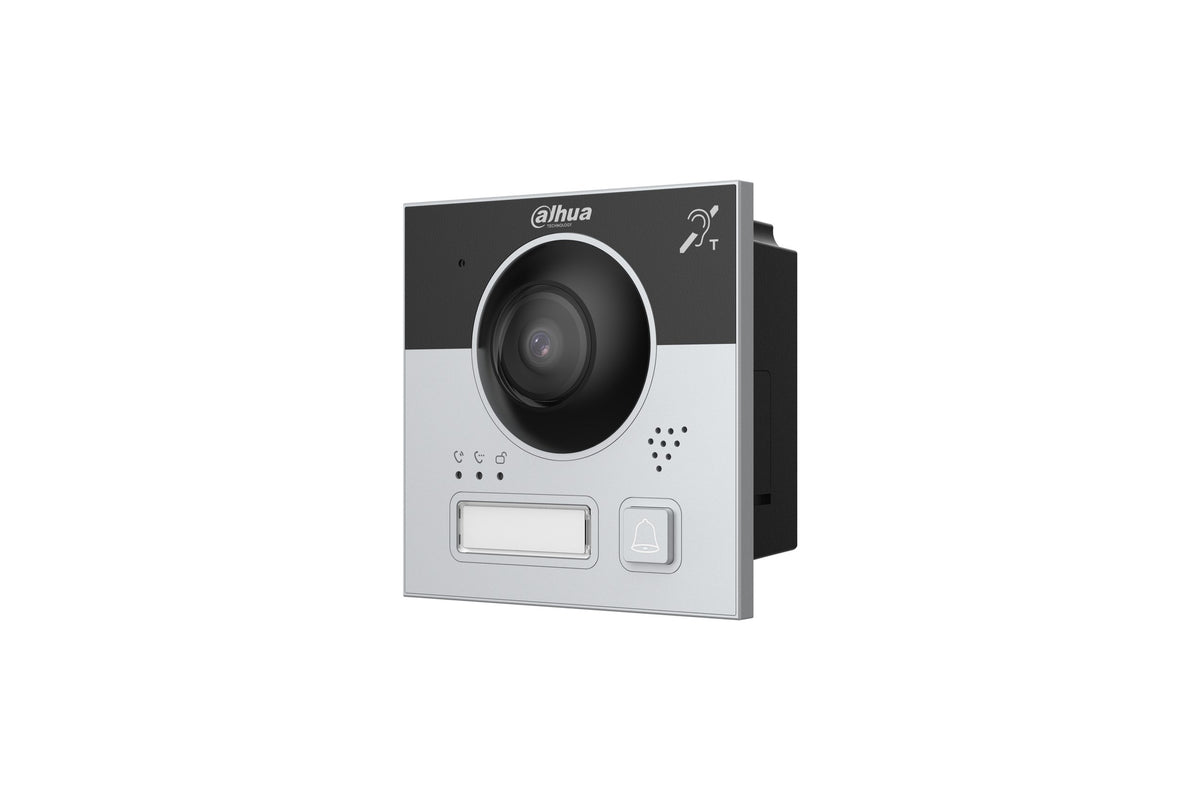

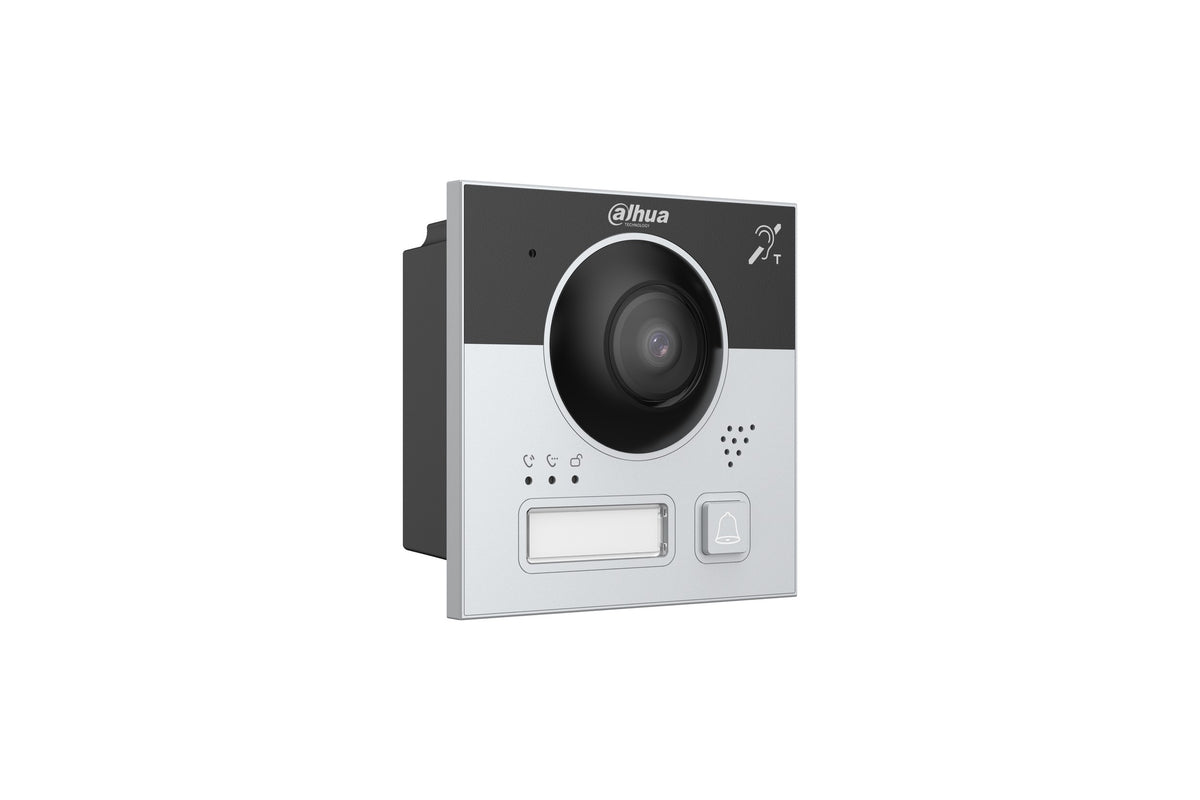

Module caméra IP
- 2 MP CMOS grand angle 168.6°
- 1 bouton mécanique
- Audio bidirectionnel
- Extensible avec modules clavier et lecteur
- IP65
- Extérieur
- Alimentation 2-wire / 48V POE
Caractéristiques principales
- Type de module : Module caméra
- Type d'accès : Bouton
- Technologie : Platine modulaire 2 fils
- Nombre de boutons : 1 bouton
- Alimentation : Alimentation platine 48 V, Alimentation platine POE
Fiche technique
| Processeur | Embedded Processor |
|---|---|
| Système d'exploitation | Embedded Linux Operation System |
| Button Type | Mechanical |
| Number of Buttons | 1 |
| Interopérabilité | CGI; ONVIF |
| Protocoles réseau | UDP; TCP; IPv4; DNS; RTSP; UPnP; SIP; P2P; RTP |
| Camera | 1/2.9" 2 MP CMOS |
| Champ de vision | H: 168.6°; V: 87.1°; D: 176.7° |
| WDR | 120 dB |
| Réduction du bruit | 3D NR |
| Compression vidéo | H.265; H.264 |
| Video Resolution | Main stream:720p; WVGA; D1; CIF Sub stream:1080p; WVGA; D1; QVGA; CIF |
| Fréquence d'images | 25 fps |
| Débit vidéo | 256 Kbps to 8 Mbps |
| Light Compensation | Auto IR |
| Jour/Nuit | Auto(ICR)/Color/B/W; Color/B/W |
| Compression audio | G.711a; G.711u; PCM |
| Entrée audio | 1 channel |
| Sortie audio | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 kHz, 16 bits |
| Communication Mode | Digital 2-wire |
| Unlock Mode | Remote |
| Leave Videos | Yes (SD card is inserted in the indoor monitor or door station) |
| Stockage | Supports Micro SD card (up to 256 GB) |
| Web Configuration | Yes |
| Matériau du boîtier | PC + 10% GF |
| Card Capacity | 3000 |
| Fingerprint Capacity | 3000 |
| RS-485 | 1 |
| Sortie d'alarme | 1 |
| Power Output | 1 port, 12 V/600 mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Port réseau | 1 × RJ-45 port, 10/100 Mbps network port |
| Tamper Alarm | Yes |
| Appearance Color | Silver |
| Alimentation | 2-wire Switch |
| Power Adapter | Optional |
| Installation | Flush Mount; Surface Mount |
| Certifications | CE |
| Accessory | Surface mount box (optional); flush mount box (optional); rain cover (optional) |
| Dimensions | 100.0 mm × 100.0 mm × 49.9 mm (3.94" × 3.94" × 1.96") (H × W × D) |
| Indice de protection | IP65 |
| Température de fonctionnement | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidité de fonctionnement | 10%–90% (RH), non-condensing |
| Operating Environment | Outdoor |
| Operating Altitude | 0 m–3000 m (0 ft–9842.52 ft) |
| Consommation | ≤ 4 W (standby), ≤ 12 W (working) |
| Poids brut | 0.45 kg (0.99 lb) |
| Température de stockage | 0 °C to +40 °C (+32 °F to +104 °F) |
| Humidité de stockage | 30%–75% (RH), non-condensing |
| Type | Description |
| Modules | Camera module |
| DHI-VTO4202F-MB1 | One-button module |
| DHI-VTO4202F-MB2 | Two-button module |
| DHI-VTO4202F-MB5 | Five-button module |
| DHI-VTO4202F-MS | Display module |
| DHI-VTO4202F-ML | Indicator module |
| DHI-VTO4202F-MK | Keyboard module |
| DHI-VTO4202F-MF | Fingerprint module |
| DHI-VTO4202F-MR | Card swiping module(IC) |
| DHI-VTO4202F-MR1 | Card swiping module(ID) |
| DHI-VTO4202F-MN | Blank Module |
| DHI-VTO4202F-MI | Info module |
| DHI-VTO4202FB-MB2 | Two-button module(Black) |
| DHI-VTO4202FB-MB5 | Five-button module(Black) |
| DHI-VTO4202FB-MS | Display module(Black) |
| DHI-VTO4202FB-ML | Indicator module(Black) |
| DHI-VTO4202FB-MK | Keyboard module(Black) |
| DHI-VTO4202FB-MF | Fingerprint module(Black) |
| DHI-VTO4202FB-MR | Card swiping module(IC)(Black) |
| DHI-VTO4202FB-MR1 | Card swiping module(ID)(Black) |
| DHI-VTO4202FB-MN | Module(Black) |
| DHI-VTO4202FB-MI | Info module(Black) |
| Accessories | Vertical one module, surface mounted rain cover |
| VTM52R2 | Vertical two modules, surface mounted rain cover |
| VTM53R3 | Vertical three module, surface mounted rain cover |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : VTO4202F-PI1 · Marque : Dahua
