Description et caractéristiques

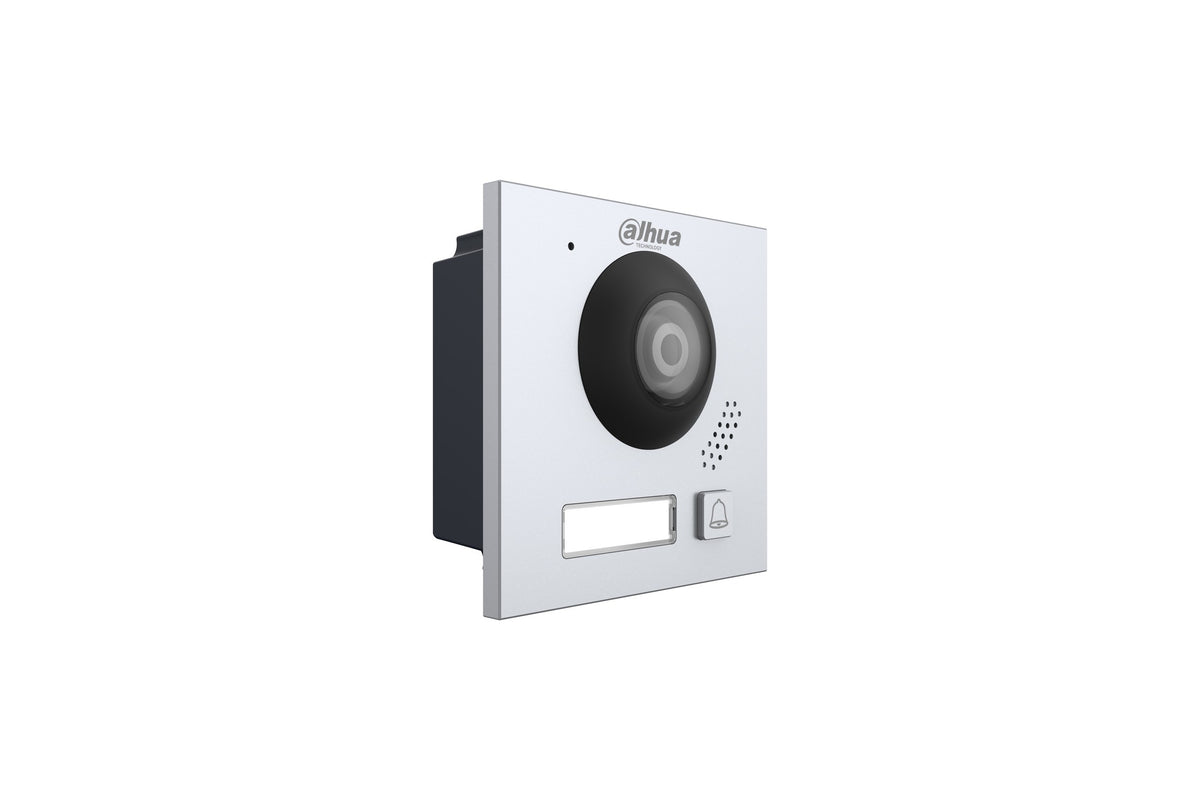

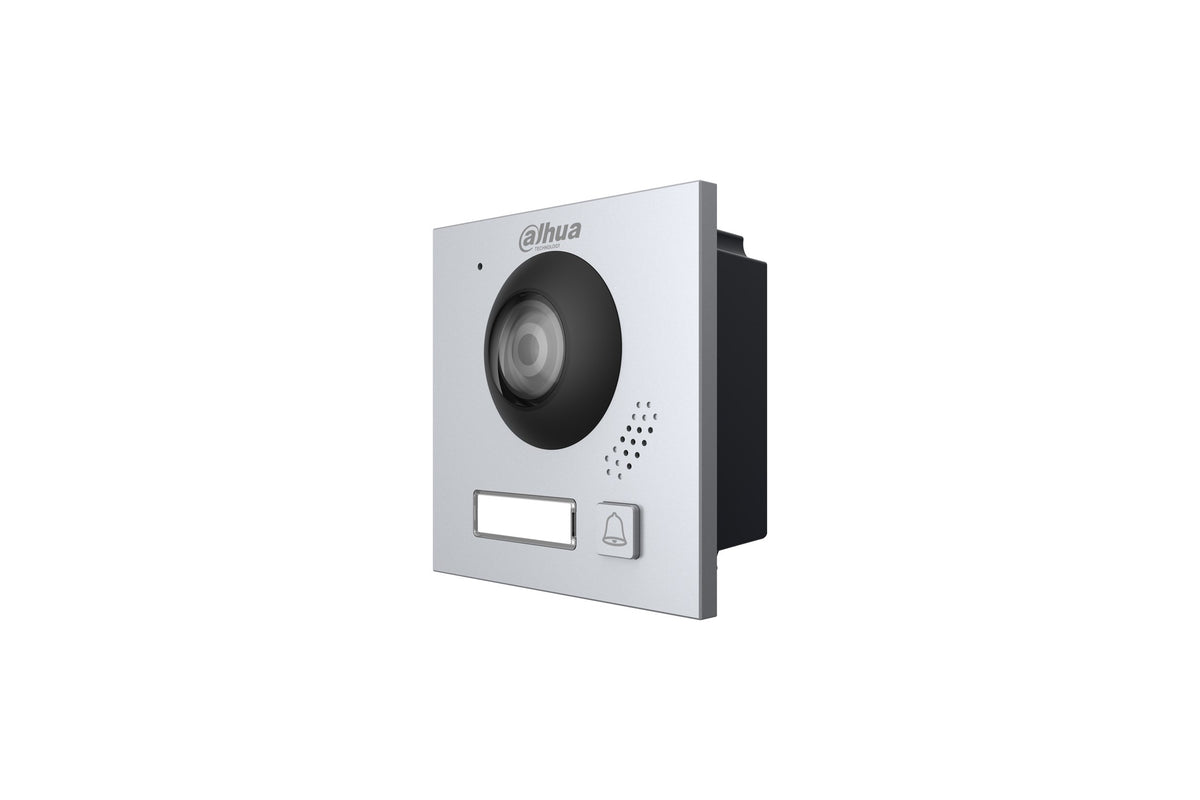

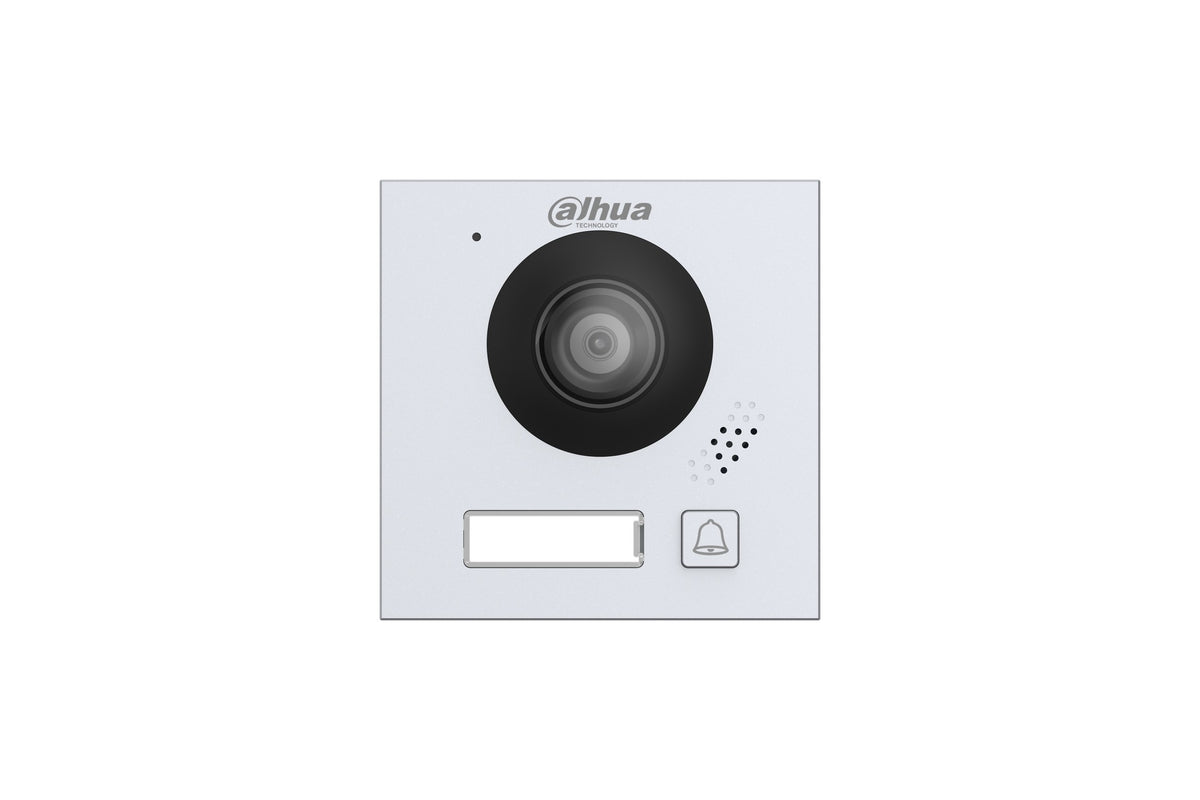

Module caméra pour station d’entrée hybride modulaire 2‑Wire
- CMOS 2 MP HD fisheye 160°
- Audio bidirectionnel
- Entrée/Sortie alarme ×1
- Détection état porte / bouton sortie / verrou ×1
- Tamper alarm
- Montage encastré ou mural
- Boîtier aluminium anodisé
- IK07
- IP65
Caractéristiques principales
- Type de module : Module caméra
- Technologie : Platine modulaire 2 fils
- Nombre de boutons : 1 bouton
- Couleur : Platine modulaire argent
Fiche technique
| Processeur | Embedded Processor |
|---|---|
| Système d'exploitation | Embedded Linux operating system |
| Button Type | Mechanical |
| Camera | 1/2.5" 2 MP CMOS low illumination HD color fisheye camera |
| Champ de vision | H: 168.6°; V: 87.1°; D: 176.7° |
| WDR | 120 dB |
| Réduction du bruit | 3D NR |
| Video Resolution | P: 960 (H) × 576 (V) N: 960 (H) × 480 (V) |
| Fréquence d'images | P: 25 fps N: 30 fps |
| Light Compensation | Auto IR |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| Entrée audio | 1 channel |
| Sortie audio | Built-in speaker |
| Audio Mode | Two-way audio (half–duplex) |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Communication Mode | Analog |
| Unlock Mode | IC card; ID card; password; fingerprint; remote unlock (A sub-module must be connected to the main module for the first 4 methods) |
| Leave Videos | Yes (SD card inserted in VTH is needed) |
| Matériau du boîtier | Aluminum alloy |
| RS-485 | 1 |
| Sortie d'alarme | 1 channel |
| Power Output | 1 channel, 12 V, 1 A |
| Exit Button | 1 channel |
| Door Status Detection | 1 channel |
| Lock Control | 1 channel |
| Tamper Alarm | Yes |
| Appearance Color | Silver/Black |
| Alimentation | 2-wire controller |
| Installation | Flush Mount; Surface Mount |
| Certifications | CE |
| Accessory | Surface mount box (optional), flush mount box (optional), panel (optional) |
| Dimensions | 100 mm × 100 mm × 47.35 mm (3.94" × 3.94" × 1.86") |
| Indice de protection | IK07; IP65 |
| Température de fonctionnement | –40 °C to +60 °C (–40 °F to +140°F) |
| Humidité de fonctionnement | 10%–90% |
| Operating Environment | Outdoor |
| Operating Altitude | 0 m–3,000 m (0 ft–9,842.52 ft) |
| Consommation | ≤4 W (standby), ≤12 W (working) |
| Poids brut | 435 g (0.96 lb) |
| Type | Description |
| Modules | Camera module |
| DHI-VTO4103FB-1 | Camera module(Black) |
| DHI-VTO4103F-MB1 | One-button module |
| DHI-VTO4103FB-MB1 | One-button module(Black) |
| DHI-VTO4103F-MB2 | Two-button module |
| DHI-VTO4103FB-MB2 | Two-button module(Black) |
| DHI-VTO4103F-MB5 | Five-button module |
| DHI-VTO4103FB-MB5 | Five-button module(Black) |
| DHI-VTO4103F-ML | Indicator module |
| DHI-VTO4103FB-ML | Indicator module(Black) |
| DHI-VTO4103F-MK | Keyboard module |
| DHI-VTO4103FB-MK | Keyboard module(Black) |
| DHI-VTO4103F-MF | Fingerprint module |
| DHI-VTO4103FB-MF | Fingerprint module(Black) |
| DHI-VTO4103F-MR | Card swiping module(IC) |
| DHI-VTO4103FB-MR | Card swiping module(IC)(Black) |
| DHI-VTO4103F-MR1 | Card swiping module(ID) |
| DHI-VTO4103FB-MR1 | Card swiping module(ID)(Black) |
| DHI-VTO4103F-MI | Info module |
| DHI-VTO4103FB-MI | Info module(Black) |
| DHI-VTO4103F-MN | Blank module |
| DHI-VTO4103FB-MN | Blank module(Black) |
| Accessories | Front panel for 2 modules |
| VTM126 | Front panel for 3 modules |
| VTM25P2 | Front panel for 2 modules(Black) |
| VTM24P3 | Front panel for 3 modules(Black) |
| VTM77 | Front panel for 1 module |
| VTM78 | Front panel for 1 module(Black) |
| VTM52R2 | Vertical two modules, surface mounted rain cover |
| VTM53R3 | Vertical three module, surface mounted rain cover |
| VTM54R4 | Vertical two*2 modules in parallel, surface mounted rain cover |
| VTM56R6 | Vertical two*3 modules in parallel, surface mounted rain cover |
| VTM51R2 | Vertical two modules with vertical rod, the cable goes out, It has the function of receiving the cable |
| VTM61R2 | Vertical two modules with vertical extended rod, the cable goes out, It has the function of receiving the cable |
| VTM26R2 | Vertical two modules, surface mounted rain cover(Black) |
| VTM27R3 | Vertical three module, surface mounted rain cover(Black) |
| VTM28R4 | Vertical two*2 modules in parallel, surface mounted rain cover(Black) |
| VTM29R6 | Vertical two*3 modules in parallel, surface mounted rain cover(Black) |
| VTM30R2 | Vertical two modules with vertical rod, the cable goes out, It has the function of receiving the cable(Black) |
| VTM75 | Vertical one module, surface mounted rain cover |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : VTO4103F-1 · Marque : Dahua
