Description et caractéristiques

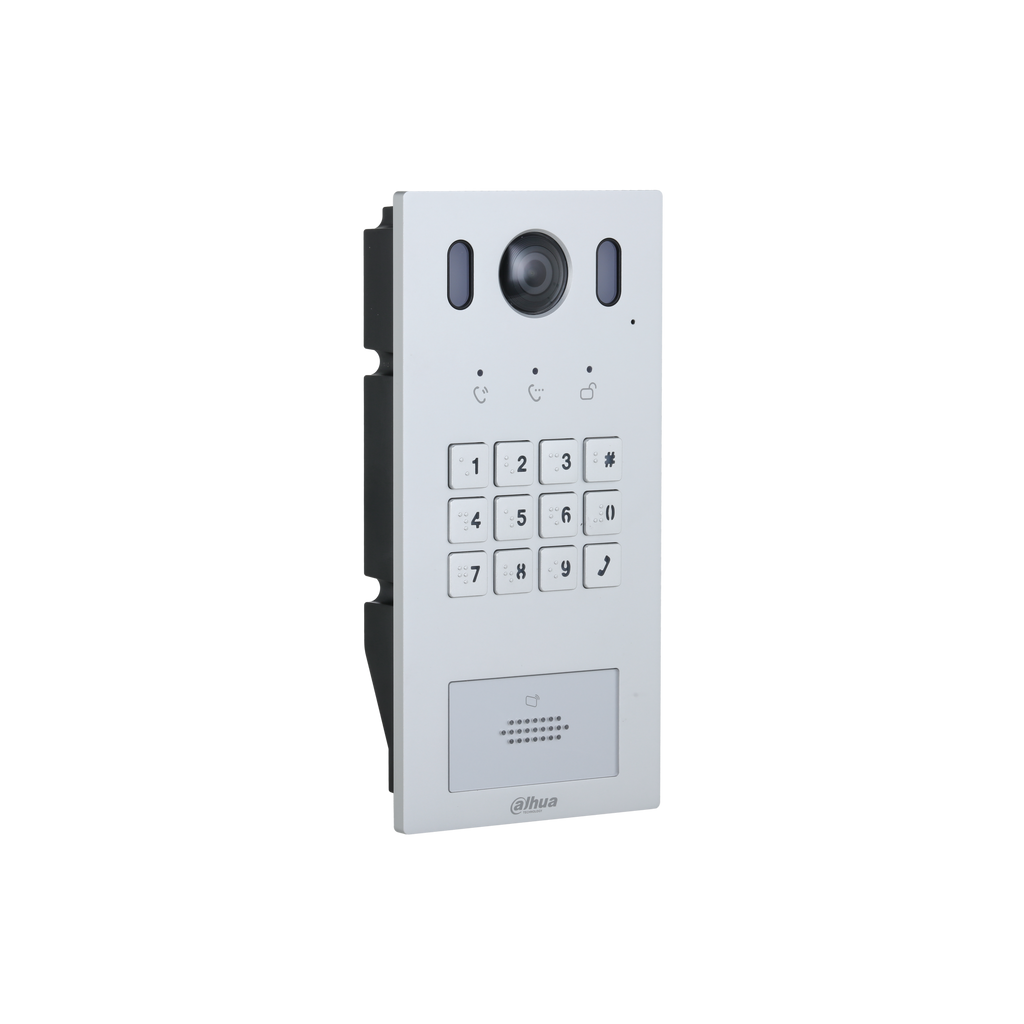

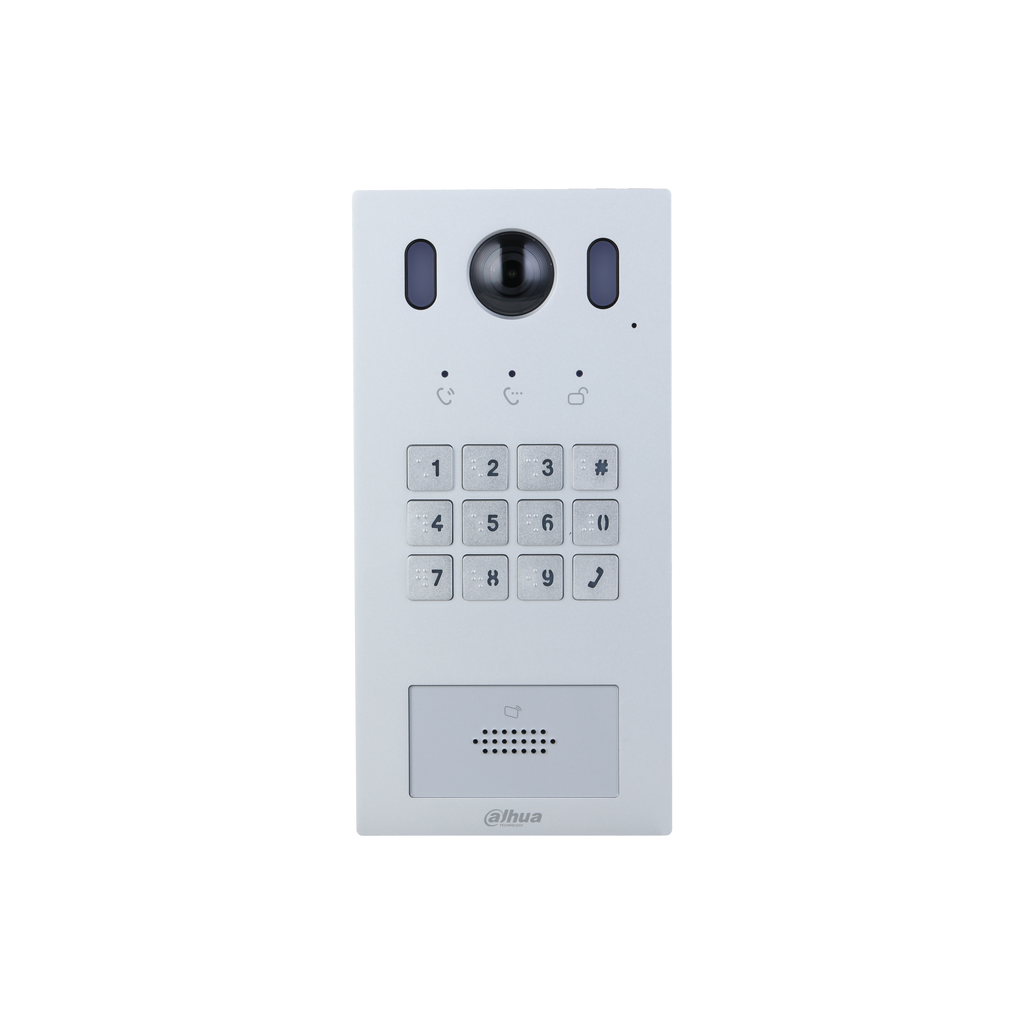

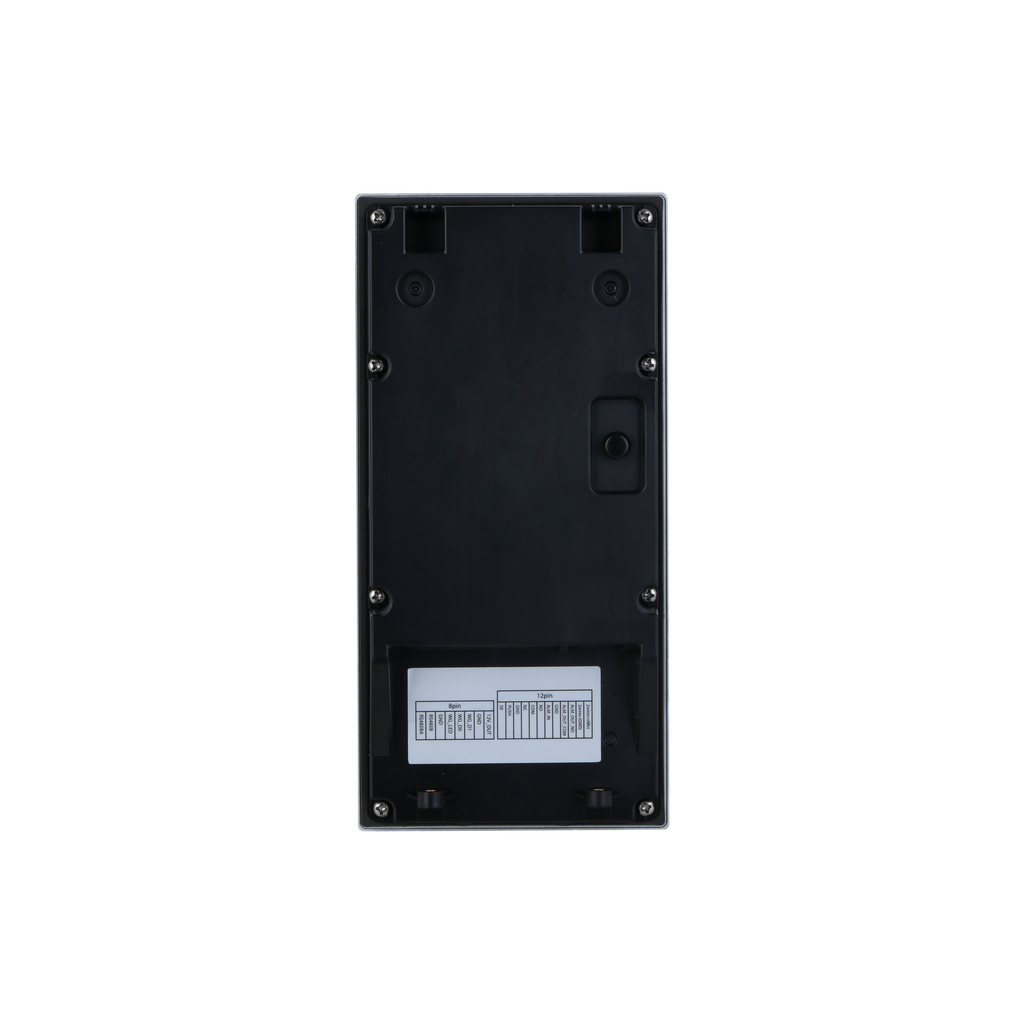

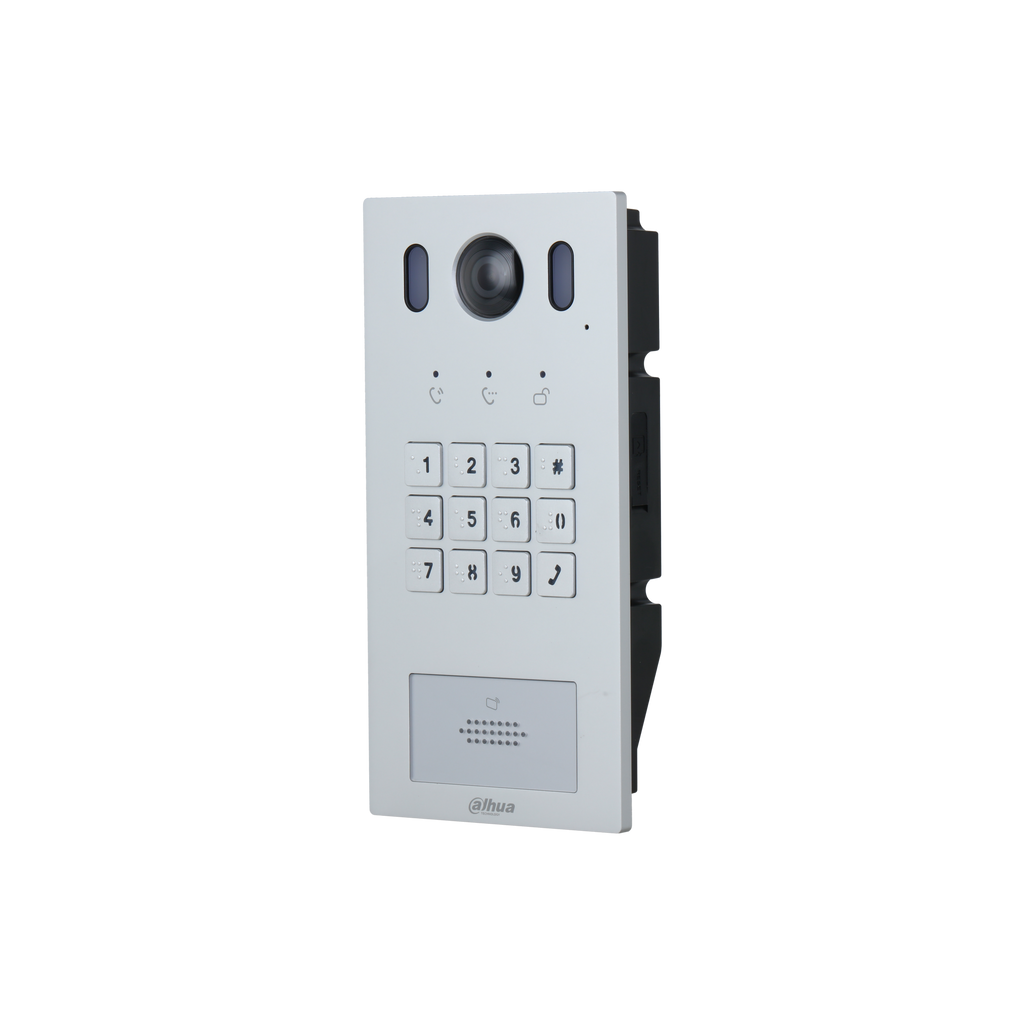

Platine IP blanche
- caméra 2MP HD
- WDR 120 dB
Caractéristiques principales
- Technologie : Platine IP
- Type d'accès : Application mobile, Digicode, Lecteur Mifare
- Nombre de boutons : 12 boutons
- Caméra intégrée : Caméra intégré
- Alimentation : Alimentation platine 12V
Fiche technique
| Processeur | Embedded Processor |
|---|---|
| Système d'exploitation | Embedded Linux OS |
| Button Type | Mechanical |
| Number of Buttons | 12 |
| Camera | 1/2.9" 2 MP CMOS |
| Champ de vision | H:140°,V:80°, D:160° |
| WDR | 120 dB |
| Réduction du bruit | 3D NR |
| Compression vidéo | H264，H265 |
| Video Resolution | Main stream: 720p,WVGA, D1, CIF Sub stream: 1080p,WVGA, D1, QVGA, CIF |
| Fréquence d'images | 25 fps |
| Light Compensation | Auto white light |
| Jour/Nuit | Color/B/W |
| Compression audio | G.711a, G.711u, PCM |
| Entrée audio | 1 |
| Sortie audio | Built-in Speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 KHz, 16 bit |
| Communication Mode | Digital 2-wire |
| Verification Method | Card;Password;Remote |
| Card Type | IC card |
| Auto Snapshot | Yes (SD card inserted in VTH or FTP server is configured for VTO) |
| Leave Videos | Yes (SD card is inserted in the indoor monitor or door station) |
| Stockage | Supports Micro SD card (up to 256 GB) |
| Web Configuration | Yes |
| Modulation Type | ASK |
| Frequency Range | 13.56 MHz |
| Max. Transmission Power | 42dBuA/m @10m |
| Card Reading Distance | 0 cm–3 cm (0"–1.18") |
| Matériau du boîtier | Aluminum |
| Card Capacity | 10,000 |
| RS-485 | 1 |
| Wiegand | 1 |
| Entrée d'alarme | 1 |
| Sortie d'alarme | 1 |
| Power Output | 1 port,12 V/600 mA |
| Door Bell | 1 |
| Exit Button | 1 |
| Lock Control | 1 |
| Port réseau | 1 × RJ-45 port，10Mbps/100Mbps network port |
| Tamper Alarm | Yes |
| Appearance Color | Silver |
| Alimentation | 48 VDC, 0.4 A, PoE (802.3af/at) |
| Power Adapter | Optional |
| Installation | Flush Mount;Surface Mount |
| Certifications | CE |
| Accessory | Flush mount box (optional); Surface mount box (optional) |
| Dimensions | 200.0 mm × 98.0 mm × 35.4 mm (7.87" × 3.86" × 1.39") (H × W × D) |
| Indice de protection | IK08, IP65 (silicone sealant is needed, see the quick start guide) |
| Température de fonctionnement | –40 °C to +60 °C (–40 °F to +140°F) |
| Humidité de fonctionnement | 10%–90% (RH), non-condensing |
| Operating Environment | Outdoor |
| Operating Altitude | Beneath 3000 m (9842.52 ft) |
| Consommation | ≤ 5 W (standby), ≤ 7 W (working) |
| Poids brut | 692 g (1.53 lb) |
| Température de stockage | 0 °C to +40 °C (+32 °F to +104 °F) |
| Humidité de stockage | 30%–75%(RH) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : VTO3222E-P · Marque : Dahua
