Description et caractéristiques

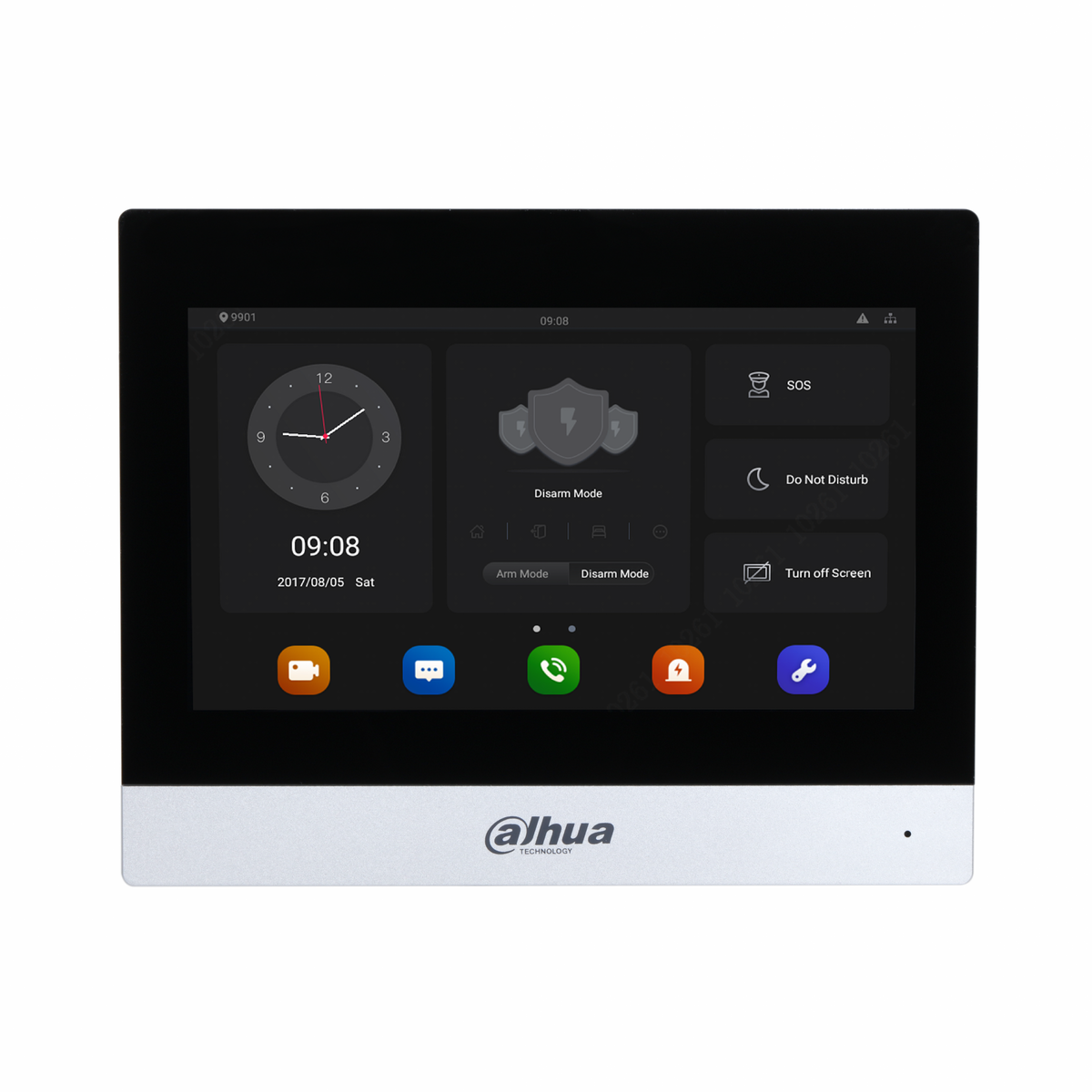

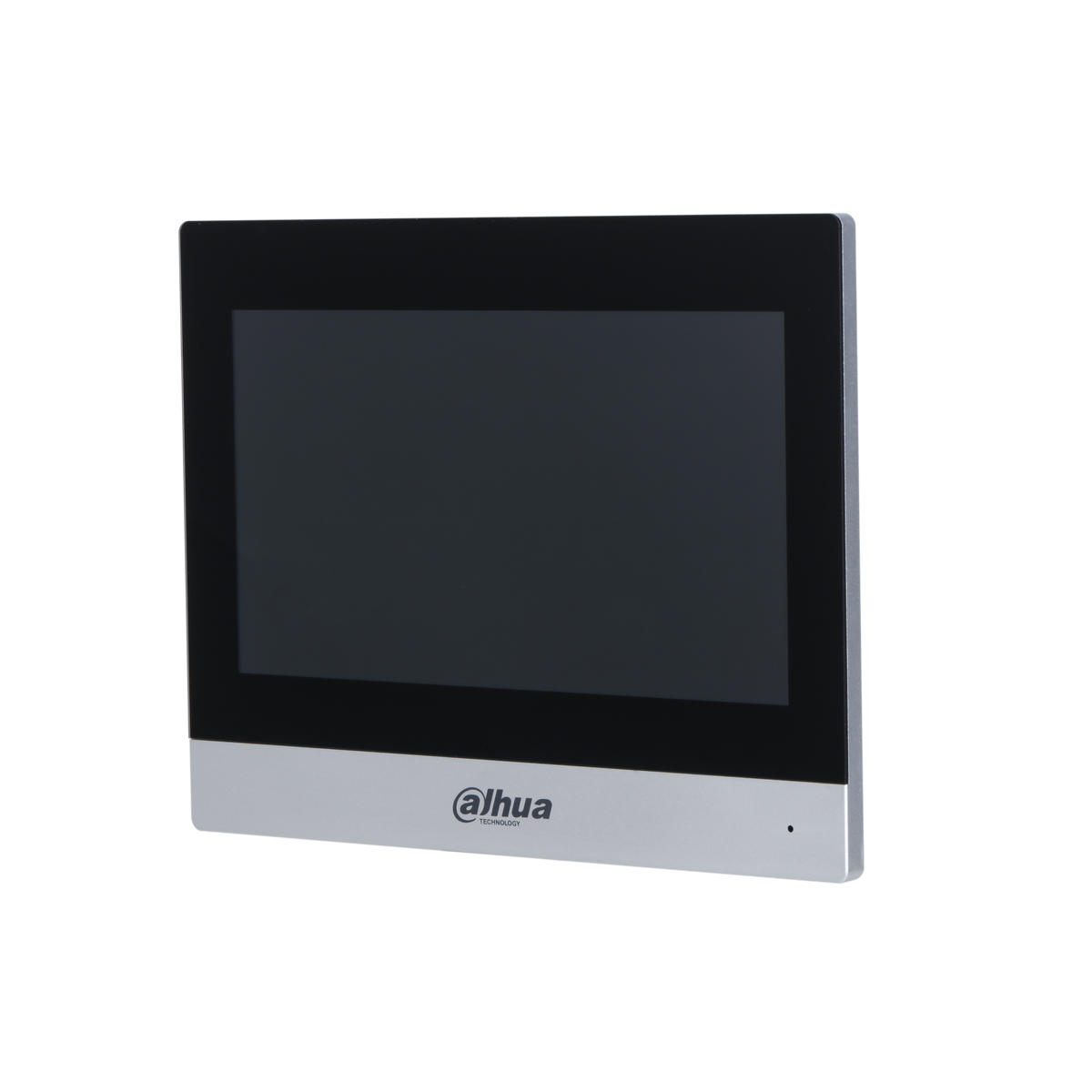

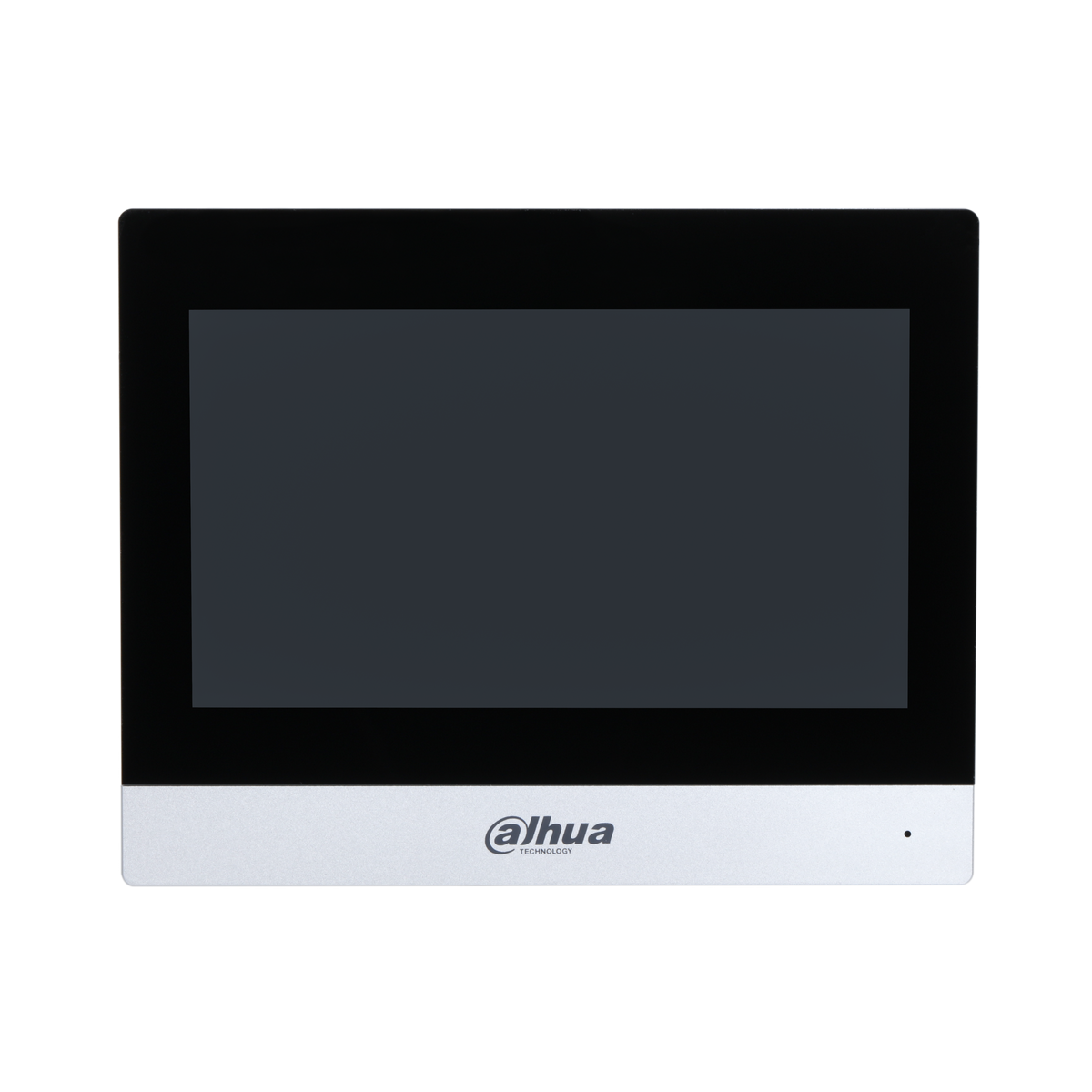

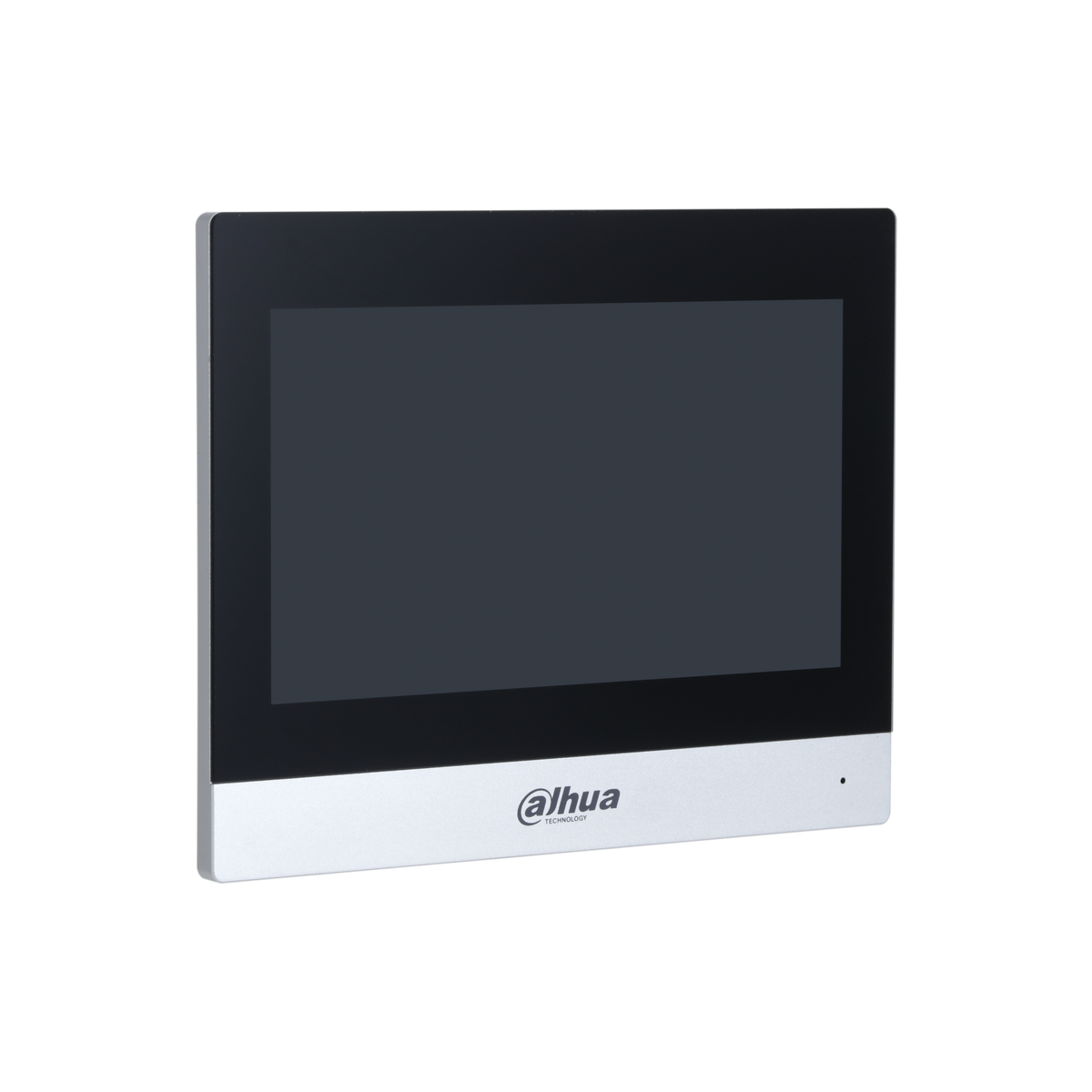

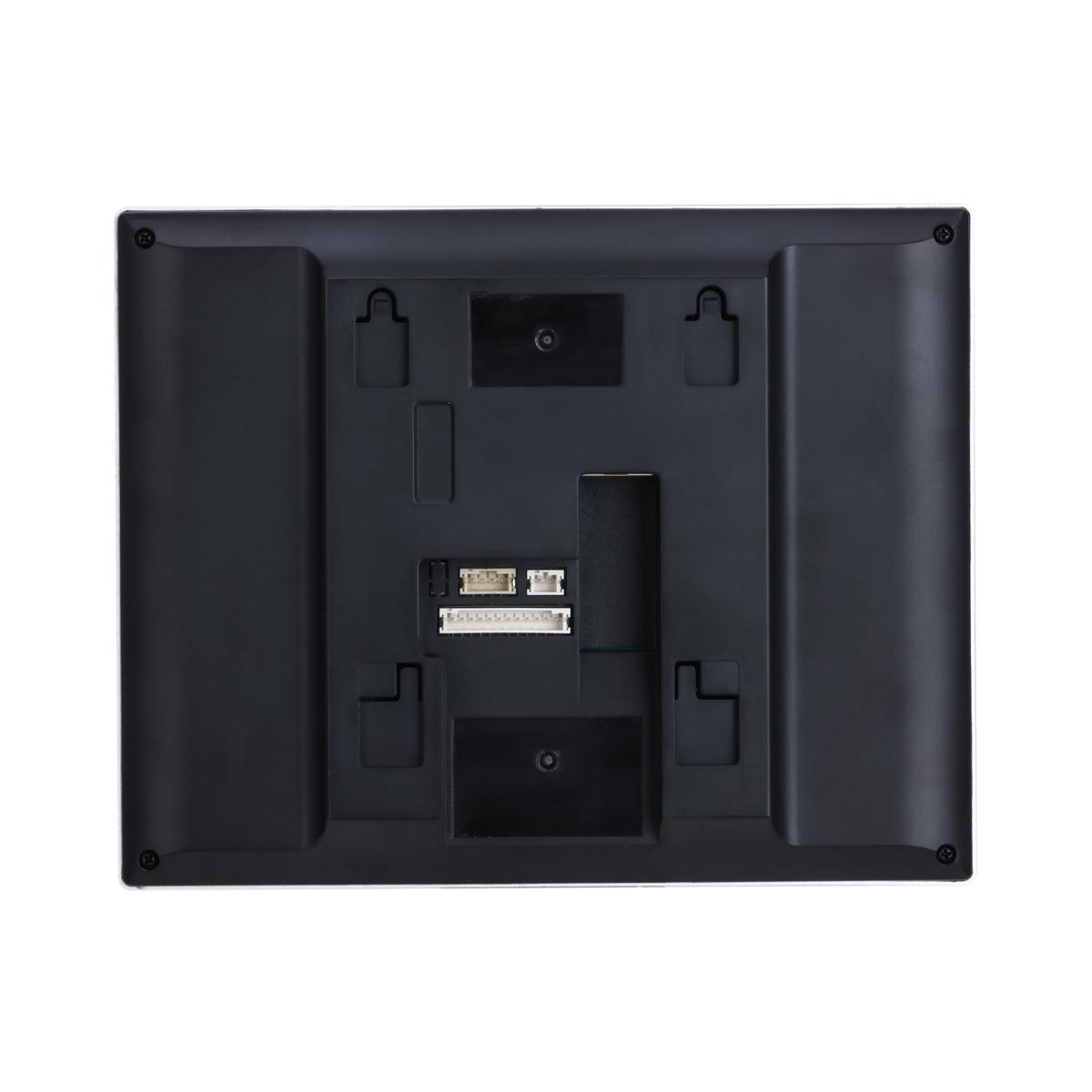

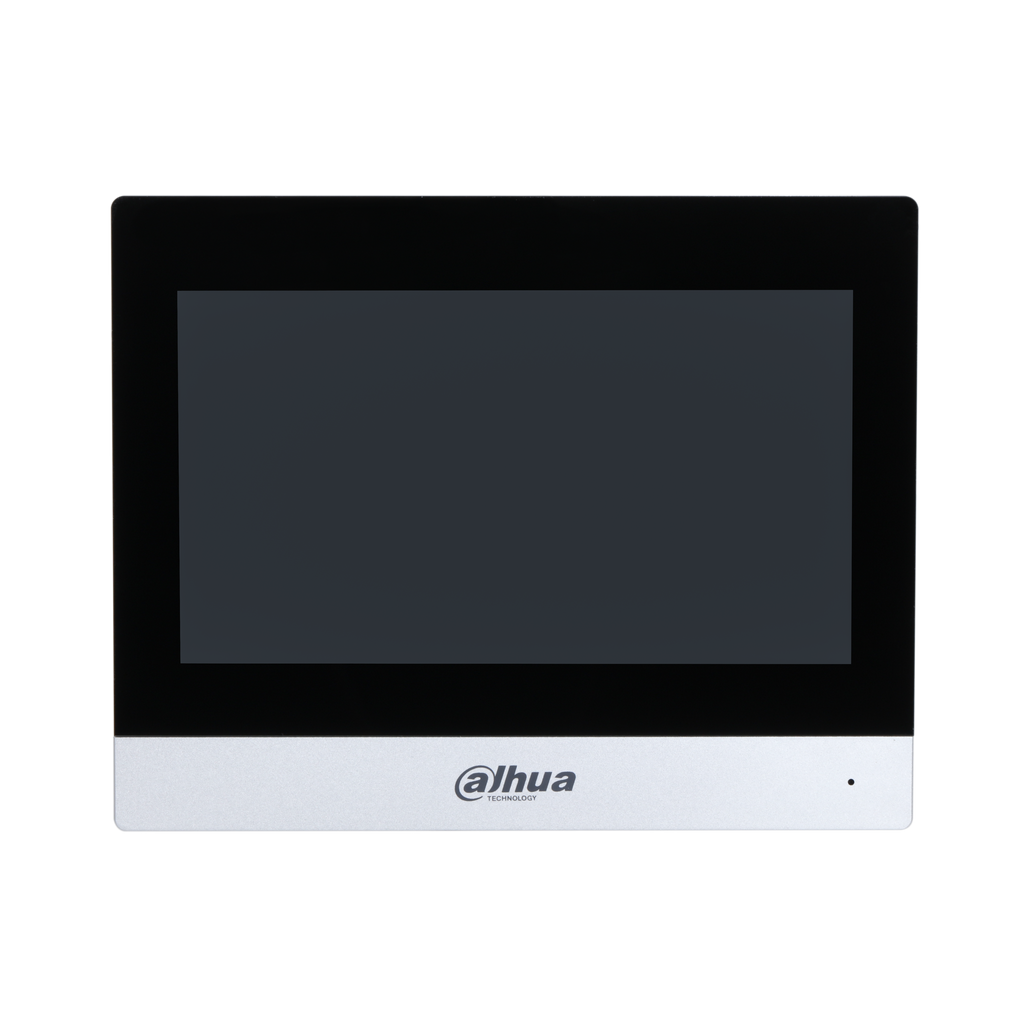

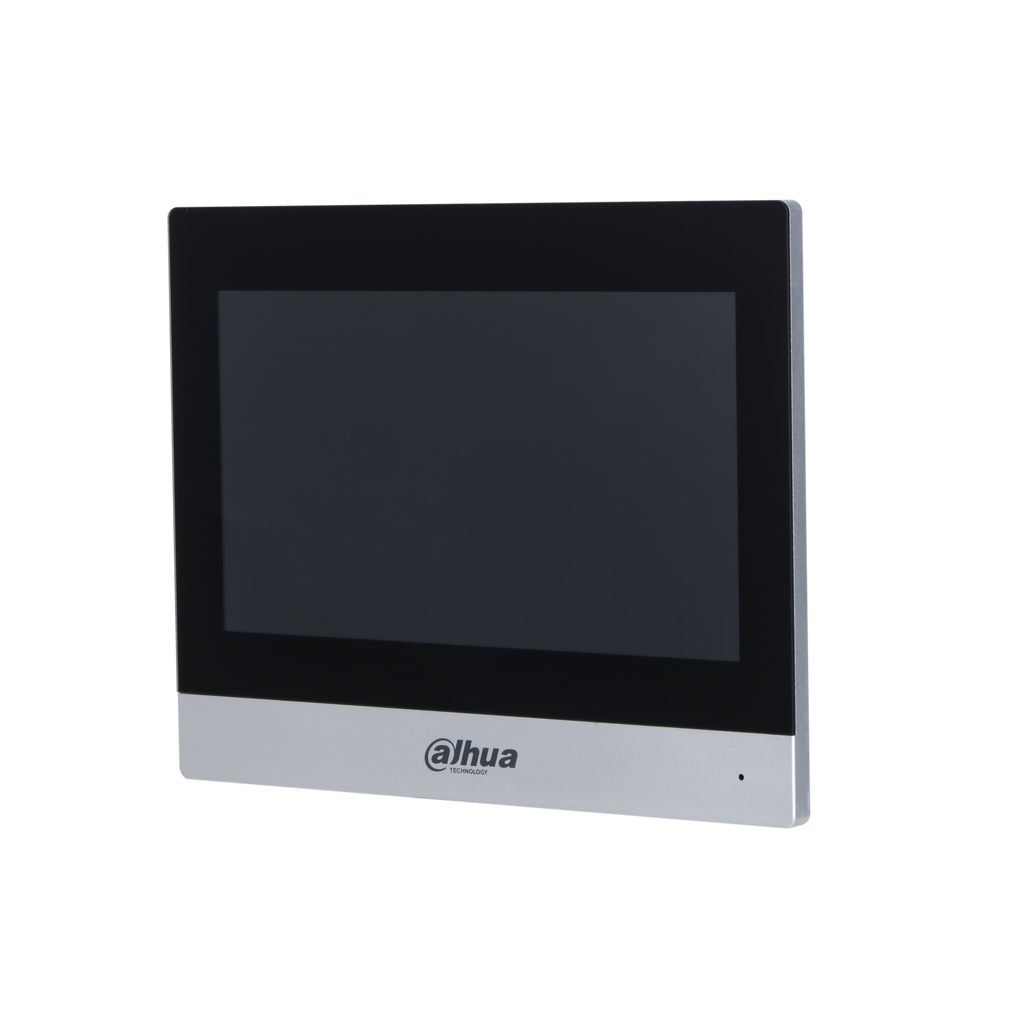

Android IP & Wi-Fi Indoor Monitor – référence VTH8A21KMS-W de la marque Dahua.
Fiche technique
| Processeur | Embedded processor |
|---|---|
| Système d'exploitation | Android 8.1 |
| Protocoles réseau | IPv4; TCP; SIP; UDP; RTSP |
| Screen Type | 7" full-color TFT |
| Résolutions | 1024 (H) × 600 (V) |
| Compression audio | G.711a; G.711u; PCM |
| Entrée audio | 1–ch omnidirectional microphone |
| Sortie audio | Built-in speaker |
| Audio Mode | Two-way voice call |
| Audio Bit Rate | 16 kHz, 16 bit |
| Communication Mode | Full digital |
| Information Release | Receive and view information released by the management center |
| DND Mode | Do not disturb period can be set. |
| Number of Extensions | Villa: 9 Apartment: 4 Wi-Fi intercom: 1 main monitor, 2 extension monitors |
| Wi-Fi | Yes |
| Casing | Alluminum+ ABS |
| Entrée d'alarme | 6 |
| Sortie d'alarme | 1 |
| Port réseau | RJ-45 port, 10/150 Mbps self-adaptive |
| SOS | Yes |
| Appearance Color | Silver |
| Alimentation | 12–24 VDC, 1 A; Standard PoE |
| Power Adapter | Not Standard |
| Installation | Surface |
| Accessory | Surface mount bracket: Included Alarm ribbon cable: Included Power cord: Included RS-485 and power output ribbon cable: Included SD card: Optional (<64G) |
| Dimensions | 185 mm × 147 mm × 23.3 mm (7.28" × 5.79" × 0.92") |
| Température de fonctionnement | –10 °C to +55 °C (+14 °F to +131 °F) |
| Humidité de fonctionnement | 10%–90% (RH), non-condensing |
| Consommation | ≤ 1 W (standby), ≤ 6 W (working) |
| Poids brut | 0.41 kg (0.90 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : VTH8A21KMS-W · Marque : Dahua
