Description et caractéristiques

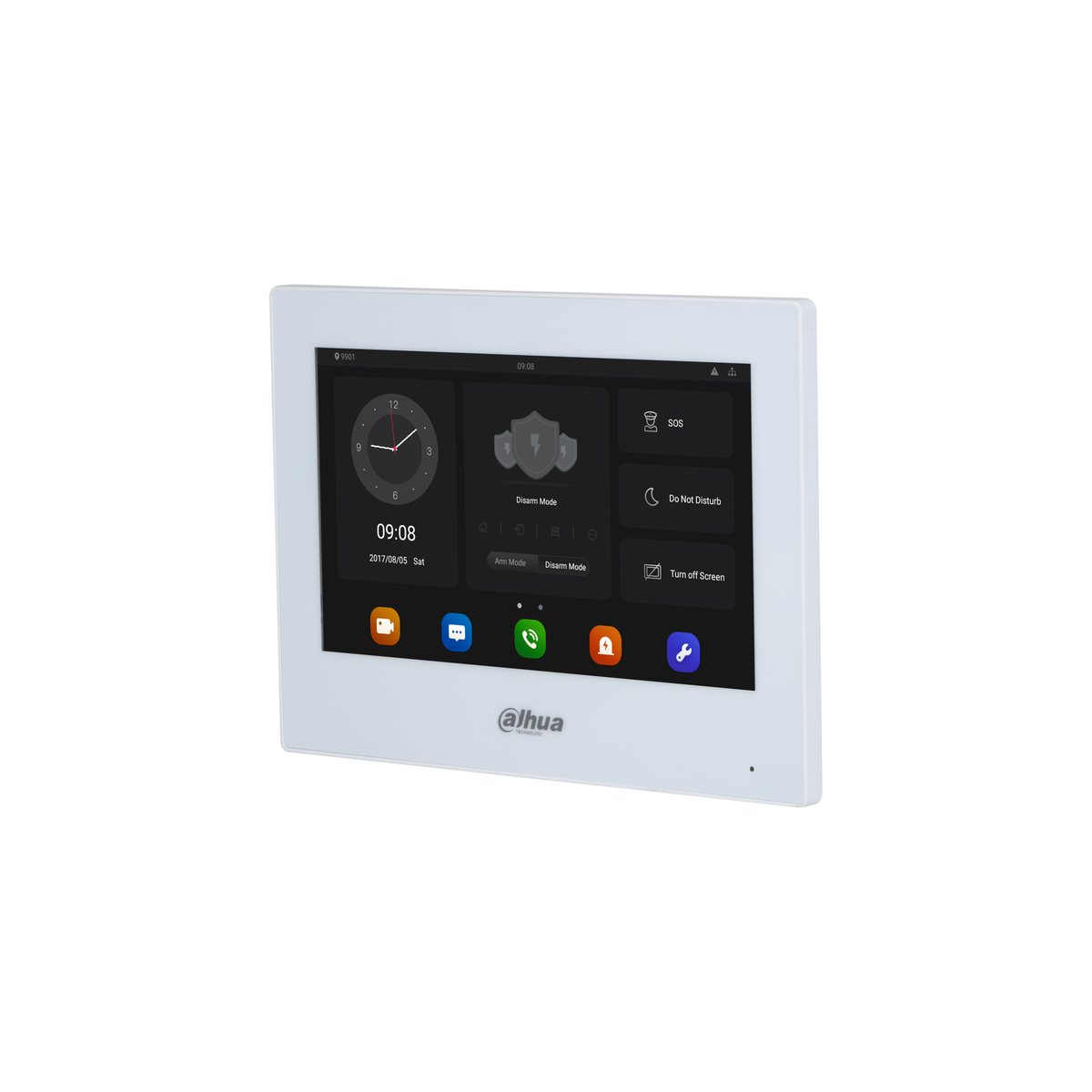

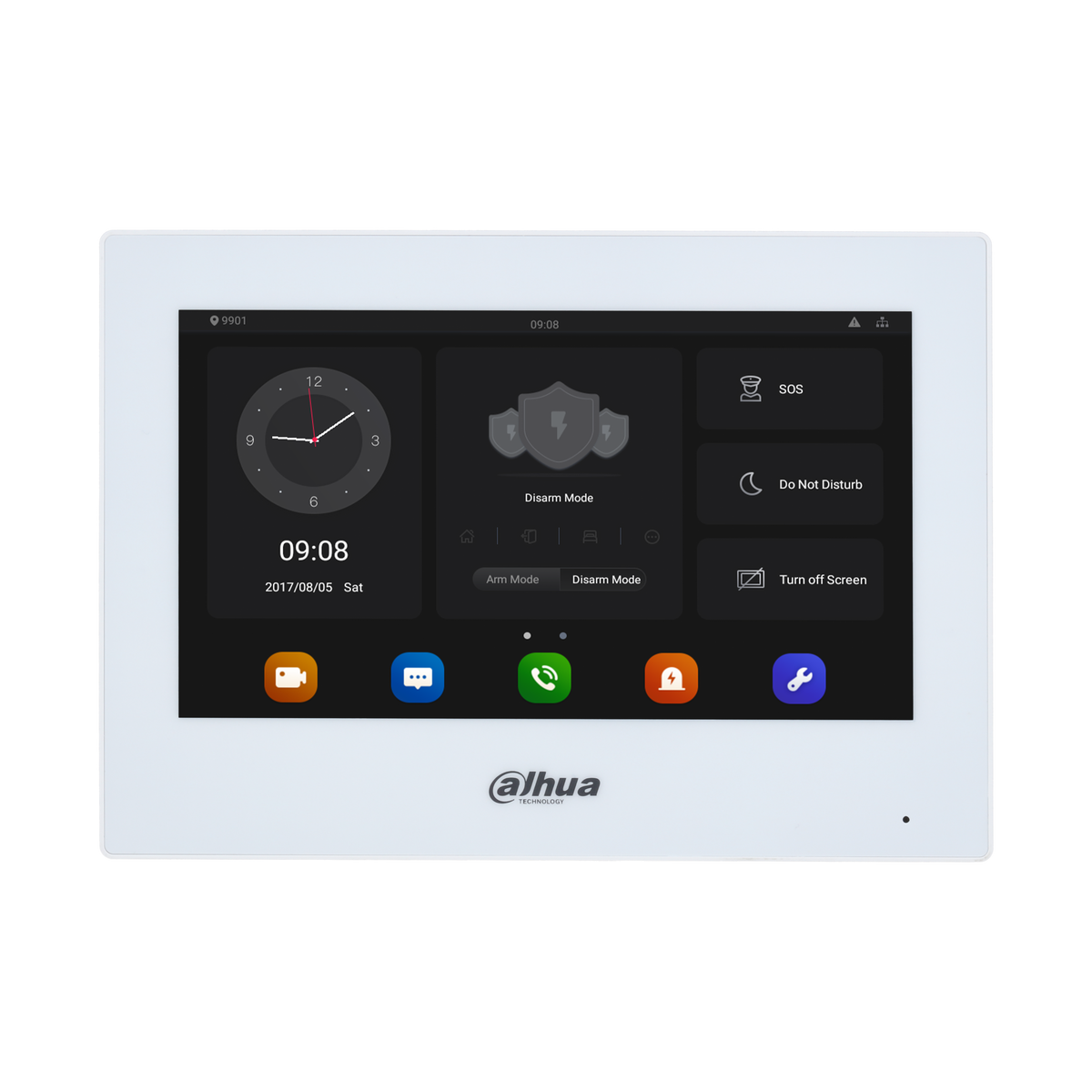

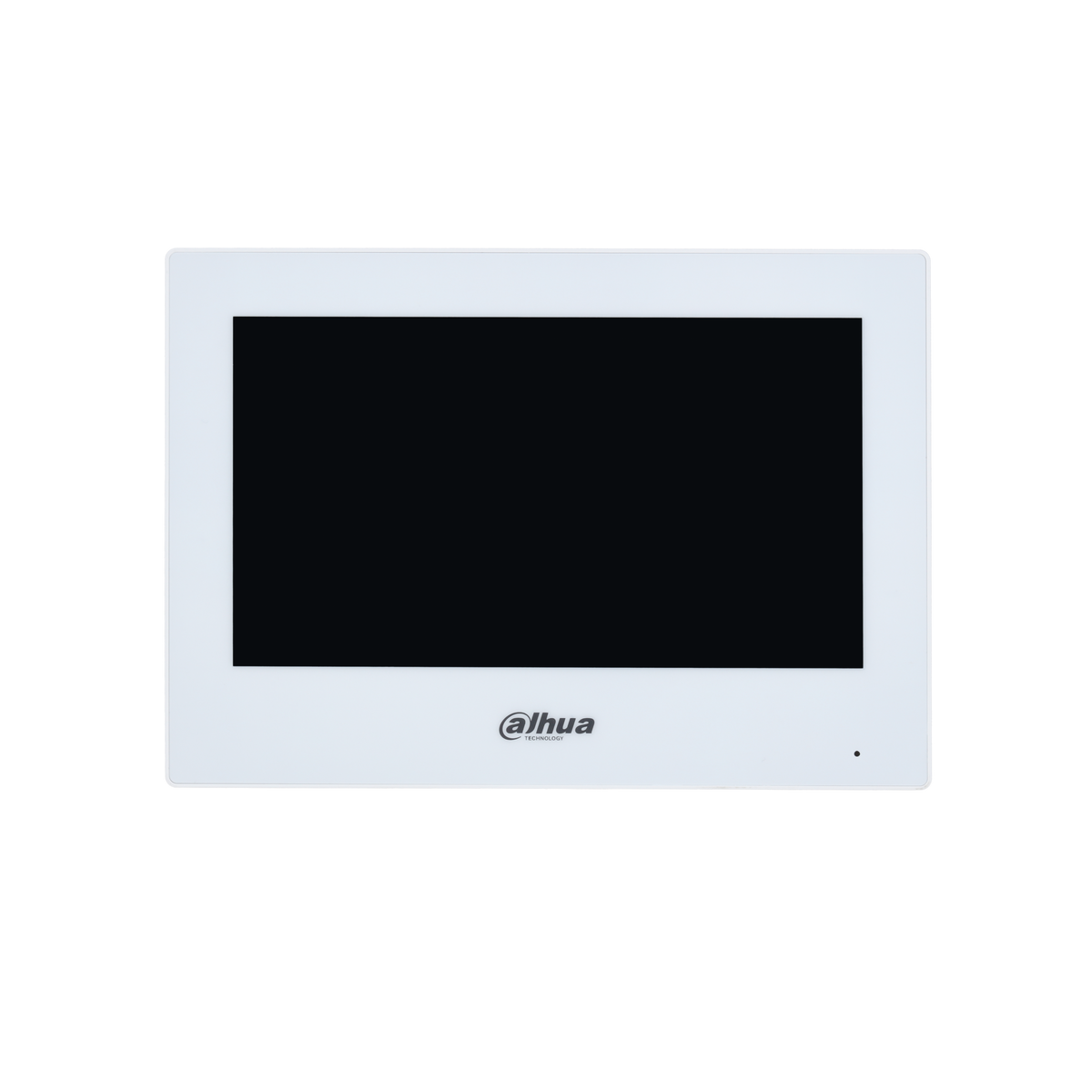

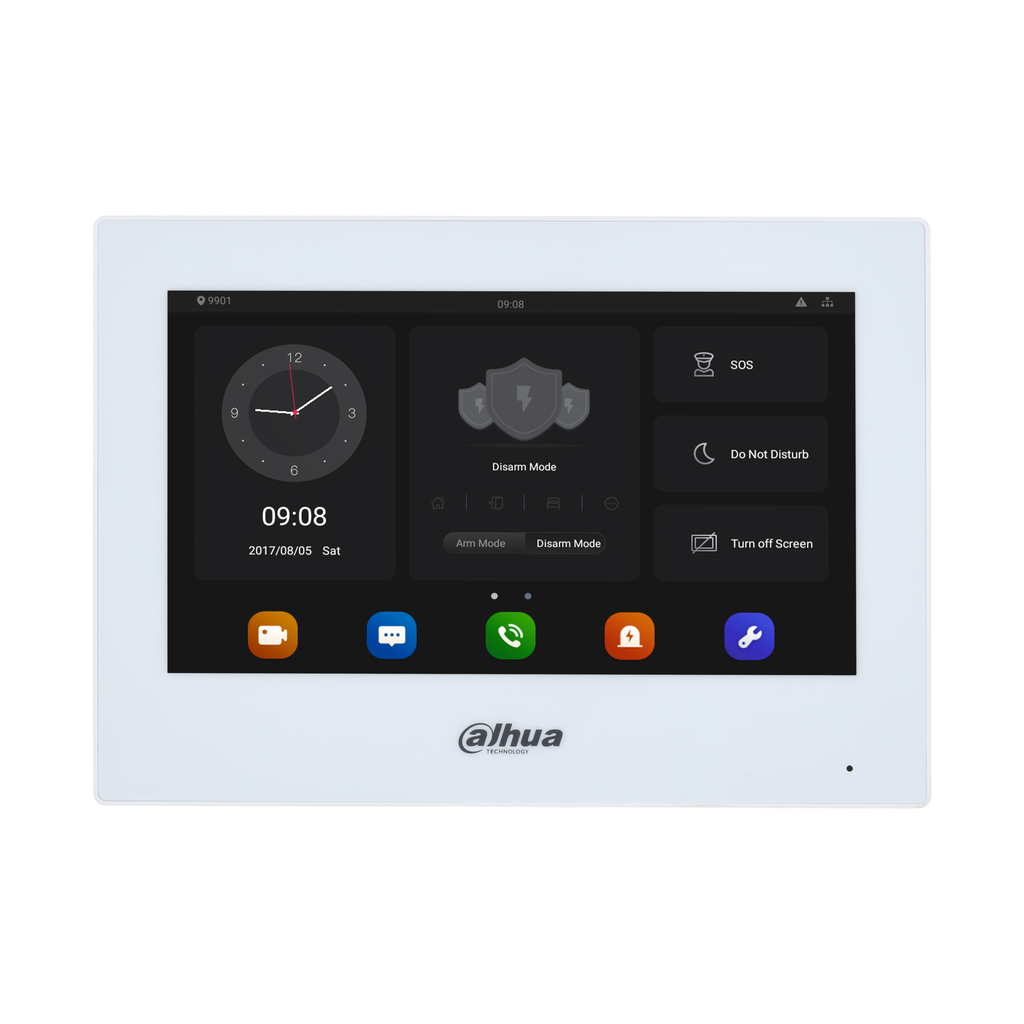

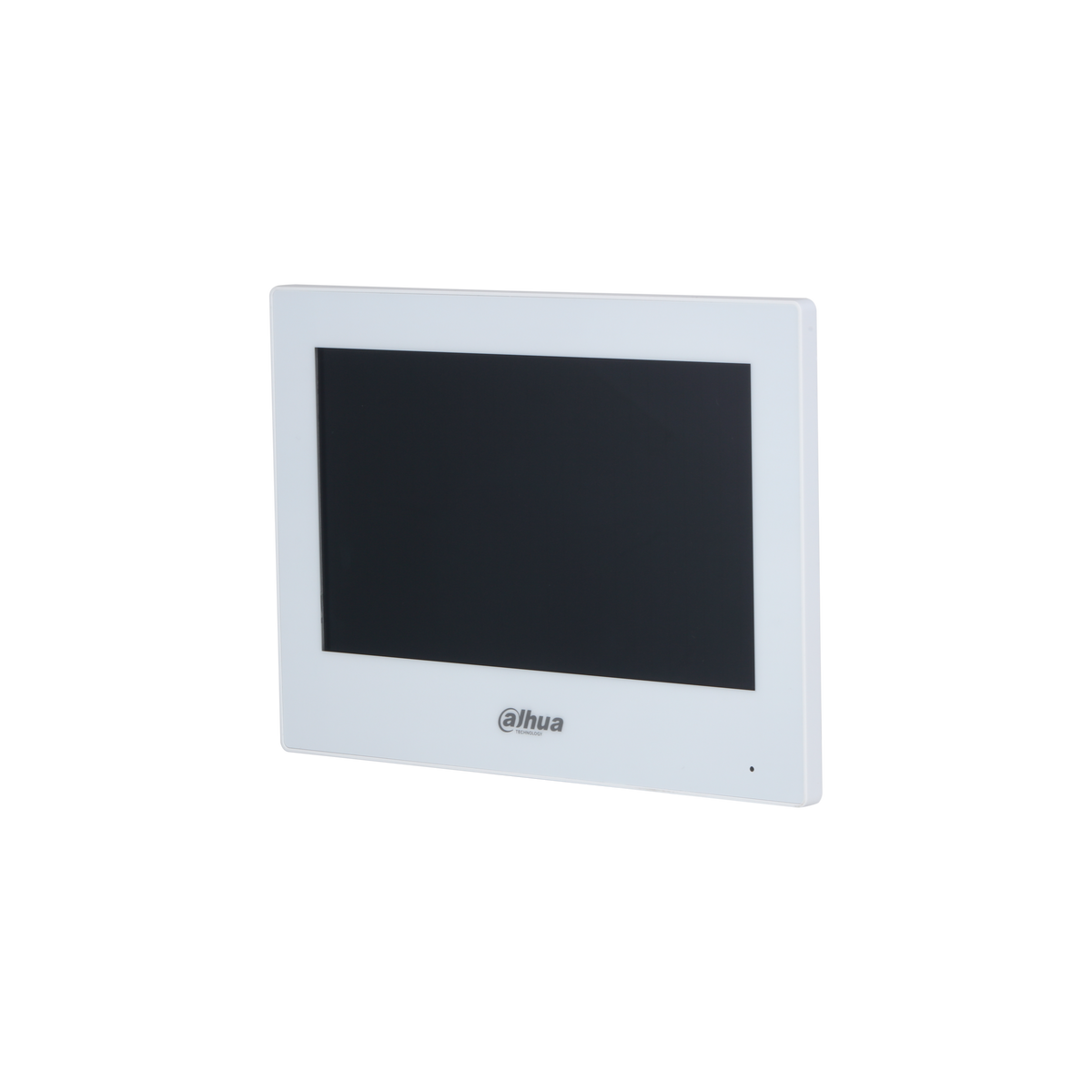

Écran 7" tactile noir
- 1024x600
- Ethernet and Wi-Fi
- Carte Micro SD optionnelle, Max 256GB
Caractéristiques principales
- Type de moniteur : Ecran
- Technologie de moniteur : Moniteur IP, Moniteur Wifi
- Taille de l'écran : Écran 7 pouces
- Alimentation : Alimentation 12 V
- Couleur : Moniteur noir
Fiche technique
| Processeur | Embedded processor |
|---|---|
| Système d'exploitation | Android 8.1 |
| Protocoles réseau | IPv4, TCP, SIP, UDP, RTSP |
| Screen Type | Capacitive screen |
| Display Screen | 7 inch TFT LCD |
| Résolutions | 1024×600 |
| Compression vidéo | H.264 |
| Compression audio | PCM |
| Entrée audio | 1 omnidirectional microphone |
| Sortie audio | Built-in 1W speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/DNR |
| Audio Bit Rate | 16KHz, 16Bit |
| Communication Mode | Full digital |
| Information Release | Text announcements released by the management center can be viewed |
| Elevator Control | You can control the elevator through the indoor monitor |
| Leave Videos or Text Messages | Yes (SD card is needed) |
| DND Mode | Do not disturb period can be set. |
| Extension Number | Villa: 4 (Calls can be made among up to 3 indoor monitors when only Wi-Fi is connected.) Apartment: 9 |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4GHz |
| Wireless Security-Encryption | 64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Stockage | Micro SD storage, the maximum space is 256GB |
| Casing | PC+ABS |
| RS-485 | 1 |
| Entrée d'alarme | 8 |
| Sortie d'alarme | 1 |
| Power Output | 1 12V/100mA |
| Door Bell | Yes, use alarm input port |
| Network | 1 10M/100M Ethernet |
| SOS | Yes |
| Color | White/Black |
| Alimentation | 12V DC 1A POE(802.3AF) |
| Installation | Surface mount |
| Certifications | CE FCC |
| Accessory | Surface mount bracket, alarm ribbon cable, RS-485 cable, and power-supply pins are provided |
| Dimensions | 189.6 mm × 134.6 mm × 26 mm (7.46"×5.30"×1.02") |
| Température de fonctionnement | –10°C to +55°C (+14°F to +131°F) |
| Humidité de fonctionnement | 10%RH–95%RH (Non-condensing) |
| Operating Altitude | Less than 3,000 meters (9842.52 ft) |
| Consommation | ≤1.5W (standby), ≤7W (working) |
| Poids net | 385 g (0.85 lb) |
| Poids brut | 490 g (1.08 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : VTH5321GB-W · Marque : Dahua
