Description et caractéristiques

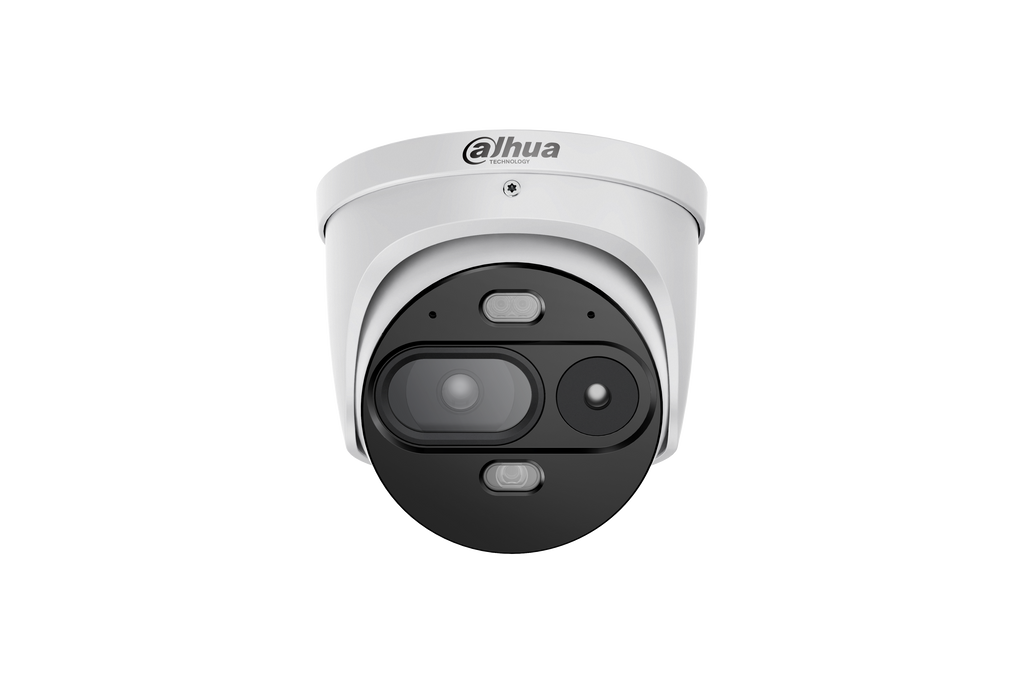

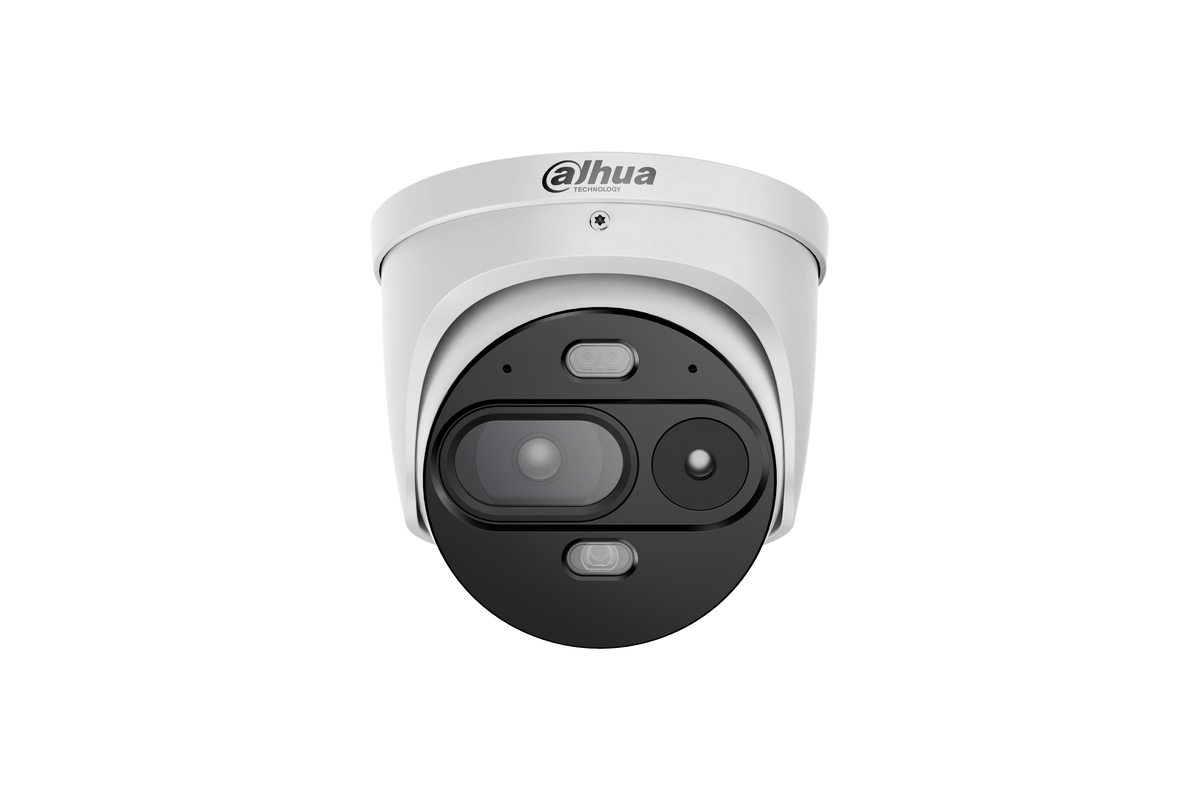

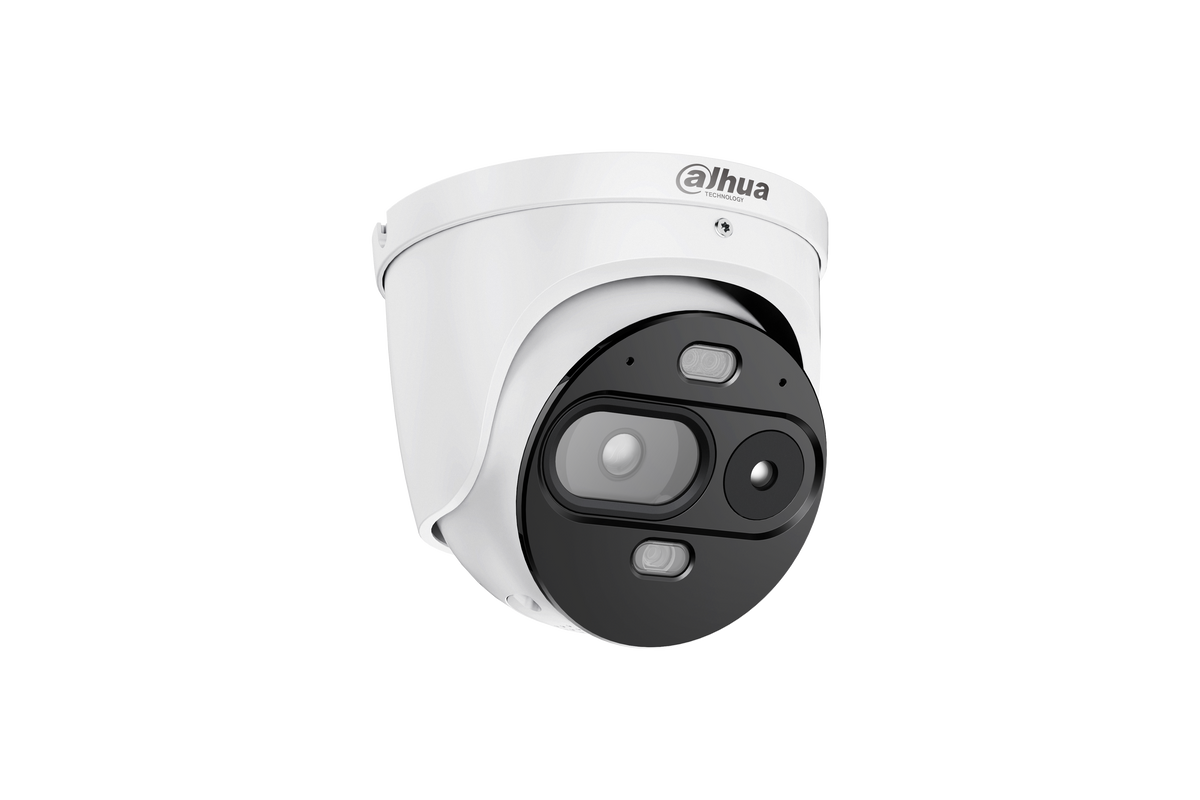

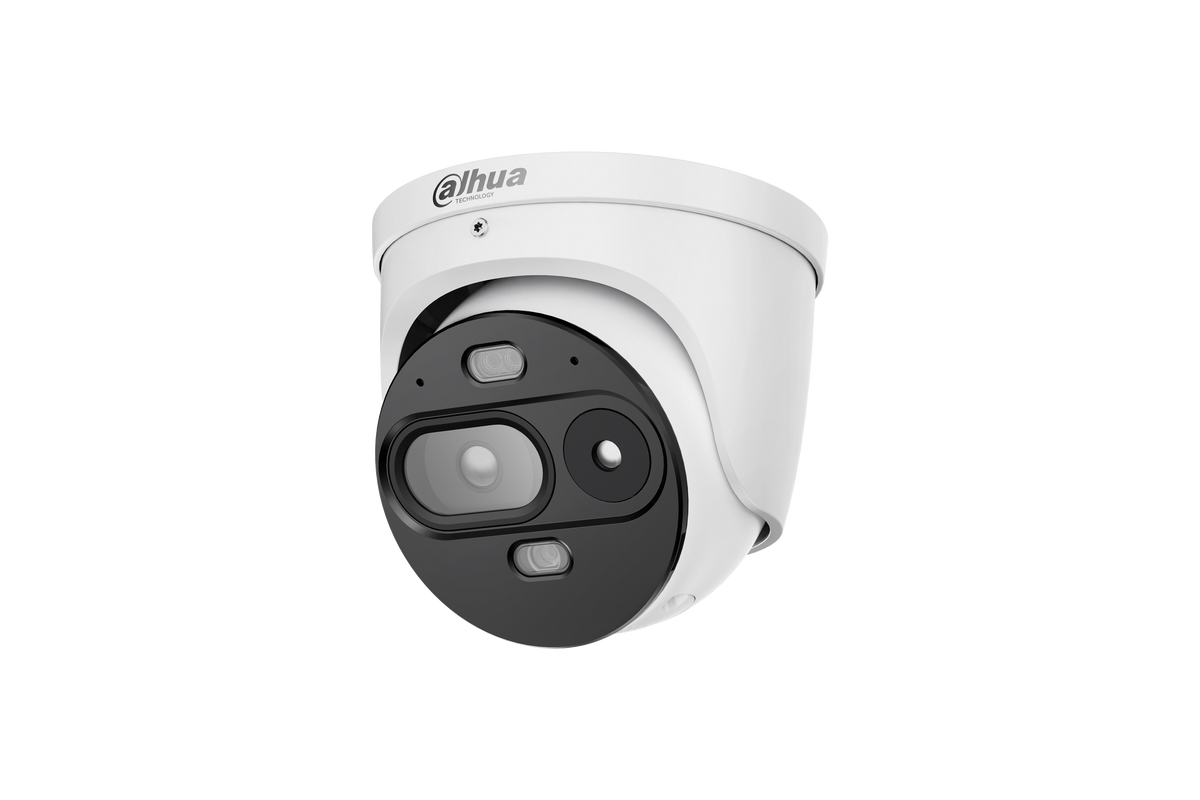

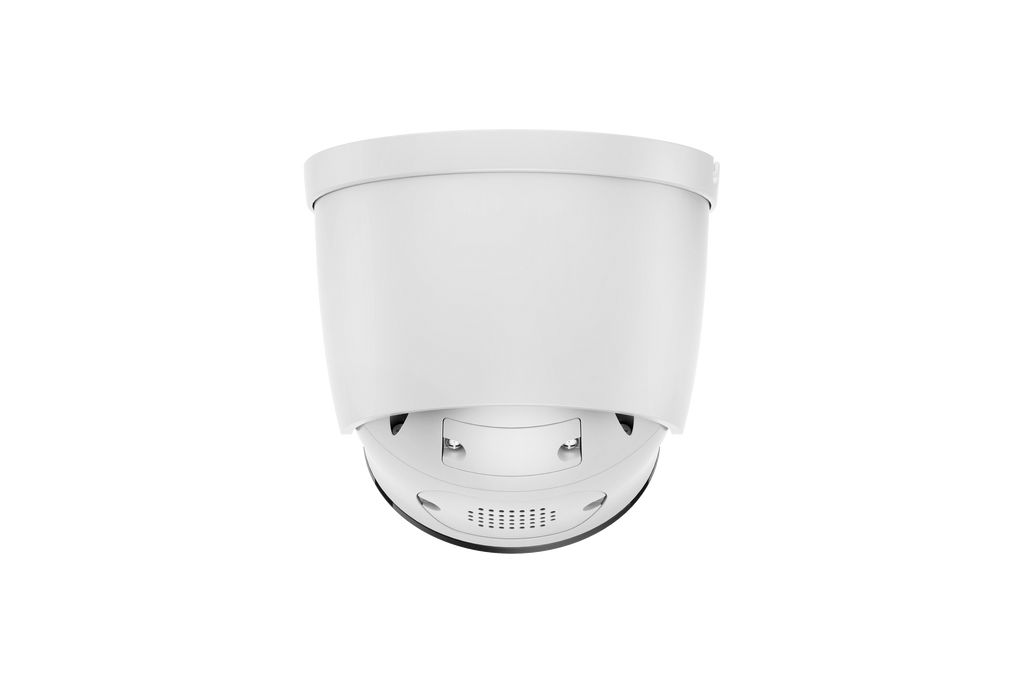

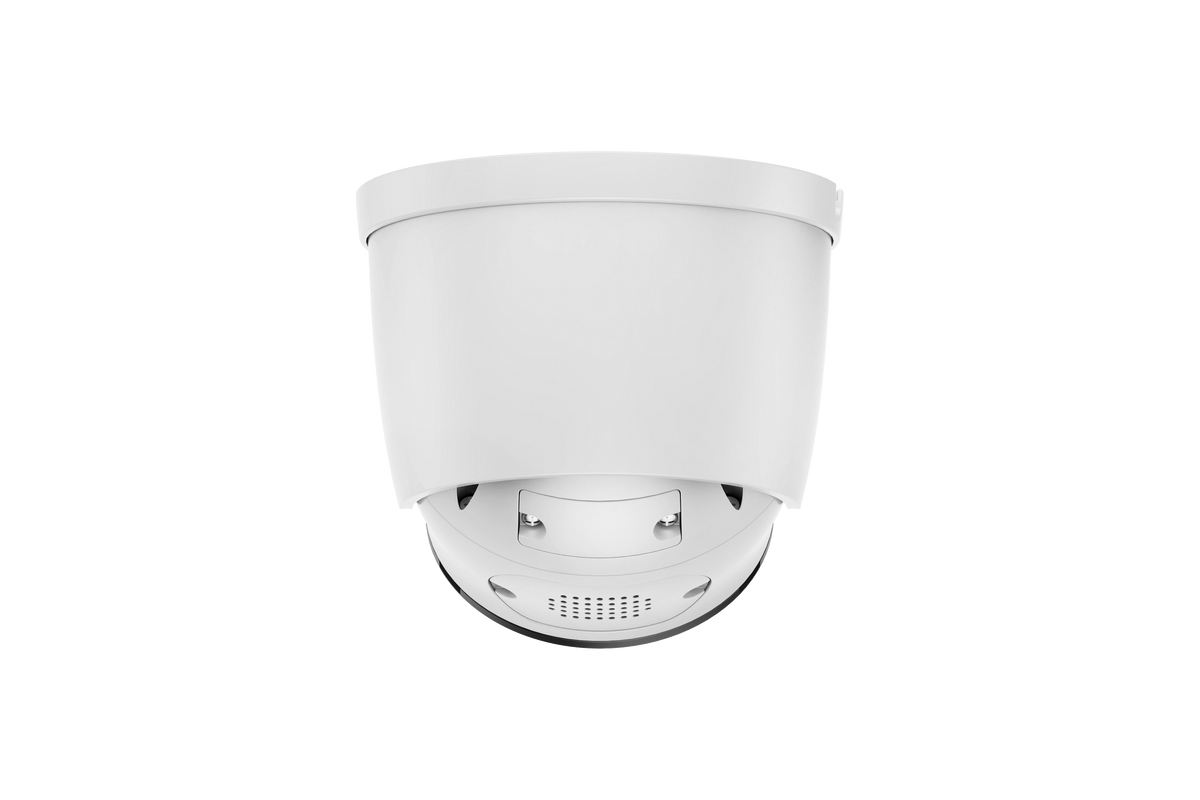

Thermal Network Mini Hybrid Eyeball Camera – référence TPC-DF1241-LB3F4-DW-S8-V1 de la marque Dahua.
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Thermique
- Intelligence Artificielle : WizSense, Protection périmétrique, Détection incendie
- Résolution : 4 MP
- Résolution thermique : 256 x 192
Fiche technique
| Detector Type | Vanadium oxide uncooled focal plane detector |
|---|---|
| Résolution max. | 2688 (H) × 1520 (V) |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Thermal Sensitivity (NETD) | ≤25 mK@f/1.0 |
| Champ de vision | 2.8 mm:H: 112.2°; V: 57.8° 4 mm: H: 88.0°; V: 49.9° 6 mm: H: 59.9°; V: 34.7° |
| Distance mini de mise au point | 2.8 mm: 0.3 m (0.98 ft) 4 mm: 1 m (3.28 ft) 6 mm: 1.7 m (5.58 ft) |
| Aperture | 2.8 mm:F1.65 4 mm: F1.6 6 mm: F1.6 |
| Digital Detail Enhancement (DDE) | Yes |
| Zoom numérique | 16 levels |
| AGC | Auto; Manual |
| Réduction du bruit | 2D NR; 3D NR |
| Image Flip | 0°; 90°; 180°; 270° |
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
| Fusion Mode | Yes (disabled by default) |
| Capteur | 1/1.8" CMOS |
| Pixel | 4 MP |
| Obturateur électronique | 1/30,000 s–1 s |
| Sensibilité (éclairement min.) | Color: 0.05 lux Black & white: 0.005 lux 0 lux (IR on) |
| Portée de l'éclairage | IR: 2.6 mm: 30 m (98.43 ft); 3.5 mm: 30 m (98.43 ft); 7 mm: 50 m (164.04 ft) Warm light: 30 m (98.43 ft) |
| Contrôle de l'éclairage | Auto; Manual |
| Focus Control | Fixed |
| Jour/Nuit | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| Balance des blancs | Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural |
| Rapport signal/bruit | ≥55 dB |
| Région d'intérêt (RoI) | RoI cannot be deleted |
| General Intelligence | Tripwire, Intrusion with Entry/Exit/Appear for human/vehicle, 10 rules total, up to 5 groups (2 rules per group) |
| Advanced Intelligence | Heat (fire) Detection & Alarm Cold & Hot Spot Trace Human & Vehicle Classification Smoking Detection Call Detection Smoke Detection |
| Temperature Range | Low temperature mode: –20 °C to +150 °C(–4 °F to +302 °F) |
| Temperature Accuracy | Max (±8°C, ±8% ） |
| Température de fonctionnement | –40 °C to +65 °C (–40 °F to +149 °F) |
| Compression vidéo | H.265; H.264; H.264H; MJPEG |
| Résolutions | Thermal: Main stream: 1280 × 960; 1024 × 768; 640 × 480; 256 × 192; 1280 × 960 (default); Sub stream: 640 × 480; 256 × 192; 256 × 192 (default) Visible: Main stream: 2688 × 1520; 1920 × 1080; 1280 × 720; 704 × 576; 2688 × 1520 (default); Sub stream: 1280 × 720; 704 × 576; 352 × 288; 352 × 288 (default) |
| Compression audio | G.711a; G.711mu; PCM; AAC |
| Protocol | HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x |
| Edge Storage | Micro SD card (256 G) |
| Interopérabilité | ONVIF; CGI; DaHua SDK |
| Navigateur | IE: IE11 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer) Chrome: 65 and later Firefox: 65 and later |
| Utilisateurs simultanés | 12 |
| Sécurité | Authorized username and password; attached MAC address; HTTPS; IEEE 802.1x; controlled network access |
| Network | 1 × RJ-45 (10/100 Base-T) |
| Entrée audio | 1 |
| Sortie audio | 1 |
| Entrée d'alarme | 2 |
| Sortie d'alarme | 2 |
| RS-485 | 1 pair |
| Local Audio | White light alarm prompts, red and blue light alarm prompts |
| Alimentation | 12 (±20%)–24 VDC; PoE (802.3af) |
| Consommation | Basic: <5.3 W (12 VDC; illuminator off; speaker off; red and blue light off; power output off); 6.5 W (PoE, without power output function) Max: <12 W (12 VDC; illuminator on; speaker on; red and blue light on; power output on); 11.5 W (PoE, without power output function) |
| Power Output | 12 VDC; ≤0.15 A (supported when the device is powered by DC, not supported when powered by POE) |
| Température de stockage | –40 °C to +70 °C (–40 °F to +158 °F) |
| Humidité de fonctionnement | ≤95% |
| Indice de protection | IP67 |
| Anticorrosive Coating | Neutral salt spray test 240 h |
| Niveau anticorrosion | Basic Protection *The products are designed for general use in areas that have no specific requirements for anti-corrosion protection. |
| Dimensions | 122 mm × 122 mm × 117.4 mm (4.80" × 4.80" × 4.62") (L × W × H) |
| Packaging Dimensions | 155 mm × 155 mm × 135 mm (6.1" × 6.1" × 5.31") (L × W × H) |
| Poids net | ≤0.9 kg (1.98 lb) |
| Poids brut | ≤1 kg (2.20 lb) |
| Focale | Identification Distance ③ |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : TPC-DF1241-LB3F4-DW-S8-V1 · Marque : Dahua
