Description et caractéristiques

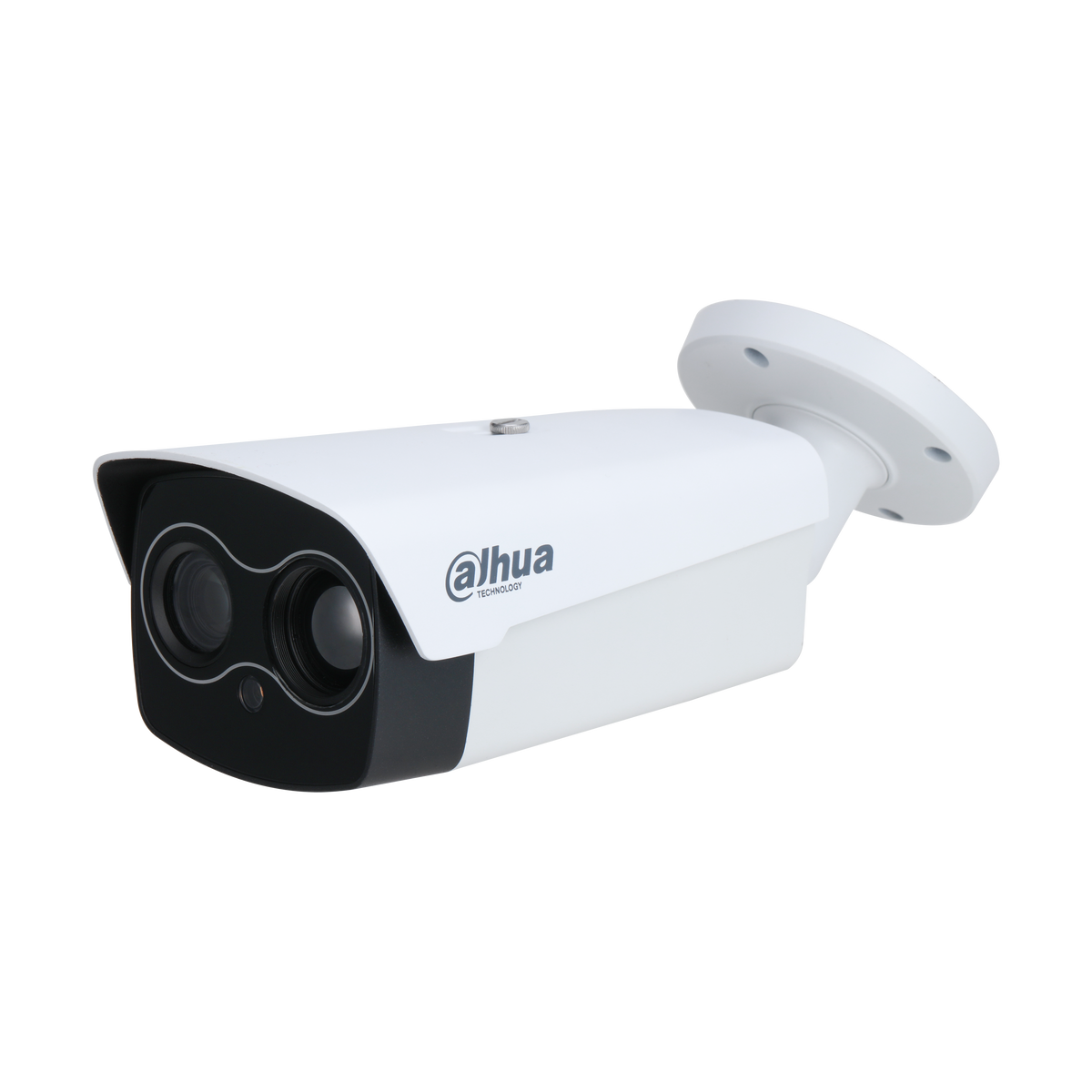

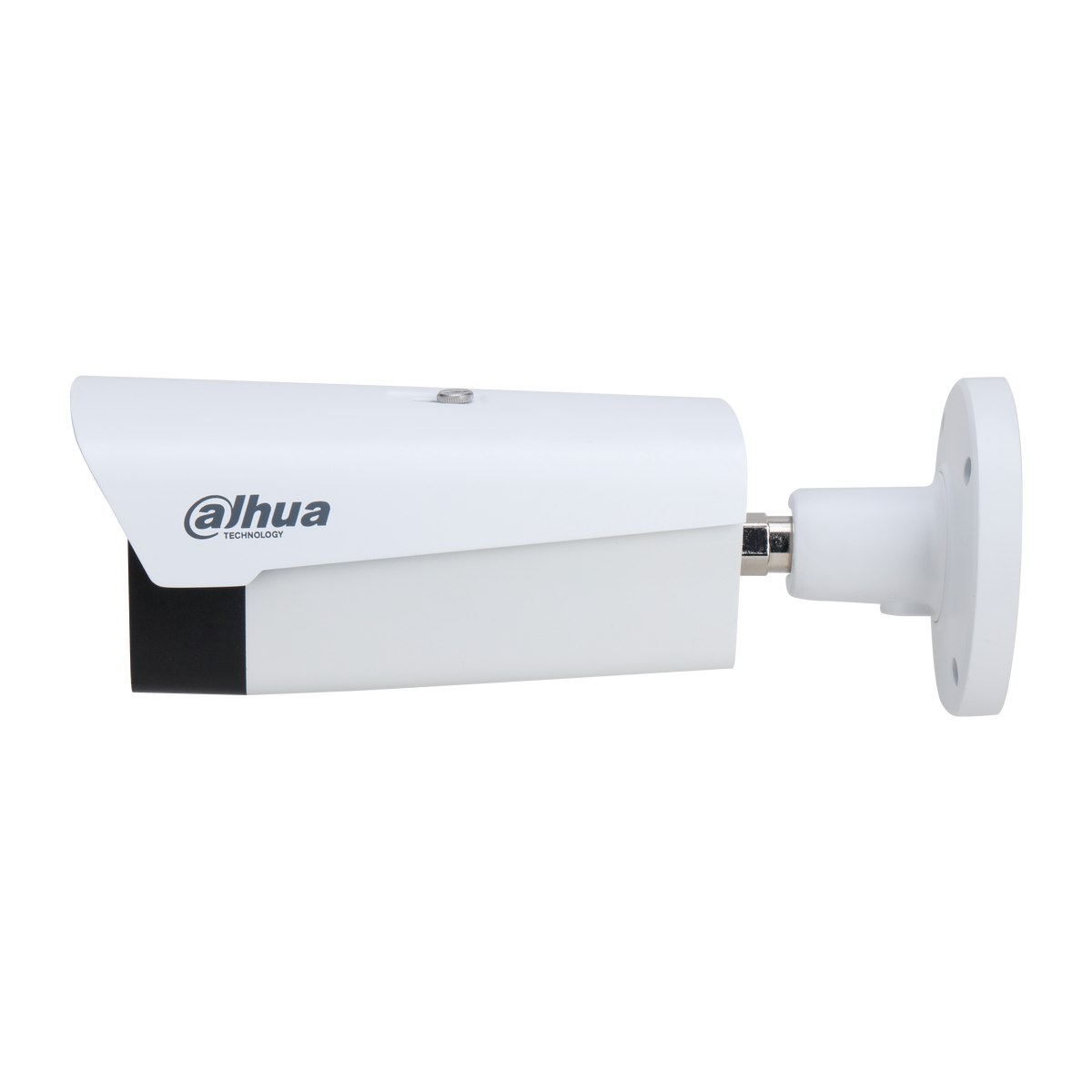

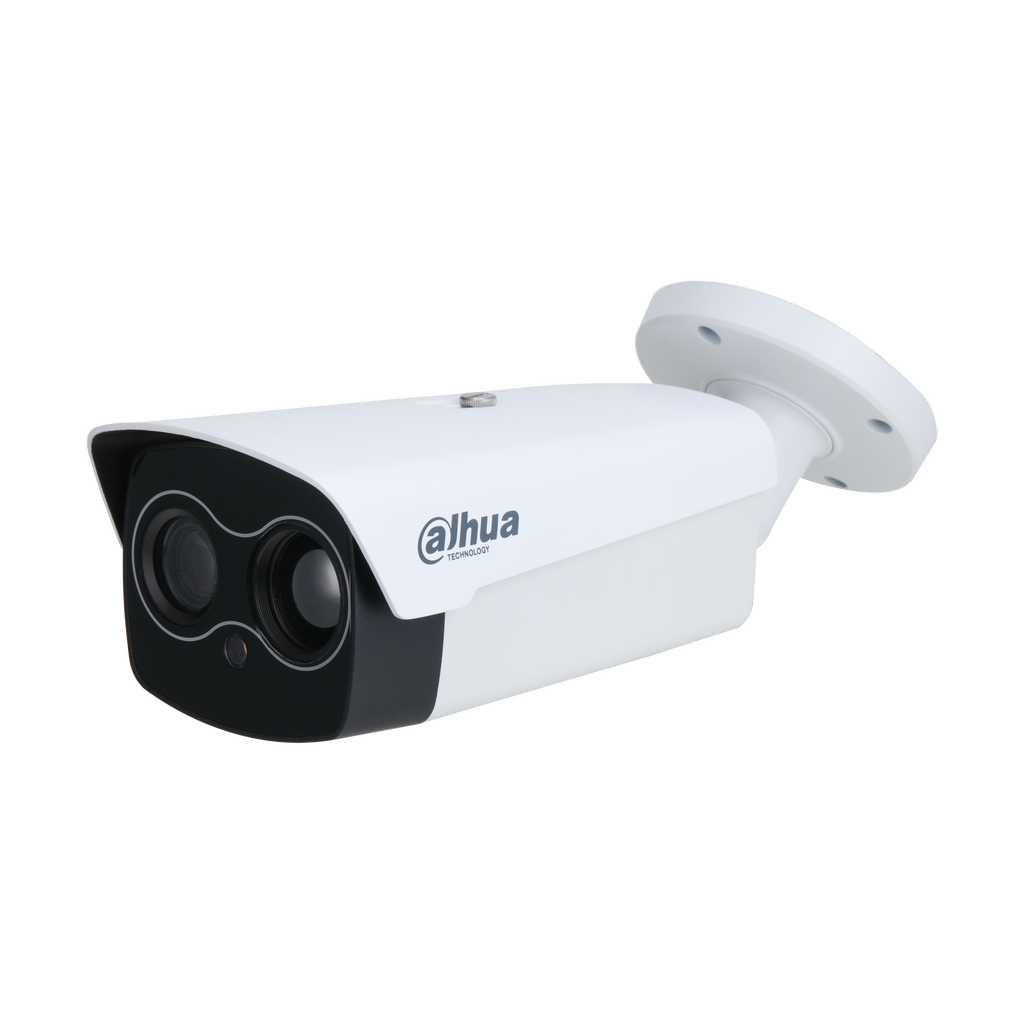

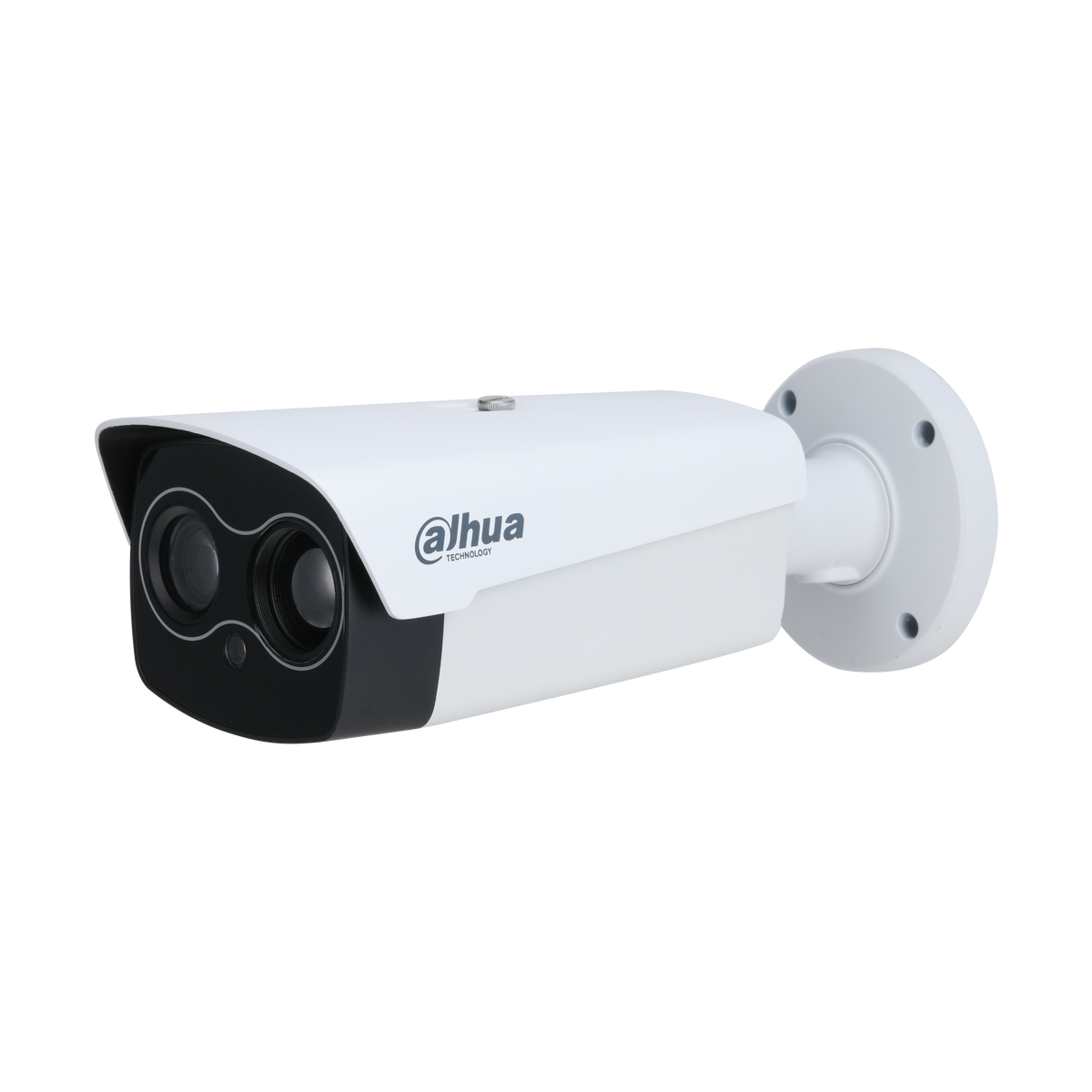

Tube IP Thermique double capteur blanc
- 1 x Capteur Thermique de 13mm en 400x300 Pxls
- 1 x Capteur 4 Mpxls avec focale 6mm
- IR 80m
- Protection périmétrique
- IP67
- POE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Thermique
- Intelligence Artificielle : Protection périmétrique
- Résolution : 4 MP
- Résolution thermique : 400 x 300
Fiche technique
| Detector Type | Vanadium oxide uncooled focal plane detector |
|---|---|
| Effective Pixels | 400 (H) × 300 (V) |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 μm–14 μm |
| Sensitivity (NETD) | ≤35 mK (@f/1.0) |
| Champ de vision | 4 mm: H: 87.0°; V: 47.3° 6 mm: H: 55.3°; V: 30.0° 12 mm: H:37.3°; V: 21.4° 10–30 mm: H: 42°–15°;V: 23°–8.4° |
| Thermal Focus Control | Fixed-focal |
| Distance mini de mise au point | 4 mm: 1.2 m (3.93 ft) 6 mm: 2.5 m (8.20 ft) 12 mm: 7.4 m (24.27 ft) 10–30 mm: 9 m (29.53 ft) |
| Digital Detail Enhancement (DDE) | Yes |
| Zoom numérique | 19 levels |
| Thermal AGC | Auto/Manual |
| Thermal Noise Reduction | 2D NR/3D NR |
| Image Flip | 180°; Mirror |
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
| Capteur | 1/1.8" CMOS |
| Résolution max. | 2688 (H) × 1520 (V) |
| Pixel | 4 MP |
| Horizontal Definition | ≥1100 TVL |
| Sensibilité (éclairement min.) | Color: 0.01 lux Black & white: 0.001 lux 0 lux (white light on) |
| Visible AGC | Auto/Manual |
| Visible Noise Reduction | 2D NR/3D NR |
| Rapport signal/bruit | >55 dB |
| Balance des blancs | Auto; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural |
| Defog | Electronic defog |
| Obturateur électronique | 1 s–1/30,000 s (auto/manual) |
| BLC | Yes |
| WDR | Yes |
| HLC | Yes |
| Jour/Nuit | Auto (ICR); Color; B/W |
| Iris | Fixed |
| Exposure Compensation | Yes |
| Visible Focus Control | Fixed-focal |
| Aperture | 4 mm: F1.6 6 mm: F1.6 12 mm: F1.7 10–30 mm: F1.7 |
| Contrôle de l'éclairage | Auto; manual |
| Portée de l'éclairage | 80 m (262.47 ft) |
| Compression vidéo | H.265; H.264M; H.264H; H.264B |
| Résolutions | Thermal: Main stream: 1280 × 1024; 1280 × 960; 1280 × 720; 400 × 300; 1280 × 960 (default) Sub stream: 640 × 512; 640 × 480; 400 × 300; 400 × 300 (default) Visible: Main stream: 2688 × 1520; 2560 × 1440; 1920 × 1080; 1280 × 720); 704 × 576; 2560 × 1440 (default) Sub stream: 704 × 576; 352 × 288; 704 × 576 (default) |
| Compression audio | G.711a; G.711 mu |
| Image Encoding Format | JPEG |
| Two-way Audio | Yes |
| Sound and Light Alarm | Local audio and white light alarm prompts |
| Protocoles réseau | IPv4/IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE |
| Région d'intérêt (RoI) | Yes (customizable) |
| Stockage | FTP; Micro SD card (512 GB, hot swapping) |
| Interopérabilité | ONVIF; CGI; DaHua SDK |
| Navigateur | IE; Firefox; Chrome; Safari |
| Utilisateurs simultanés | Up to 20 (total bandwidth: 64 MB) |
| Sécurité | Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access |
| User Management | Up to 20 users; supports multi-level user permissions (2 levels): management group and user group |
| Malfunction Detection | Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Fusion Mode | Yes. Off by default |
| PIP | Yes |
| Heat Detection | Yes |
| Cold/Hot Spot Trace | Yes |
| Perimeter Protection | Yes. Supports tripwire and intrusion. |
| Target Distinction | Human/Vehicle Classification |
| Smoke Detection | Yes |
| Analog Output | 1 × CVBS output; BNC port (not supported by the device with a junction box) |
| Port réseau | 1 × RJ-45 (10/100 Base-T) |
| Entrée d'alarme | 2 |
| Sortie d'alarme | 2 |
| Entrée audio | 1 |
| Sortie audio | 1 |
| RS-485 | 1 |
| Alimentation | 12 VDC ± 20%, PoE (802.3af), ePoE, PoE+ |
| Consommation | Basic: 5 W (12 VDC); 8.9 W (PoE) Max: 15 W (12 VDC); 18 W (PoE) |
| ePoE | Yes |
| Température de fonctionnement | –30 °C to +70 °C (–22 °F to +158 °F) |
| Humidité de fonctionnement | ≤95% |
| Température de stockage | –40 °C to +70 °C (–40 °F to +158 °F) |
| Indice de protection | IP67 |
| Reliability | Surge protection: 6 kV Air discharge: 15 kV Contact discharge: 8 kV |
| Dimensions | 300.9 mm × 130.2 mm × 120.1 mm (11.85" × 5.13" × 4.73") (L × W × H) |
| Packaging Dimensions | 423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") (L × W × H) |
| Poids net | ≤2.35 kg (5.18 lb) |
| Poids brut | ≤2.7 kg (5.95 lb) |
| Objectif | Included |
| Certifications | Distance (Human) |
| Focale | Identification Distance ③ |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : TPC-BF5441-B13F6-BM-S2 · Marque : Dahua
