Description et caractéristiques

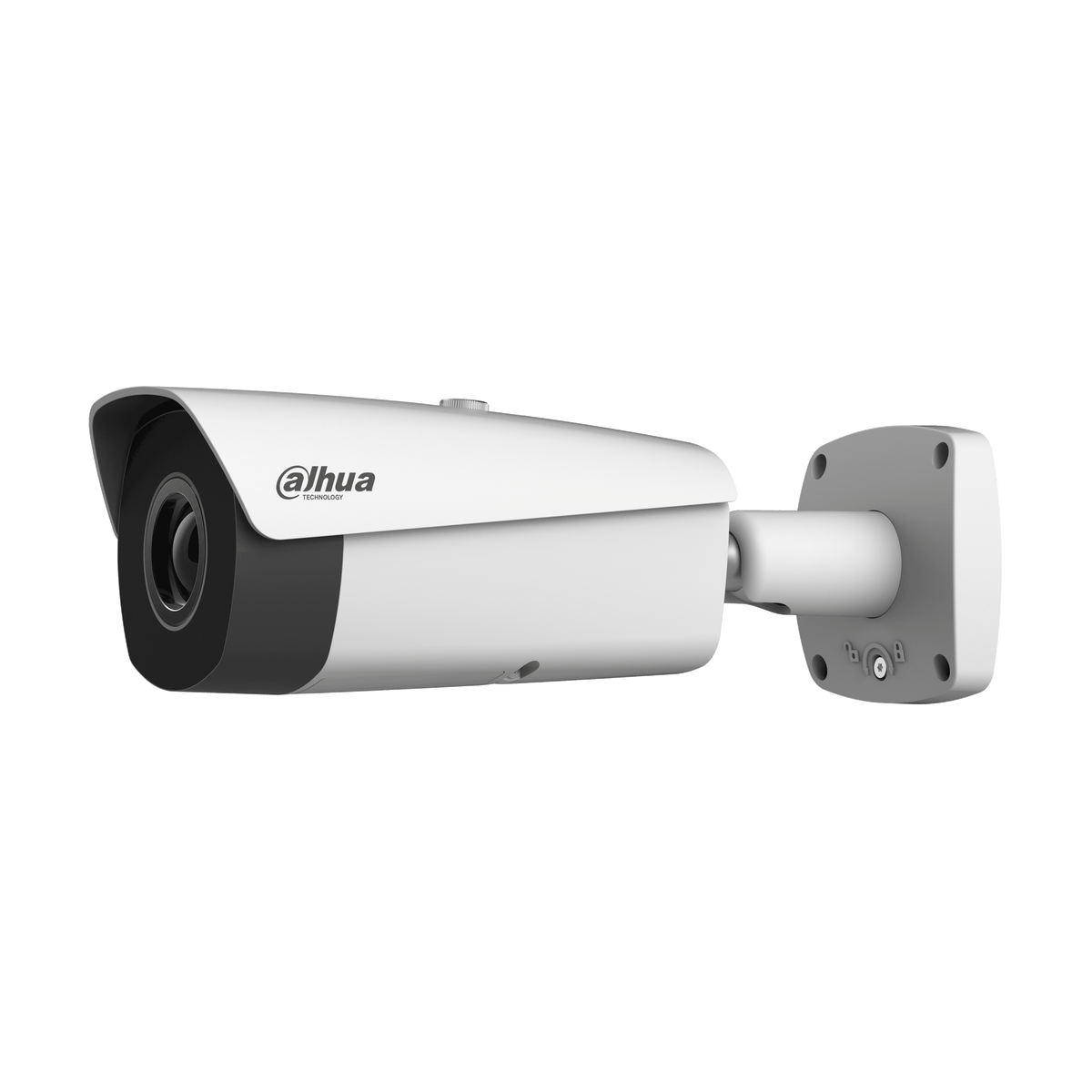

Tube Thermique IP blanc
- FF 13mm
- 430x300 Pxls
- IP67
- POE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Thermique
- Résolution thermique : 400 x 300
- Focale thermique : 13 mm
- Audio : Entrée audio, Sortie audio
Fiche technique
| Capteur | Uncooled VOx Microbolometer |
|---|---|
| Effective Pixels | 400(H)x300(V) |
| Pixel Size | 17um |
| Thermal Sensitivity(NETD) | 40mK |
| Spectral Range | 8~14um |
| Image Setting | Brightness/Sharpness/ROI/AGC/FFC/3D DNR |
| Color Palettes | 18(Whitehot/Blackhot/Ironrow/Icefire/ Fusion/Rainbow/Globow/Iconbow1/ Iconbow2 .etc) |
| Type d'objectif | Fixed/F1.0 |
| Focus Control | Athermalized, Focus-free |
| Focale | 35mm |
| Angle of View | H: 11.1° V: 8.3° |
| Effective Distance① Man(1.8m*0.5m) | D: 1030m R: 265m I: 132m |
| Effective Distance Vehicle(4m*1.4m) | D: 2288m R: 588m I: 294m |
| Compression | G.711A / G.711Mu / AAC / PCM |
| Frame Rate | Main Stream: Thermal: 1280x1024 / 720P / 400x300 @25/30fps |
| Contrôle du débit | CBR/VBR |
| Bit Rate | H.264: 640 ~ 8192Kbps |
| Détection de mouvement | Off/On (4 zone, Rectangle) |
| Region of Interest | Off/On (4 zone) |
| Electronic Image Stabilization (EIS) | NA |
| Zoom numérique | 4x(19 levels) |
| Flip | 180° |
| Miroir | Off/On |
| Masques de confidentialité | Off/On (4 area, Rectangle) |
| IVS | Tripwire, Intrusion |
| Advanced Intelligent Functions | Fire detection & alarm, Cold/Hot spot trace, Human/Vehicle classification |
| Ethernet | RJ-45 |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Interopérabilité | ONVIF Profile S & G, API |
| Streaming Method | Unicast/Multicast |
| Max. User Access | 10 Users/20 Users |
| Edge Storage | Micro SD (256GB) Memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording |
| Web Viewer | > IE8, |
| Logiciels de gestion | SmartPSS, DSS |
| Smart Phone | Android, iOS |
| Certification | CE (EN 60950: 2000) FCC (FCC Part 15 SubpartB ) |
| Video Interface | 1 Port (CVBS/BNC) |
| Audio Interface | 1/1 In /Out |
| RS485 | Support |
| Alarm | 2/2 In/Out |
| Alimentation | DC 12V/PoE / ePoE |
| Consommation | Max. 13W |
| Operating Condition | -40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH * Start up should be done at above -40°C (-40°F) |
| Storage Conditions | -40°C ~ +70°C ( -40°F ~ +158°F) /Less than 95% RH |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | 291mm× 103mm× 97mm (11.46" x 4.06" x 3.82") |
| Poids net | 1.5Kg (3.31 lb) |
| Poids brut | 1.9Kg (4.19 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : TPC-BF5401-B13-BM-S2 · Marque : Dahua
