Description et caractéristiques

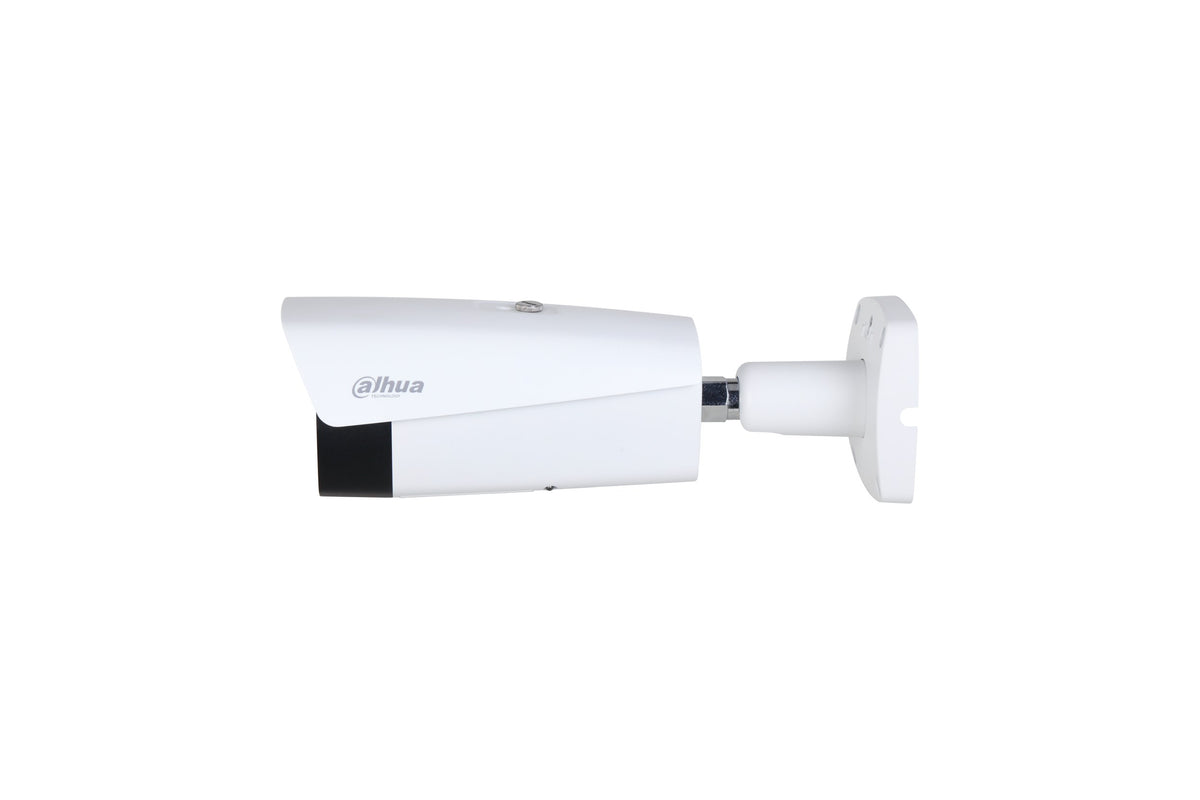

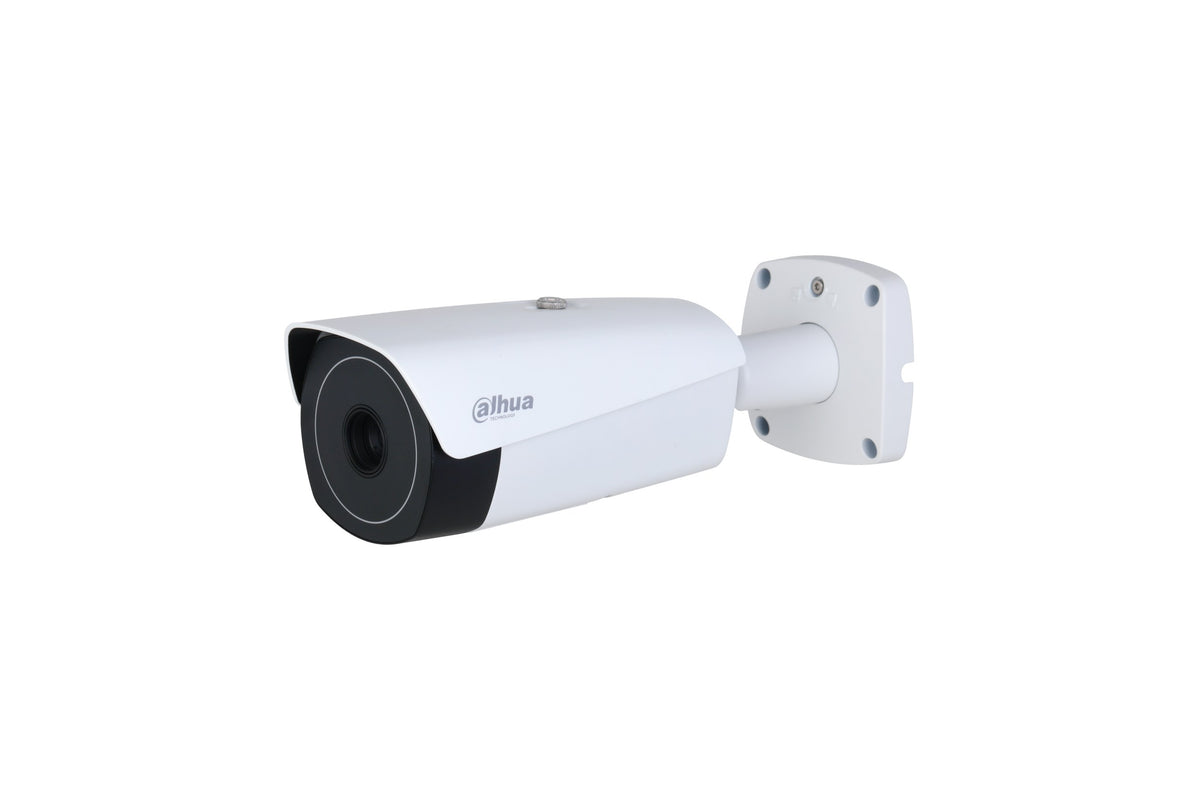

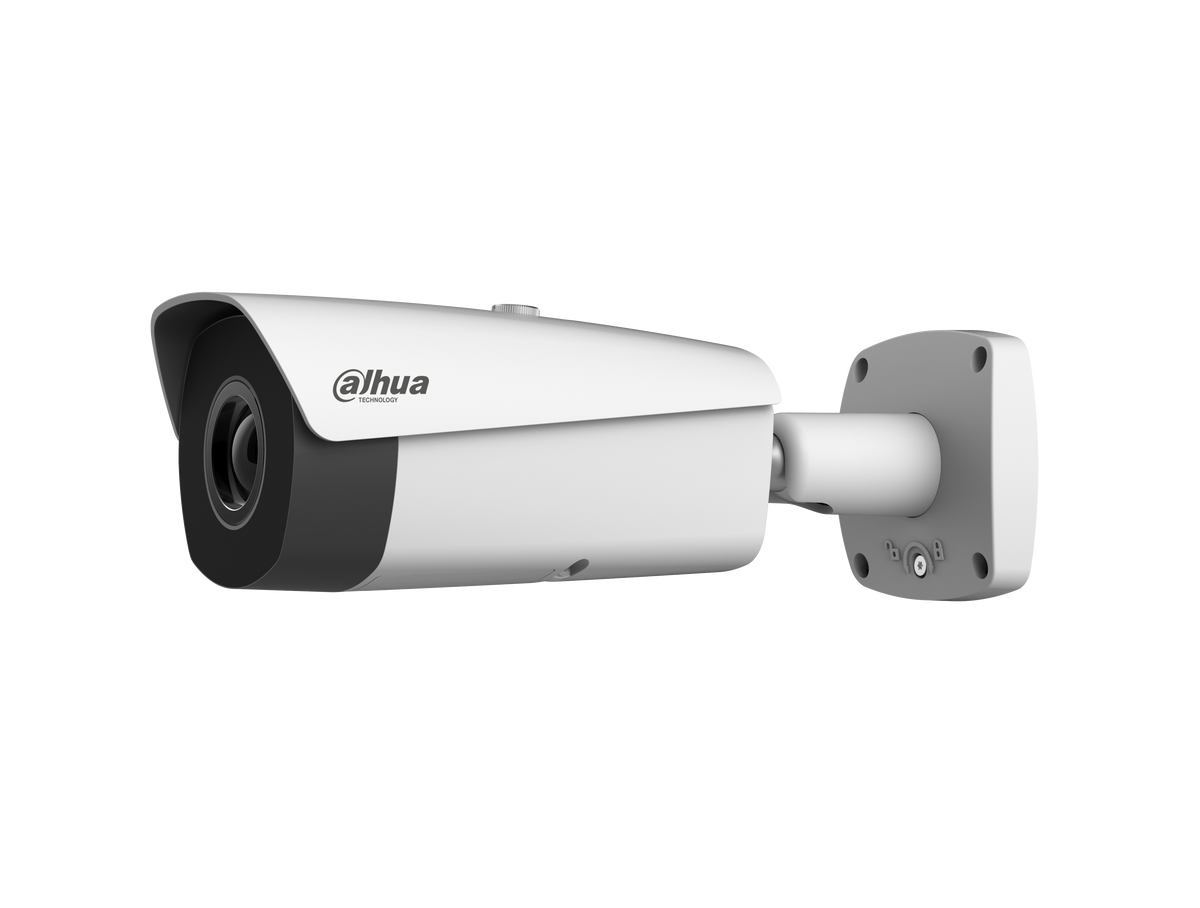

Tube IP Blanc
- 400x300
- 13 mm
- Thermique
- IP67
- 12 V POE/ePOE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Thermique
- Résolution thermique : 400 x 300
- Focale thermique : 13 mm
- Audio : Entrée audio, Sortie audio
Fiche technique
| Detector Type | Vanadium oxide uncooled focal plane detector |
|---|---|
| Effective Pixels | 400 (H) × 300 (V) |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 μm–14 μm |
| Sensitivity (NETD) | ≤35 mK (@f/1.0) |
| Focus Control | Fixed-focal |
| Aperture | F1.0 |
| Focale | Identification Distance ③ |
| Champ de vision | 7.5mm:H:53.5°; V:39.5° 13 mm: H:30.4°; V: 22.5° 25 mm: H:15.5°; V:11.6° 35 mm: H:11.1°; V:8.3° |
| Distance mini de mise au point | 7.5 mm: 1 m (3.28 ft) 13 mm: 3 m (9.84 ft) 25 mm: 10 m (32.81 ft) 35 mm: 20 m (65.62 ft) |
| Digital Detail Enhancement (DDE) | Yes |
| Thermal AGC | Auto/Manual |
| Thermal Noise Reduction | 2D NR/3D NR |
| Image Flip | 180° |
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG |
| Résolutions | Thermal: Main stream: 1280 × 1024; 1280 × 960; 1280 × 720; 400 × 300; 1280 × 960 (default) Sub stream: 640 × 512; 640 × 480; 400 × 300; 400 × 300 (default) |
| Fréquence d'images | Thermal (50 Hz): Main stream: 1 fps–50 fps, 25 fps by default Sub stream: 1 fps–50 fps, 15 fps by default Thermal (60 Hz): Main stream: 1 fps–60 fps,30 fps by default Sub stream: 1 fps–60 fps, 15 fps by default |
| Compression audio | G.711a; G.711mu; AAC; PCM |
| Image Encoding Format | JPEG |
| Protocoles réseau | HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
| Stockage | FTP; Micro SD card (optional) |
| Interopérabilité | ONVIF; CGI; DaHua SDK |
| Navigateur | IE; Firefox; Chrome |
| Utilisateurs simultanés | Up to 20 (total bandwidth: 64 MB) |
| Sécurité | Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access |
| User Management | Up to 20 users; supports multi-level user permissions (2 levels): management group and user group |
| Malfunction Detection | Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Micro SD Card (Max.) | 512 GB |
| Heat Detection | Yes |
| Cold/Hot Spot Trace | Yes |
| Perimeter Protection | Yes. Supports tripwire and intrusion. |
| Target Distinction | Human/Vehicle Classification |
| Analog Output | 1 × CVBS output; BNC port |
| Port réseau | 1 × RJ-45 (10/100 Base-T) |
| Entrée d'alarme | 2 |
| Sortie d'alarme | 2 |
| Entrée audio | 1 |
| Sortie audio | 1 |
| RS-485 | 1 |
| Alimentation | 12 VDC ± 20%, PoE (802.3af), ePoE |
| Consommation | Basic: 5.0 W (12 VDC); 5.5 W (PoE) Max.: 13 W (heater on ,12 VDC); 14 W (heater on , PoE) |
| ePoE | Yes |
| Température de fonctionnement | –30 °C to +70 °C (–22 °F to +158 °F) |
| Humidité de fonctionnement | ≤95% |
| Température de stockage | –30 °C to +70 °C (–40 °F to +158 °F) |
| Indice de protection | IP67 |
| Reliability | Surge protection: 6 kV Air discharge: 15 kV Contact discharge: 8 kV |
| Dimensions | 291 mm × 103 mm × 97 mm (11.46" × 4.06" × 3.82") (L × W × H) |
| Packaging Dimensions | Package: 365 mm × 175 mm × 176 mm (14.37" × 6.89" × 6.93") (L × W × H) Protection box: 902 mm × 380 mm × 380 mm (35.51" × 14.96" × 14.96") (L × W × H) |
| Poids net | ≤1.4 kg (3.09 lb) |
| Poids brut | ≤1.9 kg (4.19 lb) |
| Bracket | Included |
| Certifications | CE; FCC |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : TPC-BF5401-B13-BC-S2 · Marque : Dahua
