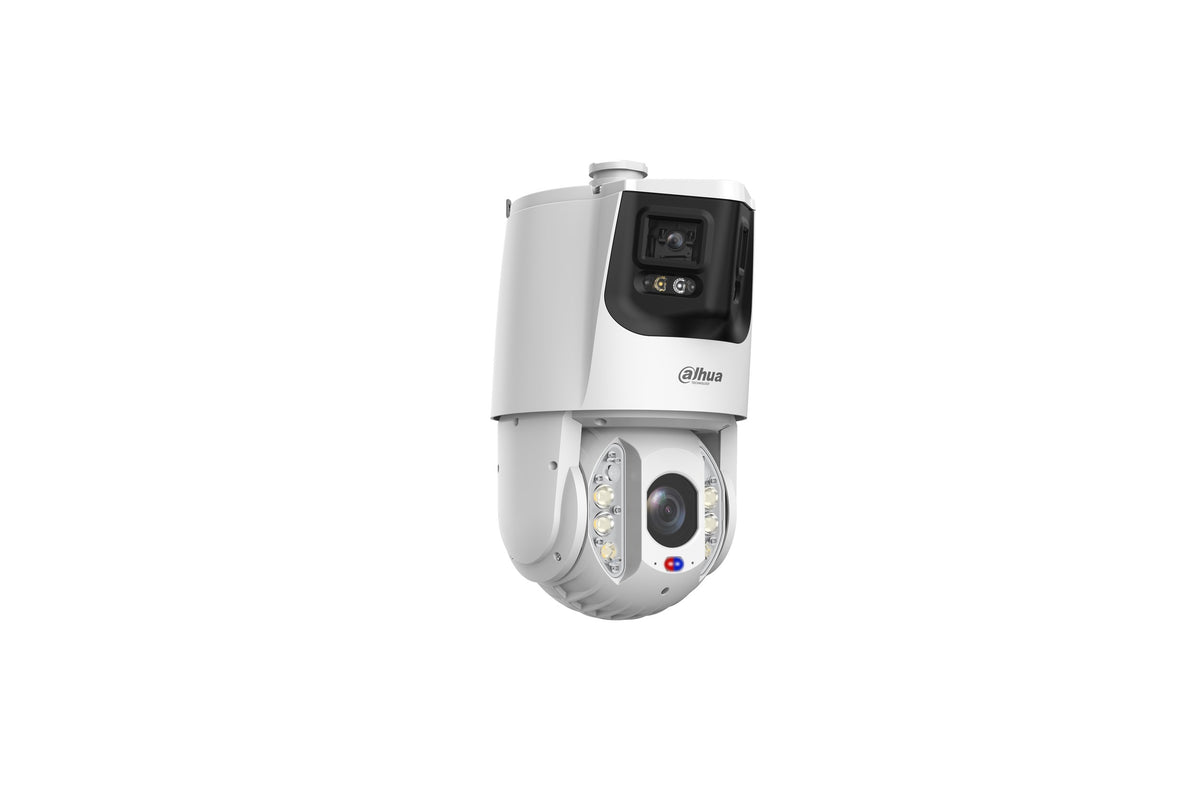

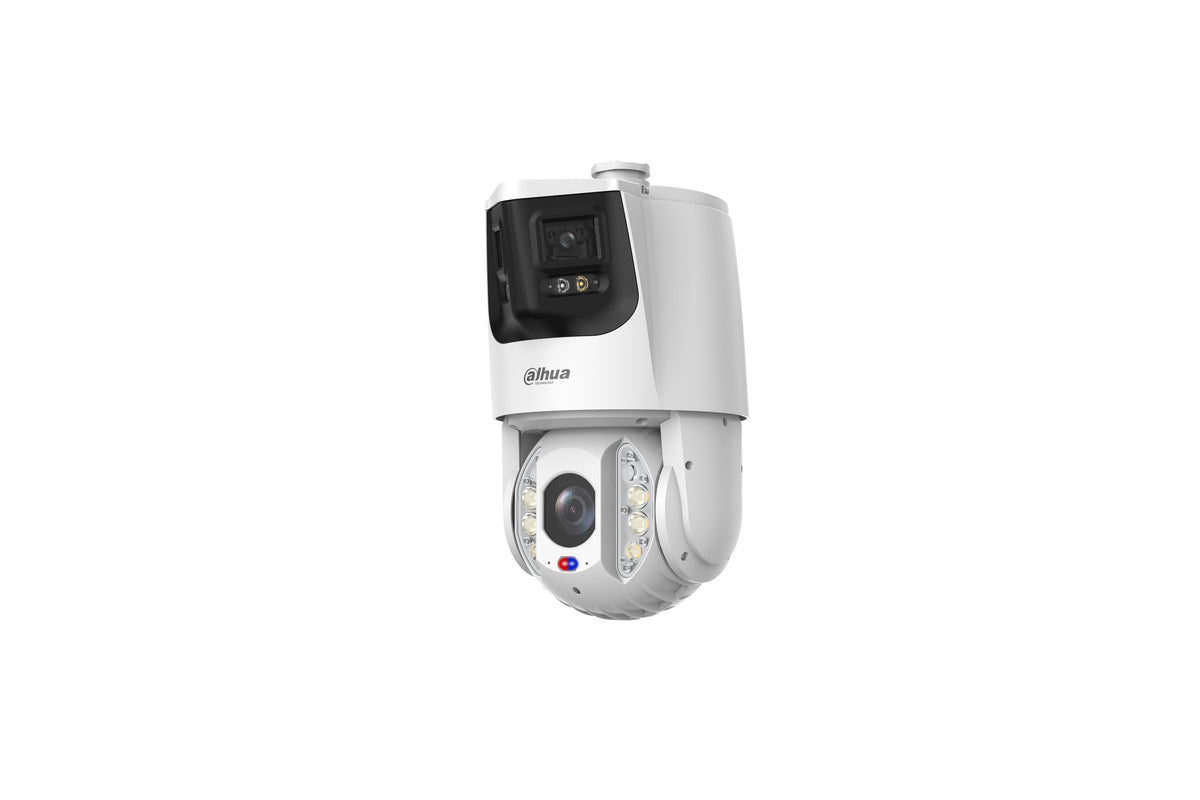

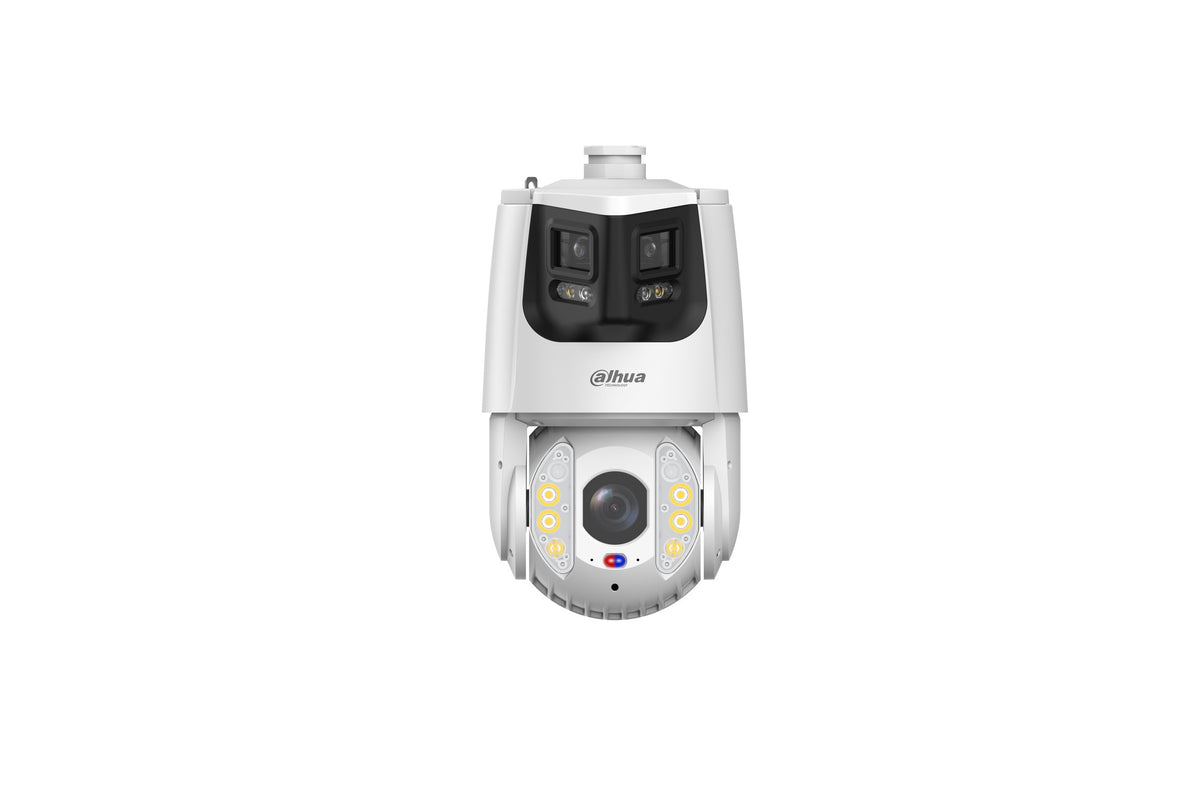

Description et caractéristiques
PTZ blanc
- Panoramique 360°
- Résolution combinée 8MP + 4MP
- Varifocale motorisée 5/125mm
- Zoom x25
- Smart Dual Light
- IR 250m
- LED 100 m
- Acupick
- SMD 4.0
- WizTracking
- TiOC
- micro et haut parleur intégrés
- IP67 / IK10
- PoE++
- 36V
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : TIOC PRO, Smart Hybrid Light, Panoramique 360 °
- Intelligence Artificielle : Protection périmétrique
- Résolution : 8 MP
- Varifocale : 5 - 125 mm
Fiche technique
| Capteur | Overview channel: 1/2.7" CMOS; Detail channel: 1/2.8" CMOS |
|---|---|
| Pixel | Overview channel: 8 MP; Detail channel: 4 MP |
| Résolution max. | Overview channel: 4096 (H) × 1860 (V); Detail channel: 2560 (H) × 1440 (V) |
| ROM | Overview channel: 4 GB; Detail channel: 4 GB |
| RAM | Overview channel: 2 GB; Detail channel: 2 GB |
| Obturateur électronique | 1 s–1/30,000 s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | Overview channel: 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (illuminator on) Detail channel: 0.005 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (illuminator on) |
| Portée de l'éclairage | Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light) Detail channel: 100 m (328.08 ft) (warm light); 250 m (820.21 ft) (IR) |
| Contrôle de l'éclairage | Overview channel: Manual; Auto; Off Detail channel: Zoom Prio; Manual; Auto; Off |
| Nombre d'illuminateurs | Overview channel: 2 (IR light); 2 (White light); Detail channel: 6 (Dual light fusion) |
| Focale | Overview channel: 2.8 mm; Detail channel: 5 mm–125 mm |
| Ouverture max. | Overview channel: F1.4; Detail channel: F1.6-F3.6 |
| Champ de vision | Overview channel: H: 180°; V: 86°; Detail channel: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7° |
| Zoom optique | Overview channel: NA; Detail channel: 25× |
| Focus Control | Auto; manual; semi-auto |
| Distance mini de mise au point | Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1 m–0.5 m (0.33"–1.64") |
| Iris | Overview channel: NA; Detail channel: Auto; manual; iris prio |
| Distance DORI | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Objectif | Identify |
| Overview channel: 2.8 mm | 5.6 m ( 18.37 ft) |
| Detail channel: W | 10.0 m ( 32.81 ft) |
| T | 250.0 m ( 820.20 ft) |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –20° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0°/s–260°/s; Tilt: 0°/s–140°/s |
| Preset Speed | Pan: 300°/s; Tilt:200°/s |
| Préréglages | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
| IVS (protection périmétrique) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking |
| Vehicle Density | Overview channel:Vehicle density; parking upper limit; traffic congestion; vehicle status alarm Detail channel: NA |
| Smart Tracking | Linkage tracking, Auto tracking |
| Crowd Distribution Map | Overview channel: Crowd map (Large-Scale AI Models), global crowd density; crowd density in area; people counting in area; crowd status Detail channel: NA |
| SMD (détection humain/véhicule) | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets |
| Auto Patrol | Overview channel: NA Detail channel: After an IVS event occurs, the PTZ camera immediately initiates automated patrol of predefined key points to quickly cover potential risk areas and detect unknown threats in real time. |
| Light Warning | Red-Blue light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low |
| Sound Warning | Offers 11 sound alarm and 10 custom sound alarms can be imported. Sound can be set from 0%–100%. Play times can be set from 1-10. |
| Compression vidéo | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| Flux | 3 streams |
| Résolutions | Overview channel: 8M (4096 × 1860); 2M (2048 × 928); 1080p (1920 × 1080); 720p (1280 × 720); 1024 × 448; D1 (704 × 576/704 × 480);VGA (640 × 480);CIF (352 × 288/352 × 240); Detail channel: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480);VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Fréquence d'images | Overview channel: Main stream: 4096 × 1860 @(1–25/30 fps) Sub stream 1: 1024 × 448/D1/VGA/CIF @(1–25/30 fps) Sub stream 2: 2048 × 928/1080p/1.3M/720p @(1–25/30 fps); Detail channel: Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/VGA/CIF @(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | Overview channel: H264: 128 kbps–16,384 kbps H265: 51 kbps–13,312 kbps； Detail channel: H264: 96 kbps–16,384 kbps H265: 38 kbps–10,240 kbps; |
| Jour/Nuit | Overview channel: Auto; Color; B/W; Electronic Detail channel: Auto; Color; B/W; Electronic |
| BLC | Yes |
| WDR | Overview channel: DWDR; Detail channel: 120 dB |
| HLC | Yes |
| Balance des blancs | Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Detail channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Overview channel: Auto; manual; gain prio Detail channel: Auto; manual; gain prio |
| Réduction du bruit | Overview channel: 2D NR; 3D NR Detail channel: Auto: 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | Overview channel: NA Detail channel:Gyroscope EIS |
| Defog | Overview channel: Electronic Detail channel: Electronic |
| Zoom numérique | Overview channel: NA; Detail channel: 16× |
| Rotation de l'image | Overview channel: NA Detail channel: 180° |
| Masques de confidentialité | Up to 24 areas can be set, with up to 8 areas in the same view Multiple colors and mosaic available |
| Rapport signal/bruit | ≥55 dB |
| Compression audio | PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729 |
| Micro intégré | Yes |
| Built-in Speaker | Yes |
| Port réseau | RJ-45 (100/1,000 Base-T) |
| Protocoles réseau | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;NFS |
| Interopérabilité | ONVIF (Profile S & Profile G & Profile T);CGI;SDK;P2P |
| Streaming Method | Unicast/Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Navigateur | web5.0: IE 9 and later versions; Chrome 41 and later versions; Firefox 52 and later versions; Safari 10 and later versions |
| Logiciels de gestion | DMSS;DSS Pro |
| Application mobile | iOS;Android |
| Certifications | CE:EN55035;EN IEC61000-3-2;EN55032;EN60950;EN62368-1 |
| RS-485 | 1 (Bit range: 1200 bps–9600 bps) |
| Entrée audio | 1 channel (LINE IN, bare wire,built-in mic (mutually exclusive)） |
| Sortie audio | 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)） |
| Entrée d'alarme | 2 (on-off value input: 0–5 VDC) |
| Sortie d'alarme | 1 channel |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SDT6E425-8P-MB-A-PV1 · Marque : Dahua
