Description et caractéristiques

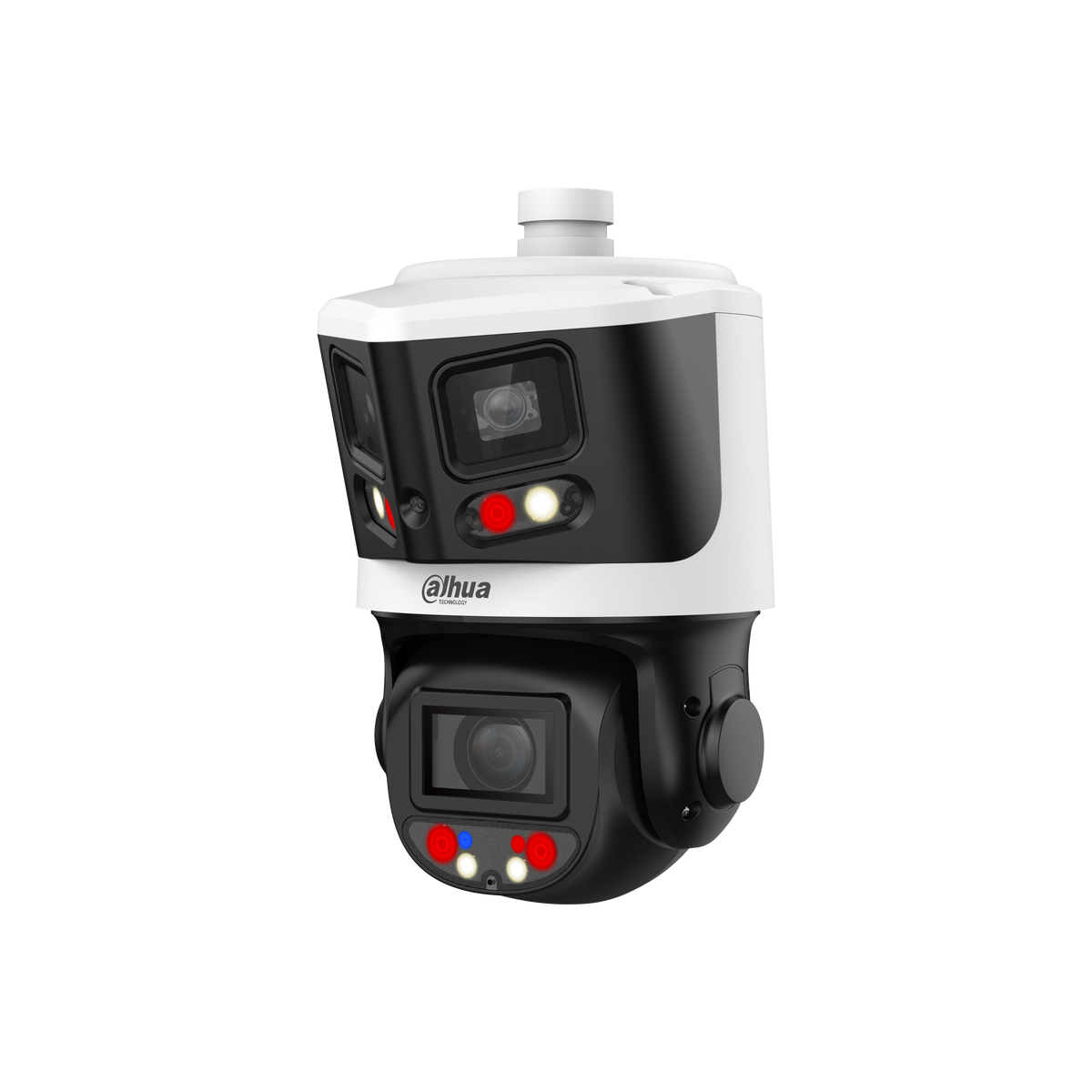

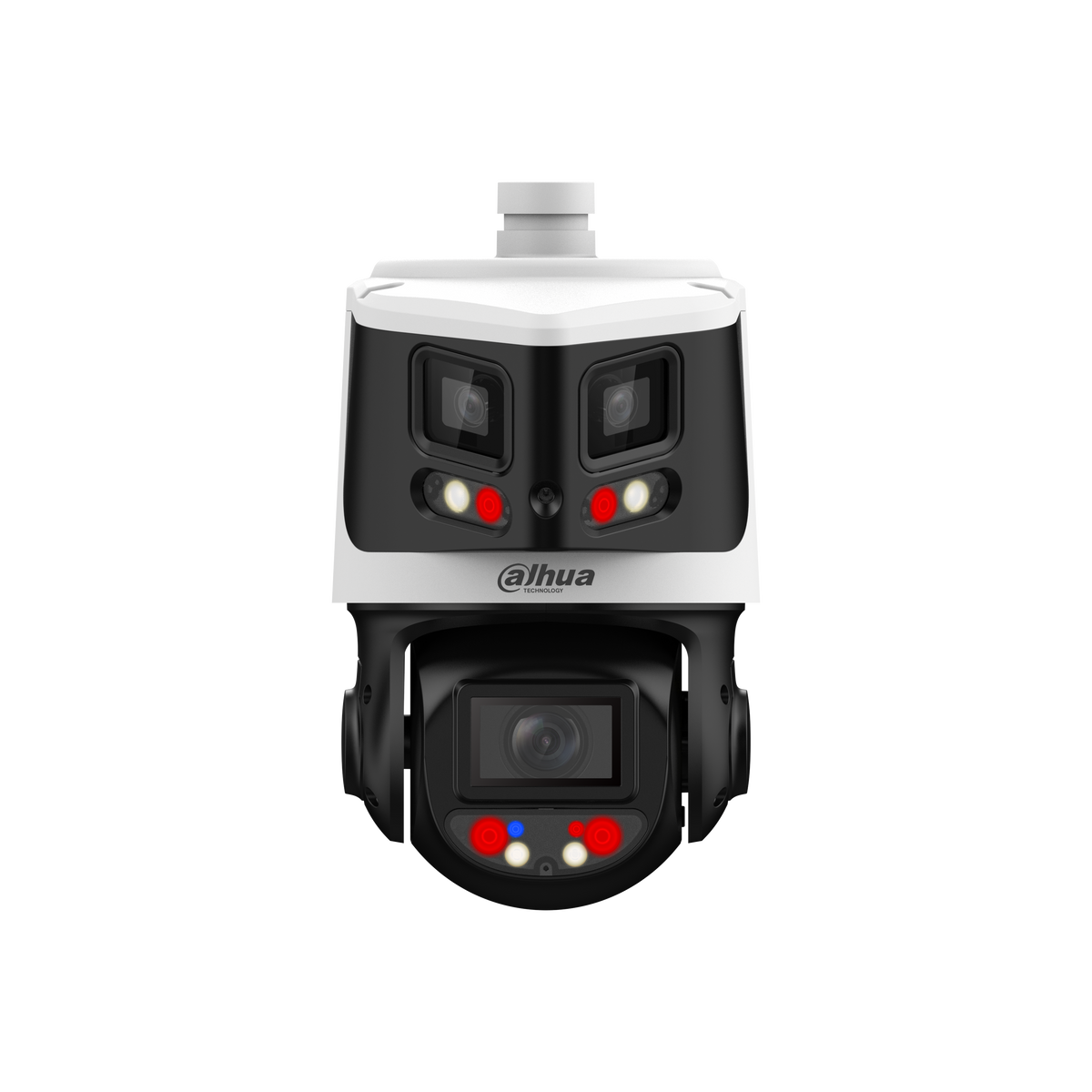

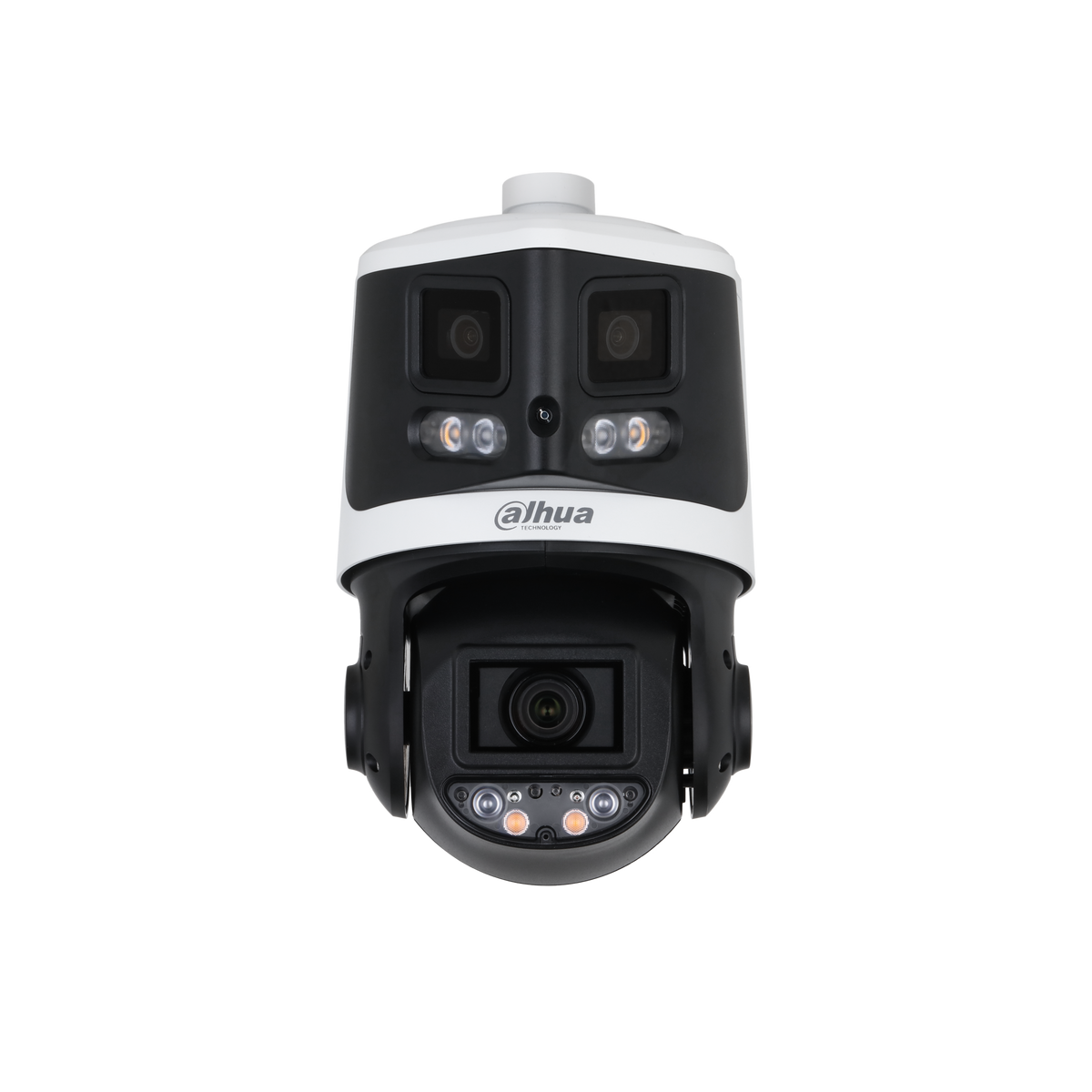

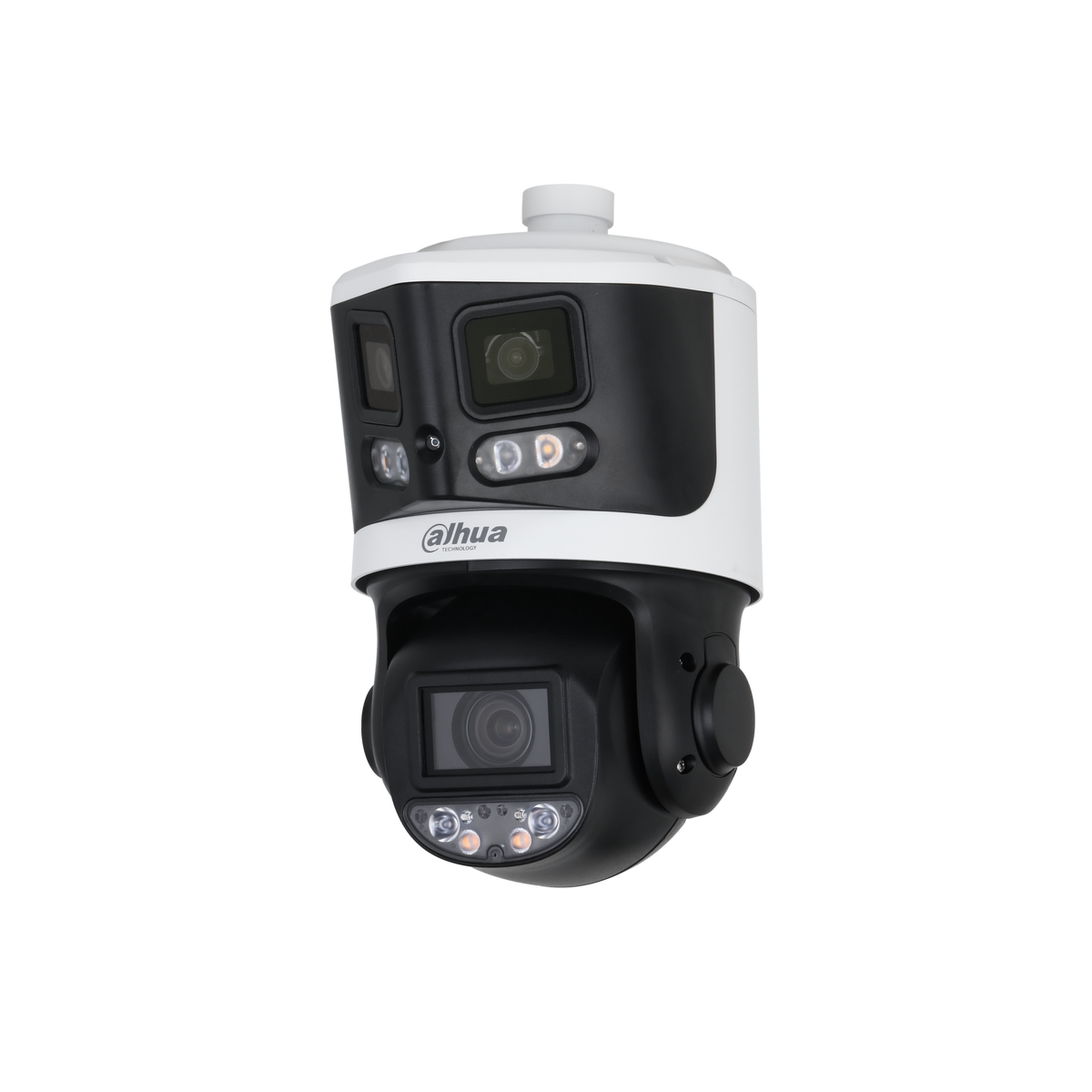

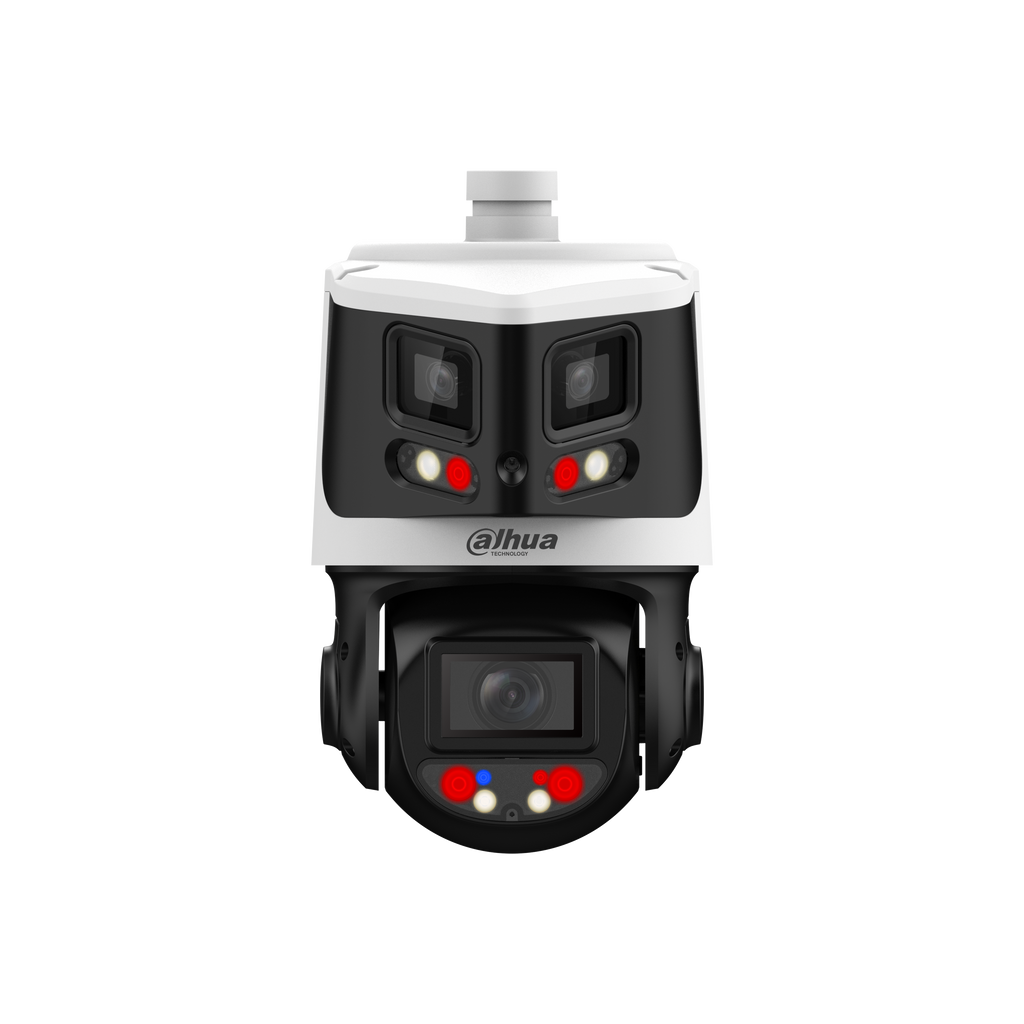

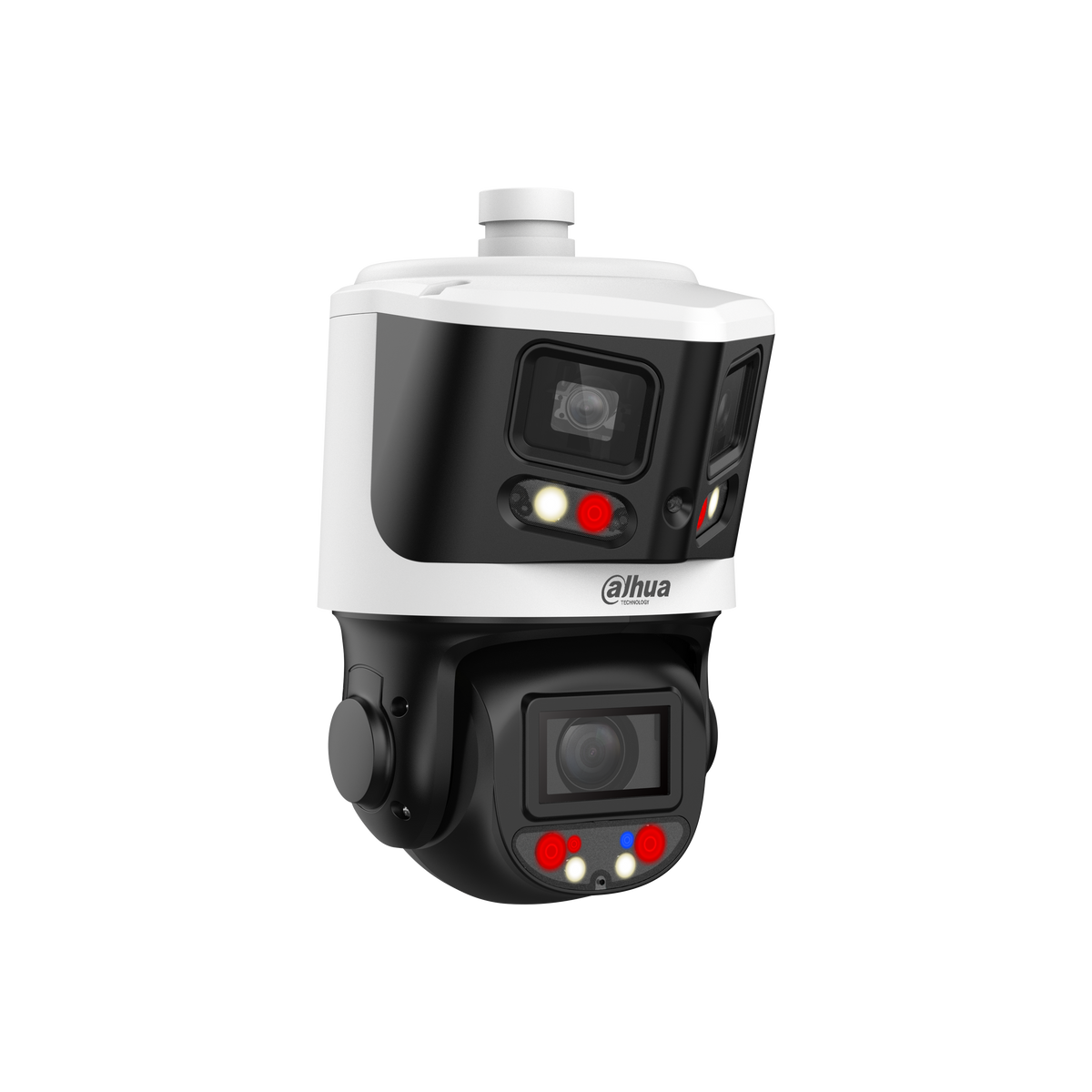

Dôme motorisé PTZ IP blanc
- Panoramique 8 MP
- Détail 4 MP
- FF 2.8mm VF motorisée 4
- 40mm
- IR 30m/70m
- Panoramique 180°
- Multi-capteurs -Smart Dual Light
- Starlight
- Active deterrence
- Détection de visage
- Protection périmétrique
- Entrée / Sortie audio
- IP66
- 12V POE+
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Smart Dual Light, Starlight, Panoramique 180 °, Multicapteurs, Active Deterrence
- Intelligence Artificielle : Protection périmétrique, Détection de visage
- Résolution : 4 MP, 8 MP
- Focale Fixe : 2.8 mm
Fiche technique
| Capteur | Overview channel: 1/2.8" CMOS; Detail channel: 1/2.8" CMOS |
|---|---|
| Pixel | Overview channel: 8 MP; Detail channel: 4 MP |
| Résolution max. | Overview channel: 5376 (H) × 1520 (V); Detail channel: 2560 (H) × 1440 (V) |
| ROM | Overview channel: 4 GB; Detail channel: 4 GB |
| RAM | Overview channel: 2 GB; Detail channel: 1GB |
| Obturateur électronique | Overview channel: 1 s–1/100,000 s; Detail channel: 1 s–1/30,000 s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | Overview channel: 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) Detail channel: 1 s–1/30,000 s 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| Portée de l'éclairage | Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light) Detail channel: 70 m (229.66 ft); 30 m (98.43 ft) (white light) |
| Contrôle de l'éclairage | Overview channel: Manual; Auto; Off Detail channel: Zoom Prio; Manual; Auto; Off |
| Nombre d'illuminateurs | Overview channel: 2 (IR light); 2 (white light); Detail channel: 2 (Dual light fusion); 2 (IR light) |
| Focale | Overview channel: 2.8 mm; Detail channel: 4 mm–40 mm |
| Ouverture max. | Overview channel: F1.6; Detail channel: F1.6-F3.6 |
| Champ de vision | Overview channel: H: 180°; V: 47°; Detail channel: H: 58°–11.3°; V: 33.1°–6.4°; D: 66.4°–12.8° |
| Zoom optique | Overview channel: NA; Detail channel: 10× |
| Focus Control | Auto; manual; semi-auto |
| Distance mini de mise au point | Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1 m–0.5 m (0.33 ft–1.64 ft) |
| Iris | Overview channel: NA; Detail channel: NA |
| Distance DORI | Identify |
| 500 m (1640.42 ft) | 50 m (164.04 ft) |
| Pan/Tilt Range | Pan: 0° to 345°; Tilt: -10° to +90° |
| Manual Control Speed | Overview channel: NA; Detail channel: H: 0.1°–80°/s; V: 0.1°–50°/s |
| Preset Speed | H: 80°/s; V: 50°/s |
| Préréglages | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Power-off Memory | Yes |
| Idle Motion | Preset; Tour |
| IVS (protection périmétrique) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human/vehicle alarm classification; linkage tracking (only for people) |
| Auto Tracking | Auto Tracking Lite |
| Smart Tracking | WizTracking: Xinghan large-scale AI models-driven human tracking Relay tracking: X-SPANS series only. Tracking continues after target exits overview channel until target leaves scene. Linkage tracking: X-SPANS series only. Tracks only targets visible in overview channel. |
| Auto Patrol | After an IVS alarm is triggered, it can link with up to 5 presets or scan to patrol the key areas. IVS can be enabled with SMD at the same time. |
| SMD (détection humain/véhicule) | Yes |
| Acupick | Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets (Overview channel support) |
| Light Warning | Red and blue light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low |
| Sound Warning | Offers 11 sound alarm and 10 custom sound alarms can be imported. Sound can be set from 0%–100%. Play times can be set from 1-10. |
| Compression vidéo | H.264H; H.264B; Smart H.265+; H.265; Smart H.264+; H.264M; MJPEG (Sub Stream 1) |
| Flux | 3 streams |
| Résolutions | Overview channel: 5376 × 1520; 26886 × 752; 1080p (1920 × 1080); 720p (1280 × 720); 1344 × 368; D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); Detail channel: 2560 × 1440; 3M (2304 × 1296); 1080p (1920 × 1080); 1280 × 960 (1.3M); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Fréquence d'images | Overview channel: Main stream: 5376 × 1520 @(1–25/30 fps) Sub stream 1: 1344 × 368/D1/VGA/CIF@ (1–25/30 fps) Sub stream 2: 2688 × 752/1080p/1.3M/720p @(1–25/30 fps); Detail channel: Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/VGA/CIF@ (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | Overview channel: H264: 128 kbps–16,384 kbps H265: 51 kbps–13,312 kbps; Detail channel: H264: 96 kbps–16,384 kbps H265: 38 kbps–10,240 kbps |
| Jour/Nuit | Overview channel: Auto; Color; B/W; Detail channel: Auto; Color; B/W; Electronic |
| BLC | Yes |
| WDR | Overview channel: DWDR Detail channel: 120 dB |
| HLC | Yes |
| Balance des blancs | Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Detail channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Overview channel: Auto; manual; gain prio Detail channel: Auto; manual; gain prio |
| Réduction du bruit | Overview channel: 2D NR; 3D NR Detail channel: 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | Overview channel: NA Detail channel: Electronic Image Stabilization (EIS) |
| Defog | Overview channel: Electronic Detail channel: Electronic |
| Zoom numérique | Overview channel: NA Detail channel: 16× |
| Rotation de l'image | Overview channel: NA Detail channel: 180° |
| Rapport signal/bruit | Overview channel: ≥55dB Detail channel: ≥55dB |
| Compression audio | Overview channel: PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729; Detail channel: NA |
| Masques de confidentialité | Up to 24 areas can be set, with up to 8 areas in the same view Multiple colors and mosaic available |
| Port réseau | RJ-45 (100 Base-T) |
| Protocoles réseau | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; QoS; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; RTSP; ARP |
| Interopérabilité | ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P |
| Streaming Method | Unicast/Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Navigateur | web5.0: IE 9 and later versions; Chrome 41 and later versions; Firefox 50 and later versions; Safari 10 and later versions |
| Logiciels de gestion | DMSS; DSS Pro |
| Application mobile | iOS; Android |
| Certifications | CE: EN55032/EN55035/IEC61000-3-2/IEC61000-3-3/EN62368-1/IEC62471 |
| Entrée audio | 1 channel (LINE IN, bare wire,built-in mic (mutually exclusive)) |
| Sortie audio | 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)) |
| Entrée d'alarme | 1 (on-off value input: 0–5 VDC) |
| Sortie d'alarme | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; alarm digital output; audio; warning light |
| Événements d'alarme | Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alimentation | 12 VDC, 3 A ± 10% PoE+(802.3at) |
| Consommation | Basic: 12 W; Max: 25 W (illuminator + heating glass + siren and light active deterrence + PTZ) |
| Température de fonctionnement | –30 °C to +60 °C (–22 °F to +140 °F) |
| Humidité de fonctionnement | ≤95% |
| Indice de protection | TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection |
| Dimensions | 140.3 mm × 181.7 mm × 238.8 mm (5.52" × 7.15" × 9.40") (L × W × H) |
| Poids net | 2.17 kg (4.78 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SDT3E410-8P-MB-A-PV1-0280 · Marque : Dahua
