Description et caractéristiques

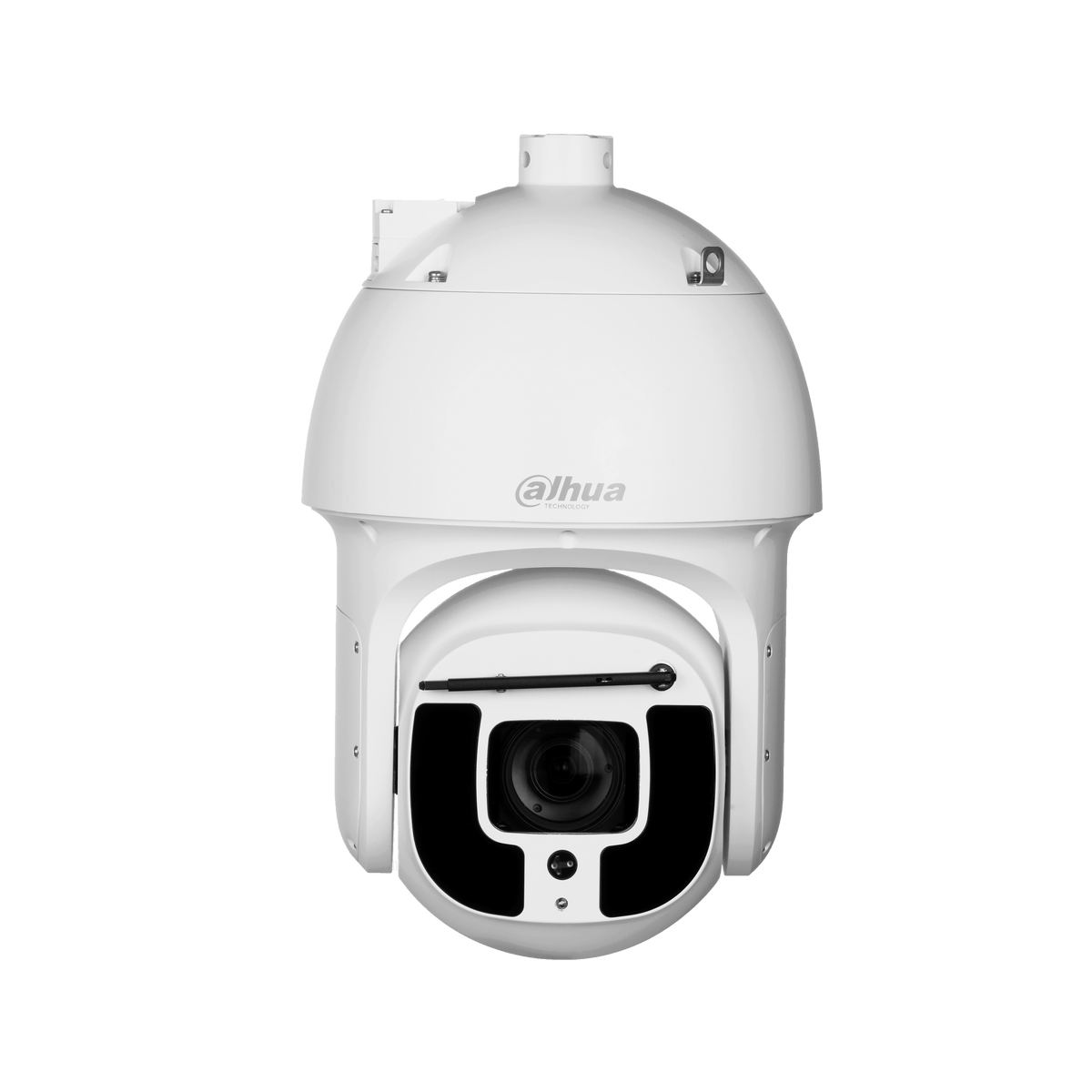

Caméra PTZ IP blanche
- 8 MP
- VF motorisée 5.6-223mm Zoom x40 IR 500m
- WizMind
- Starlight
- Protection périmétrique
- Reconnaissance faciale
- Apparition/disparition d'objet
- Audio bidirectionnel
- IP67
- Hi-PoE 36VDC
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight
- Intelligence Artificielle : WizMind, Protection périmétrique, Reconnaissance faciale, Apparition / Disparition d'objet
- Résolution : 8 MP
- Varifocale : 5.6 - 223 mm
Fiche technique
| Capteur | 1/1.8" CMOS |
|---|---|
| Pixel | 8 MP |
| Résolution max. | 3840 (H) x 2160 (V) |
| ROM | 8 GB |
| RAM | 2 GB |
| Obturateur électronique | 1/1 s–1/30,000 s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | Color: 0.005 lux@F1.4 B/W: 0.0005 lux@F1.4 0 lux@F1.4 (illuminator on) |
| Portée de l'éclairage | 500 m (1640.42 ft) |
| Contrôle de l'éclairage | Zoom Prio; Manual; Smart IR |
| Nombre d'illuminateurs | 10 IR lights |
| Wiper | Smart wiper |
| Focale | 5.6 mm–223 mm |
| Ouverture max. | F1.4–F4.5 |
| Champ de vision | H: 63.9°–2.0°; V: 37.3°–1.1 °; D: 71.2°–2.3 ° |
| Zoom optique | 40x |
| Focus Control | Auto; semi-auto; manual |
| Distance mini de mise au point | 0.5 m–2 m (1.64 ft–6.56 ft) |
| Iris | Auto; manual |
| Distance DORI | Identify |
| 4,400 m (14,435.70 ft) | 440 m (1,443.57 ft) |
| Pan/Tilt Range | Pan: 0° to 360° Tilt: –30° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–240°/s Tilt: 0.1°/s–100°/s |
| Preset Speed | Pan: 240°/s; Tilt: 120°/s |
| Préréglages | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Speed Adjustment | Yes |
| Power-off Memory | Yes |
| Idle Motion | Preset; Tour; Pattern; Scanning |
| PTZ Protocol | DH-SD Pelco-P/D (auto recognition) |
| Event Trigger | Motion detection, video tampering, scene changing, network disconnection, IP address conflict, illegal access, and storage anomaly |
| IVS | Object Abandoned/Missing |
| Video Metadata | Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction. |
| IVS (protection périmétrique) | Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| Face Recognition | Yes |
| Auto Tracking | Yes |
| Compression vidéo | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG (Sub Stream 1) |
| Flux | 3 streams |
| Résolutions | 4K (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) |
| Fréquence d'images | Main stream: 4K/4M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
| Contrôle du débit | CBR; VBR |
| Débit vidéo | H264: 512 kbps–16384 kbps H265: 256 kbps–10240 kbps |
| Jour/Nuit | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| Balance des blancs | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Auto; manual |
| Réduction du bruit | 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Defog | Optical |
| Zoom numérique | 16x |
| Rotation de l'image | 0°; 180° |
| Masques de confidentialité | Up to 24 areas can be set, with up to 8 areas in the same view |
| Rapport signal/bruit | ≥55 dB |
| Compression audio | G.711a; G.711mu; G.726; AAC; G722.1; G.729; MPEG2-Layer2; G723 |
| Port réseau | RJ-45 (10/100 Base-T) |
| Protocoles réseau | IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP v1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP; RTMP |
| Interopérabilité | ONVIF (Profile S&G&T); CGI |
| Streaming Method | Unicast; Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | FTP; Micro SD card (512GB) |
| Navigateur | IE 7 and later versions Chrome 42 and earlier versions Firefox 52 and earlier versions Safari |
| Logiciels de gestion | Smart PSS; DSS; DMSS; Easy4ip; IVSS |
| Application mobile | iOS; Android |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 |
| Analog Output | 1 BNC |
| RS-485 | 1 (baud rate range: 1200 bps–9600 bps) |
| Alarm I/O | 7/2 |
| Audio I/O | 1/1 |
| Alimentation | 36 VDC, 2.23 A (±25%) Hi-PoE |
| Consommation | Basic: 30 W Max.: 48 W (illuminator + PTZ + Heater + Fan) |
| Température de fonctionnement | –40 °C to +70 °C (–40 °F to +158 °F) |
| Humidité de fonctionnement | ≤95% (RH) |
| Indice de protection | IP67; TVS 6000 V lightning protection; surge protection; voltage transient protection |
| Casing | Metal |
| Dimensions | 415.6 mm × Φ26 2 mm (16.36" × Φ10.31") |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD8A840-HNF-PA · Marque : Dahua
