Description et caractéristiques

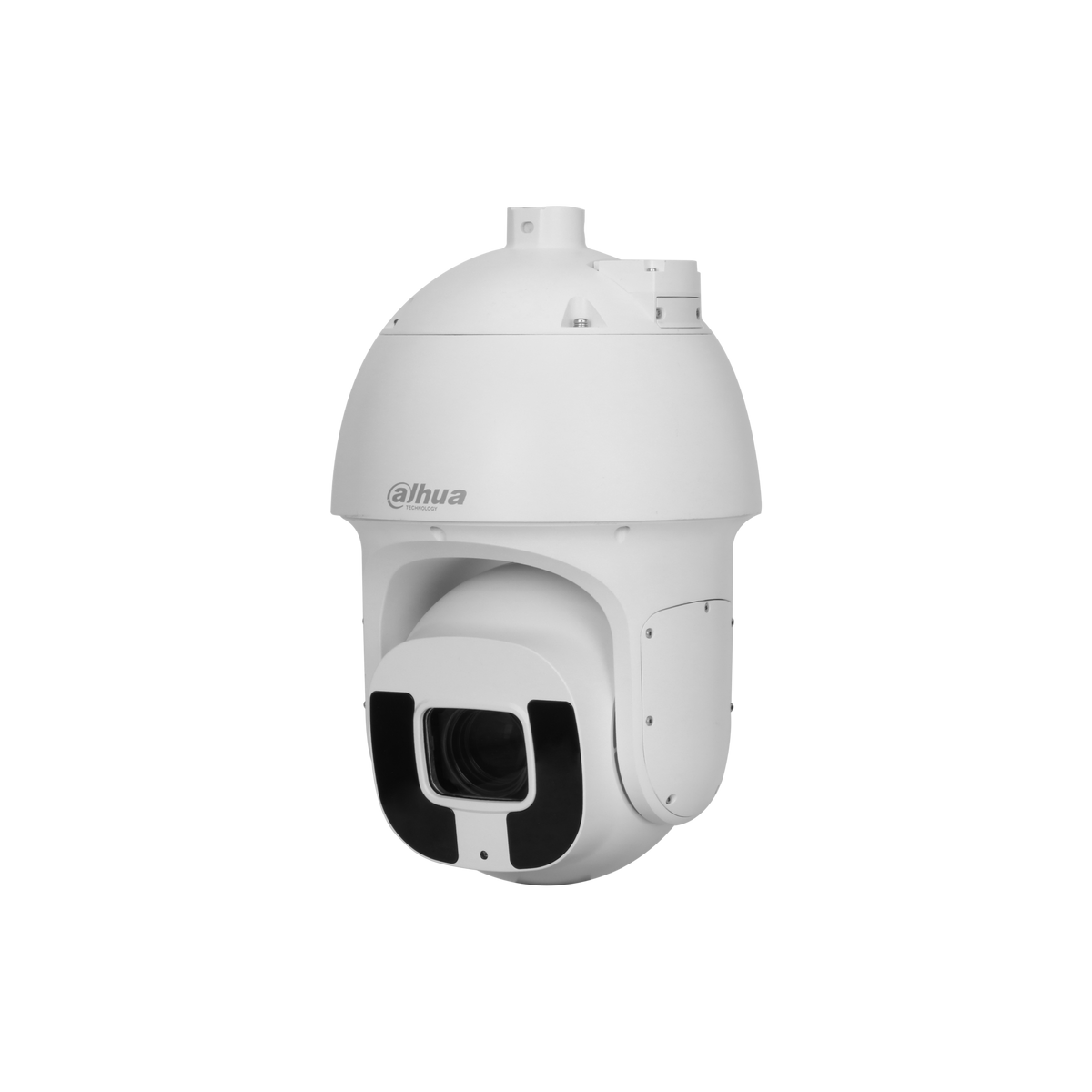

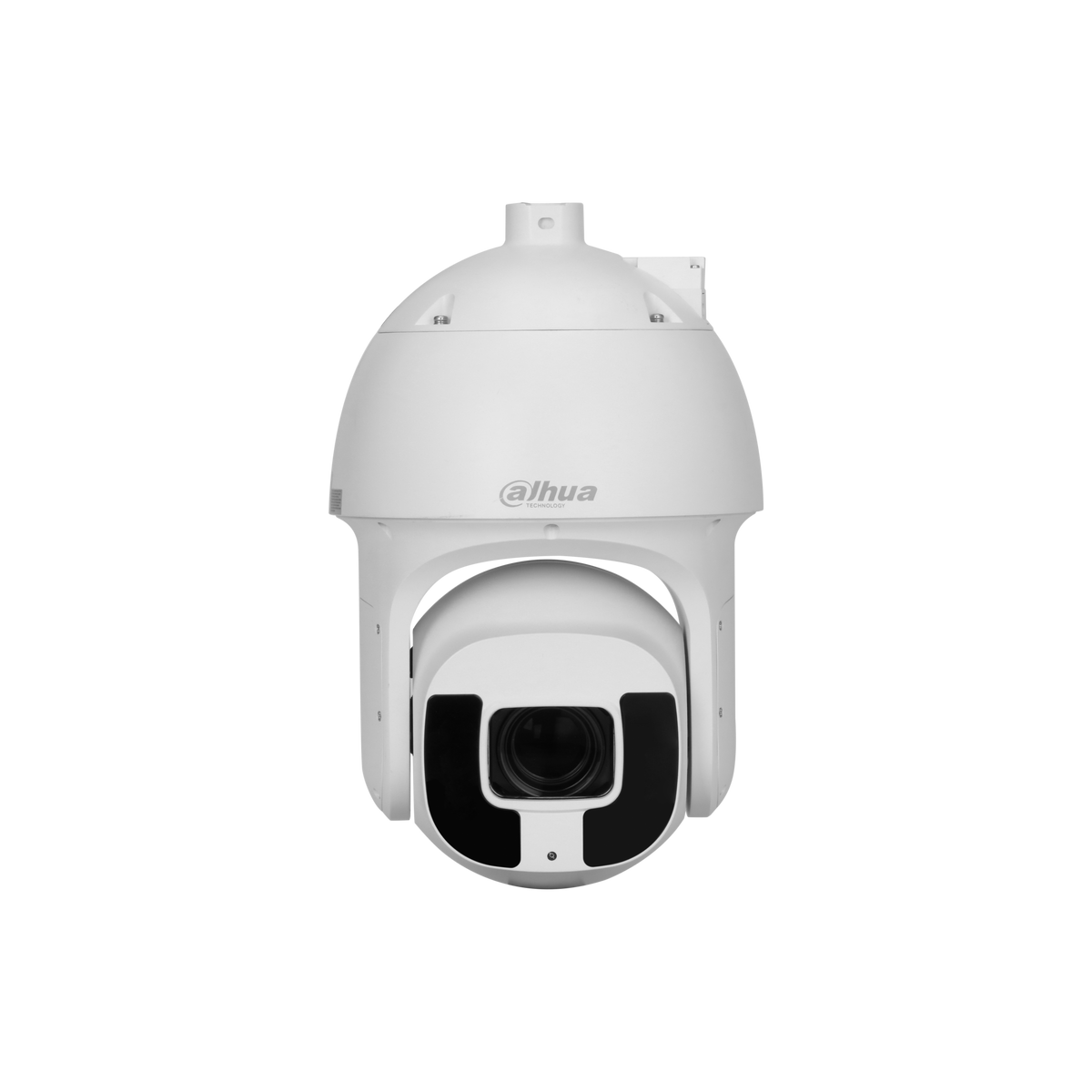

Dôme PTZ IP blanc
- 8 MP
- VF motorisée 6.5
- 214.5 mm
- Zoom x33
- WizMind
- Détection des visages
- Protection périmétrique
- IR 500m
- Entrée/Sortie audio intégrés
- 36V
- hi-PoE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight
- Intelligence Artificielle : WizMind, Protection périmétrique, Détection de visage
- Résolution : 8 MP
- Varifocale : 6.5 - 214.5 mm
Fiche technique
| Capteur | 1/1.8" CMOS |
|---|---|
| Pixel | 8 MP |
| Résolution max. | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Obturateur électronique | 1 s–1/30,000 s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | 0.001 lux@F1.6 (Color, 30 IRE); 0.0001 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| Portée de l'éclairage | 500 m (1640.42 ft) (IR) |
| Contrôle de l'éclairage | Zoom Prio; Manual; Auto; Off |
| Nombre d'illuminateurs | 10 (IR light) |
| Focale | 6.5 mm–214.5 mm |
| Ouverture max. | F1.6–F4.9 |
| Champ de vision | H: 63.9°–2.1°; V: 37.3°–1.2°; D: 71.2°–2.4° |
| Zoom optique | 33 × |
| Focus Control | Auto; semi-auto; manual |
| Distance mini de mise au point | 1 m–8 m (3.28 ft–26.25 ft) |
| Iris | Auto; manual; iris prio |
| Distance DORI | Identify |
| 3,808 m (12493.44 ft) | 380.8 m (1249.34 ft) |
| Pan/Tilt Range | Pan: 0° to 360° endless; Tilt: –30° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0°/s–240°/s; Tilt: 0°/s–100°/s |
| Preset Speed | Pan: 0°/s–240°/s; Tilt: 0°/s–100°/s |
| Préréglages | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour |
| PTZ Protocol | DH-SD Pelco-P/D (Auto recognition) |
| Video Metadata | Supports detection of motor vehicles, non-motor vehicles, faces and human bodies, optimization, capturing pictures, and uploading high-quality face snapshots. It extracts attributes from motor vehicles and non-motors, detecting up to 10 attributes for motor vehicles. |
| IVS (protection périmétrique) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking. |
| Auto Tracking | Auto tracking 3.0 |
| SMD (détection humain/véhicule) | SMD4.0 |
| Quick Pick | Yes |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Play time can be set from 1 to 10. |
| Compression vidéo | H.264H;H.264B;Smart H.265+;H.264;H.265;MJPEG(Sub Stream);Smart H.264+ |
| Flux | 3 streams |
| Résolutions | 4K (3840 × 2160); 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); 1.3M (1280 × 960); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Fréquence d'images | Main stream: 8M/4M/1080p/960p/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1-25/30 fps) Sub stream 2: 1080p/960p/720p@(1-25/30 fps) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H264: 128 Kbps–16,384 Kbps H265: 51 Kbps–11,776 Kbps |
| Jour/Nuit | Auto; Color; B/W; Electronic |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| Balance des blancs | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Auto; manual; gain prio |
| Réduction du bruit | 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Electronic |
| Zoom numérique | 16× |
| Rotation de l'image | 180° |
| Masques de confidentialité | Up to 24 areas can be set, with up to 8 areas in the same view; Multiple colors available |
| Rapport signal/bruit | ≥55 dB |
| Compression audio | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Port réseau | RJ-45 (10/100 Base-T) |
| Protocoles réseau | FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;QoS;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;HTTP;SSL;DHCP;SMTP;RTSP;ARP |
| Interopérabilité | ONVIF (Profile S & Profile G & Profile T); CGI; SDK |
| Streaming Method | Unicast/Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Navigateur | IE 9 and later versions; Chrome 41 and later versions; Firefox 52 and later versions; Safari 10 and later versions |
| Logiciels de gestion | DMSS; DSS Pro |
| Application mobile | iOS; Android |
| Certifications | CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035 CE-LVD: EN 62368-1 FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4 |
| RS-485 | 1 (baud rate: 1200 bps–9600 bps) |
| Entrée audio | 1 channel (LINE IN, bare wire) |
| Sortie audio | 1 channel (LINE OUT,bare wire) |
| Entrée d'alarme | 7 (on-off value input: 0–5 VDC) |
| Sortie d'alarme | 2 channels |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output; audio |
| Événements d'alarme | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection |
| Alimentation | 36 VDC, 2.23 A ± 25% (included); HI-PoE |
| Consommation | Basic: 17 W; Max: 33 W (illuminator +Heater+ PTZ) |
| Température de fonctionnement | –40 °C to +70 °C (–40 °F to +158 °F) |
| Humidité de fonctionnement | ≤95% |
| Indice de protection | TVS 8000 V lightning proof;IK10;IP67; surge protection; voltage transient protection |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD8A3833GA-HNV · Marque : Dahua
