Description et caractéristiques

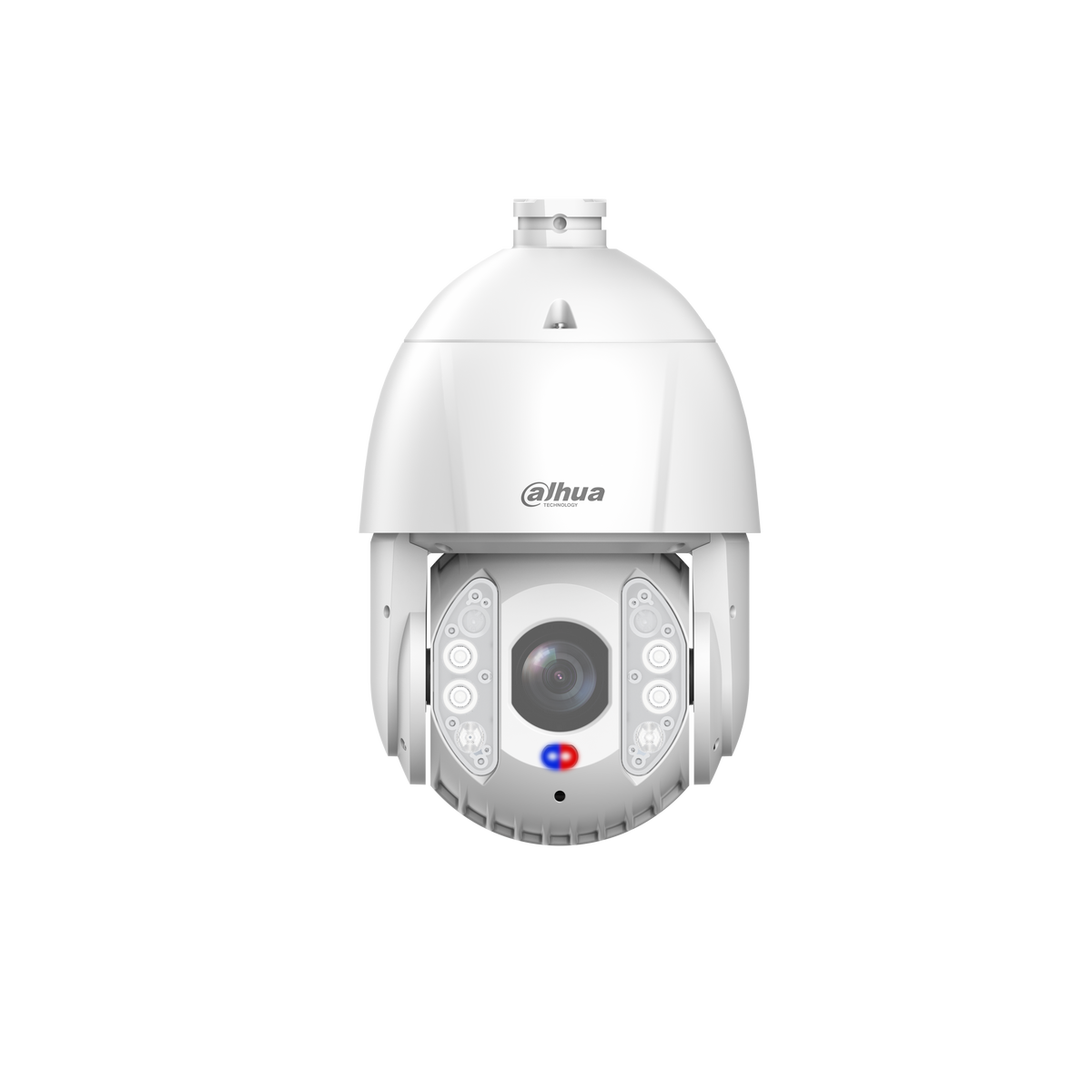

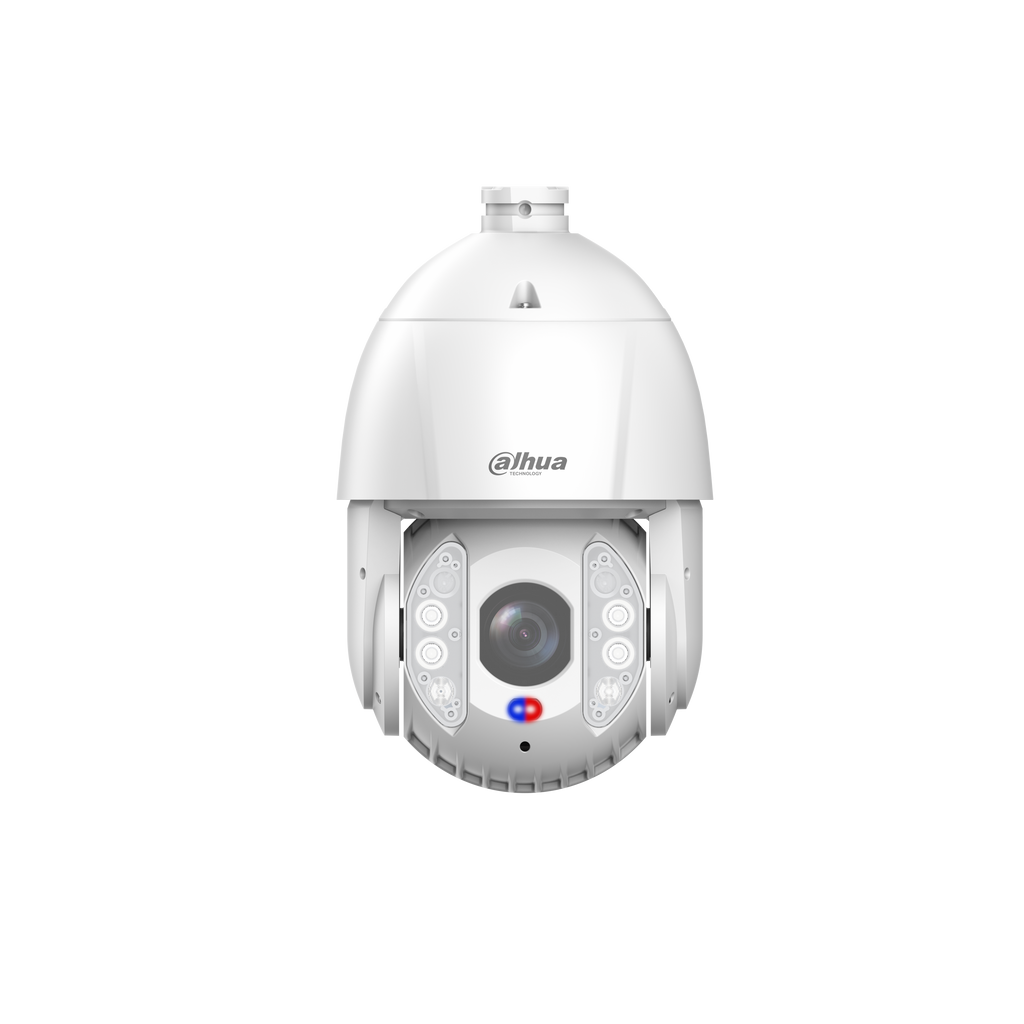

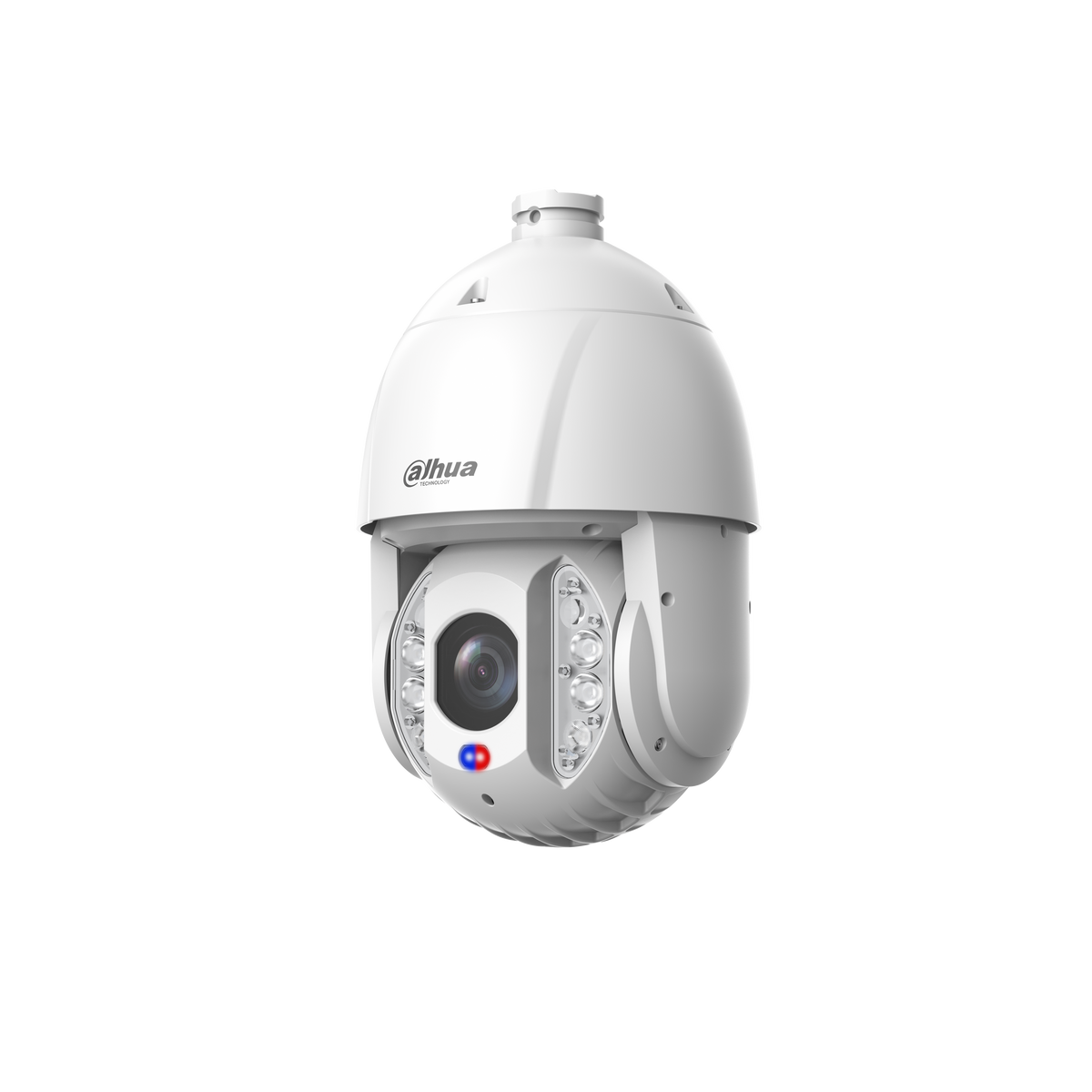

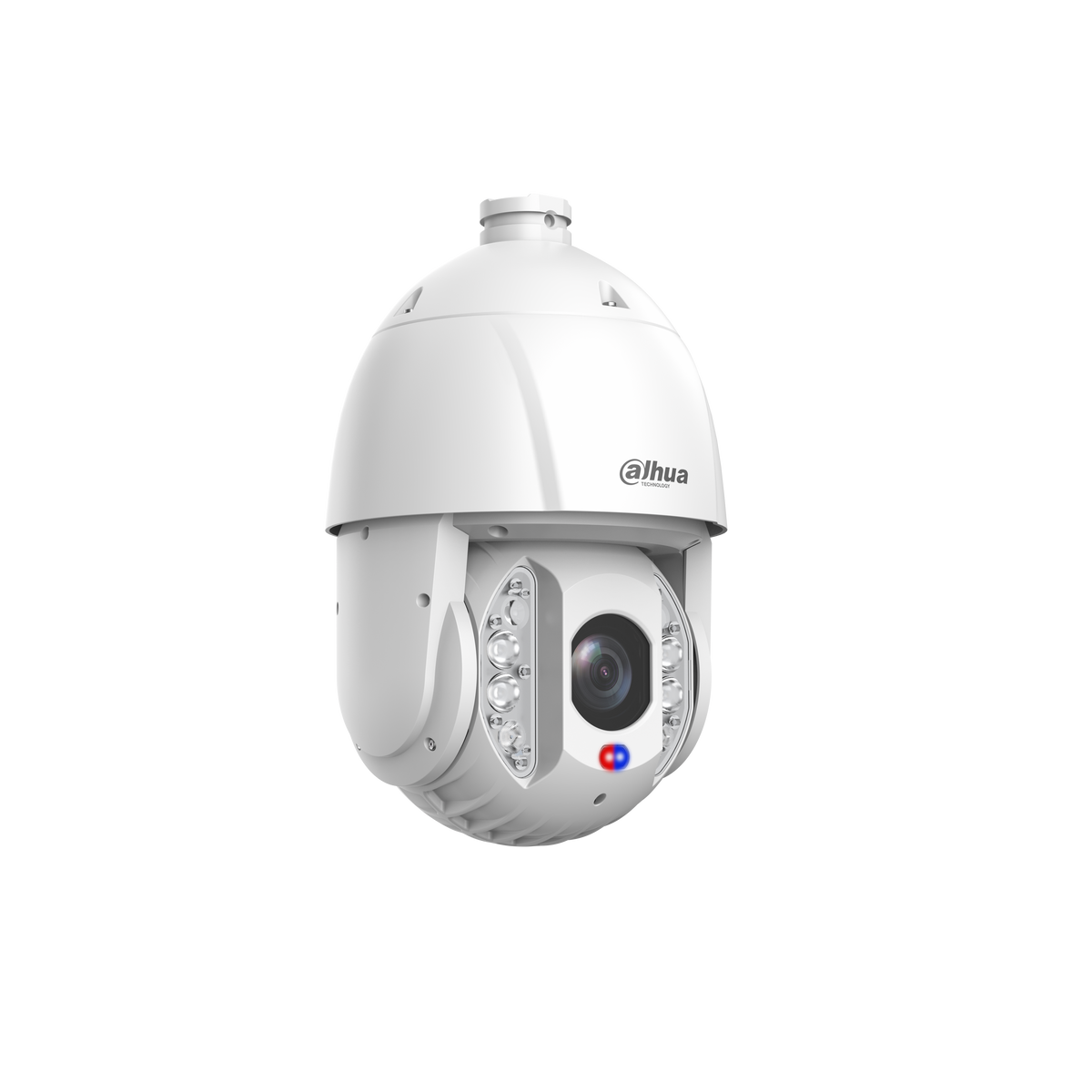

Dôme PTZ IP blanc
- 4 MP
- VF motorisée 4.8-154 mm ZOOMx32 IR 250 m LED 100 m
- Smart Dual Light
- WizSense
- AcuPick
- Protection périmétrique
- Détection de visage
- Active deterrence
- Micro et haut-parleurs intégrés
- IP67
- IK10
- 24V POE+
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Smart Dual Light, Active Deterrence
- Intelligence Artificielle : WizSense, Protection périmétrique, Détection de visage, AcuPick
- Résolution : 4 MP
- Varifocale : 4.8 - 154 mm
Fiche technique
| Capteur | 1/2.8" CMOS |
|---|---|
| Pixel | 4 MP |
| Résolution max. | 2560 (H) × 1440 (V) |
| Obturateur électronique | 1s–1/30000s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | 0.005 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Portée de l'éclairage | 100 m (328.08 ft) (Warm light); 250 m (820.21 ft) (IR) |
| Contrôle de l'éclairage | Zoom Prio; Manual; Auto; Off |
| Nombre d'illuminateurs | 6 (Dual light fusion) |
| Focale | 4.8 mm–154 mm |
| Ouverture max. | F1.6–F4.0 |
| Champ de vision | H: 55.8°–2.3°; V: 31.9°–1.3°; D: 63.7°–2.7° |
| Zoom optique | 32× |
| Focus Control | Auto; Semi-auto; Manual |
| Distance mini de mise au point | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Iris | Auto; Manual; Iris prio |
| Iris Control Type | DC-Iris |
| Distance DORI | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Objectif | Identify |
| W | 9.6 m ( 31.50 ft) |
| T | 308.0 m ( 1010.50 ft) |
| Pan/Tilt Range | Pan: 0° to 360° endless; Tilt: –20° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0°/s–260°/s; Tilt: 0°/s–140°/s |
| Preset Speed | Pan: 300°/s; Tilt:200°/s |
| Préréglages | 300 |
| Tour | 8 |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
| PTZ Protocol | DH-SD Pelco-P/D(Auto recognition) |
| IVS (protection périmétrique) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking |
| Smart Tracking | WizTracking |
| SMD (détection humain/véhicule) | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets |
| Auto Patrol | After an IVS event occurs, the PTZ camera immediately initiates automated patrol of predefined key points to quickly cover potential risk areas and detect unknown threats in real time. |
| Light Warning | Red and blue warning light Flash duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Built in 11 voice alarm contents, supporting custom import of 10 voice contents; Sound: 0-100 adjustable; The playback frequency can be adjusted from 1 to 10 times; |
| Compression vidéo | Smart H.265+;H.265;Smart H.264+;H.264;H.264B;H.264H;MJPEG(Sub Stream 1) |
| Flux | 3 streams |
| Résolutions | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA（640 × 480); CIF (352 × 288/352 × 240) |
| Fréquence d'images | Main stream: 4M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/@(1–25/30 fps) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H264: 96 kbps–15104 kbps H265: 38 kbps–9216 kbps |
| Jour/Nuit | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| Balance des blancs | Auto; Indoor; Outdoor; Tracking; Manual; Sodium lamp; Natural light; Street lamp |
| Contrôle du gain | Auto; Manual; Gain prio |
| Réduction du bruit | 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Electronic |
| Zoom numérique | 16x |
| Rotation de l'image | 180° |
| Masques de confidentialité | Up to 32 areas can be set, with up to 8 areas in the same view; color block and mosaic selectable. |
| Rapport signal/bruit | ≥55 dB |
| Compression audio | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Built-in Speaker | Yes, built-in speaker |
| Port réseau | RJ-45 (10/100 Base-T) |
| Protocoles réseau | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;SMB;NFS |
| Interopérabilité | CGI;SDK;ONVIF (Profile S & Profile G & Profile T & Profile M) |
| Streaming Method | Unicast/Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Navigateur | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Logiciels de gestion | DMSS;DSS Pro |
| Application mobile | iOS;Android |
| Certifications | CE:EN55035;EN IEC61000-3-2;EN55032;EN60950;EN62368-1 |
| RS-485 | 1 (Bit range: 1200 bps–9600 bps) |
| Entrée audio | 1 channel (LINE IN, bare wire) |
| Sortie audio | 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)） |
| Entrée d'alarme | 2 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Sortie d'alarme | 1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output; audio |
| Événements d'alarme | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alimentation | 24 VDC (± 25%), 2.5 A; PoE+ (802.3at) |
| Consommation | Basic: 12 W Max. (WDR + IR on + PTZ operation + Alarm): 20 W (24 VDC) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD6E432MB-HNR-A-PV1 · Marque : Dahua
