Description et caractéristiques

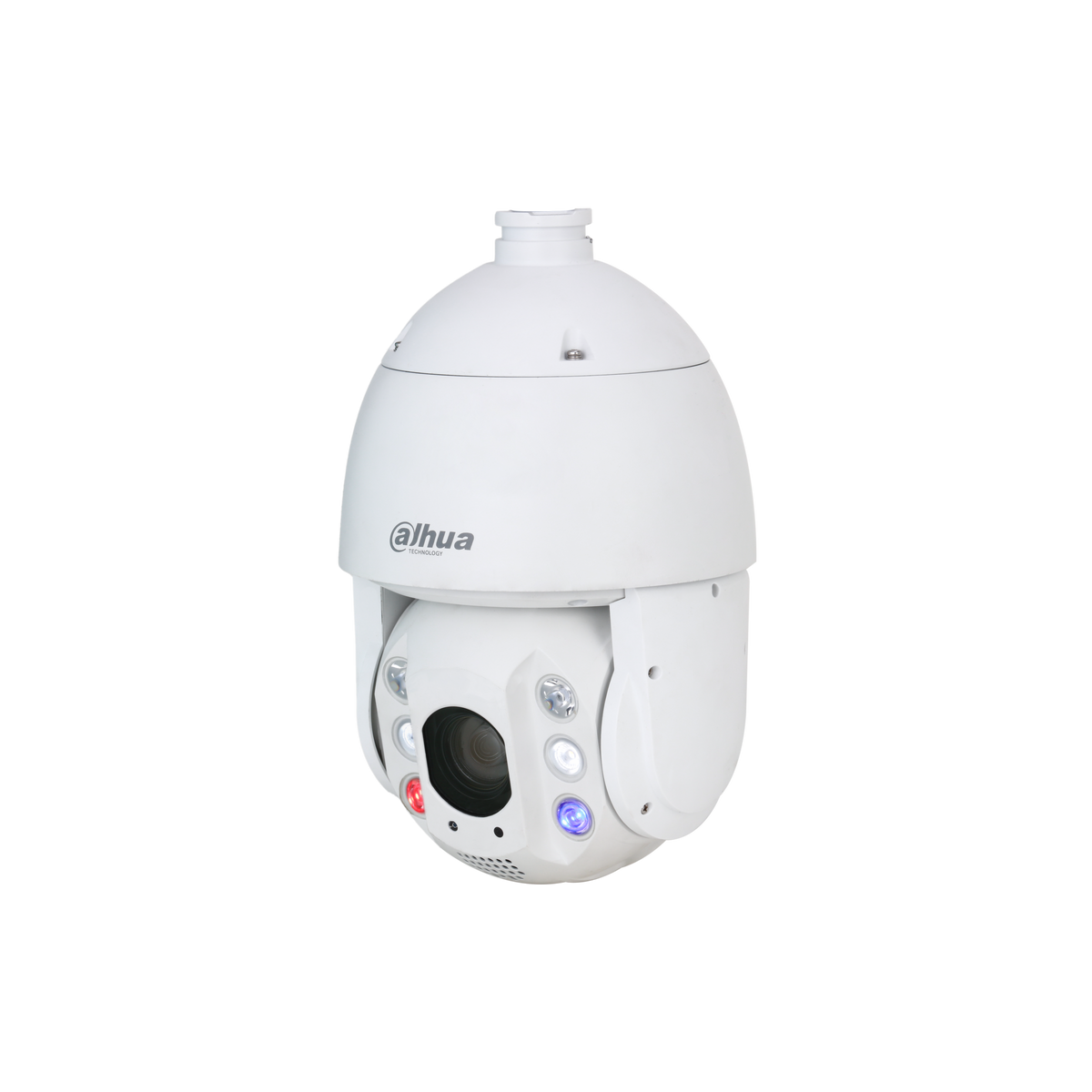

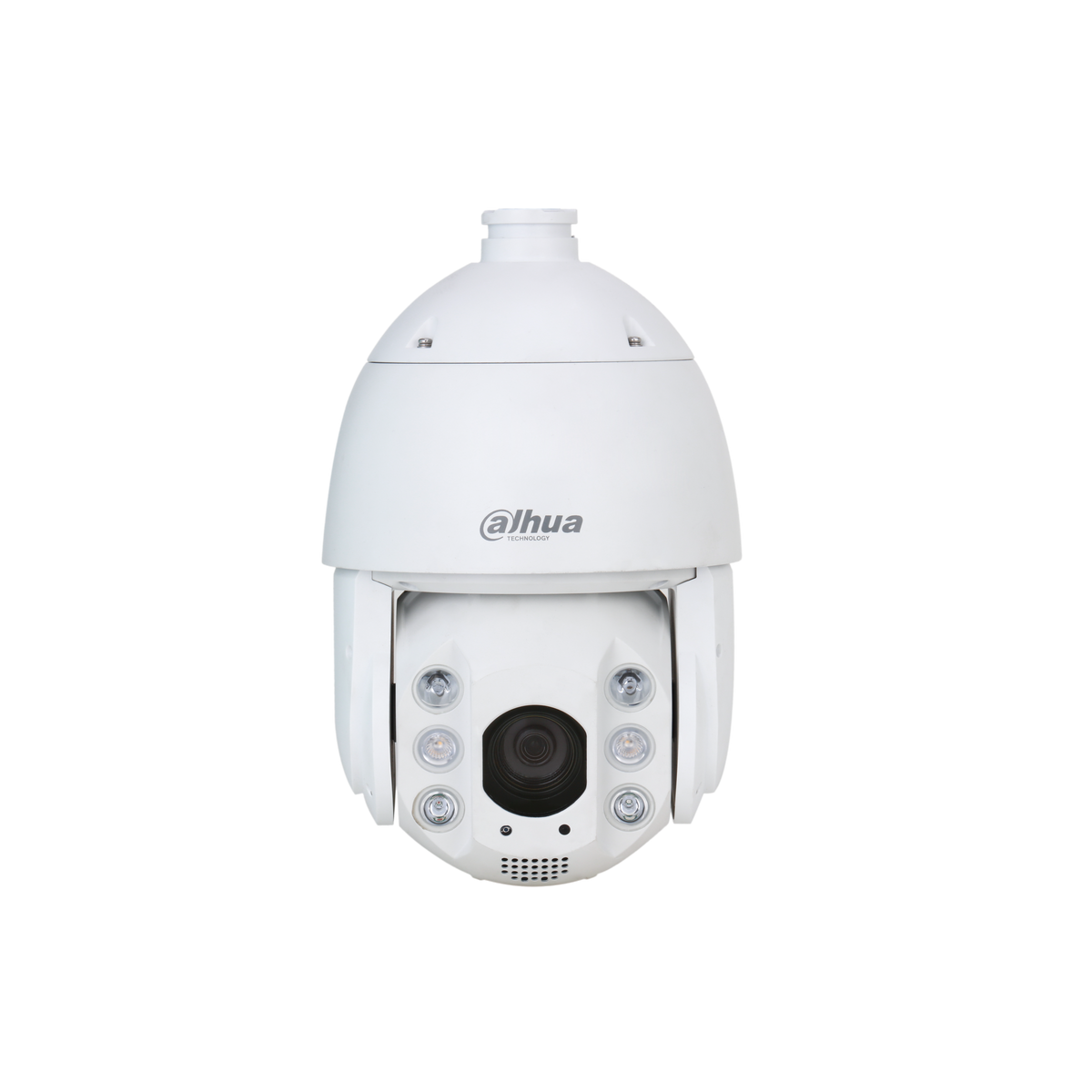

Dôme motorisée PTZ IP
- Blanc
- 2 MP
- Varifocale motorisé 3.95mm-177.75mm
- Zoom optique x45
- IR 150m
- WizeSense
- Starlight
- TIOC
- Protection périmétrique
- Détection de visage
- Entrée / Sortie audio
- 24V
- IP66
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight, TIOC 2.0
- Intelligence Artificielle : WizSense, Protection périmétrique, Détection de visage
- Résolution : 2 MP
- Varifocale : 3.95 - 177.75 mm
Fiche technique
| Capteur | 1/2.8" CMOS |
|---|---|
| Pixel | 2 MP |
| Résolution max. | 1920 (H) × 1080 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Obturateur électronique | 1/1 s–1/30,000 s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux(IR light on) |
| Portée de l'éclairage | 50 m (164.04 ft) (white light) 150 m (492.13 ft) (IR) |
| Contrôle de l'éclairage | Zoom Prio; Manual; Smart IR; Off |
| Nombre d'illuminateurs | 2 (IR) 2 (Dual light fusion) |
| Focale | 3.95 mm–177.75 mm |
| Ouverture max. | F1.6–F3.6 |
| Champ de vision | H: 65.7°–1.9°; V: 39.4°–1.1°; D: 73.1°–2.1° |
| Zoom optique | 45 × |
| Focus Control | Auto; semi-auto; manual |
| Distance mini de mise au point | 0.1 m–1 m (0.33 ft–3.28 ft) |
| Iris | Auto; manual |
| Distance DORI | Identify |
| 2,451.7 m (8,043.64 ft) | 245.2 m (804.46 ft) |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –20° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0°/s–240°/s Tilt: 0°/s–120°/s |
| Preset Speed | Pan: 240°/s Tilt:120°/s |
| Préréglages | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern;Preset;Scan;Tour |
| Video Metadata | Detects motor and non-motor vehicles, faces and human bodies. It also performs tracking, takes snapshots, uploads high-quality face images and optimizes images. It extracts attributes from motor vehicles, detecting up to 10 attributes for them. |
| IVS (protection périmétrique) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking |
| Auto Tracking | Yes |
| SMD (détection humain/véhicule) | SMD 4.0 |
| Acupick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Auto Patrol | It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets. |
| Light Warning | Red and blue warning light. They can be configured to flash for 5 to 30 seconds with a high, medium or low frequency. |
| Sound Warning | Customizable sound alarm |
| Compression vidéo | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+ |
| Flux | 3 streams |
| Résolutions | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Fréquence d'images | Main stream: 1080p/1.3M/720p@(1-50/60 fps) Sub stream 1: D1/VGA/CIF@(1-25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1-25/30 fps) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H264: 64 kbps–10496 kbps H265: 25 kbps–6400 kbps |
| Jour/Nuit | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| Balance des blancs | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Auto; manual |
| Réduction du bruit | 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Zoom numérique | 16× |
| Rotation de l'image | 180° |
| Masques de confidentialité | Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available |
| Rapport signal/bruit | ≥55 dB |
| Compression audio | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Port réseau | RJ-45 (10/100 Base-T) |
| Protocoles réseau | FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP |
| Interopérabilité | CGI;SDK;ONVIF (Profile S&G&T) |
| Streaming Method | Unicast/Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | FTP/SFTP; Micro SD card (512 GB); NAS |
| Navigateur | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Logiciels de gestion | DSS;DMSS |
| Application mobile | iOS;Android |
| Certifications | CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035 CE-LVD: EN 62368-1 FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4 |
| Entrée audio | 1 channel |
| Sortie audio | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital input; audio; warning light |
| Événements d'alarme | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Alimentation | 24 VDC/2.5 A ± 25% (included) PoE+ (802.3at) |
| Consommation | Basic: 13 W Max.: 23 W (illuminator + red and blue warning light + speaker + PTZ working) |
| Température de fonctionnement | –40 °C to +70 °C (–40 °F to +158 °F) |
| Humidité de fonctionnement | ≤95% |
| Indice de protection | IP66; TVS 6000 V lightning proof; surge protection; voltage transient protection |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD6C3245GB-HNR-A-PV1 · Marque : Dahua
