Description et caractéristiques

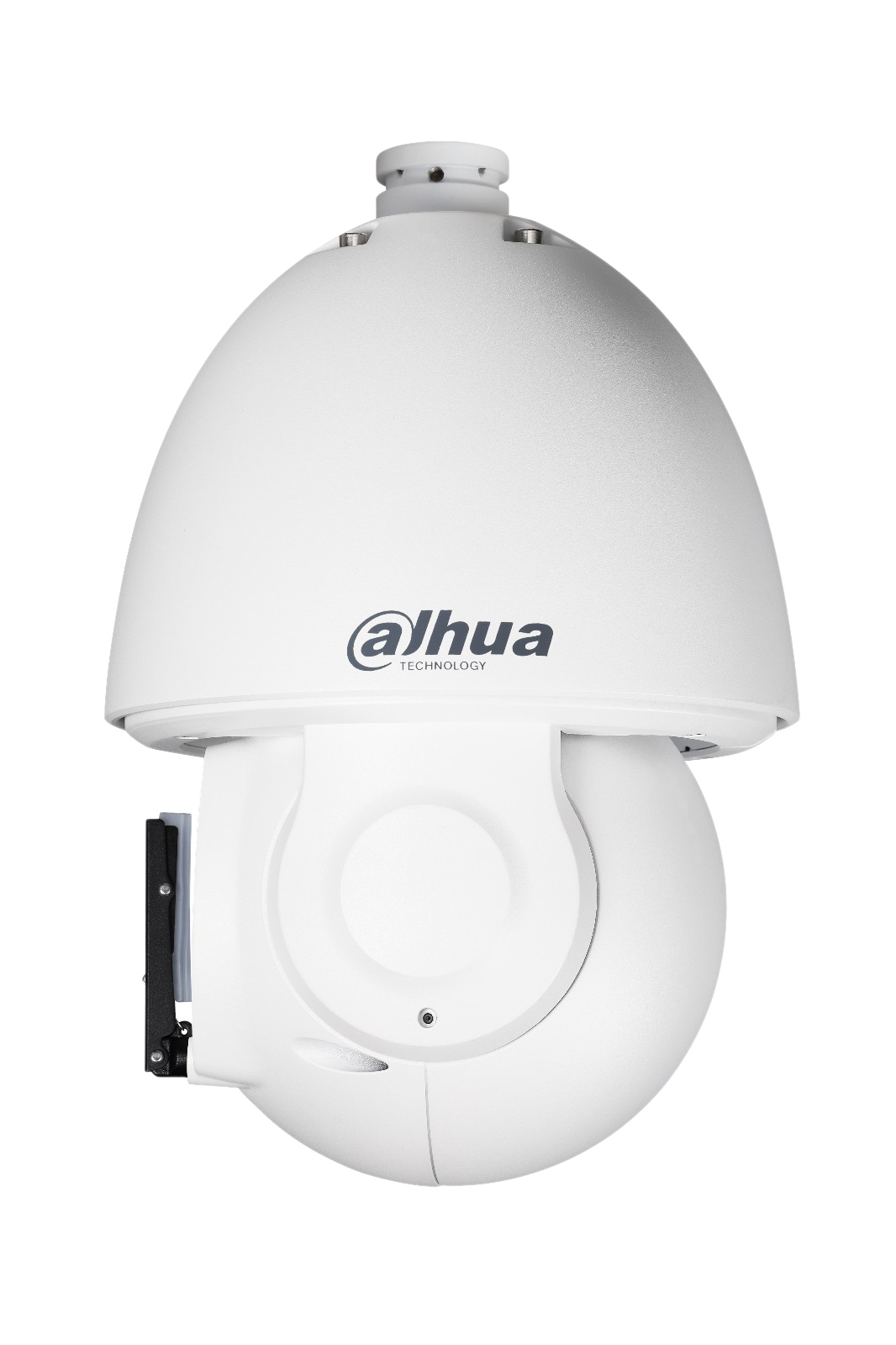

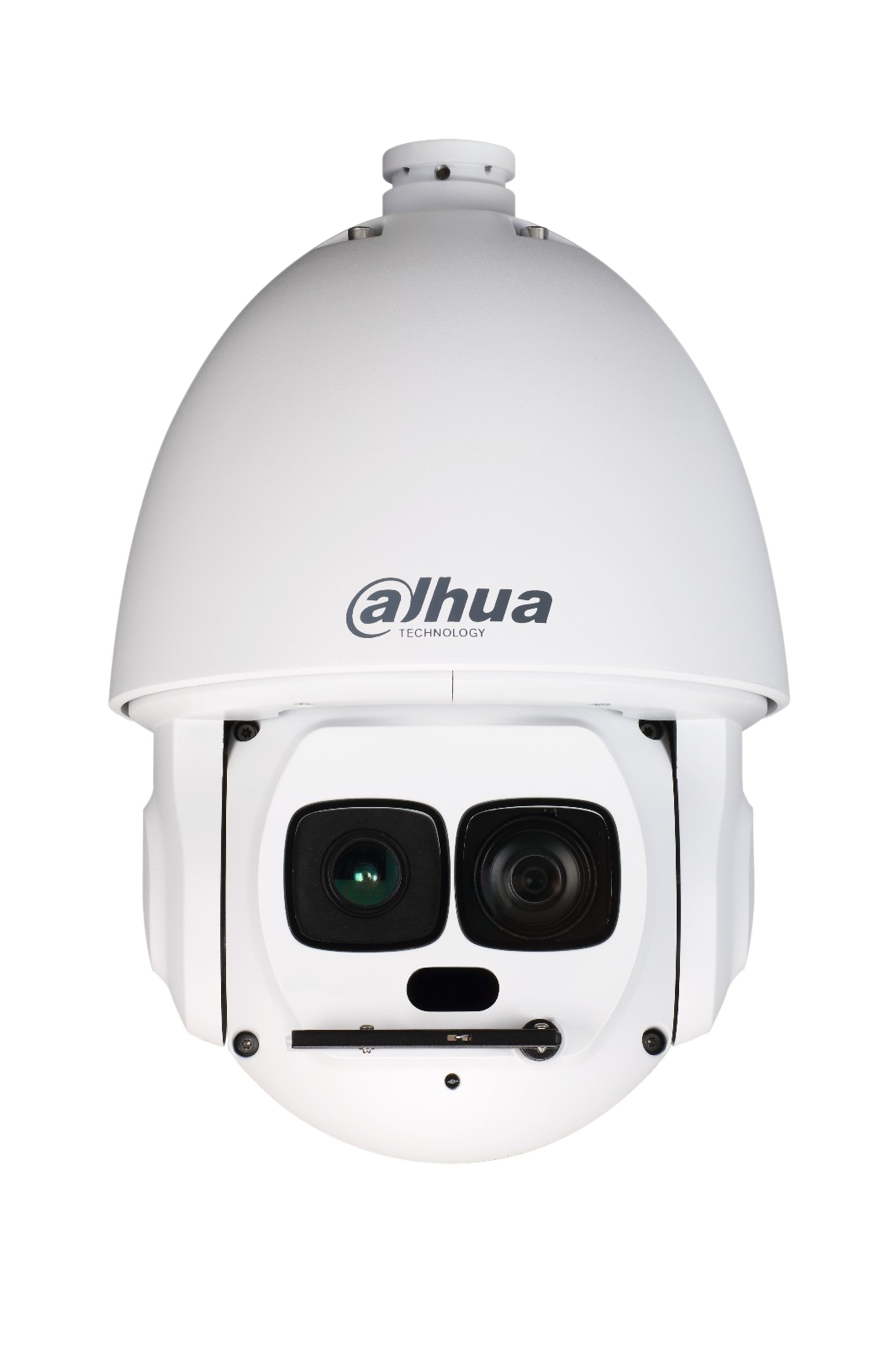

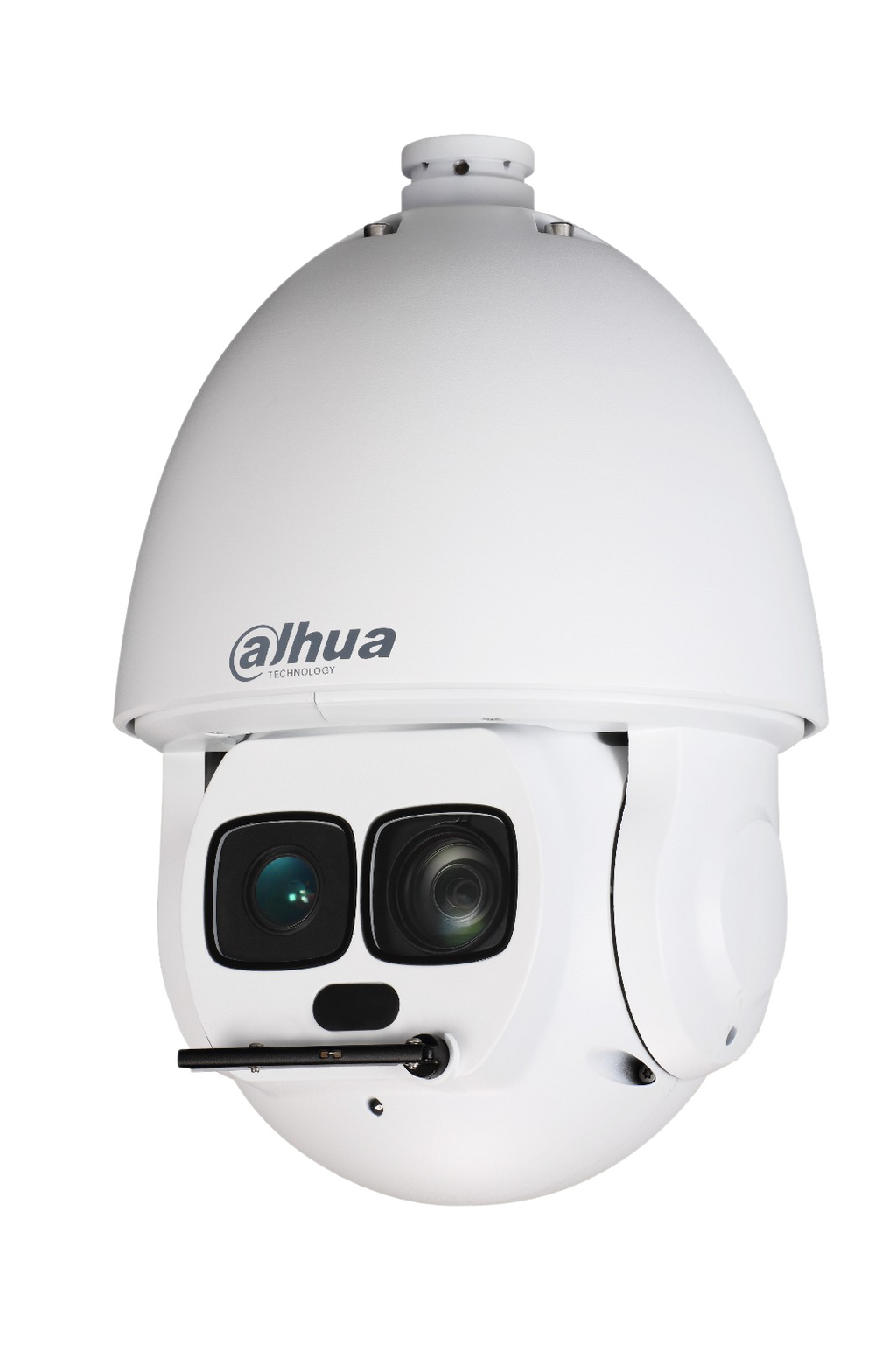

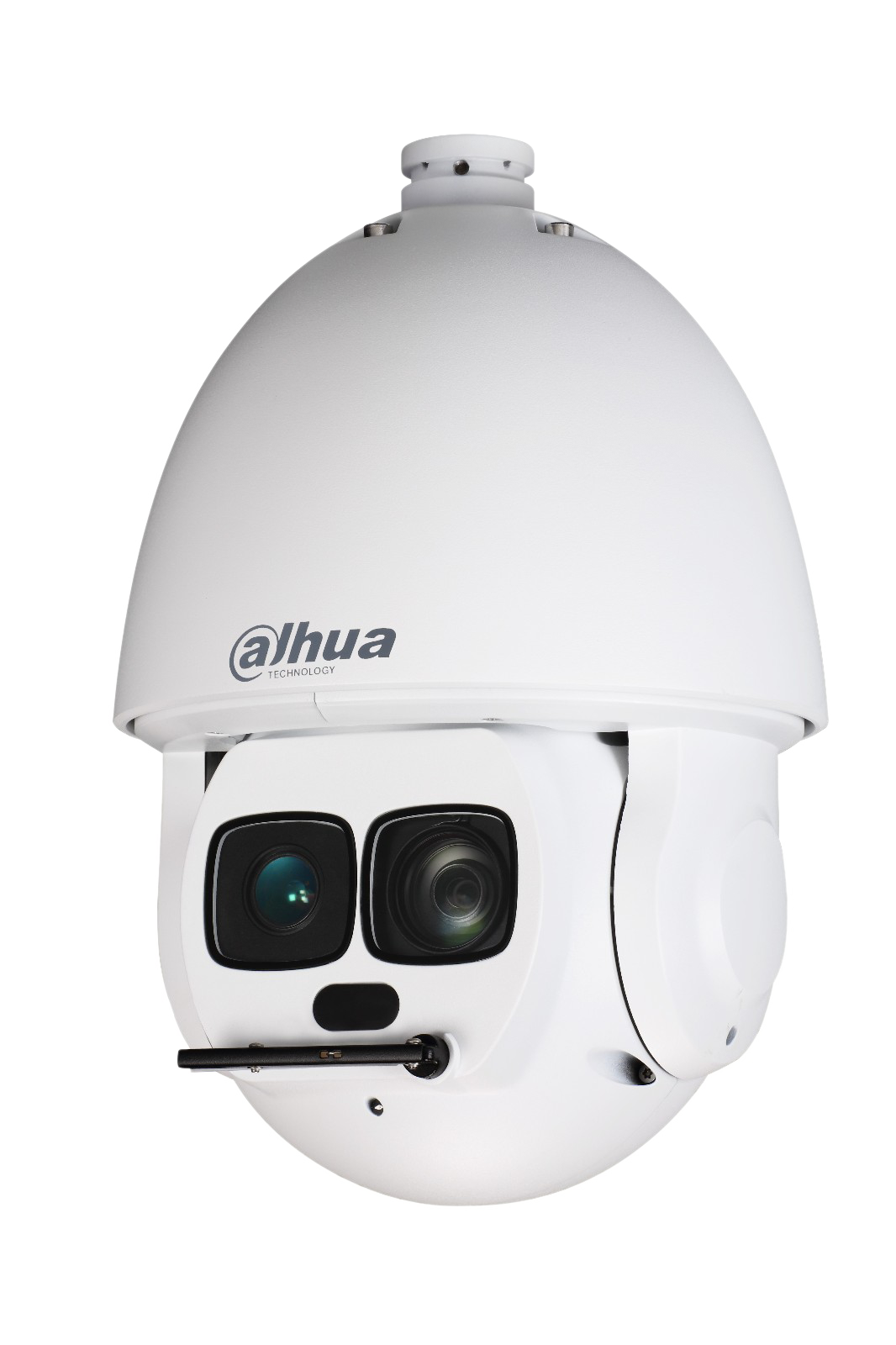

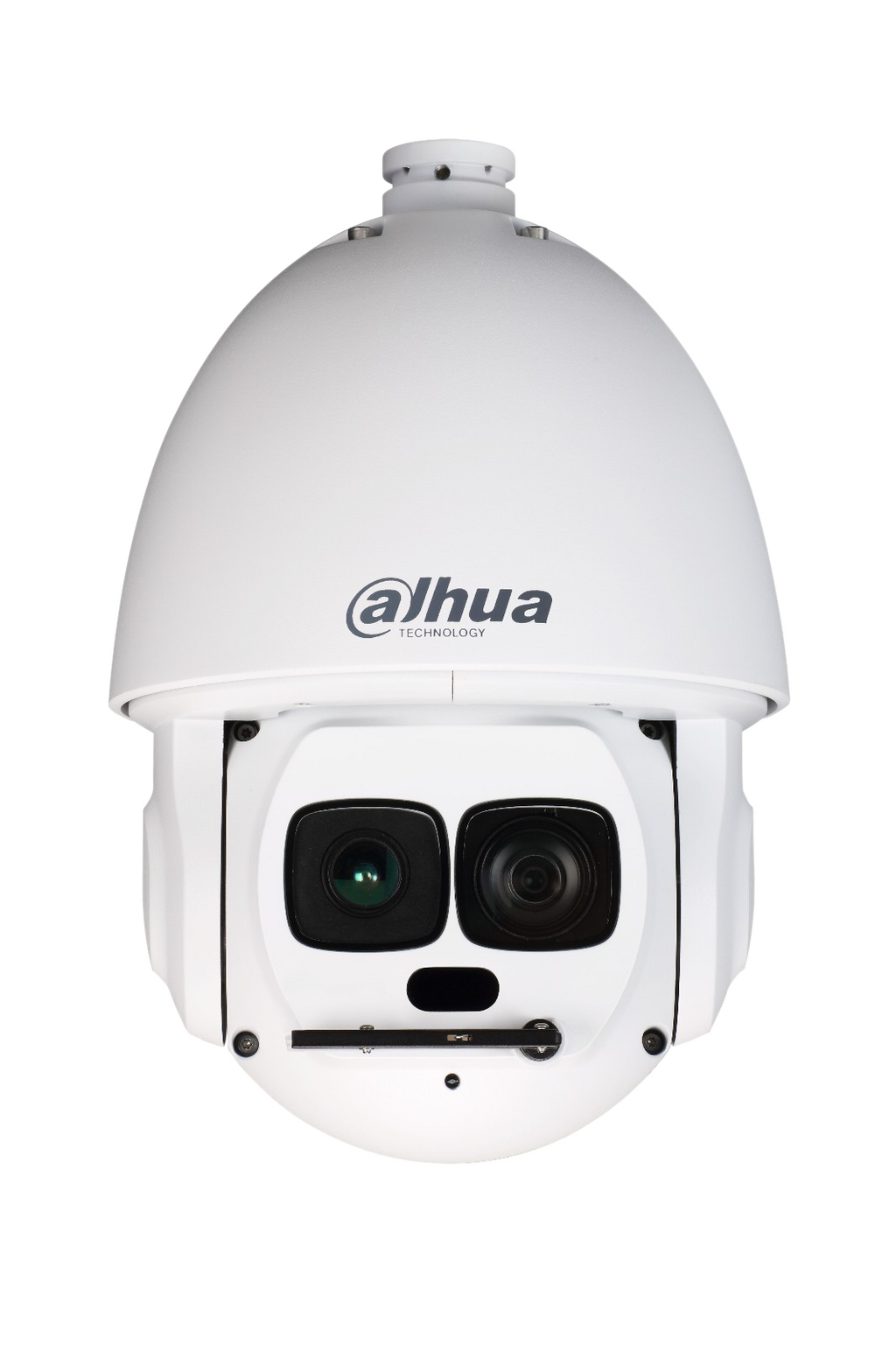

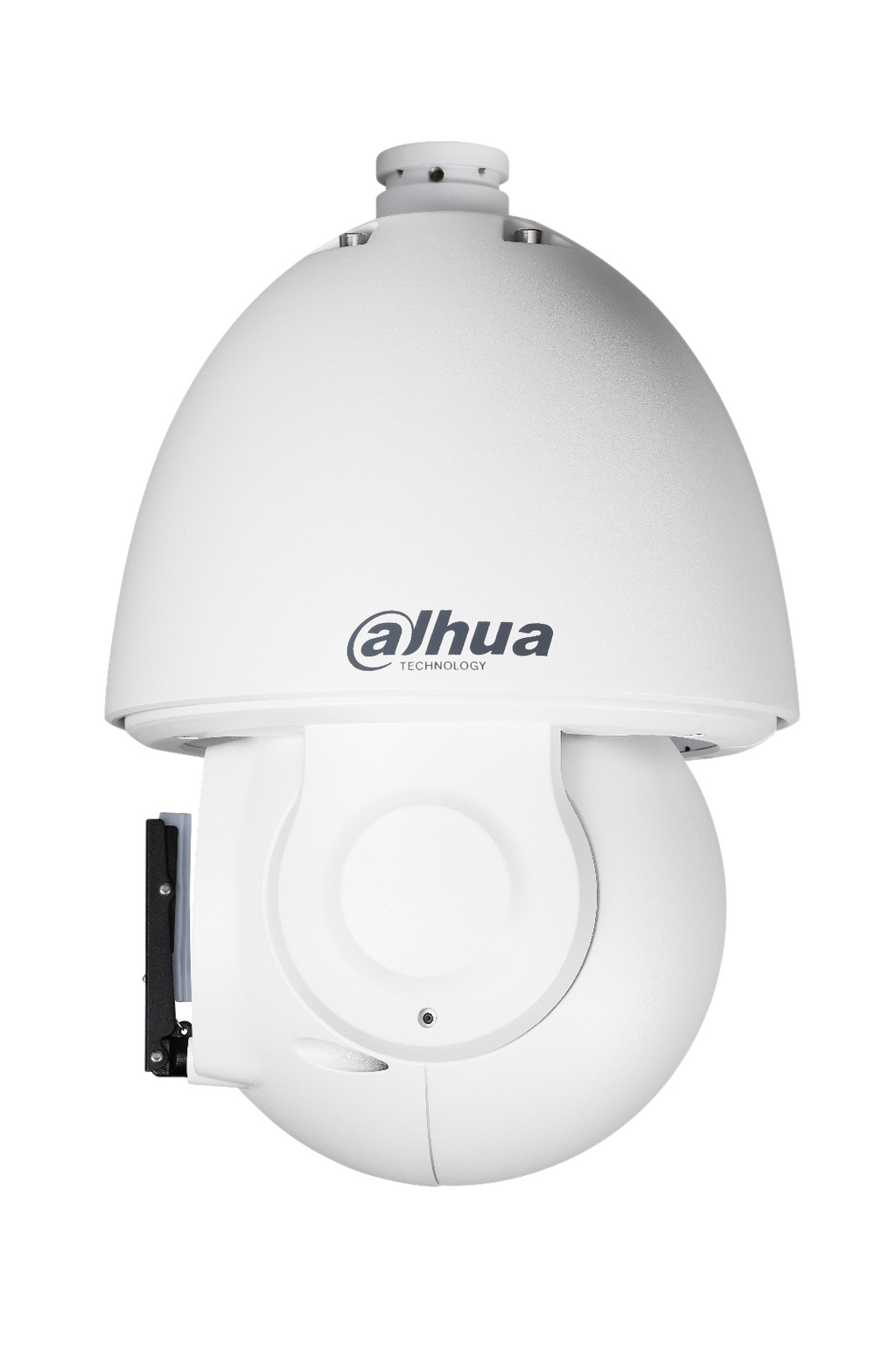

Dôme PTZ IP blanc
- 4MP
- VF motorisée ZOOMx45 IR Laser 550m
- Starlight
- WizMind
- Détection visage
- Protection périmétrique
- SMD 4.0
- IP67
- 36V Hi-POE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight
- Intelligence Artificielle : WizMind, Protection périmétrique, Détection de visage
- Résolution : 4 MP
- Zoom motorisé : Zoom x45
Fiche technique
| Capteur | 1/2.8" CMOS |
|---|---|
| Pixel | 4 MP |
| Résolution max. | 2560 (H) × 1440 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Obturateur électronique | 1 s–1/30,000 s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR/laser light on) |
| Portée de l'éclairage | 550 m (1804.46 ft) |
| Contrôle de l'éclairage | Zoom prio; Manual; Auto; Off |
| Nombre d'illuminateurs | 2 (IR); 1 (laser) |
| Wiper | Wiper |
| Focale | 3.95 mm–177.7 mm |
| Ouverture max. | F1.6–F4.95 |
| Champ de vision | H: 63.2°–1.8°; V: 37.6°–1.1°; D: 70.8°–2.1° |
| Zoom optique | 45× |
| Focus Control | Auto; semi-auto; manual |
| Distance mini de mise au point | 0.1 m–1 m (0.33 ft–3.28 ft) |
| Iris | Auto; manual; iris prio |
| Distance DORI | Identify |
| 3,555 m (11,663.39 ft) | 355.5 m (1,166.34 ft) |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –20° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–200°/s Tilt: 0.1°/s–120°/s |
| Preset Speed | Pan: 240°/s; Tilt: 200°/s |
| Préréglages | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour |
| PTZ Protocol | DH-SD Pelco-P/D (Auto recognition) |
| Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; optimization; capturing pictures; uploading high-quality face snapshots. Attribute extraction of motor vehicle is also supported, where 10 attributes can be detected |
| IVS (protection périmétrique) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking |
| Auto Tracking | Yes |
| SMD (détection humain/véhicule) | SMD4.0 |
| Quick Pick | Yes |
| Compression vidéo | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+ |
| Flux | 3 streams |
| Résolutions | 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Fréquence d'images | Main stream: 4M/3M/1080p/1.3M/720p@(1-25/30 fps) Sub stream 1: D1/VGA/CIF@(1-25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1-25/30 fps) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 96 kbps–14848 kbps H.265: 38 kbps–8960 kbps |
| Jour/Nuit | Color; B/W; Auto; Electronic |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| Balance des blancs | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Auto; manual; gain prio |
| Réduction du bruit | 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | EIS |
| Defog | Electronic |
| Zoom numérique | 16 × |
| Rotation de l'image | 180° |
| Masques de confidentialité | Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available |
| Rapport signal/bruit | ≥ 55 dB |
| Compression audio | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Port réseau | RJ-45 (10/100 Base-T) |
| Protocoles réseau | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Interopérabilité | CGI; SDK; ONVIF (Profile S&G&T) |
| Streaming Method | Unicast/Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Navigateur | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Logiciels de gestion | DMSS; DSS Pro |
| Application mobile | iOS; Android |
| Certifications | CE: CN211FB1 001 and 4789976478-2.5-1 FCC: 4790130386-2 |
| Alarm I/O | 7/2 |
| Audio I/O | 1/1 |
| RS-485 | 1 (baud rate: 1200 bps–115200 bps) |
| Entrée audio | 1 channel (LINE IN, bare wire) |
| Sortie audio | 1 channel (LINE OUT,bare wire) |
| Alarm Linkage | Capture; Recording; send email; preset; tour; pattern; alarm digital input |
| Événements d'alarme | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alimentation | 36 VDC, 2.23 A ± 25% HI-PoE |
| Consommation | Basic: 15 W Max: 45 W (illuminator+PTZ) |
| Température de fonctionnement | –40 °C to +70 °C (–40 °F to +158 °F) |
| Humidité de fonctionnement | ≤ 95% |
| Indice de protection | TVS 6000 V lightning proof; surge protecton; voltage transient protecton; IP67 |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD6AL445GB-HNV · Marque : Dahua
