Description et caractéristiques

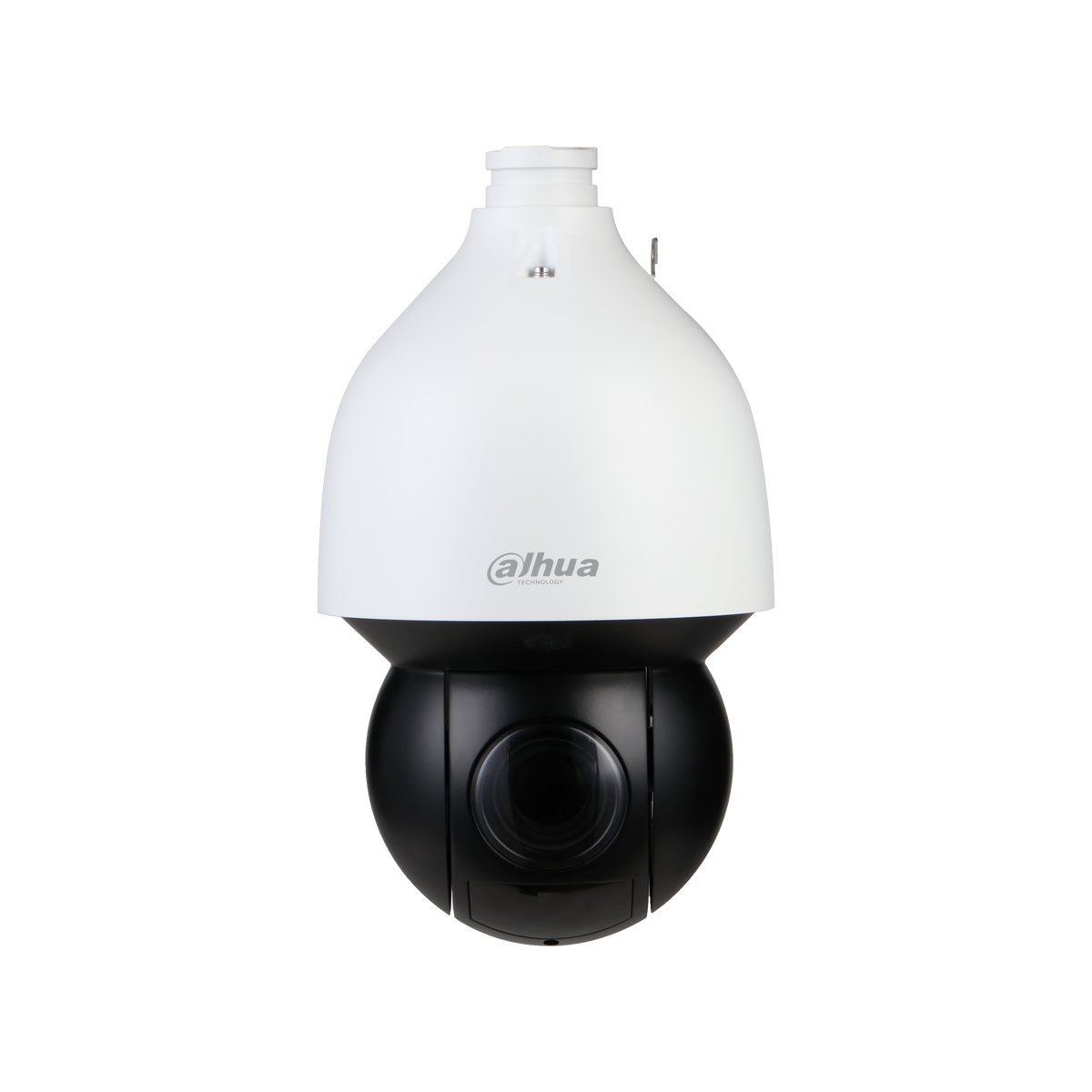

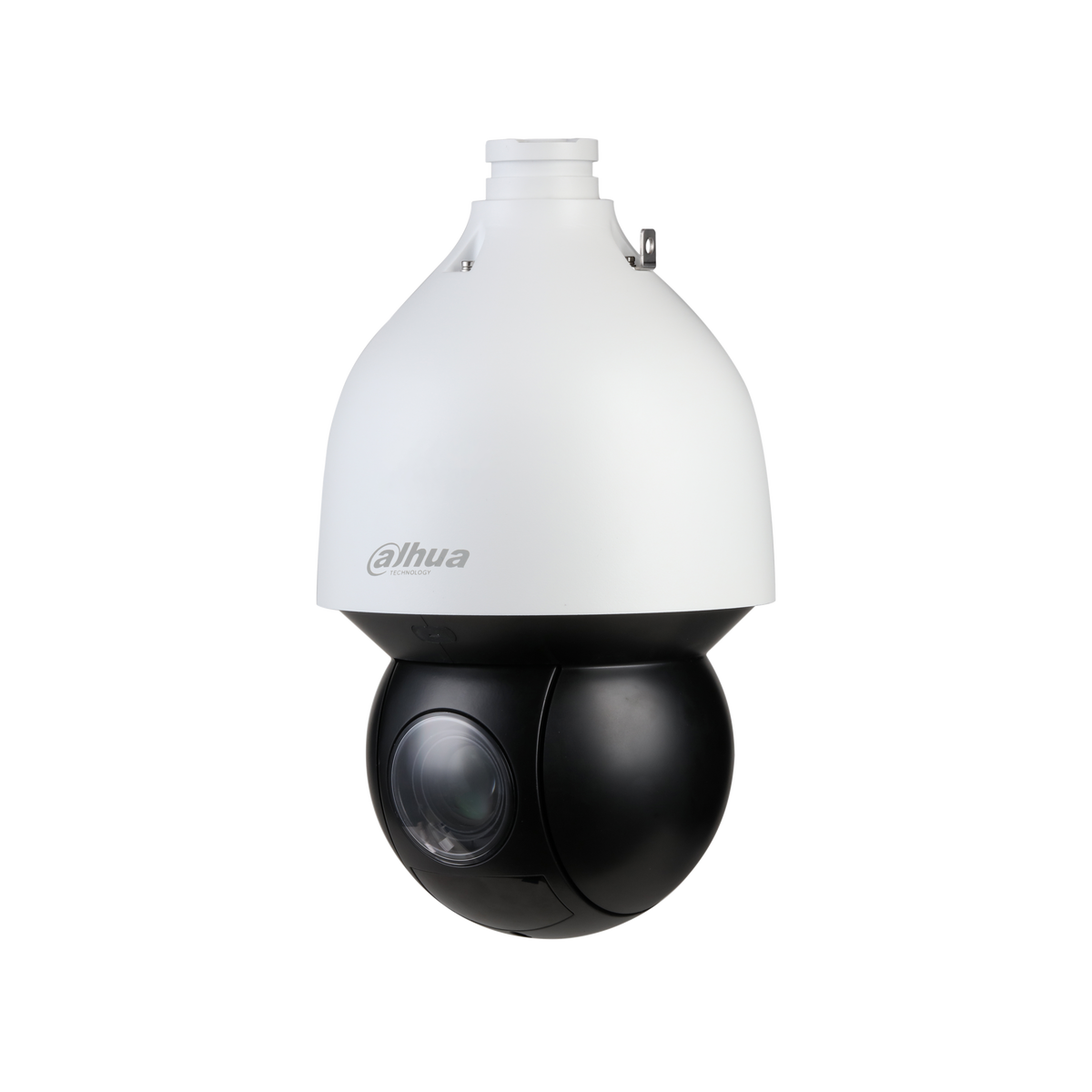

Dôme blanc PTZ IP
- 8 MP
- Zoom x25
- IR 150m
- IA WizSense
- Starlight
- Protection périmétrique
- Détection de visage
- Comptage de personnes
- Entrée / Sortie audio
- 24V POE+
- IP67
- IK10
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight, Couverture à 360°
- Intelligence Artificielle : WizSense, Protection périmétrique, Détection de visage, Comptage de personne
- Résolution : 8 MP
- Varifocale : 5 - 125 mm
Fiche technique
| Capteur | 1/2.8" CMOS |
|---|---|
| Pixel | 8 MP |
| Résolution max. | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Obturateur électronique | 1s–1/30,000s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (IR light on) |
| Portée de l'éclairage | 150 m (492.13 ft) (IR) |
| Contrôle de l'éclairage | Zoom Prio; manual; auto; off |
| Nombre d'illuminateurs | 4 (IR) |
| Focale | 5 mm–125 mm |
| Ouverture max. | F1.6–F3.6 |
| Champ de vision | H: 55.6°–3.2°; V: 32.2°–1.8°; D: 62.5°–3.7° |
| Zoom optique | 25× |
| Focus Control | Auto; semi-auto; manual |
| Distance mini de mise au point | 0.1 m–2 m (0.33 ft–6.6 ft) |
| Iris | Auto; manual |
| Distance DORI | Identify |
| 3,333.3 m (10,936.02 ft) | 333.3 m (1,093.50 ft) |
| Pan/Tilt Range | Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–300°/s Tilt: 0.1°/s–200°/s |
| Preset Speed | Pan: 400°/s; Tilt: 300°/s |
| Préréglages | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern;Preset;Scan;Tour |
| PTZ Protocol | DH-SD Pelco-P/D (Auto recognition) |
| IVS (protection périmétrique) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking |
| Face Detection | Supports face detection, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute extraction is also supported. |
| People Counting | Uses advanced image processing technology to extract depth information from images. The extracted information is then processed by advanced, deep learning algorithms to analyze and detect human bodies, and track targets in real time. The camera provides statistics for separate individuals' entrance and exit with up to 95% counting accuracy. |
| Auto Tracking | Yes |
| SMD (détection humain/véhicule) | SMD 4.0 |
| Auto Patrol | It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets. |
| Compression vidéo | H.264H;H.264B;Smart H.265+;H.264;H.265;Smart H.264+;MJPEG |
| Flux | 3 streams |
| Résolutions | 4K (3840 × 2160); 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 960p (1920 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Fréquence d'images | Main stream: 4K/4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/CIF/VGA @ (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p @(1–25/30 fps) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H264: 128 kbps–16384 kbps H265: 51 kbps–12288 kbps |
| Jour/Nuit | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| Balance des blancs | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Auto; manual |
| Réduction du bruit | 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | EIS |
| Defog | Electronic |
| Zoom numérique | 16× |
| Rotation de l'image | 180° |
| Masques de confidentialité | Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available |
| Rapport signal/bruit | ≥55 dB |
| Compression audio | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Port réseau | RJ-45 (10/100 Base-T) |
| Protocoles réseau | FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP |
| Interopérabilité | CGI;SDK;ONVIF (Profile S&G&T) |
| Streaming Method | Unicast/Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Navigateur | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Logiciels de gestion | DSS;DMSS;Easy4ip;Smart PSS;IVSS |
| Application mobile | iOS;Android |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
| Entrée d'alarme | 2 (on-off value input: 0–5 VDC) |
| Sortie d'alarme | 1 |
| Entrée audio | 1 channel (LINE IN, bare wire) |
| Sortie audio | 1 channel (LINE OUT,bare wire) |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output; audio |
| Événements d'alarme | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card status detection; memory space detection |
| Alimentation | 24 VDC, 2.5 A ± 25% PoE+ (802.3at) |
| Consommation | Basic: 12 W Max : 21 W (illuminator+ PTZ + Heater + Fan) |
| Température de fonctionnement | –40 °C to +70 °C (–40 °F to +158 °F) |
| Humidité de fonctionnement | ≤95% |
| Indice de protection | IP67, IK10, TVS 6000 V lightning proof; surge protection; voltage transient protection |
| Dimensions | Φ190.0 mm × 332.0 mm (Φ7.48" × 13.07") |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD5A825GB-HNR · Marque : Dahua
