Description et caractéristiques

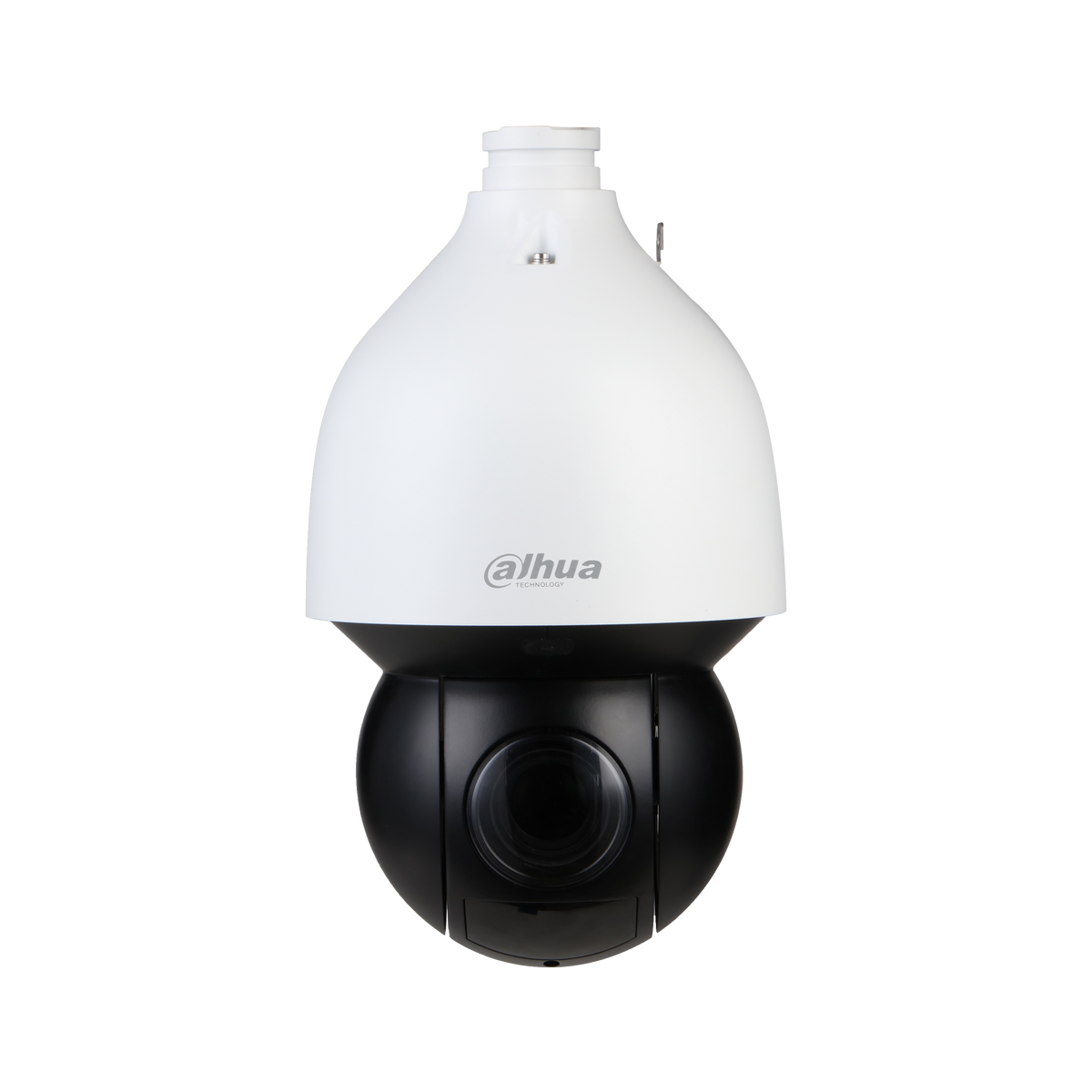

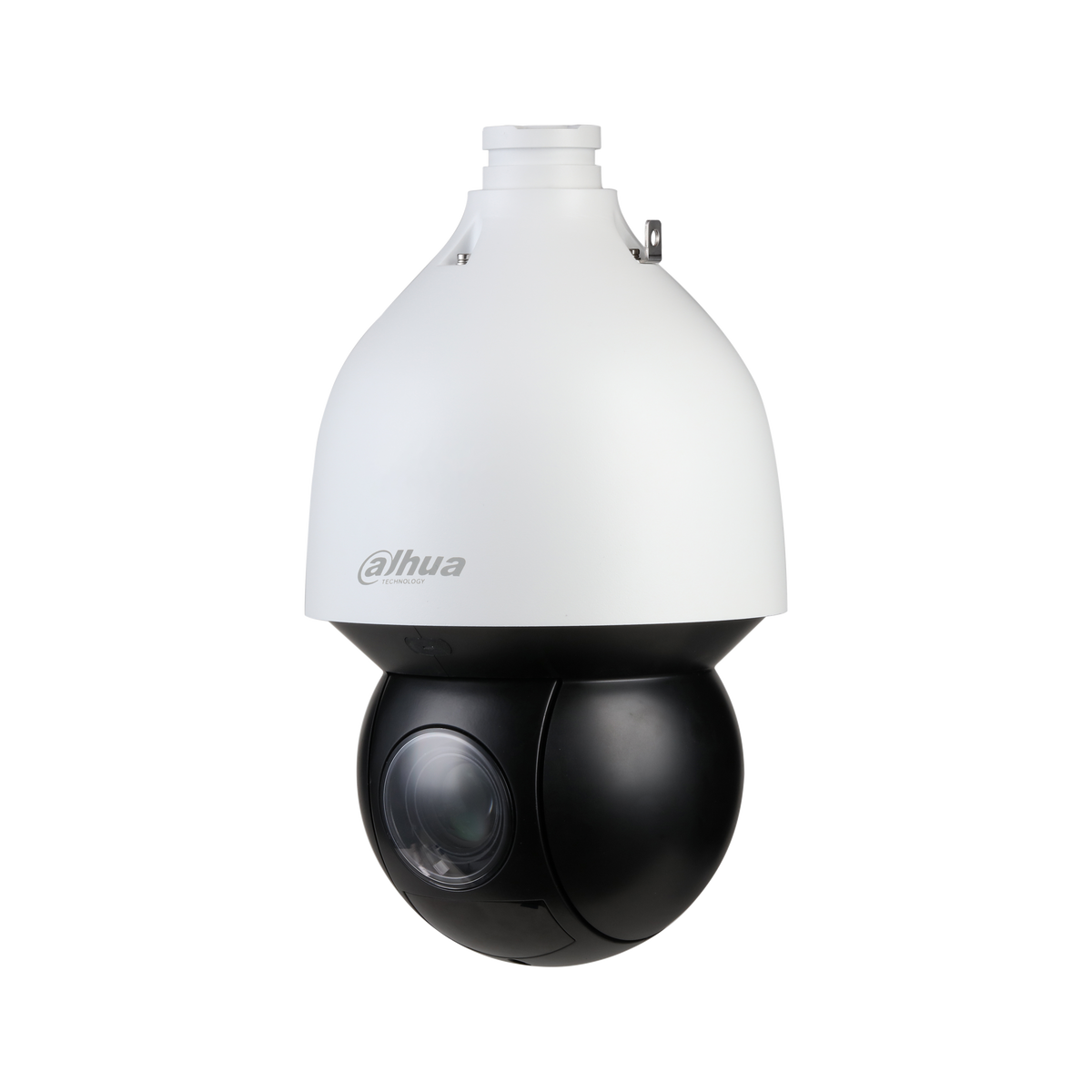

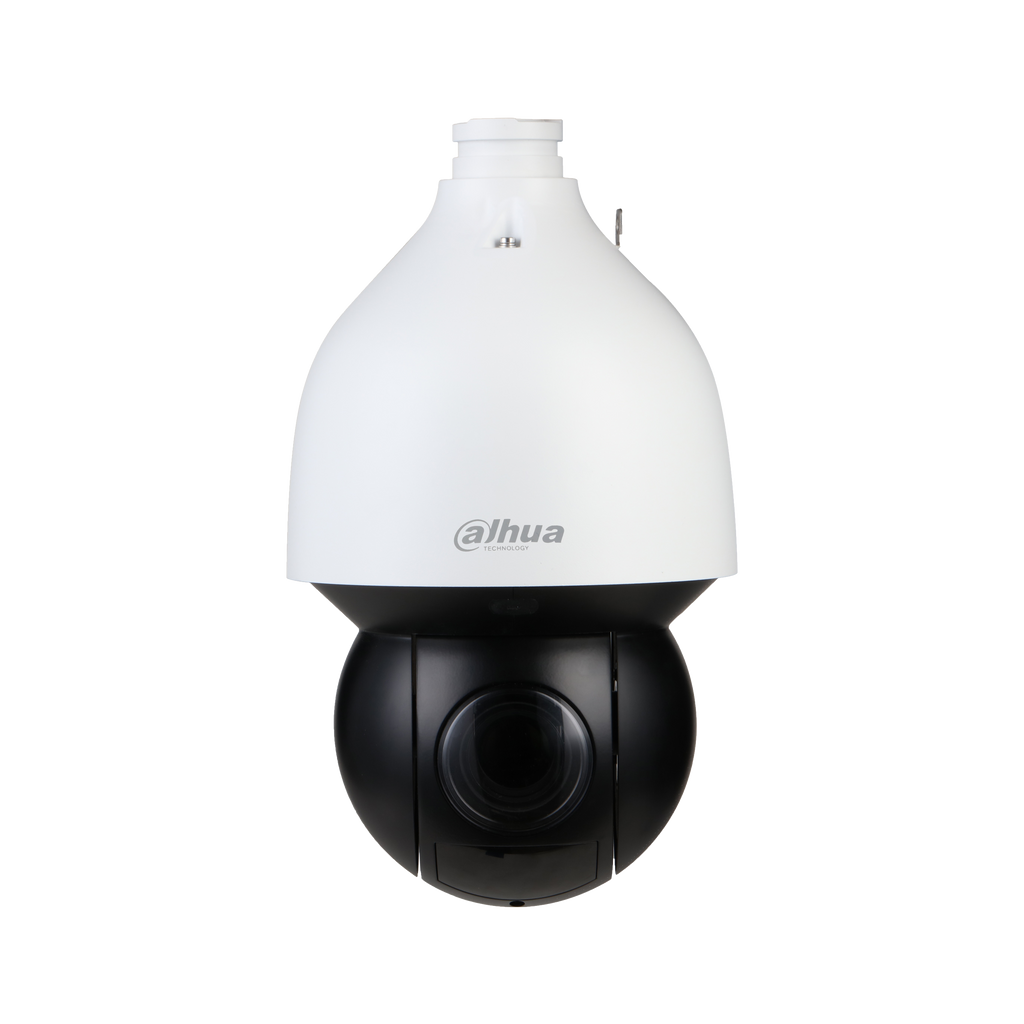

Dôme motorisé
- PTZ IP blanc
- 4 Mp
- VF motorisée Zoom x45
- IR 150m
- IA WizSense
- Starlight
- Protection périmétrique
- Reconnaissance faciale
- IP67
- IK10
- 24 POE+
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight
- Intelligence Artificielle : WizSense, Protection périmétrique, Reconnaissance faciale
- Résolution : 4 MP
- Zoom motorisé : Zoom x45
Fiche technique
| Capteur | 1/2.8" CMOS |
|---|---|
| Pixel | 4 MP |
| Résolution max. | 2560 (H) × 1440 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Obturateur électronique | 1/1 s–1/30,000 s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) |
| Portée de l'éclairage | 150 m (492.13 ft) |
| Contrôle de l'éclairage | Zoom Prio; Manual; Smart IR; Off |
| Nombre d'illuminateurs | 4 (IR) |
| Focale | 3.95 mm–177.75 mm |
| Ouverture max. | F1.6–F4.95 |
| Champ de vision | H: 65.7°–1.9°; V: 39.4°–1.1°; D: 73.1°–2.1° |
| Zoom optique | 45× |
| Focus Control | Auto; semi-auto; manual |
| Distance mini de mise au point | 0.1 m–1 m (0.33 ft–3.28 ft) |
| Iris | Auto; manual |
| Distance DORI | Identify |
| 2,451.7 m (8,043.64 ft) | 245.2 m (804.46 ft) |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–300°/s Tilt: 0.1°/s–200°/s |
| Preset Speed | Pan: 400°/s; Tilt: 300°/s |
| Préréglages | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour |
| Video Metadata | Detects motor and non-motor vehicles, faces and human bodies. It also performs tracking, takes snapshots, uploads high-quality face images and optimizes images. It extracts attributes from motor vehicles, detecting up to 10 attributes for them. |
| IVS (protection périmétrique) | Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking |
| People Counting | Supports tripwire for people counting at entrances and exits, counting the number of people staying in an area and queuing in an area, and displaying and exporting reports based on the day, week and month. |
| Auto Tracking | Yes |
| SMD (détection humain/véhicule) | SMD 4.0 |
| Acupick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Auto Patrol | It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets. |
| Compression vidéo | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+ |
| Flux | 3 streams |
| Résolutions | 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288) |
| Fréquence d'images | Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/VGA/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 96 kbps–14848 kbps H.265: 38 kbps–8960 kbps |
| Jour/Nuit | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| Balance des blancs | Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Auto; manual |
| Réduction du bruit | 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Zoom numérique | 16× |
| Rotation de l'image | 180° |
| Masques de confidentialité | Up to 24 areas can be set, with up to 8 areas in the same view |
| Rapport signal/bruit | ≥ 55 dB |
| Compression audio | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Port réseau | 1 × RJ-45 (10/100 Base-T) |
| Protocoles réseau | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Interopérabilité | CGI; SDK; ONVIF (Profile S&G&T); P2P |
| Streaming Method | Unicast/Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | Micro SD card (Up to 512 GB); FTP; NAS |
| Navigateur | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions iOS 10 and later versions |
| Logiciels de gestion | DSS; DMSS |
| Application mobile | iOS; Android |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA 22.2,No.60950-1 |
| Entrée audio | 1 channel |
| Sortie audio | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output |
| Événements d'alarme | Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Alimentation | 24 VDC, 2.5 A ± 25% PoE+ (802.3at) |
| Consommation | Basic: 10 W Max: 22 W (illuminator on + Heater + Fan) |
| Température de fonctionnement | –40 °C to +70 °C (–40 °F to +158 °F) |
| Humidité de fonctionnement | ≤ 95% (RH) |
| Indice de protection | IP67; IK10; TVS 6000V lightning proof; surge protection; voltage transient protection |
| Dimensions | 332 mm × Φ190 mm (13.07" × Φ7.48") |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD5A445GB-HNR · Marque : Dahua
