Description et caractéristiques

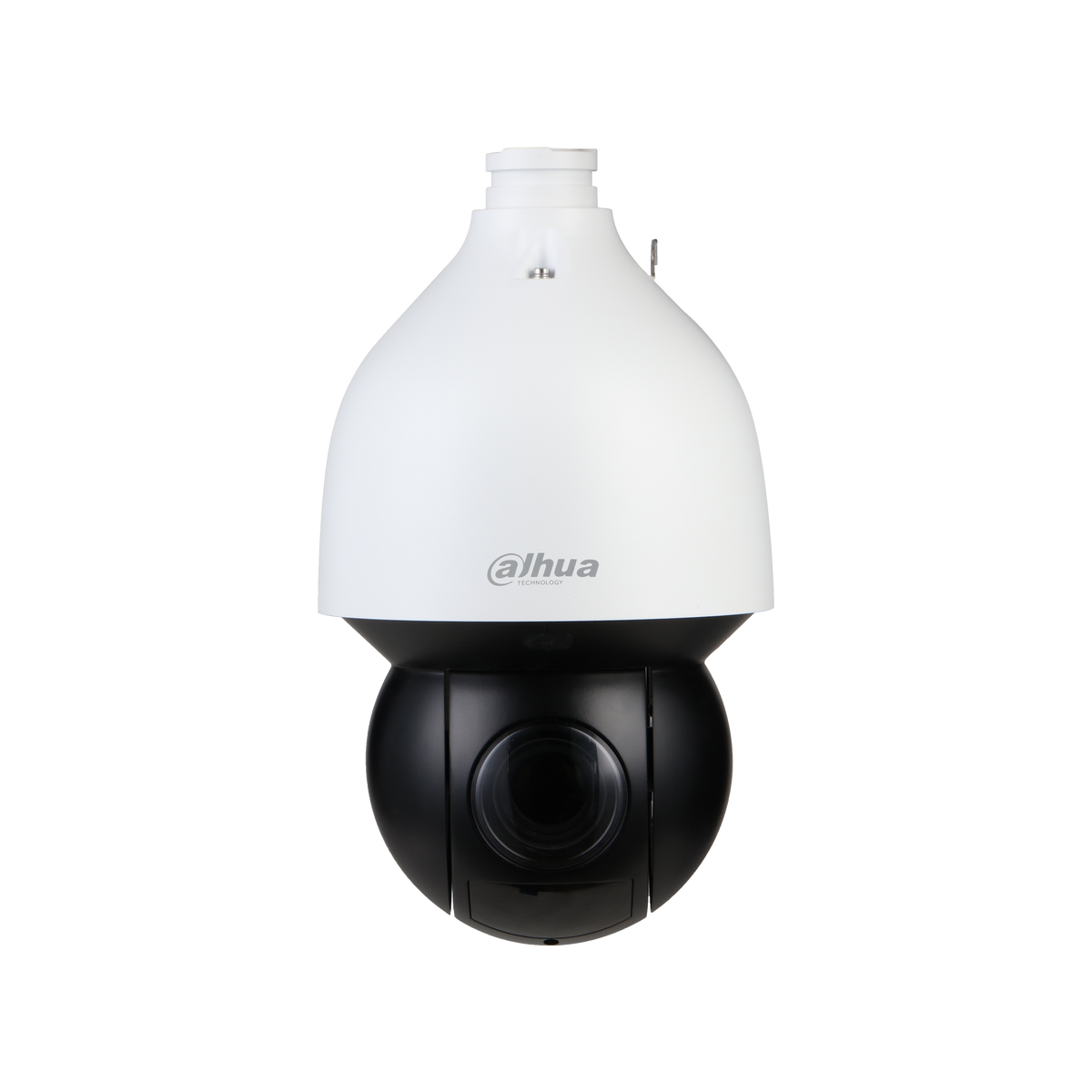

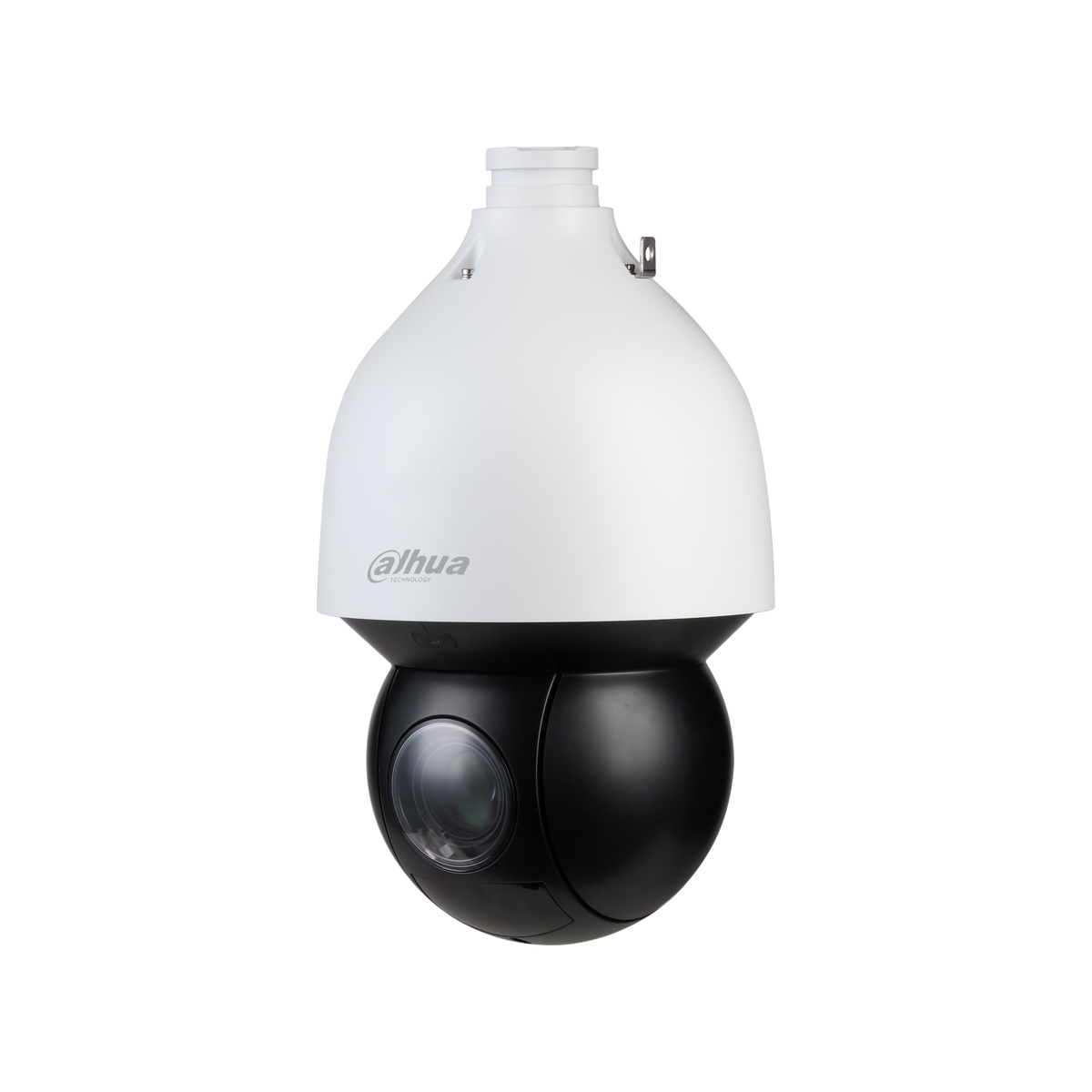

Dôme PTZ IP blanc
- 4 Mp
- VF motorisée
- Zoom motorisé X32
- IA WizSense
- IR 150m
- Starlight
- Protection périmétrique
- Reconnaissance faciale
- IP67
- IK10
- 24V PoE+
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight
- Intelligence Artificielle : WizSense, Protection périmétrique, Reconnaissance faciale
- Résolution : 4 MP
- Zoom motorisé : Zoom x32
Fiche technique
| Capteur | 1/2.8" CMOS |
|---|---|
| Pixel | 4 MP |
| Résolution max. | 2560 (H) × 1440 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Obturateur électronique | 1/1 s–1/30,000 s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) |
| Portée de l'éclairage | 150 m (492.13 ft) (IR) |
| Contrôle de l'éclairage | Zoom Prio; Manual; Smart IR |
| Nombre d'illuminateurs | 4 (IR) |
| Focale | 4.8 mm–154 mm |
| Ouverture max. | F1.6–F4.0 |
| Champ de vision | H: 55.8°–2.4°; V: 31.9°–1.3°; D: 63.7°–2.7° |
| Zoom optique | 32× |
| Focus Control | Auto; semi-auto; manual |
| Distance mini de mise au point | 0.8 m–5.0 m (2.62 ft–16.40 ft) |
| Iris | Auto; manual |
| Distance DORI | Identify |
| 2,124 m (6,968.50 ft) | 212 m (695.54 ft) |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–300°/s Tilt: 0.1°/s–200°/s |
| Preset Speed | Pan: 400°/s; Tilt: 300°/s |
| Préréglages | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset; Pattern; Tour; Scan |
| Video Metadata | Detects motor and non-motor vehicles, faces and human bodies. It also performs tracking, takes snapshots, uploads high-quality face images and optimizes images. It extracts attributes from motor vehicles, detecting up to 10 attributes for them. |
| IVS (protection périmétrique) | Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| People Counting | Supports tripwire for people counting at entrances and exits, counting the number of people staying in an area and queuing in an area, and displaying and exporting reports based on the day, week and month. |
| Auto Tracking | Yes |
| SMD (détection humain/véhicule) | SMD 4.0 |
| Acupick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Auto Patrol | It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets. |
| Compression vidéo | Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (Sub Stream 1) |
| Flux | 3 streams |
| Résolutions | 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Fréquence d'images | Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps)Sub stream 1: D1/VGA/CIF (1–25/30 fps)Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
| Contrôle du débit | CBR; VBR |
| Débit vidéo | H264: 96 Kbps–14848 Kbps H265: 38 Kbps–8960 Kbps |
| Jour/Nuit | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | 120 dB |
| Balance des blancs | Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Auto; manual |
| Réduction du bruit | 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Zoom numérique | 16× |
| Rotation de l'image | 180° |
| Masques de confidentialité | Up to 24 areas can be set, with up to 8 areas in the same view |
| Rapport signal/bruit | ≥55 dB |
| Compression audio | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Port réseau | RJ-45 (10/100 Base-T) |
| Protocoles réseau | HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP; TLSv1.2; SYSLOG(REMOTE LOGS); SSL |
| Interopérabilité | ONVIF(Profile S&G&T);CGI;SDK |
| Streaming Method | Unicast; Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | FTP; Micro SD card (512 GB); NAS |
| Navigateur | IE 7 and later versions Chrome 42 and earlier versions Firefox 52 and earlier versions Safari |
| Logiciels de gestion | Smart PSS; DSS; DMSS; Easy4ip; IVSS |
| Application mobile | iOS; Android |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Two-way Audio | Yes |
| Alarm Linkage | Capture; preset; tour; pattern; recording; triggering on-off value output; audio; send email |
| Événements d'alarme | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection |
| Alimentation | 24 VDC, 2.5 A ± 25% PoE +(802.3at) |
| Consommation | Basic: 13 W Max: 22 W (illuminator + PTZ working + Heater + Fan) |
| Température de fonctionnement | –40 °C to +70 °C (–40 °F to +158 °F) |
| Humidité de fonctionnement | ≤95% |
| Indice de protection | IP67; IK10; TVS 6000 V lightning proof; surge protection; voltage transient protection |
| Dimensions | 332 mm × Φ190 mm (13.07" × Φ7.48") |
| Poids net | 4.7 kg (10.36 lb) |
| Poids brut | 8 kg (17.64 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD5A432GB-HNR · Marque : Dahua
