Description et caractéristiques

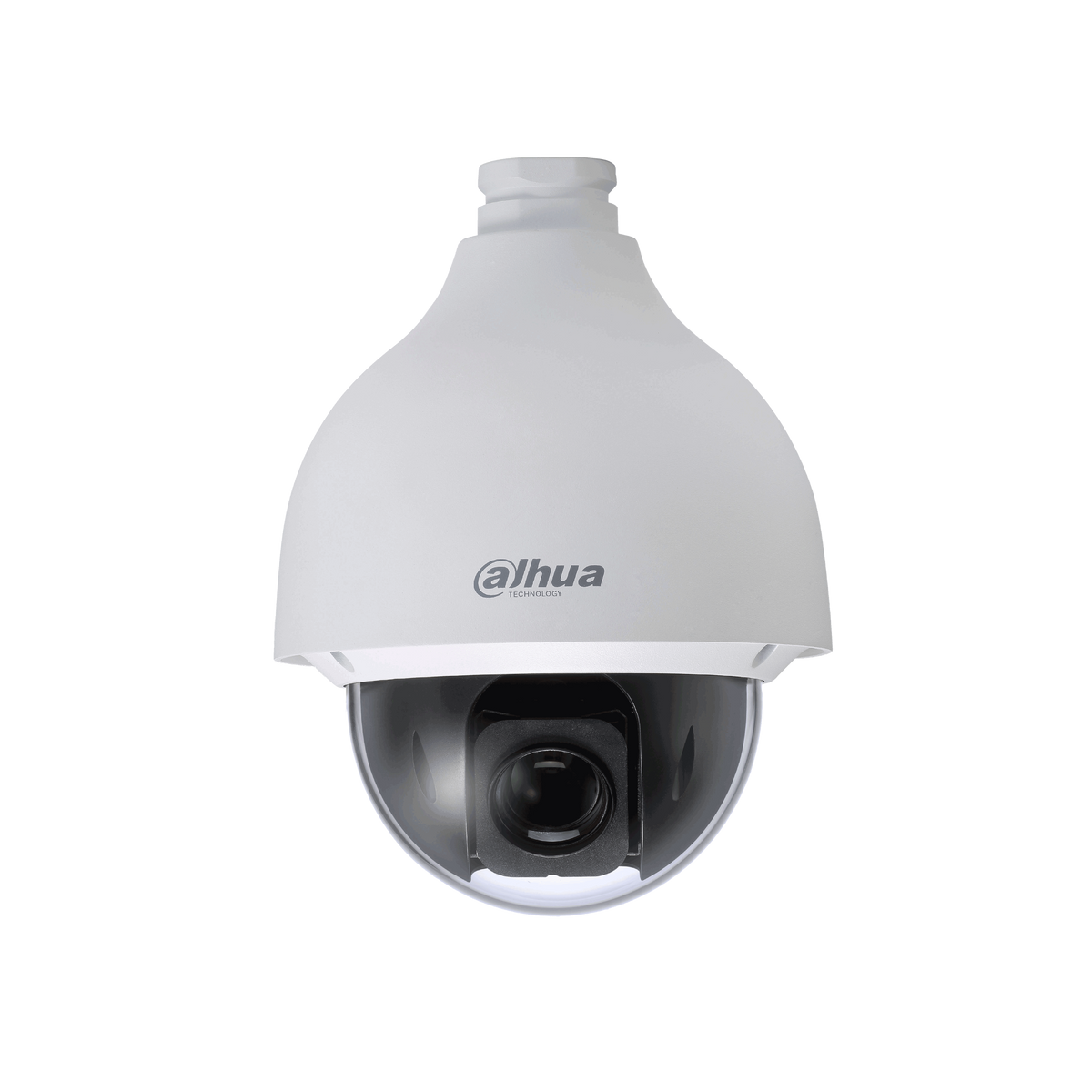

Dôme motorisé PTZ
- Blanc
- 4 MP
- Varifocale motorisée 4.8mm-154mm
- WizSense
- Protection périmétrique
- Détection de visage
- Entrée / Sortie audio
- 24V
- IP67
- IK10
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Intelligence Artificielle : WizSense, Protection périmétrique, Détection de visage
- Résolution : 4 MP
- Varifocale : 4.8 - 154 mm
- Compensation contre jour : WDR 120dB
Fiche technique
| Capteur | 1/2.8" CMOS |
|---|---|
| Pixel | 4 MP |
| Résolution max. | 2560 (H) × 1440 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Obturateur électronique | 1/1 s–1/30,000 s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 |
| Focale | 4.8 mm–154 mm |
| Ouverture max. | F1.6–F4.0 |
| Champ de vision | H: 55.8°–2.3° V: 31.9°–1.3° D: 63.7°–2.7° |
| Zoom optique | 32× |
| Focus Control | Auto; semi-auto; manual |
| Distance mini de mise au point | 0.1 m–1.5 m |
| Iris | Auto; manual |
| Distance DORI | Identify |
| 3,080 m (10,104.99 ft) | 308 m (1,010.50 ft) |
| Pan/Tilt Range | Tilt: 0° to +90°, auto flip 180 Pan: 0° to 360° endless |
| Manual Control Speed | Pan: 0.1°/s–350°/s; Tilt: 0.1°/s–250°/s |
| Preset Speed | Pan: 500°/s; Tilt: 500°/s |
| Préréglages | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour |
| PTZ Protocol | DH-SD |
| Video Metadata | Detects motor and non-motor vehicles, faces and human bodies. It also performs tracking, takes snapshots, uploads high-quality face images and optimizes images. It extracts attributes from motor vehicles, detecting up to 10 attributes for them. |
| IVS (protection périmétrique) | Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking |
| People Counting | Supports tripwire for people counting at entrances and exits, counting the number of people staying in an area and queuing in an area, and displaying and exporting reports based on the day, week and month. |
| Auto Tracking | Yes |
| SMD (détection humain/véhicule) | SMD 4.0 |
| Acupick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Auto Patrol | It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets. |
| Compression vidéo | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream1); Smart H.264+ |
| Flux | 3 streams |
| Résolutions | 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Fréquence d'images | Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/VGA/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H264: 96–14848 Kbps H265: 38–8960 Kbps |
| Jour/Nuit | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| Balance des blancs | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Auto; manual |
| Réduction du bruit | 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | Electronic(EIS) |
| Defog | Electronic |
| Zoom numérique | 16× |
| Rotation de l'image | 180° |
| Masques de confidentialité | Up to 24 areas can be set, with up to 8 areas in the same view |
| Rapport signal/bruit | ≥55 dB |
| Compression audio | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Port réseau | RJ-45 (10/100 Base-T) |
| Protocoles réseau | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Interopérabilité | ONVIF(Profile S&G&T);CGI;SDK |
| Streaming Method | Unicast/Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Navigateur | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions iOS 10 and later versions |
| Logiciels de gestion | DSS Pro; DMSS |
| Application mobile | iOS; Android |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL62368-1 + CAN/CSA C22.2, No. 62368-1 |
| Entrée audio | 1 channel (LINE IN, bare wire) |
| Sortie audio | 1 channel (LINE OUT,bare wire) |
| Alarm Linkage | Capture; recoding; send email; preset; tour; pattern; alarm digital output; audio |
| Événements d'alarme | Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Alimentation | 24 VDC/2.5 A ± 25% (Included) PoE+ (802.3at) |
| Consommation | Basic: 13 W Max.: 16 W (PTZ) |
| Température de fonctionnement | –40°C to +60°C (–40°F to +140°F) |
| Humidité de fonctionnement | ≤ 95% |
| Indice de protection | IP67; IK10; 6000V lightning proof; surge protection; voltage transient protection |
| Dimensions | Φ186 mm × 253 mm (Φ7.32" × 9.96") |
| Poids net | 2.5 kg (5.51 lb) |
| Poids brut | 4.5 kg (9.92 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD50432GB-HNR · Marque : Dahua
