Description et caractéristiques

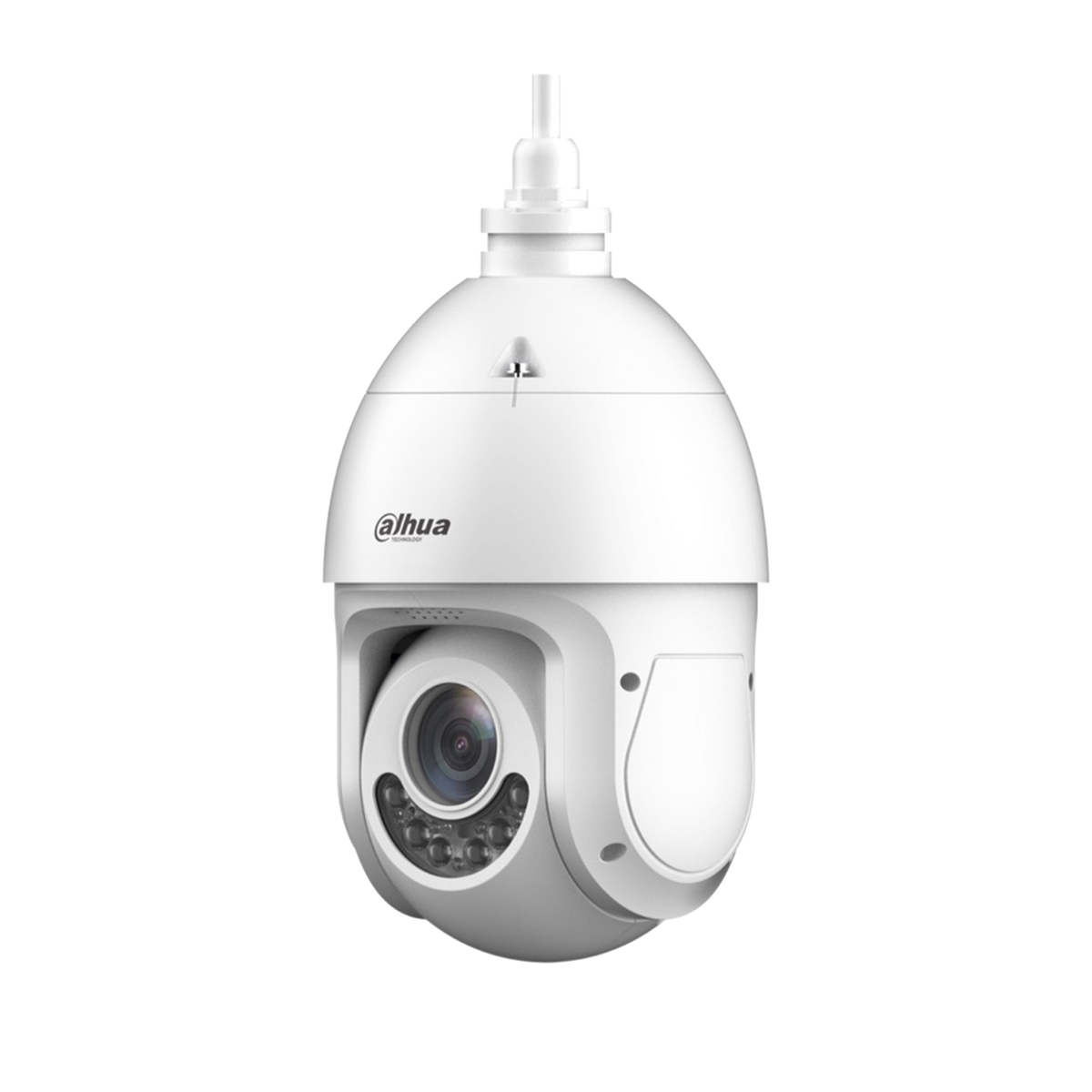

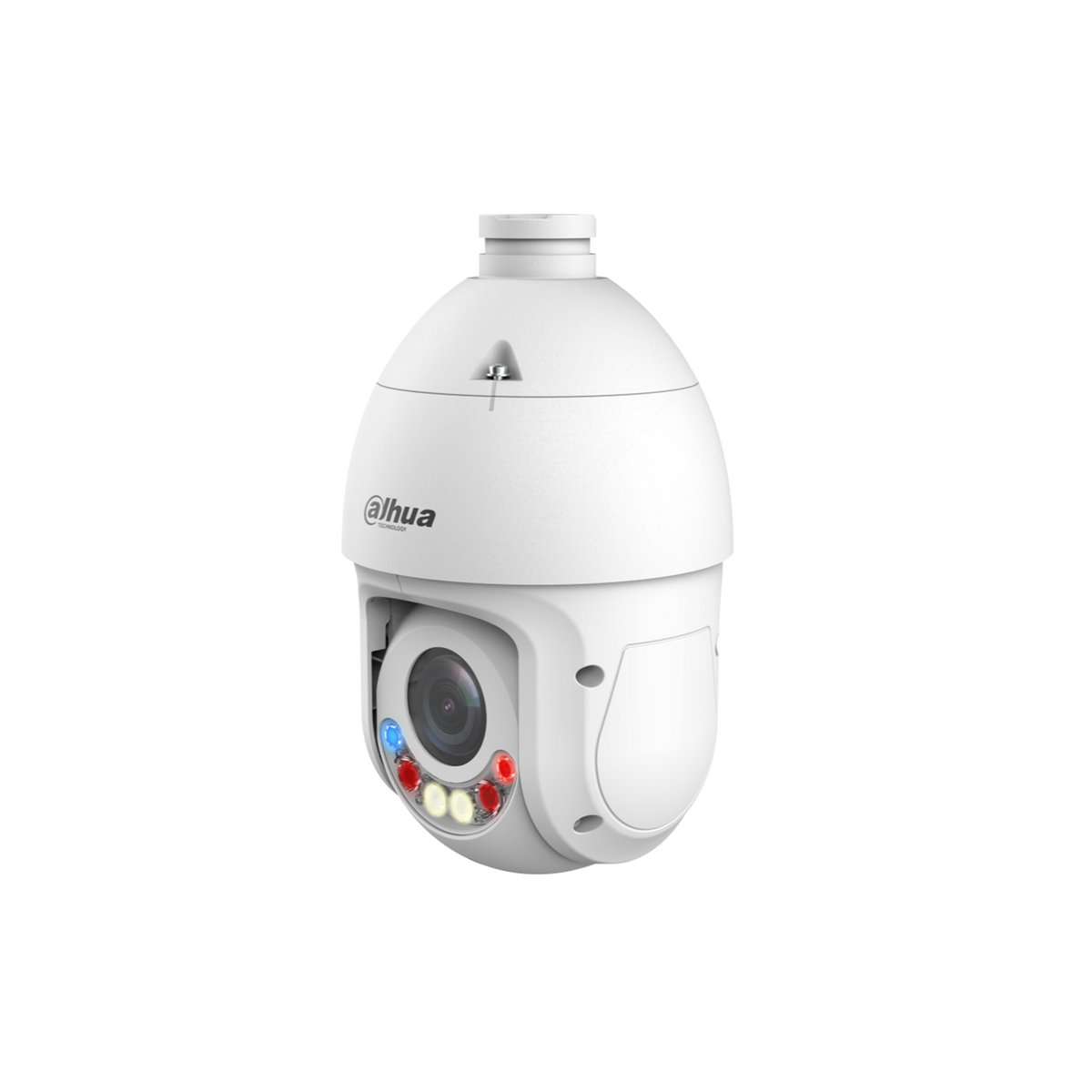

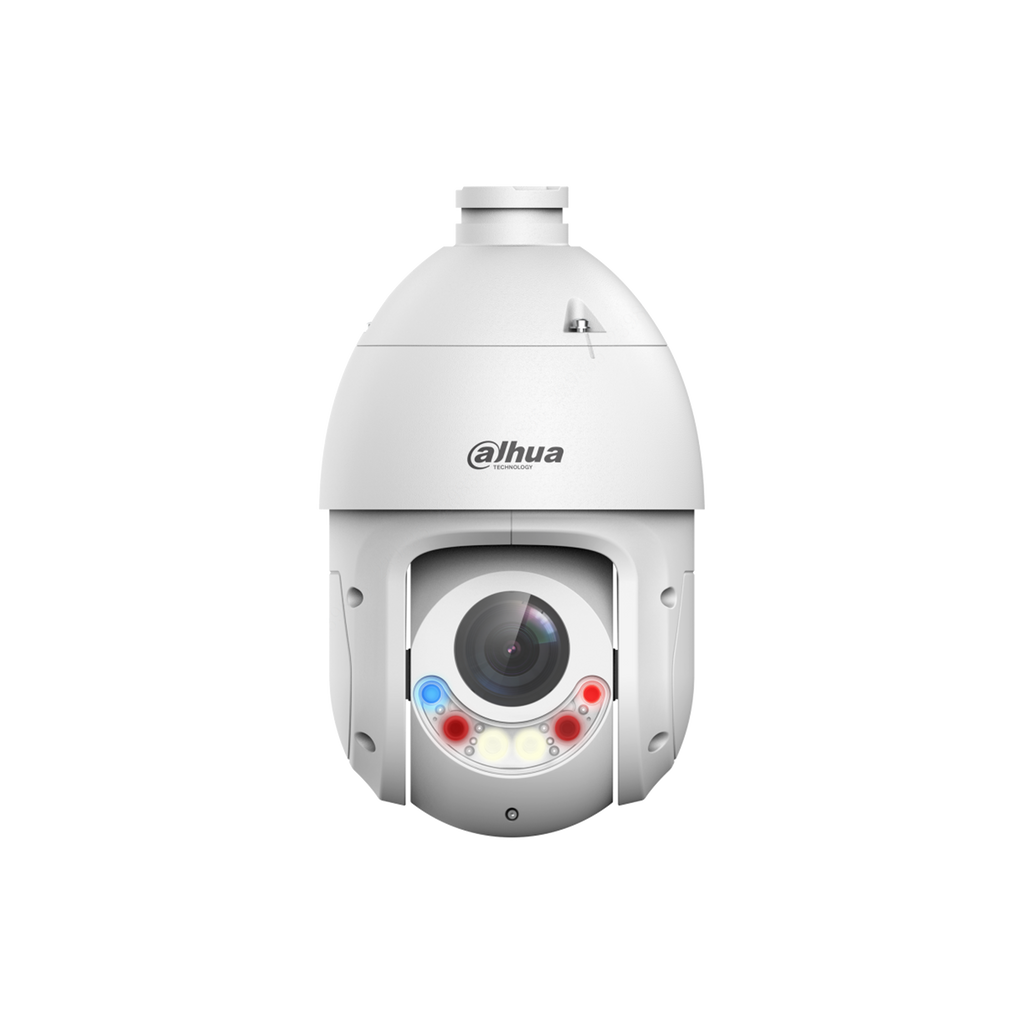

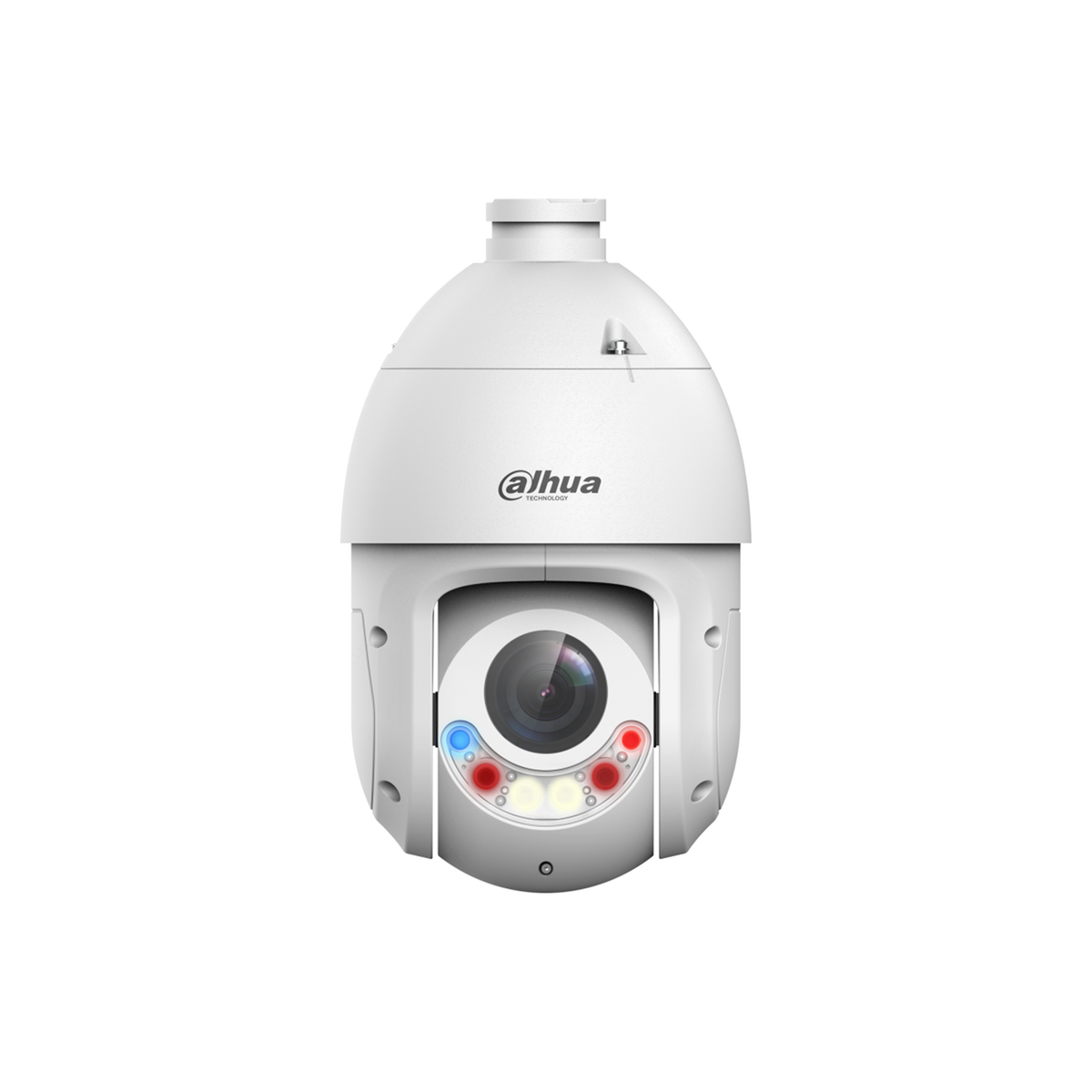

Dôme motorisé PTZ IP
- Blanc
- 8 MP
- Varifocale motorisé 5mm-125mm
- Zoom optique x25
- IR 100m
- WizeSense
- TIOC
- Protection périmétrique
- Détection de visage
- Auto Tracking
- Avertissement lumineux et Sonore
- Entrée / Sortie audio
- 12V
- IP66
- DWDR
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight, TIOC 2.0
- Intelligence Artificielle : WizSense
- Résolution : 8 MP
- Varifocale : 5 - 125 mm
Fiche technique
| Capteur | 1/2.8" CMOS |
|---|---|
| Pixel | 8 MP |
| Résolution max. | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Obturateur électronique | 1 s–1/30,000 s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| Portée de l'éclairage | 100 m (328.08 ft) (IR); 50 m (164.04 ft) (White light) |
| Contrôle de l'éclairage | Zoom Prio; Manual; Auto; Off |
| Nombre d'illuminateurs | 2 (IR); 2 (Dual light fusion) |
| Focale | 5 mm–125 mm |
| Ouverture max. | F1.6-F3.6 |
| Champ de vision | H: 53.1°-3.4°; V: 30.4°-1.9°; D: 59.3°-3.9° |
| Zoom optique | 25 × |
| Focus Control | Auto; semi-auto; manual |
| Distance mini de mise au point | 0.1m-1.5 m (0.33 ft–4.92 ft) |
| Iris | Auto; manual |
| Distance DORI | Identify |
| 3310 m (10859.58 ft) | 331 m (1085.96 ft) |
| Pan/Tilt Range | Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–200°/s; Tilt: 0.1°/s–120°/s |
| Preset Speed | Pan: 0.1°/s–240°/s; Tilt: 0.1°/s–200°/s |
| Préréglages | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour |
| IVS (protection périmétrique) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; linkage tracking |
| Auto Tracking | Yes |
| SMD (détection humain/véhicule) | SMD 4.0 |
| Auto Patrol | It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets |
| Light Warning | Red-blue light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Offers 11 types of sound alarms, and supports importing custom sound alarms. |
| Compression vidéo | H.264H; H.264B; Smart H.265+; H.265; MJPEG (Sub Stream); Smart H.264+; H.264M |
| Flux | 3 streams |
| Résolutions | 4K (3840 × 2160); 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Fréquence d'images | Main stream: 4K/4M/3M/1080p/1.3 M/720p@(1–25/30 fps) Sub stream 1: D1/CIF/VGA@(1–25/30 fps) Sub stream 2: 1080p/1.3 MP/720p@(1–25/30 fps) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H264: 128 Kbps–16,384 Kbps H265: 128 Kbps–11,776 Kbps |
| Jour/Nuit | Auto (ICR); Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| Balance des blancs | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Auto; manual |
| Réduction du bruit | 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Zoom numérique | 16× |
| Rotation de l'image | 180° |
| Masques de confidentialité | Up to 24 areas can be set, with up to 8 areas in the same view; Multiple colors available |
| Rapport signal/bruit | ≥ 55 dB |
| Compression audio | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Port réseau | RJ-45 (10/100 Base-T) |
| Protocoles réseau | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Interopérabilité | ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P |
| Streaming Method | Unicast/Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Navigateur | IE 9 and later versions; Chrome 41 and later versions; Firefox 50 and later versions; Safari 10 and later versions |
| Logiciels de gestion | DMSS; DSS Pro |
| Application mobile | iOS; Android |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 |
| Entrée audio | 1 channel (LINE IN, bare wire) |
| Sortie audio | 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)) |
| Entrée d'alarme | 2 (on-off value input: 0–5 VDC) |
| Sortie d'alarme | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output; audio; warning light |
| Événements d'alarme | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alimentation | 12 VDC, 3 A ± 10%; PoE+ (802.3at) |
| Consommation | 12 VDC: Basic: 8 W; Max: 16 W (white light + heated glass + PTZ on + alarm + red and blue light flashing) POE: Basic: 9 W; Max: 17 W (white light + heated glass + PTZ on + alarm + red and blue light flashing) |
| Température de fonctionnement | –40 °C to +65 °C (–40 °F to +149 °F) |
| Humidité de fonctionnement | ≤ 95% |
| Indice de protection | TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection |
| Dimensions | 269.9 mm × Φ160.0 mm (10.63" × Φ6.30") |
| Poids net | 2.6 kg (5.73 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD4E825GB-HNR-A-PV1 · Marque : Dahua
