Description et caractéristiques

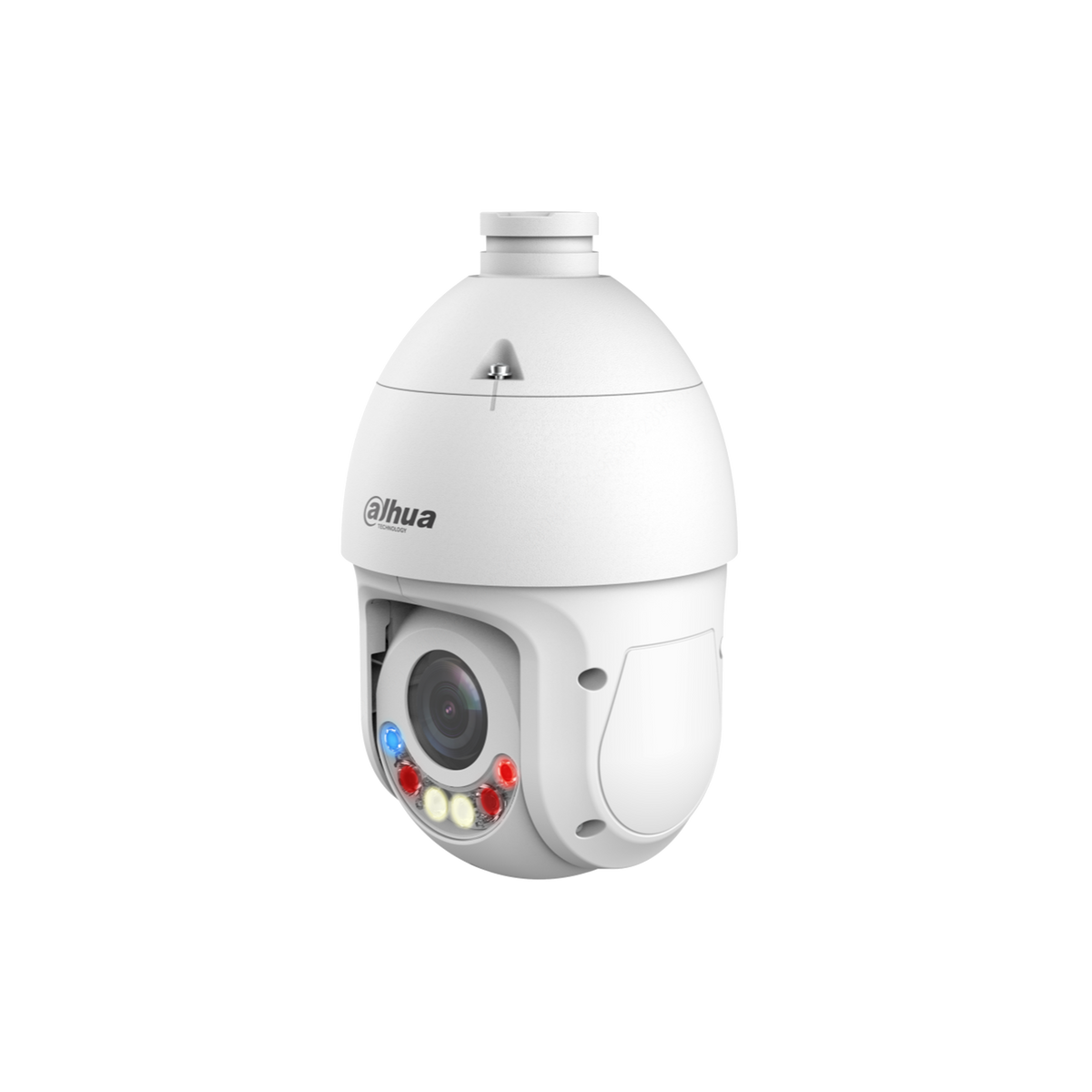

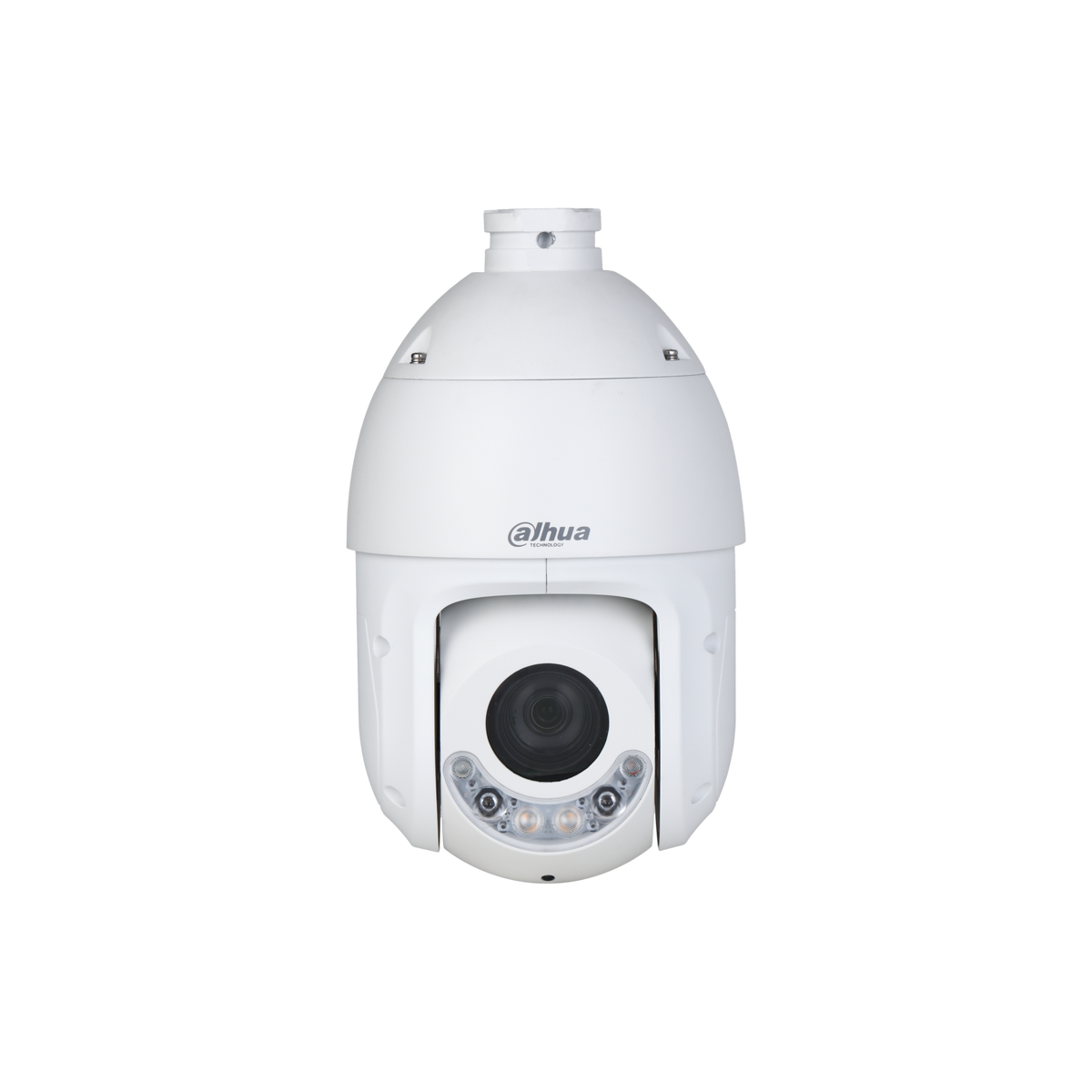

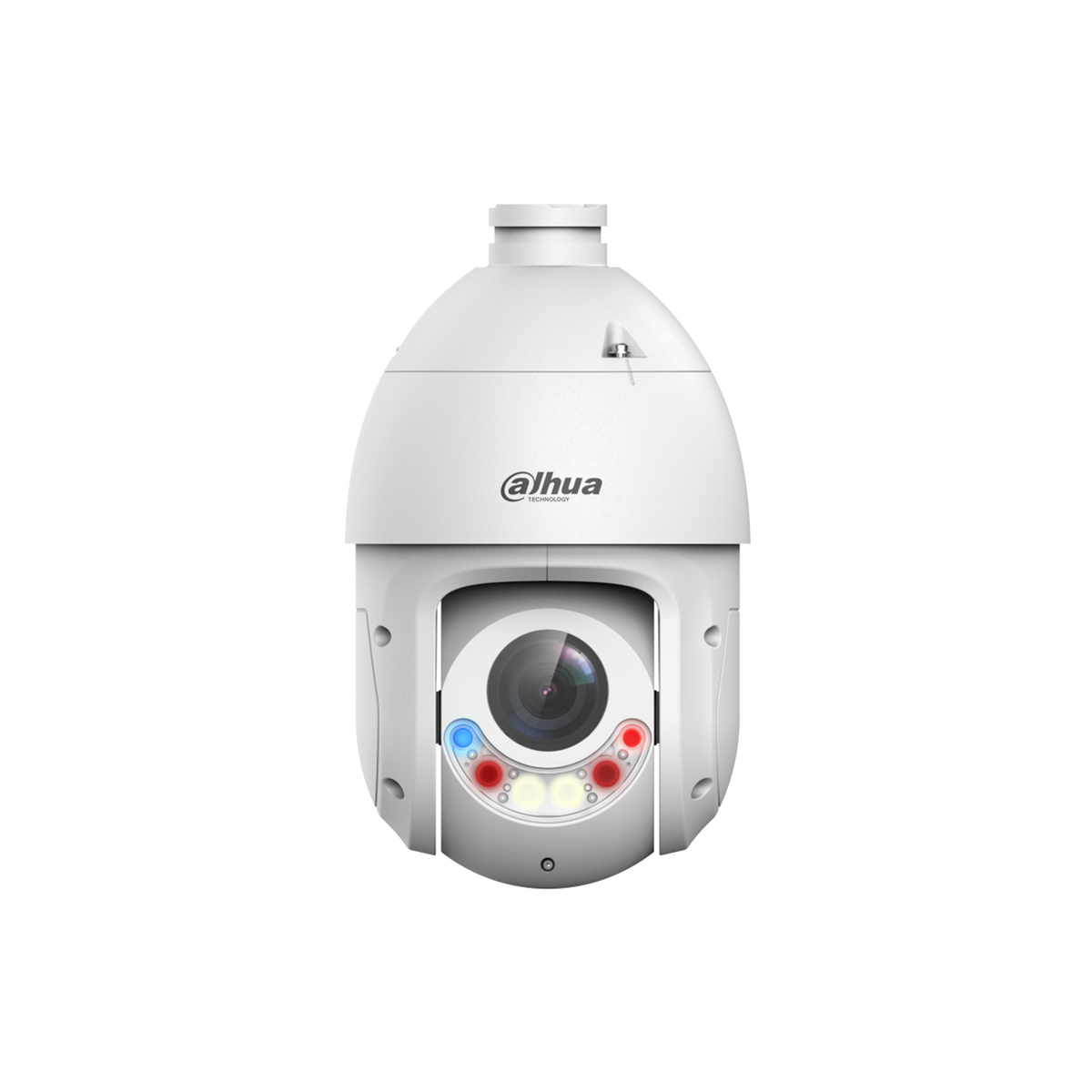

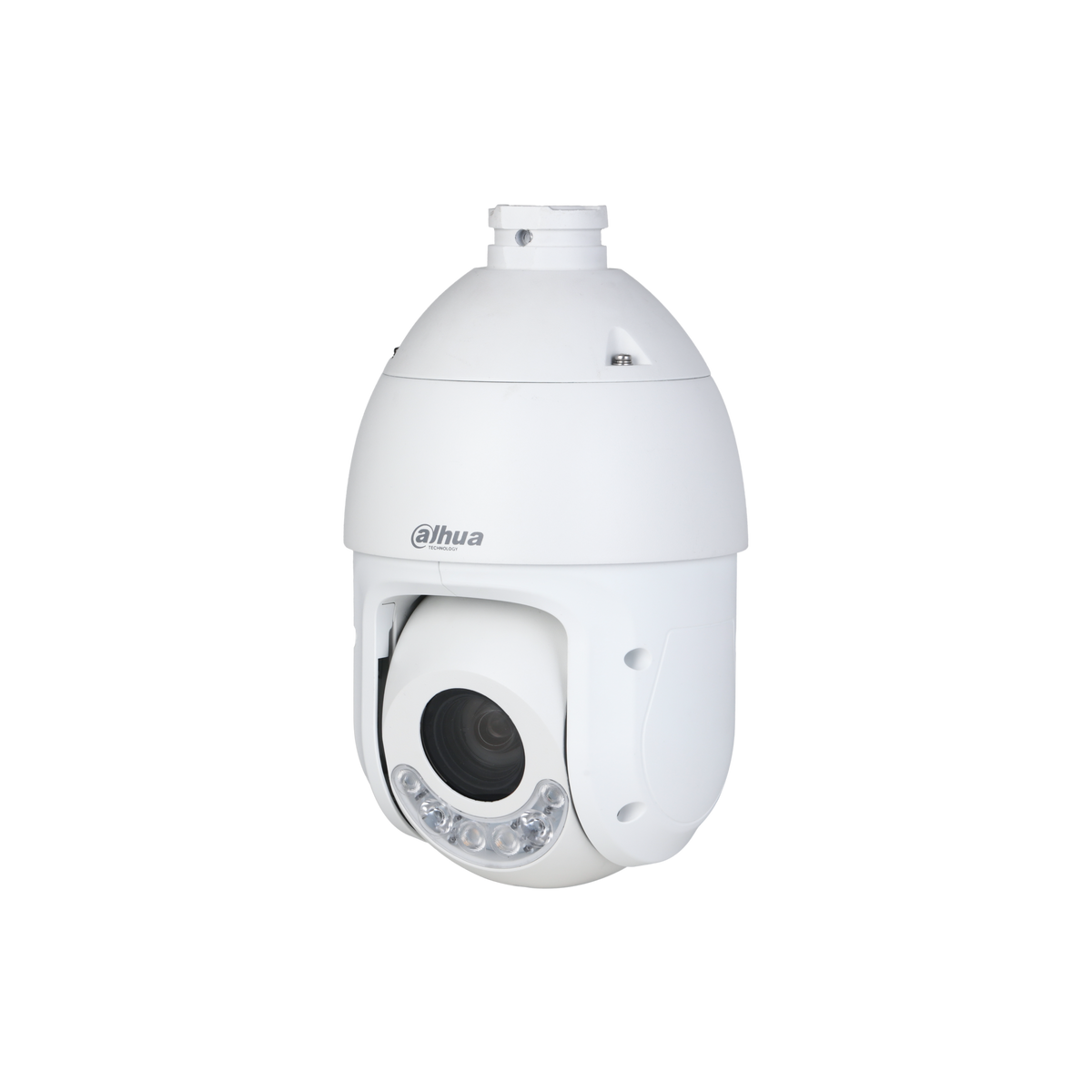

Dôme motorisé PTZ IP Blanc
- 4 MP
- VM 5-125 mm
- IR 100 m
- WizSense
- Starlight
- Reconnaissance faciale
- Protection périmétrique
- IP66
- 12 V POE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight
- Intelligence Artificielle : WizSense, Protection périmétrique, Reconnaissance faciale
- Résolution : 4 MP
- Varifocale : 5 - 125 mm
Fiche technique
| Capteur | 1/2.8" CMOS |
|---|---|
| Pixel | 4 MP |
| Résolution max. | 2560 (H) × 1440 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Obturateur électronique | 1/1 s–1/30,000 s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux@F1.6 (illuminator on) |
| Portée de l'éclairage | 100 m (328.08 ft) (IR) 50 m (164.04 ft)(White light) |
| Contrôle de l'éclairage | Zoom Prio; Manual; Auto; Off |
| Nombre d'illuminateurs | 2 (IR) 2 (Dual light fusion) |
| Focale | 5 mm–125 mm |
| Ouverture max. | F1.6–F3.6 |
| Champ de vision | H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7° |
| Zoom optique | 25× |
| Focus Control | Auto; semi-auto; manual |
| Distance mini de mise au point | 0.1 m–0.5 m (0.33 ft–1.64 ft) |
| Iris | Auto; manual |
| Distance DORI | Identify |
| 2500 m (8208.10 ft) | 250 m (820.21 ft) |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–200°/s Tilt: 0.1°/s–120°/s |
| Preset Speed | Pan: 240°/s; Tilt: 200°/s |
| Préréglages | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour |
| IVS (protection périmétrique) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking |
| Auto Tracking | Yes |
| SMD (détection humain/véhicule) | SMD 4.0 |
| Acupick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Auto Patrol | It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets. |
| Light Warning | Red and blue warning light. They can be configured to flash for 5 to 30 seconds with a high, medium or low frequency. |
| Sound Warning | Offers 11 types of sound alarms, and supports importing custom sound alarms. |
| Compression vidéo | H.264H;H.264B;Smart H.265+;H.265;MJPEG(Sub Stream);Smart H.264+;H.264M |
| Flux | 3 streams |
| Résolutions | 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Fréquence d'images | Main stream: 4M/3M/1080p/1.3M/720p@ (1–25/30 fps) Sub stream 1: D1/CIF/VGA@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H264: 96 Kbps–14848 Kbps H265: 38 Kbps–8960 Kbps |
| Jour/Nuit | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| Balance des blancs | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp |
| Contrôle du gain | Auto/Manual |
| Réduction du bruit | 2D/3D |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Zoom numérique | 16× |
| Rotation de l'image | 180° |
| Masques de confidentialité | Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available |
| Rapport signal/bruit | ≥ 55 dB |
| Compression audio | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Port réseau | RJ-45 (10/100 Base-T) |
| Protocoles réseau | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP |
| Interopérabilité | CGI;SDK;ONVIF (Profile S&G&T);P2P |
| Streaming Method | Unicast/Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Navigateur | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Logiciels de gestion | DSS pro; DMSS; NVR |
| Application mobile | iOS;Android |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 |
| Entrée audio | 1 channel |
| Sortie audio | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; pattern; tour; alarm digital input; audio; warning light |
| Événements d'alarme | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Alimentation | 12 VDC/3 A ± 10% PoE+ (802.3at) |
| Consommation | Basic: 7.0 W Max.: 13 W (illuminator+heater+PTZ+speaker) |
| Température de fonctionnement | –40 °C to +65 °C (–40 °F to +149 °F) |
| Humidité de fonctionnement | ≤95% |
| Indice de protection | IP66; TVS 6000 V lightning proof; surge protection; voltage transient protection |
| Dimensions | 269.9 mm × Φ160.0 mm (10.59" × Φ6.30") |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD4E425GB-HNR-A-PV1 · Marque : Dahua
