Description et caractéristiques

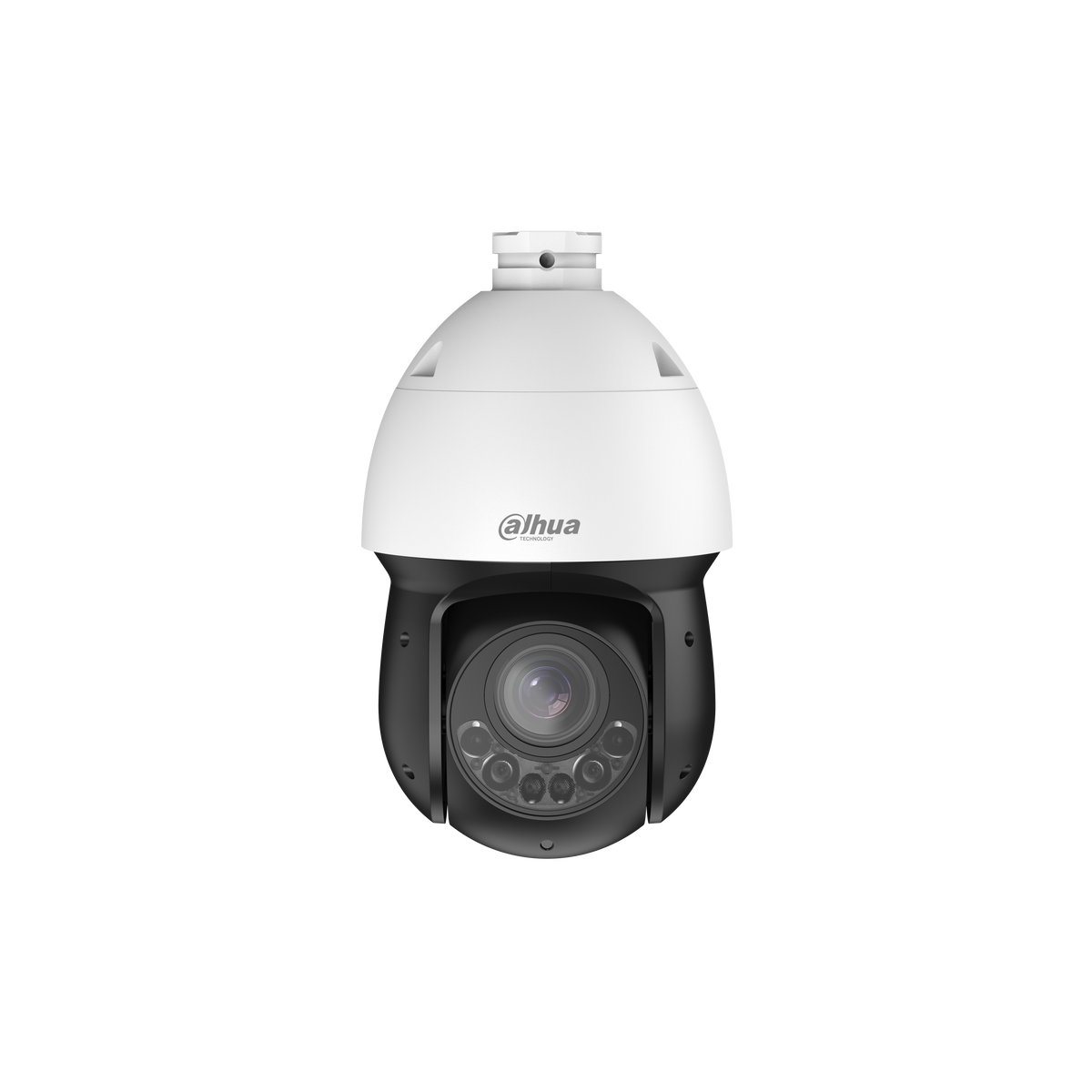

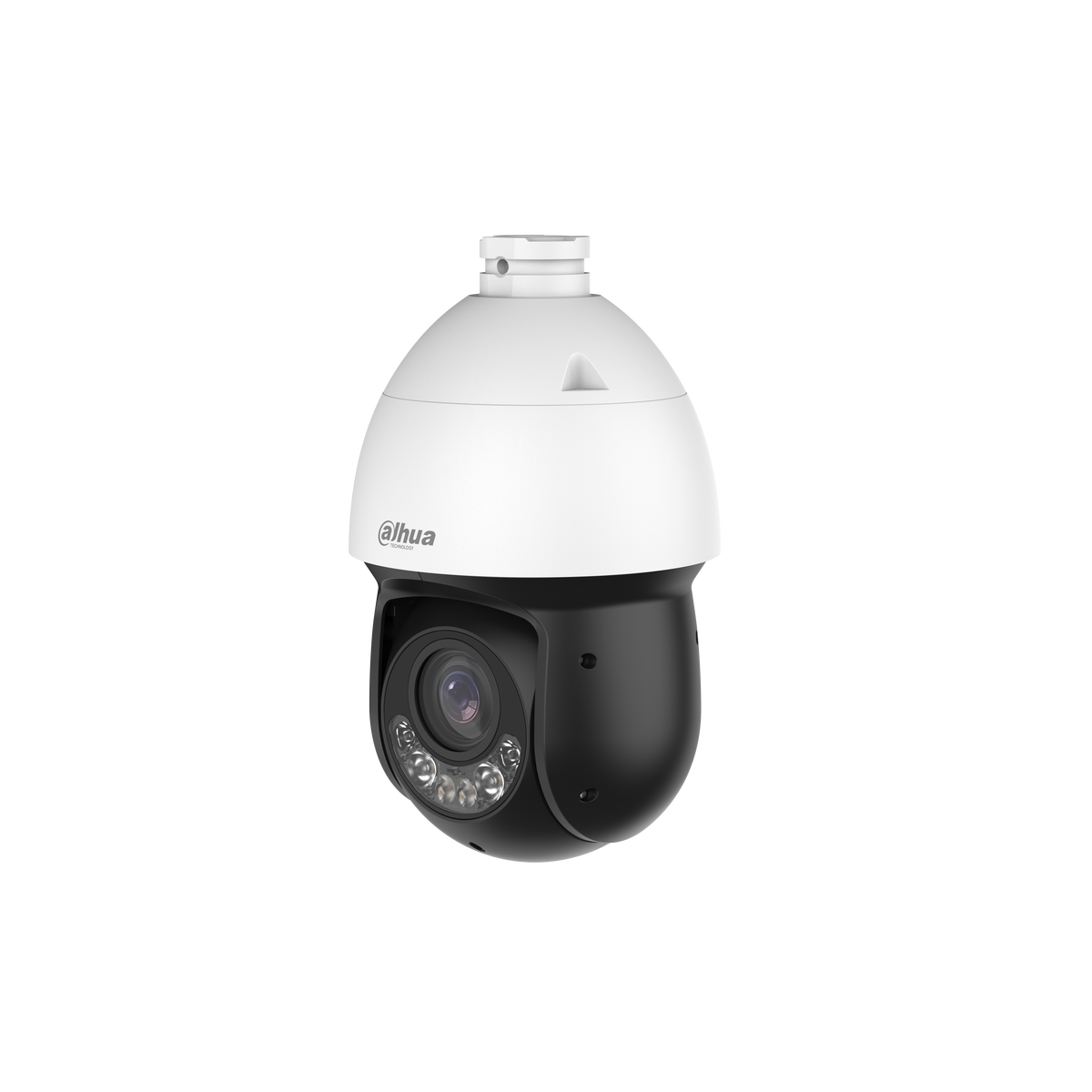

Dôme PTZ IP blanc
- 4 MP
- VF motorisé 5-125 mm IR 100 m + Warm Light 100 m
- WizSense
- Smart Dual Light SMD 4.0
- Détection de visage
- Protection périmétrique
- AcuPick
- IP67
- 12 VDC / PoE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Smart Dual Light
- Intelligence Artificielle : WizSense, Protection périmétrique, Détection de visage, AcuPick
- Résolution : 4 MP
- Varifocale : 5 - 125 mm
Fiche technique
| Capteur | 1/2.8" CMOS |
|---|---|
| Pixel | 4 MP |
| Résolution max. | 2560 (H) × 1440 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Obturateur électronique | 1 s–1/30,000 s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| Portée de l'éclairage | 100 m (328.08 ft) (IR); 100 m (328.08 ft) (Warm light) |
| Contrôle de l'éclairage | Zoom Prio; Manual; Auto; Off |
| Nombre d'illuminateurs | 2 (IR); 2 (Warm light); 2 (Dual-core light) |
| Focale | 5 mm–125 mm |
| Ouverture max. | F1.6–F3.6 |
| Champ de vision | H:54.1°–3.4°; V: 31.4°–1.9°; D: 61.1°–3.9° |
| Zoom optique | 25× |
| Focus Control | Auto; semi-auto; manual |
| Distance mini de mise au point | 0.1 m–0.5 m (0.33 ft–1.64 ft) |
| Iris | Auto |
| Distance DORI | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Objectif | Identify |
| W | 10.0 m ( 32.81 ft) |
| T | 250.0 m ( 820.20 ft) |
| Pan/Tilt Range | Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°–200°/s; Tilt: 0.1°–120°/s |
| Preset Speed | Pan: 0.1°–240°/s; Tilt: 0.1°–200°/s |
| Préréglages | 300 |
| Tour | 8 |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
| IVS (protection périmétrique) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking |
| Smart Tracking | WizTracking |
| SMD (détection humain/véhicule) | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets |
| Auto Patrol | It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets |
| Compression vidéo | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| Flux | 3 streams |
| Résolutions | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA（640 × 480);CIF (352 × 288/352 × 240) |
| Fréquence d'images | Main stream: 4M/3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H264: 96 kbps–11,776 kbps H265: 38 kbps–7,168 kbps |
| Jour/Nuit | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| Balance des blancs | Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Auto; manual; Gain priority |
| Réduction du bruit | 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Electronic |
| Zoom numérique | 16× |
| Rotation de l'image | 180° |
| Masques de confidentialité | Up to 32 areas can be set, with up to 8 areas in the same view |
| Rapport signal/bruit | ≥55 dB |
| Compression audio | PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729, G.723 |
| Port réseau | 1 × RJ-45 (10/100 Base-T) |
| Protocoles réseau | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;SMB;NFS |
| Interopérabilité | ONVIF (Profile S & Profile G & Profile T);CGI;SDK |
| Streaming Method | Unicast/Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Navigateur | web5.0: IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions iOS 10 and later versions |
| Logiciels de gestion | DMSS;DSS Pro |
| Application mobile | iOS;Android |
| Certifications | CE: EN55032/EN55024/EN50130-4 |
| Entrée audio | 1 channel (LINE IN, bare wire) |
| Sortie audio | 1 channel (LINE OUT,bare wire) |
| Entrée d'alarme | 2 |
| Sortie d'alarme | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output |
| Événements d'alarme | Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Alimentation | 12 VDC, 3 A ± 10% PoE (802.3at) |
| Consommation | DC: Basic: 8 W; Max: 20 W (illuminator + PTZ) PoE: Basic: 11 W; Max: 23 W (Illuminator+PTZ) |
| Power Adapter | Optional |
| Température de fonctionnement | –40 °C to +70 °C (–40 °F to +158 °F) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD4D425MB-HNR · Marque : Dahua
