Description et caractéristiques

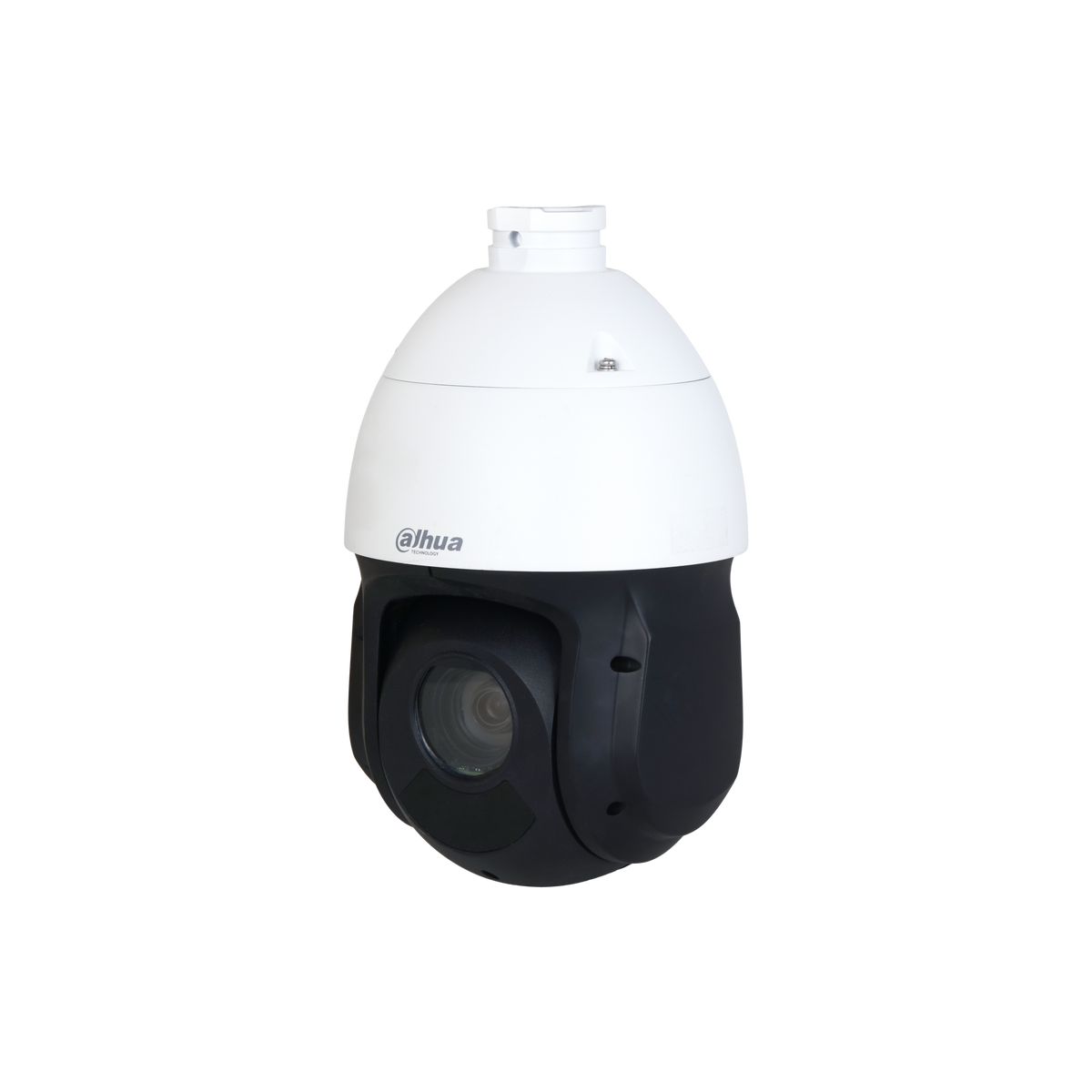

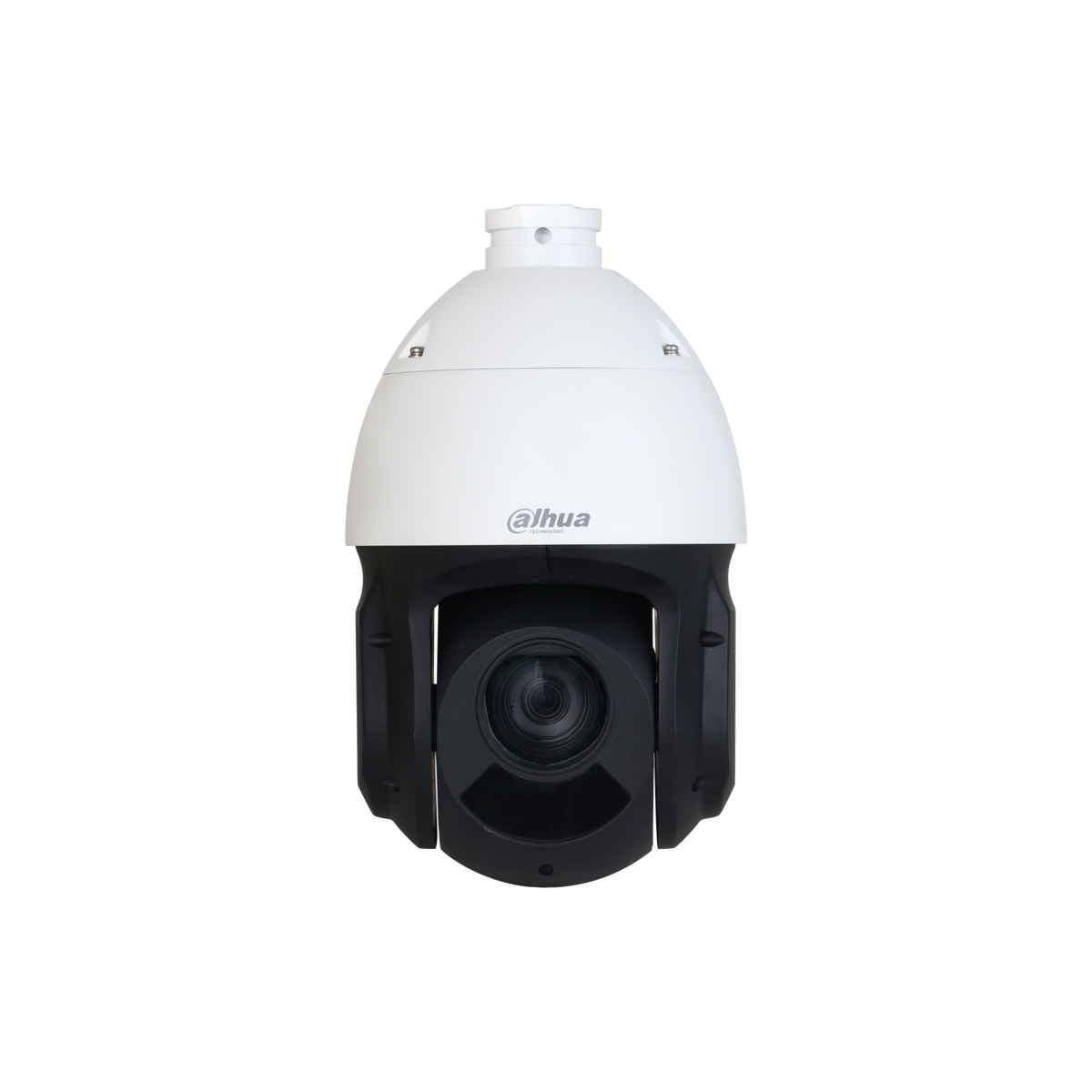

Dôme motorisé PTZ IP Blanc
- 4 MP
- VM
- Zoomx25
- IR 100 m
- IA WizSense
- Protection périmétrique
- Reconnaissance faciale
- Starlight
- 4G
- IP66
- 12 V
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight, Solution 4G
- Intelligence Artificielle : WizSense, Protection périmétrique, Reconnaissance faciale
- Résolution : 4 MP
- Zoom motorisé : Zoom x25
Fiche technique
| Capteur | 1/2.8" CMOS |
|---|---|
| Pixel | 4 MP |
| Résolution max. | 2560 (H) × 1440 (V) |
| ROM | 256 MB |
| RAM | 512 MB |
| Obturateur électronique | 1/1 s–1/30,000 s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (illuminator on) |
| Portée de l'éclairage | 100 m (328.08 ft) (IR) |
| Contrôle de l'éclairage | Zoom Prio; Manual; Auto; Off |
| Nombre d'illuminateurs | 3 (IR) |
| Focale | 5 mm–125 mm |
| Ouverture max. | F1.6–F3.6 |
| Champ de vision | H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7° |
| Zoom optique | 25× |
| Focus Control | Auto; semi-auto; manual |
| Distance mini de mise au point | 0.1 m–0.5 m (0.33 ft–1.64 ft) |
| Iris | Auto; manual |
| Distance DORI | Identify |
| 2500 m (8208.10 ft) | 250 m (820.21 ft) |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–80°/s Tilt: 0.1°/s–80°/s |
| Preset Speed | Pan: 80°/s; Tilt: 80°/s |
| Préréglages | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour |
| PTZ Protocol | DH-SD Pelco-P/D(Auto recognition) |
| IVS (protection périmétrique) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| Face Detection | Supports face detection, capturing snapshots, and enhancing face images. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing and quality first. |
| SMD (détection humain/véhicule) | SMD 3.0 |
| Auto Patrol | It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets |
| Compression vidéo | H.264H; H.264B;Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+ |
| Flux | 3 streams |
| Résolutions | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) |
| Fréquence d'images | Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/CIF/VGA@ (1–25/30 fps) Sub stream 2: 720p@(1–25/30 fps) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 2816 kbps–13056 kbps H.265: 1024 kbps–7936 kbps |
| Jour/Nuit | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| Balance des blancs | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Auto; manual |
| Réduction du bruit | 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Zoom numérique | 16× |
| Rotation de l'image | 180° |
| Masques de confidentialité | Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available |
| Rapport signal/bruit | ≥55 dB |
| Compression audio | G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM |
| Port réseau | RJ-45 (10/100 Base-T) |
| Carrier Network System | 4G; 3G; 2G |
| Wake-up Type | SMS:2G/3G; Streaming:4G(DMSS); Alarm:Local alarm input; Schedule |
| Wireless Carrier Frequency Band | LTE-TDD: Dual-band Band 38/40 LTE-FDD: Hepta -band Band 1/3/5/7/8/20/28 WCDMA: Tri-band Band 1/5/8 GSM: Tri-band Band 850/900/1800 |
| Max. Transmission Power | 4G: Power class3: 23dBm ±2dB 3G: Power class3: 24dBm +1/-3dB 2G: Power class0: 30dBm ±2dB (GSM1800) Power class5: 33dBm ±2dB (GSM850/900) |
| Protocoles réseau | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Interopérabilité | CGI; SDK; ONVIF (Profile S&G&T) |
| Streaming Method | Unicast/Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | FTP; Micro SD card (512 GB); NAS |
| Navigateur | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Logiciels de gestion | DSS; DMSS; NVR; Smart PSS; IVSS |
| Application mobile | iOS; Android |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 |
| RS-485 | 1 (baud rate: 1200 bps–9600 bps) |
| Entrée audio | 1 channel |
| Sortie audio | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; pattern; tour; alarm digital input |
| Événements d'alarme | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Alimentation | 12 VDC, 3 A (–10% to +25%) |
| Consommation | Deep sleep: 0.05 W light sleep: 2.5 W Basic: 3.75 W (not pulling stream in 4G); 4.54 W (pulling stream in 4G); 7.98 W (illuminator+not pulling stream in 4G); 8.77 W (illuminator+pulling stream in 4G) Max: 15.49 W (illuminator+PTZ+pulling stream in 4G) |
| Température de fonctionnement | –40 °C to +65 °C (–40 °F to +149 °F) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD49425DB-HNY-GQ-EAU · Marque : Dahua
