Description et caractéristiques

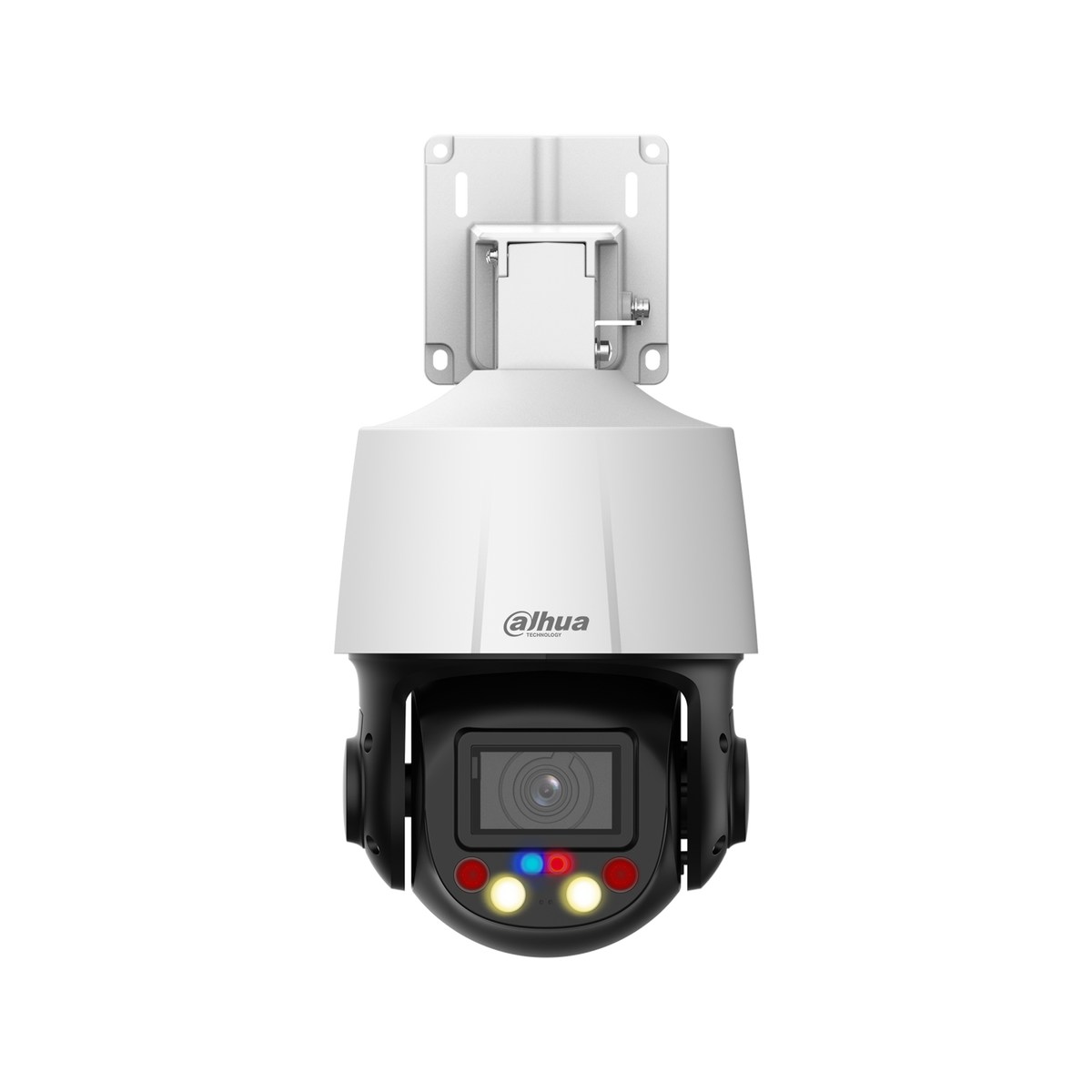

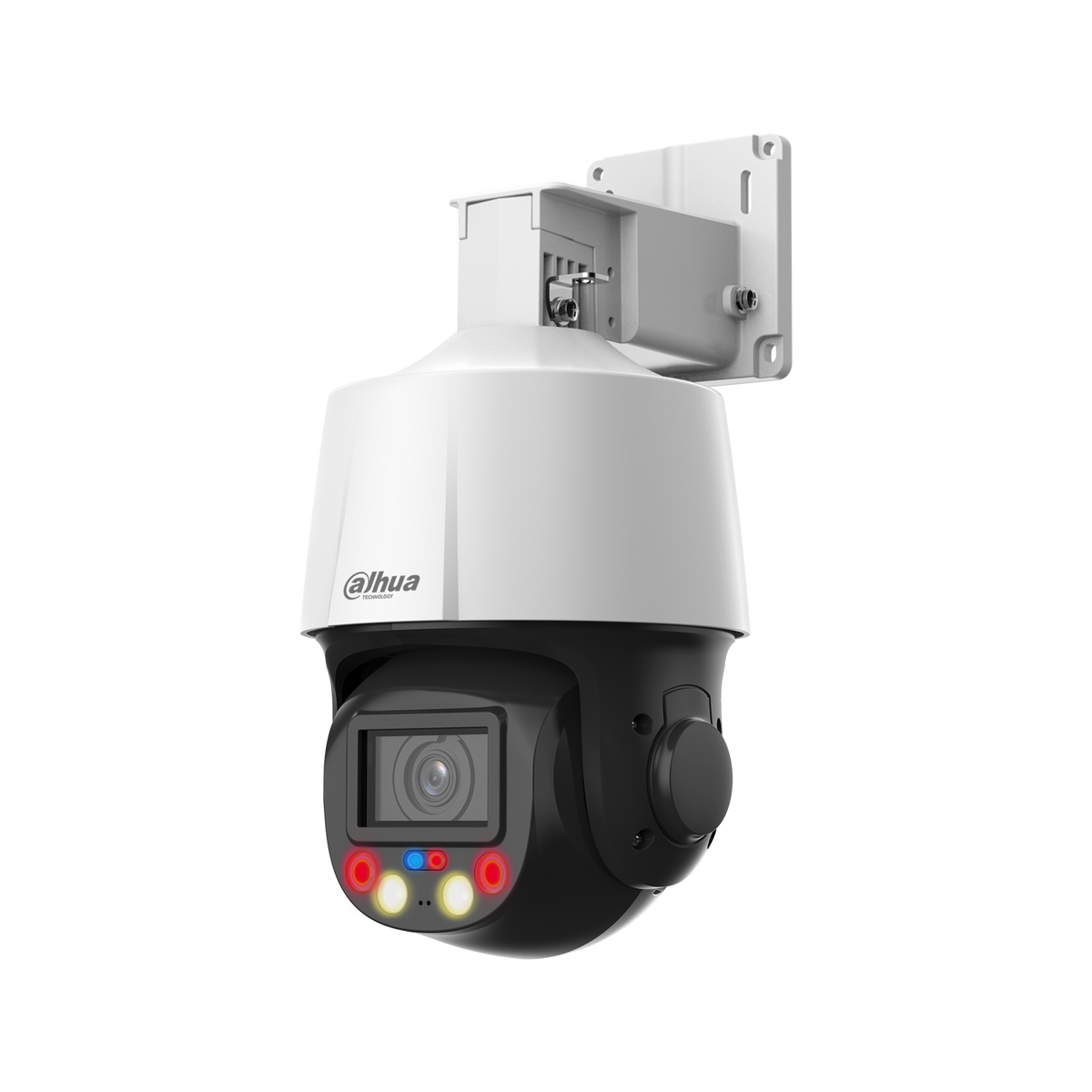

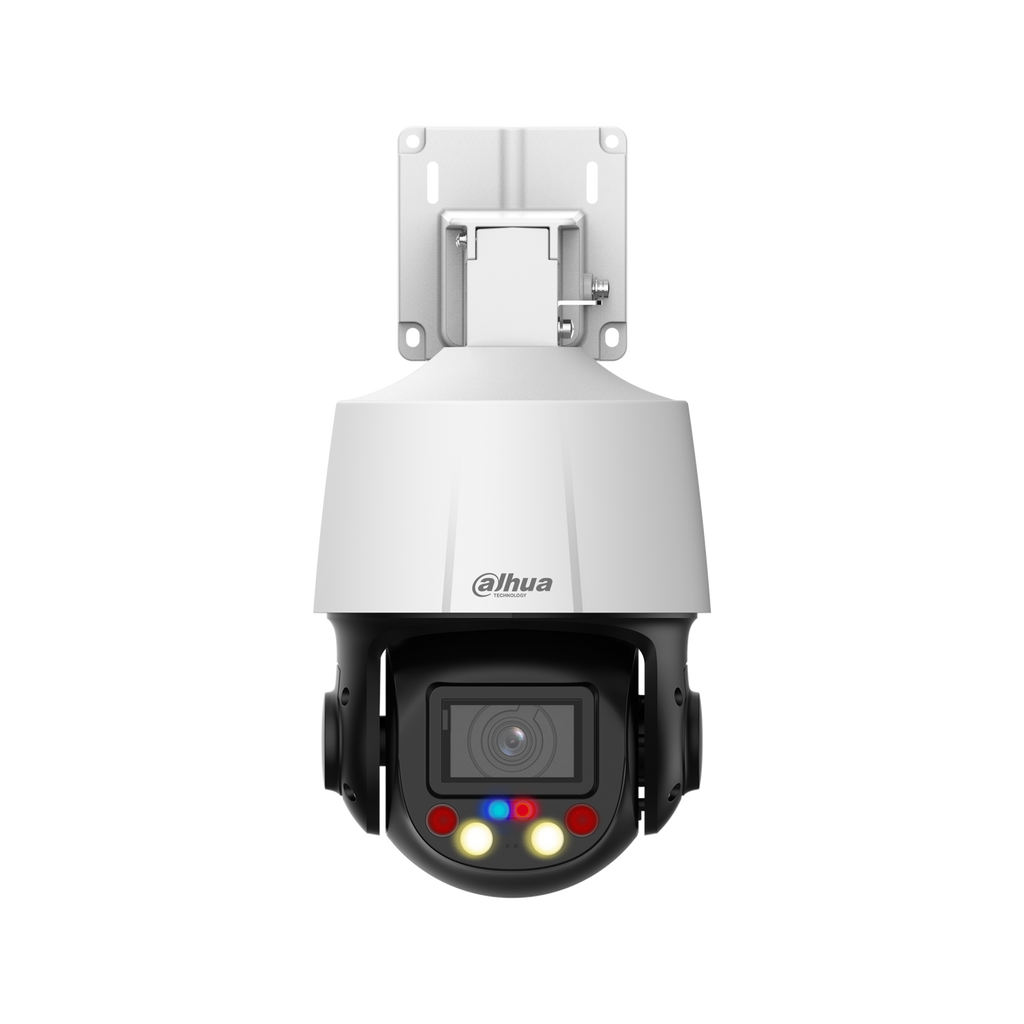

Dôme motorisé PTZ IP Blanc
- 4 MP
- VM 2.7-13.5 mm
- IR 50 m
- IA WizSense
- TIOC
- Protection périmétrique
- Reconnaissance faciale
- Micro/HP
- IP66
- 12 V POE+
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : TIOC 2.0
- Intelligence Artificielle : WizSense, Protection périmétrique, Reconnaissance faciale
- Résolution : 4 MP
- Varifocale : 2.7 - 13.5 mm
Fiche technique
| Capteur | 1/2.8" CMOS |
|---|---|
| Pixel | 4 MP |
| Résolution max. | 2560 (H) × 1440 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Obturateur électronique | 1/1 s–1/30,000 s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) |
| Portée de l'éclairage | 50 m (164.04 ft) (IR) 30 m (98.43 ft) (Warm light) |
| Contrôle de l'éclairage | Zoom Prio; Manual; Auto; Off |
| Nombre d'illuminateurs | 2 (IR) 2 (Warm light) 1 (Red light) 1 (Blue light) |
| Focale | 2.7 mm–13.5 mm |
| Ouverture max. | F1.6–F3.0 |
| Champ de vision | H: 94.9°–30.1°; V: 51°–17.1°; D: 112.3°–34.6° |
| Zoom optique | 5× |
| Focus Control | Auto; semi-auto; manual |
| Distance mini de mise au point | 1.5 m (4.92 ft) |
| Iris | Fixed |
| Distance DORI | Identify |
| 270 m (885.83 ft) | 27 m (88.58 ft) |
| Pan/Tilt Range | Pan: 0° to 355° Tilt: –15° to +90° |
| Manual Control Speed | Pan: 0.1°/s–36°/s Tilt: 0.1°/s–25.8°/s |
| Preset Speed | Pan: 35.7°/s; Tilt: 27.1°/s |
| Préréglages | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Auto Patrol | It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets. |
| Power-off Memory | Yes |
| Idle Motion | Preset; Tour |
| PTZ Locked | Yes |
| IVS (protection périmétrique) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking |
| Face Detection | Supports face detection, snapshot, and face enhancement; Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first |
| Auto Tracking | Auto tracking Lite |
| SMD (détection humain/véhicule) | SMD 3.0 |
| Light Warning | Red and blue light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Offers 11 types of sound alarms, and supports importing up to 10 custom sound alarms. The sound alarm can be set to play 1 to 10 times |
| Compression vidéo | H.264H;H.264B;Smart H.265+; H.264;H.265;MJPEG(Sub Stream);Smart H.264+ |
| Flux | 3 streams |
| Résolutions | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p(1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288) |
| Fréquence d'images | Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/CIF/VGA@ (1–25/30 fps) Sub stream 2: 720p @(1–25/30 fps) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 96 kbps–14848 kbps H.265: 38 kbps–8960 kbps |
| Jour/Nuit | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| Balance des blancs | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Auto; manual |
| Réduction du bruit | 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Zoom numérique | 16× |
| Rotation de l'image | 180° |
| Rapport signal/bruit | ≥55 dB |
| Privacy Mask | Up to 24 areas can be set, with up to 8 areas in the same view; 8 colors available |
| Compression audio | G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM |
| Port réseau | RJ-45 (10/100 Base-T) |
| Protocoles réseau | FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;SMB;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP |
| Interopérabilité | CGI;SDK;ONVIF (Profile S&G&T);P2P |
| Streaming Method | Unicast/Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | FTP/SFTP; Micro SD card (512 GB); NAS |
| Navigateur | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Logiciels de gestion | DMSS;DSS Pro |
| Application mobile | iOS;Android |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 |
| Entrée audio | 1 channel (LINE IN, bare wire,built-in mic (mutually exclusive)) |
| Sortie audio | 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)) |
| Alarm Linkage | Capture; recording; send email; preset; alarm digital input; audio; warning light |
| Événements d'alarme | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alarm I/O | 1/1 |
| Audio I/O | 1/1 |
| Alimentation | 12 VDC, 2 A ± 10% PoE+ (802.3at) |
| Consommation | Basic: 4.5 W Max.: 15 W (illuminator + PTZ + speaker + heating glass) |
| Température de fonctionnement | –30 °C to +60 °C (–22 °F to +140 °F) |
| Humidité de fonctionnement | ≤95% |
| Indice de protection | IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection |
| Dimensions | 142.6 mm × 140 mm × 236.1 mm (5.61" × 5.51" × 9.29") |
| Poids net | 1.5 kg (3.31 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD3E405DB-GNY-A-PV1 · Marque : Dahua
