Description et caractéristiques

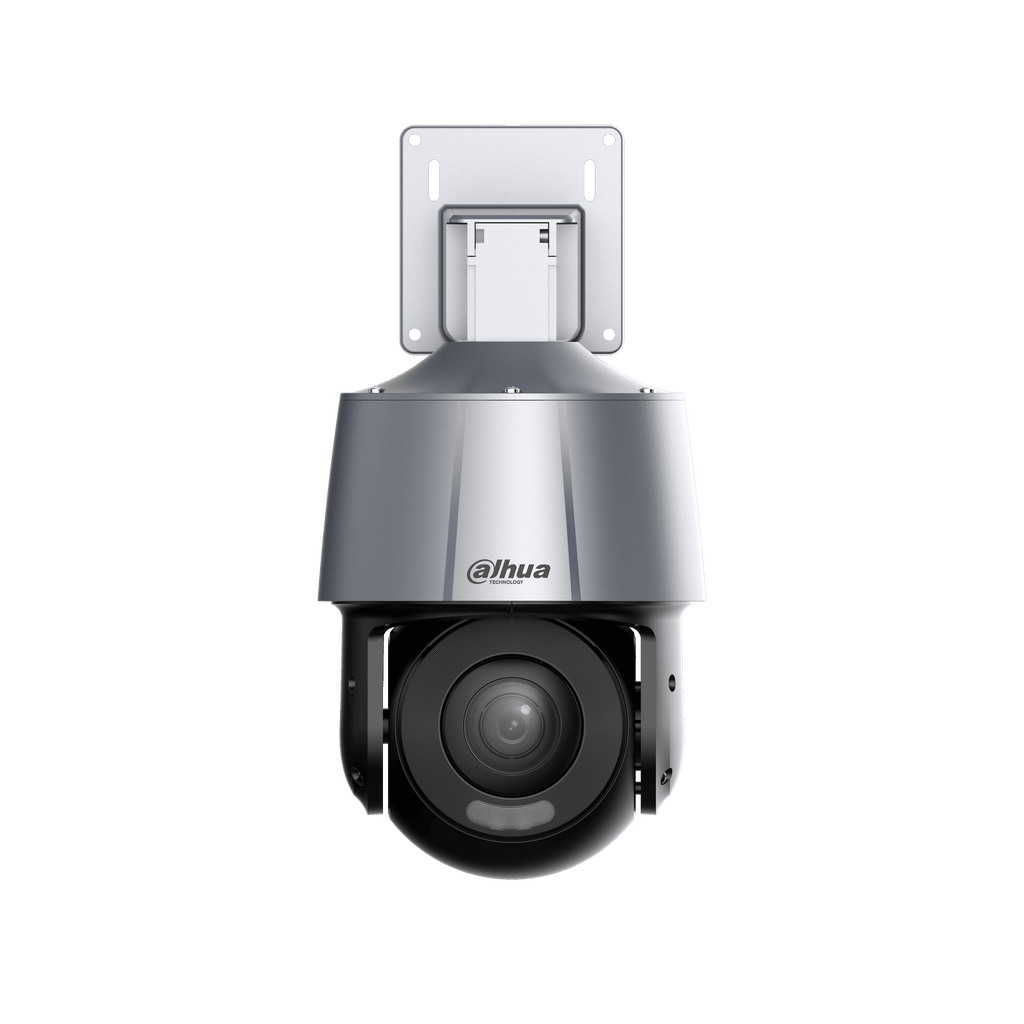

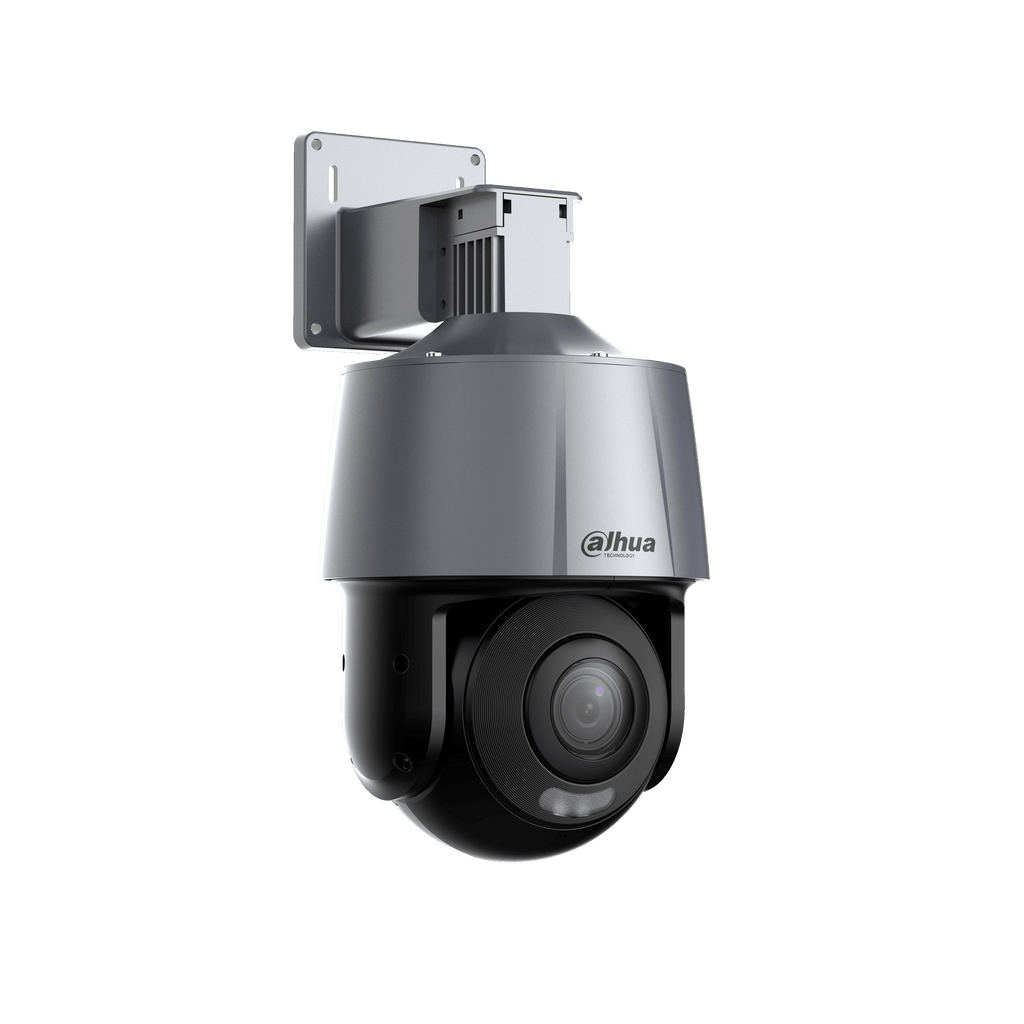

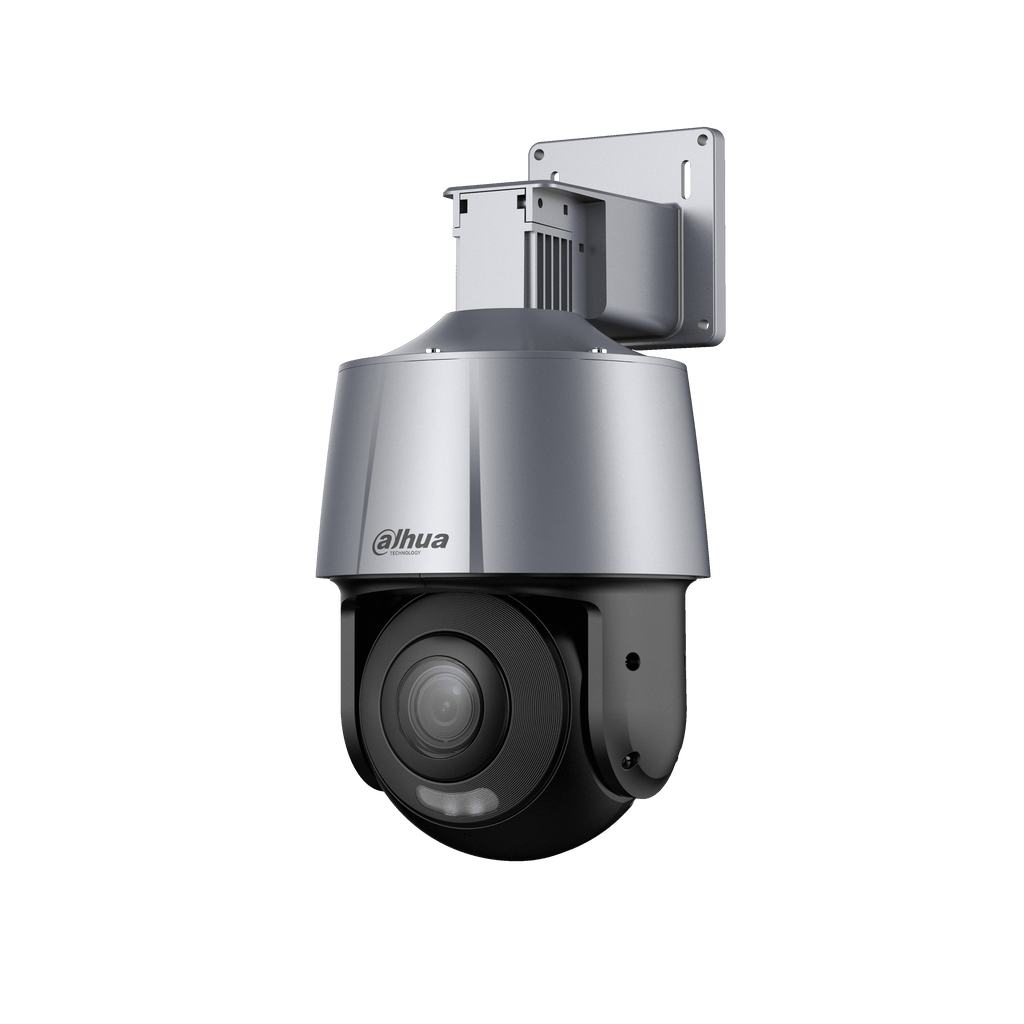

Dôme PT (Pan Tilt) IP gris
- 4MP
- Focale fixe 4mm
- IR 30 m
- IA WizSense
- Starlight
- Full color
- Protection périmétrique
- IP66
- 12V POE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Full Color, Starlight
- Intelligence Artificielle : WizSense, Protection périmétrique
- Résolution : 4 MP
- Focale Fixe : 4 mm
Fiche technique
| Capteur | 1/3" CMOS |
|---|---|
| Résolution max. | 2560 (H) x 1440 (V) |
| Pixel | 4 MP |
| ROM | 128 MB |
| RAM | 128 MB |
| Obturateur électronique | 1/3 s–1/100,000 s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | Color: 0.002 lux@F1.6 B/W: 0.0002 lux@F1.6 0 lux (illuminator on) |
| Portée de l'éclairage | 30 m (98.42 ft) (IR) 30 m (98.42 ft) (white light) |
| Illumination On/Off Control | Auto; Manual; Off |
| Illumination Number | 2 (IR light) 2 (white light) |
| Focale | 4.0 mm |
| Ouverture max. | F1.6 |
| Champ de vision | H:80.2°, V:43.1°, D:94.3° |
| Distance mini de mise au point | 0.3 m (0.98 ft) |
| Iris | Fixed |
| Distance DORI | Identify |
| 55.1 m (180.77 ft) | 4.6 m (15.09 ft) |
| Pan/Tilt Range | Pan: 0° to 355° Tilt: -15° to 90° |
| Manual Control Speed | Pan: 0.1°/s–26°/s Tilt: 0.1°/s–17.5°/s |
| Preset Speed | Pan: 26°/s; Tilt: 17.5°/s |
| Préréglages | 300 |
| Power-off Memory | Yes |
| Idle Motion | Preset |
| IVS | Tripwire; intrusion |
| Light Warning | White light warning Flash duration: 5 s–30 s Flash frequency: High, medium, low |
| Sound Warning | Sound warning alarm: Customizable Alarm duration: 10 s, 20 s, 30 s |
| Compression vidéo | H.265; H.264B; H.264; MJPEG(Sub Stream 1); smart H.265+; smart H.264+ |
| Flux | 2 Streams |
| Résolutions | 4M (2560 × 1440); 1080p (1920 × 1080); 720p (1280×720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Fréquence d'images | Main stream: 4M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps) |
| Contrôle du débit | CBR; VBR |
| Débit vidéo | H264: 2304~8192Kbps H265: 768~6912Kpbs |
| Jour/Nuit | Auto (ICR); Color; B; W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| Balance des blancs | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Auto; Manual |
| Réduction du bruit | 2D; 3D |
| Détection de mouvement | Yes |
| Rotation de l'image | 180° |
| Rapport signal/bruit | ≥55 dB |
| Compression audio | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1 |
| Port réseau | RJ-45 (10/100 Base-T) |
| Protocoles réseau | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; SSL; FTP; ARP; RTCP; RTP; IP Filter; RTMP; TCP |
| Interopérabilité | ONVIF (Profile S&T); CGI |
| Streaming Method | Unicast; Multicast |
| Utilisateurs simultanés | 20 |
| Stockage | FTP; Micro SD card (256 G) |
| Navigateur | IE 7 and later versions Chrome 42 and earlier versions Firefox 52 and earlier versions Safari |
| Logiciels de gestion | DMSS |
| Application mobile | iOS; Android; iPhone; iPad; Windows Phone |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 |
| Entrée audio | 1 channel (Built-in Mic) |
| Sortie audio | 1 channel (Built-in Speaker) |
| Audio I/O | 1/1 |
| Two-way Audio | Yes |
| Alarm Linkage | Capture; preset;recording; send email; audio |
| Événements d'alarme | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alimentation | 12 VDC, 1.5 A (±10%) PoE (802.3af) |
| Consommation | Basic: 4 W Max: 12.95 W (illuminator) |
| Operating Conditions | –30 °C to +60 °C (–22 °F to +140 °F) |
| Humidité de fonctionnement | ≤95% RH |
| Indice de protection | IP66; TVS 2000V lightning proof; surge protection; voltage transient protection |
| Dimensions | 271.7 mm × 165.5 mm × 140 mm (107" × 6.52" × 5.51") |
| Poids net | 1.07 kg (2.36 lb) |
| Poids brut | 1.46 kg (3.21 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD3A400-GN-HI-A-PV-0400 · Marque : Dahua
