Description et caractéristiques

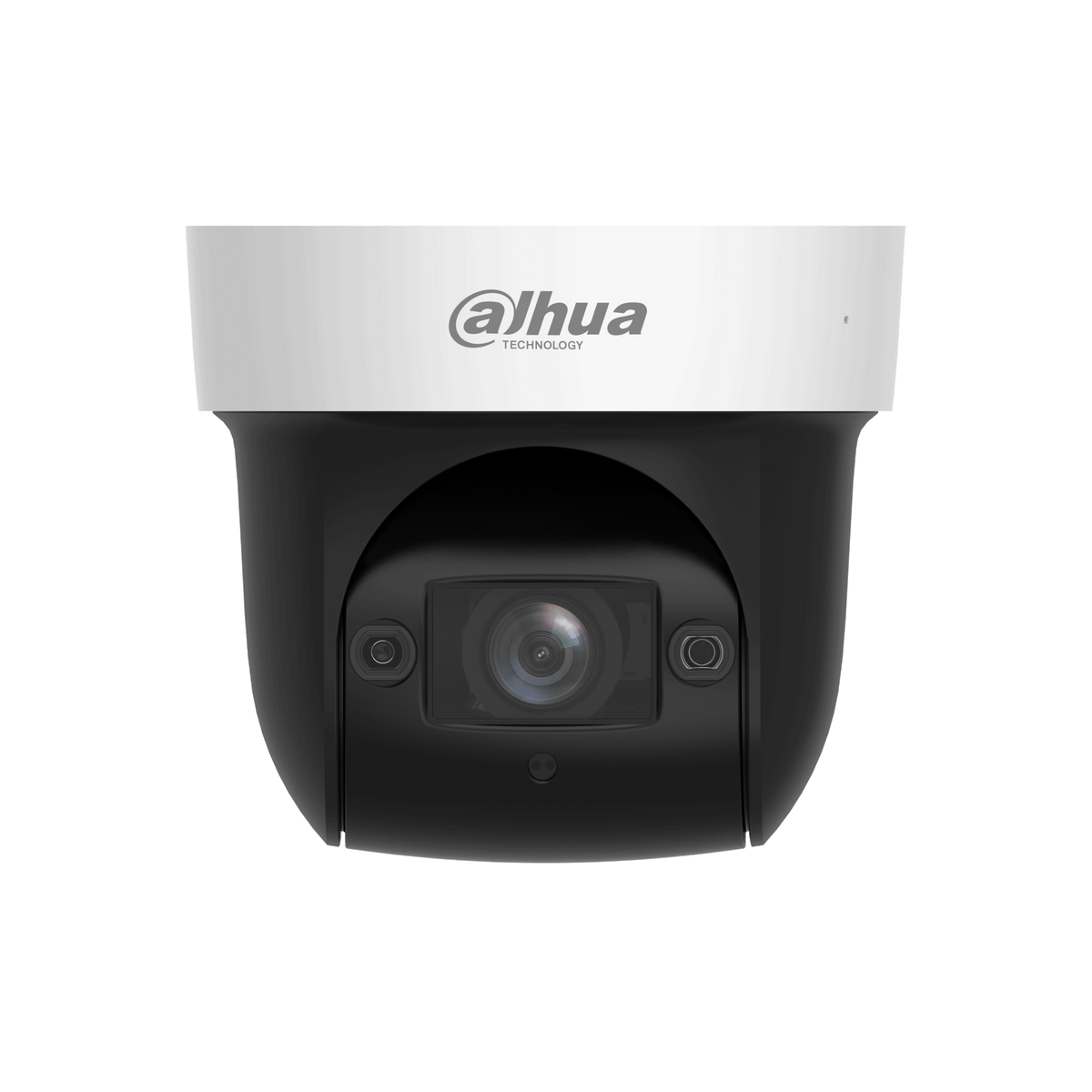

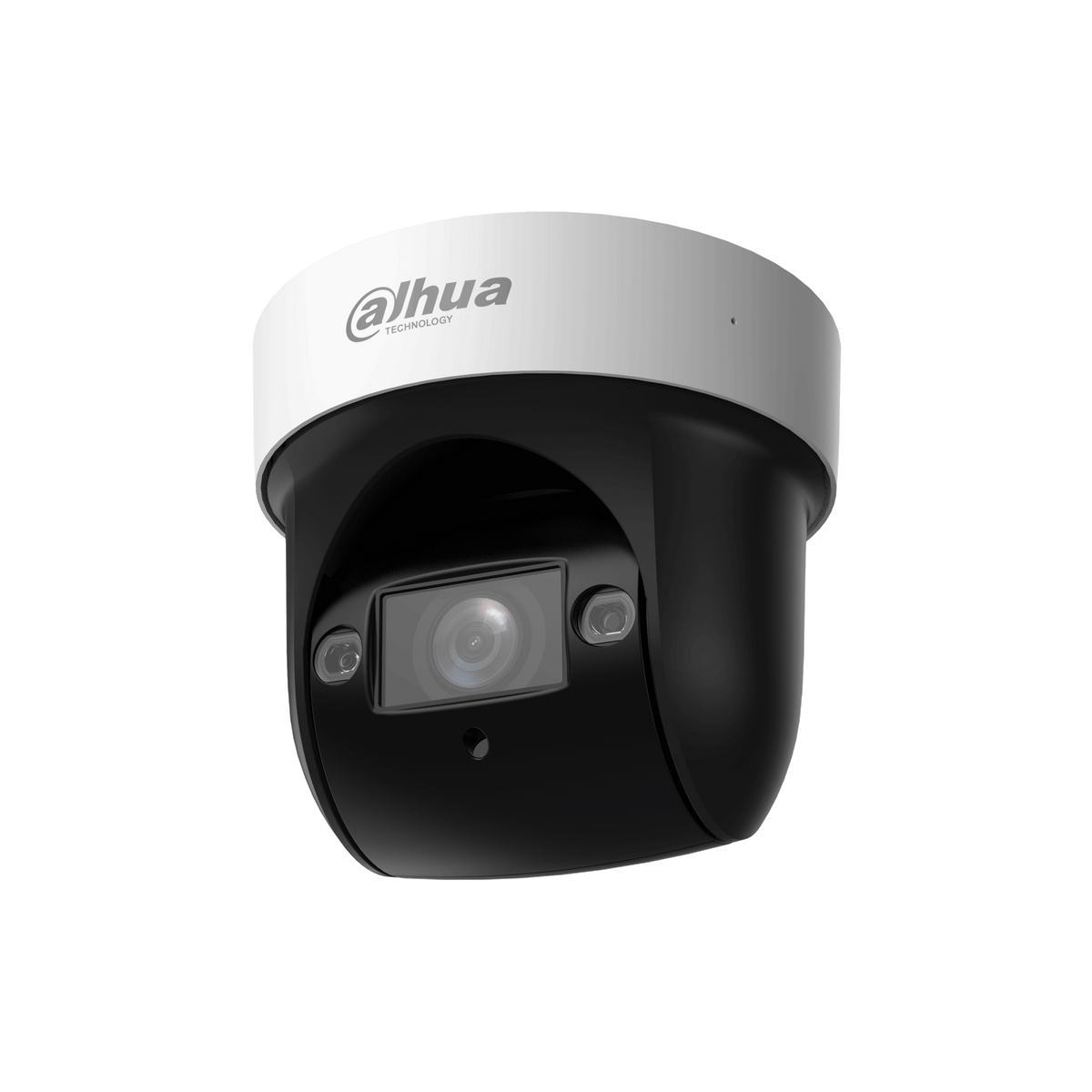

Dôme motorisé IP
- Blanc
- 4 MP
- Varifocale motorisée 2.8mm-12mm
- IR 50m
- Zoom optique x4
- WizSense
- Protection périmétrique
- Détection de visage
- Entrée / Sortie audio / Microphone
- 12V POE
- WDR 120 dB
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Intelligence Artificielle : WizSense, Protection périmétrique, Détection de visage
- Résolution : 4 MP
- Varifocale : 2.8 - 12 mm
- IR & LED : IR 50 m
Fiche technique
| Capteur | 1/2.8" CMOS |
|---|---|
| Pixel | 4 MP |
| Résolution max. | 2560 (H) × 1440 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Obturateur électronique | 1/1s–1/30,000s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) |
| Portée de l'éclairage | 50 m (164.04 ft) (IR) |
| Contrôle de l'éclairage | Zoom Prio; Manual; Auto; Off |
| Nombre d'illuminateurs | 2 (IR) |
| Focale | 2.8 mm–12 mm |
| Ouverture max. | F1.6–F3.0 |
| Champ de vision | H: 94.9°–30.1°; V: 51°–17.1°; D: 112.3°–34.6° |
| Zoom optique | 4× |
| Focus Control | Auto; semi-auto; manual |
| Distance mini de mise au point | 1.5 m (4.92 ft) |
| Iris | Fixed |
| Distance DORI | Identify |
| 171 m (561.02 ft) | 17 m (55.77 ft) |
| Pan/Tilt Range | Pan: 0° to 360° not endless; Tilt: 0° to +90° |
| Manual Control Speed | Pan: 0.1°/s–100°/s; Tilt: 0.1°/s–60°/s |
| Preset Speed | Pan: 100°/s; Tilt: 60°/s |
| Préréglages | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour |
| PTZ Protocol | DH-SD4 |
| PTZ Locked | Yes |
| IVS (protection périmétrique) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification |
| Face Detection | Supports face detection,snapshot, and face enhancement; Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first. |
| SMD (détection humain/véhicule) | Yes |
| Compression vidéo | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+ |
| Flux | 3 streams |
| Résolutions | 4M (2560 × 1440); 3M (2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Fréquence d'images | Main stream: 4M/3M/1080p/1.3M/720p@(1-25/30 fps) Sub stream 1: D1/VGA/CIF@(1-25/30 fps) Sub stream 2: 720p@(1-25/30 fps) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H264: 24 Kbps–13056 Kbps H265: 9 Kbps–7936 Kbps |
| Jour/Nuit | ICR: Auto; color; B/W Electronic: Auto; color; B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| Balance des blancs | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Auto; manual; gain prio |
| Réduction du bruit | 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | Electronic |
| Defog | Electronic |
| Zoom numérique | 16 × |
| Rotation de l'image | 180° |
| Rapport signal/bruit | ≥ 55 dB |
| Privacy Mask | Up to 24 areas can be set, with up to 8 areas in the same view; 8 colors available |
| Compression audio | G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM |
| Port réseau | RJ-45 (10/100 Base-T) |
| Protocoles réseau | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Interopérabilité | CGI; SDK; ONVIF (Profile S&G&T); P2P |
| Streaming Method | Unicast/Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | ONVIF (Profile S&G&T); P2P; CGI; SDK |
| Navigateur | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Logiciels de gestion | DMSS; DSS Pro |
| Application mobile | iOS; Android |
| Certifications | CE: EN55032/EN 50130-4/EN 55035/EN61000-3-2/EN61000-3-3 |
| Entrée audio | 1 channel (LINE IN, bare wire,built-in mic (mutually exclusive)) |
| Sortie audio | 1 channel (LINE OUT,bare wire) |
| Entrée d'alarme | 2 (on-off value input: 0–5 VDC) |
| Sortie d'alarme | 1 |
| Alarm Linkage | Capture; recoding; send email; preset; tour; pattern; alarm digital output; audio |
| Événements d'alarme | Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection |
| Alimentation | 12 VDC, 2A ± 10% (optional) PoE (802.3af) |
| Consommation | Basic: 5 W Max: 10 W (illuminator+PTZ) |
| Température de fonctionnement | –30 °C to +50 °C (–22 °F to +122 °F) |
| Humidité de fonctionnement | ≤ 95% |
| Indice de protection | 6000V lightning proof; surge protection; voltage transient protection |
| Dimensions | 117.4 mm × Φ132.1 mm (4.62" × Φ5.20") |
| Poids net | 0.713 kg (1.57 lb) |
| Poids brut | 1.0 kg (2.20 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD29404DB-GNY · Marque : Dahua
