Description et caractéristiques

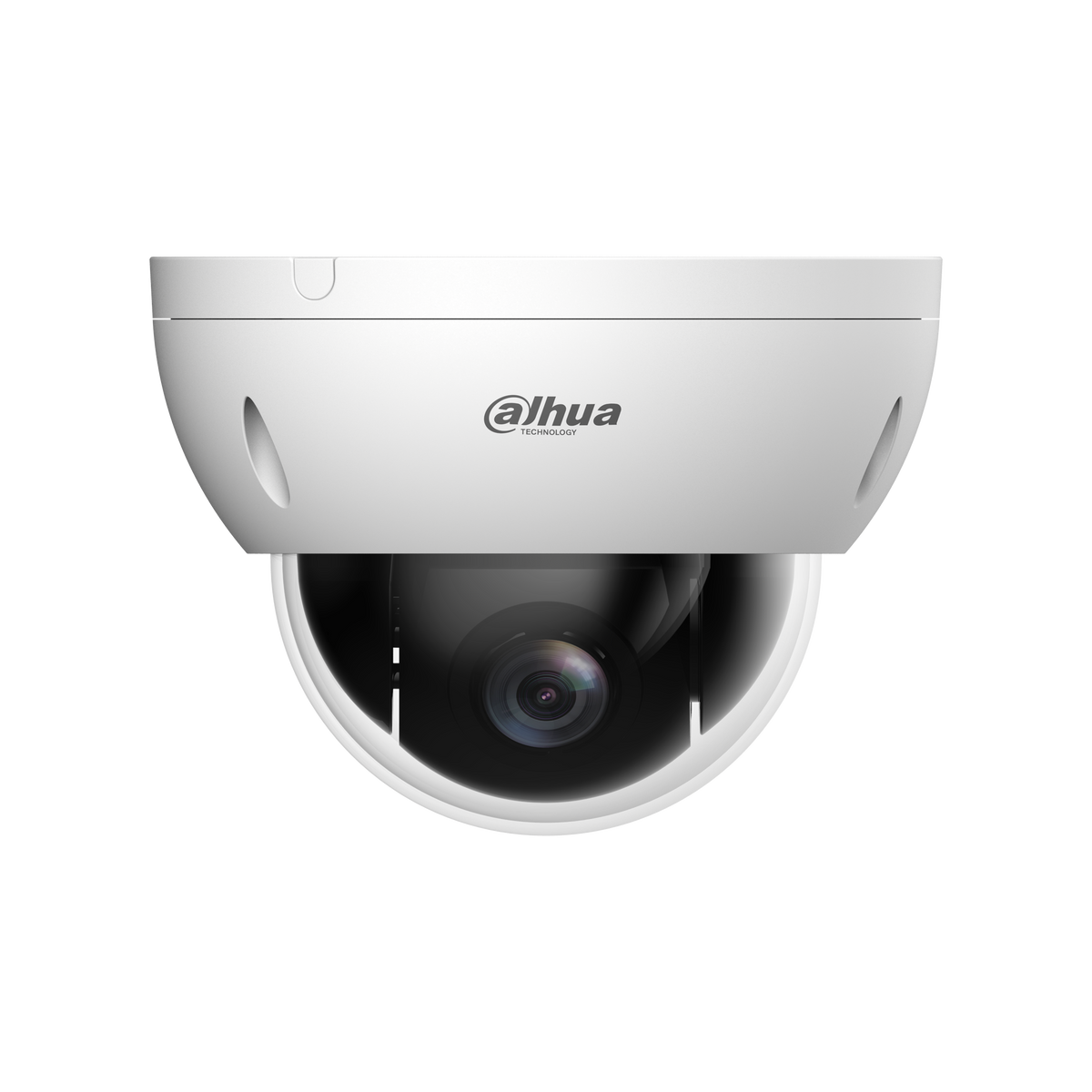

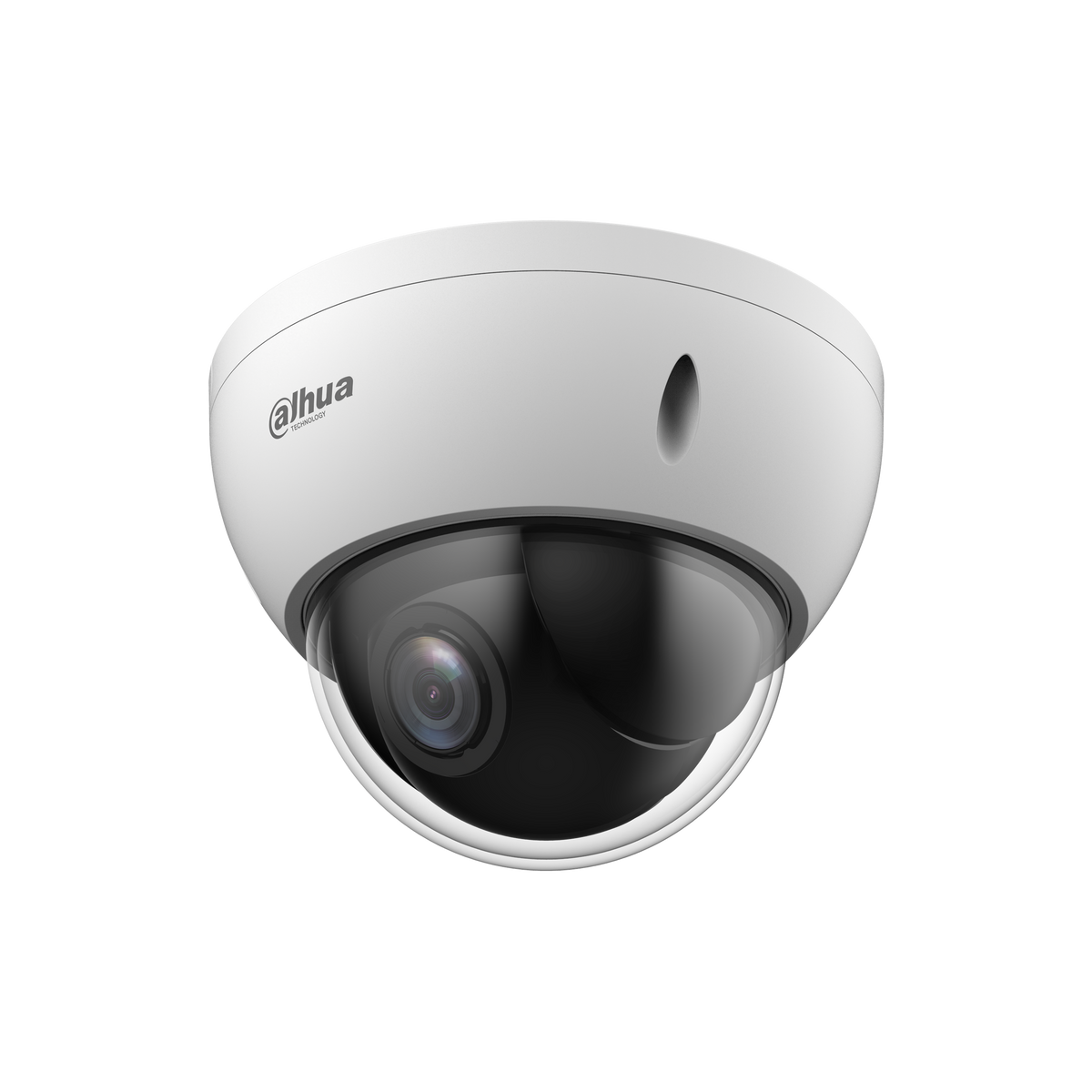

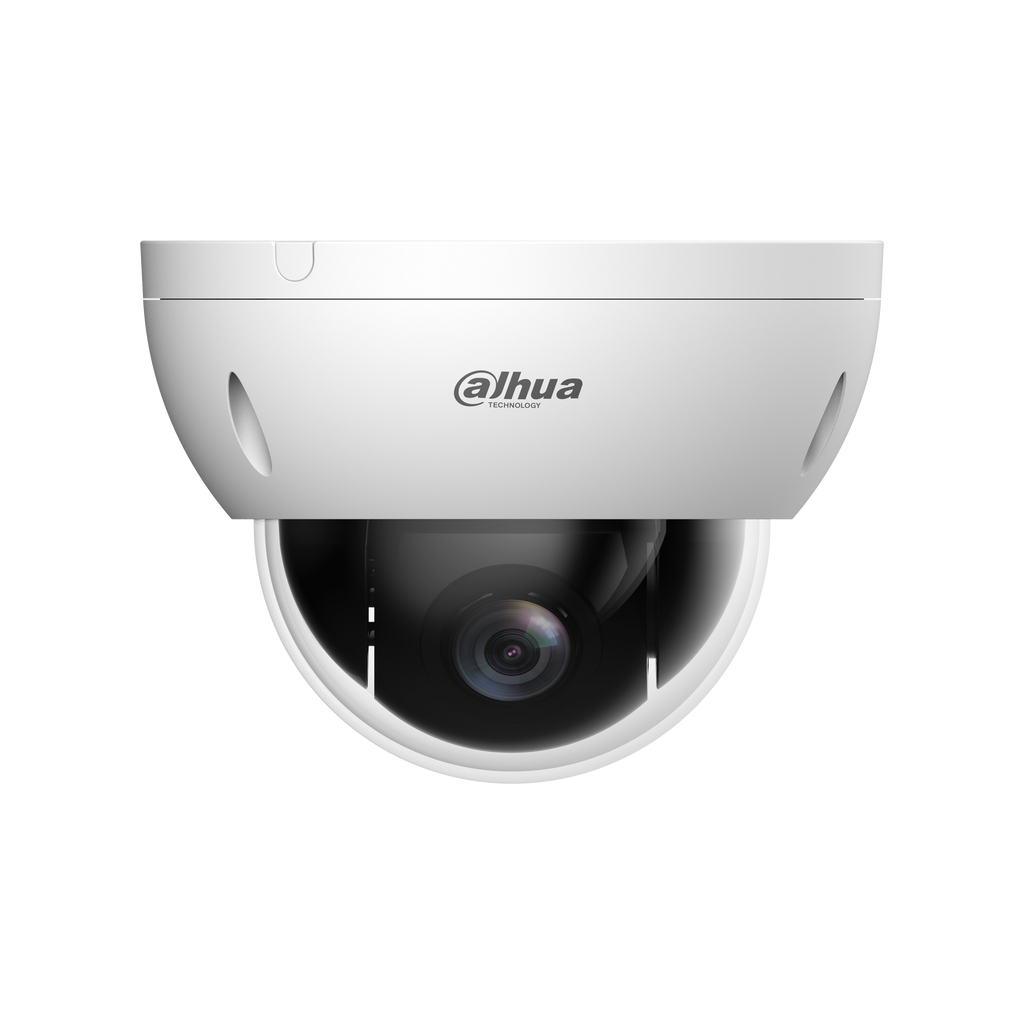

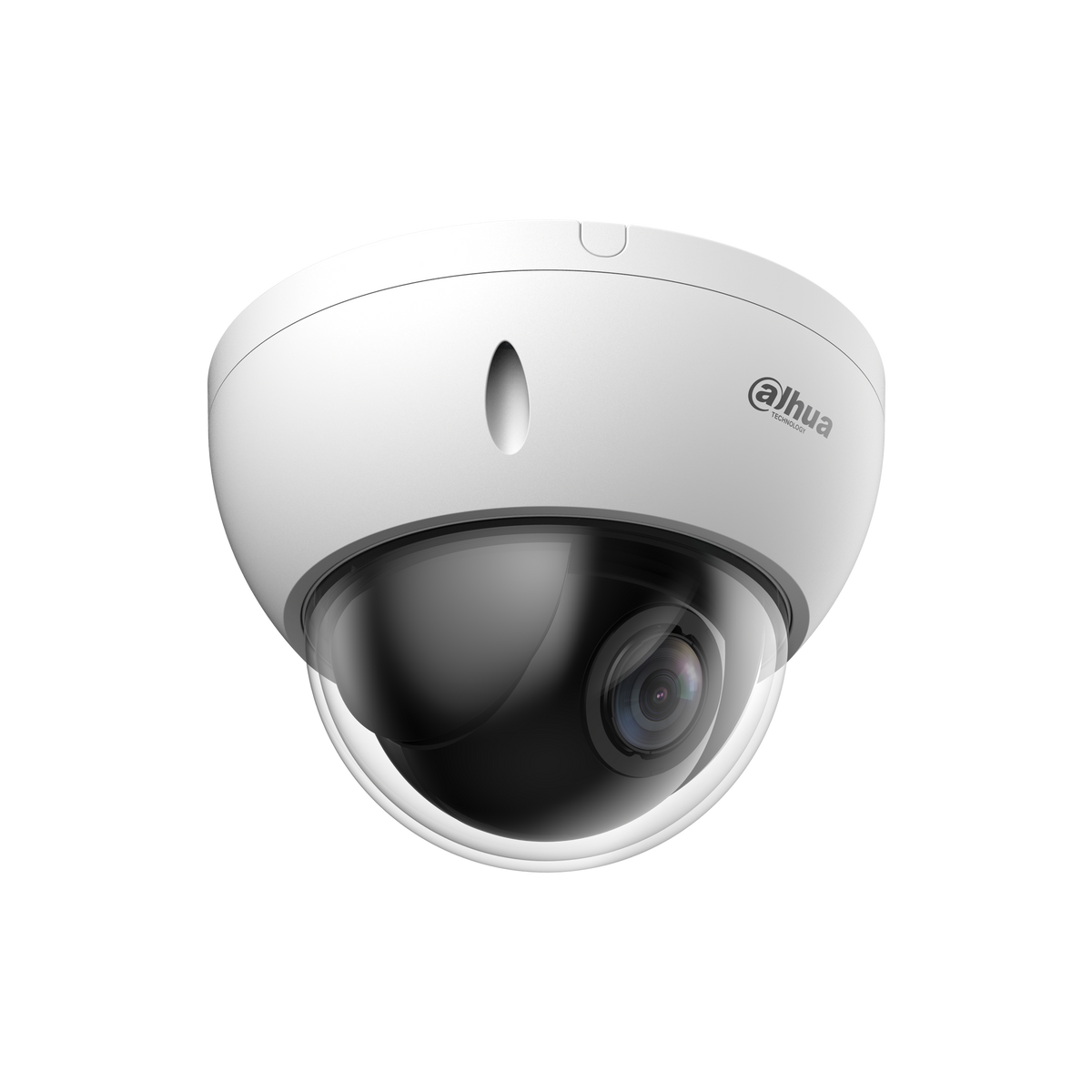

Dôme motorisé PTZ IP Blanc
- 4 MP
- VM 2.8-12 mm
- WizSense
- Starlight
- Reconnaissance faciale
- IP66
- IK10
- 12 V POE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight
- Intelligence Artificielle : WizSense, Reconnaissance faciale
- Résolution : 4 MP
- Varifocale : 2.8 - 12 mm
Fiche technique
| Capteur | 1/2.8" CMOS |
|---|---|
| Pixel | 4 MP |
| Résolution max. | 2560 (H) × 1440 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Obturateur électronique | 1/1 s–1/30,000 s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 |
| Focale | 2.8 mm–12 mm |
| Ouverture max. | F1.6–F3.0 |
| Champ de vision | H: 90.3°–29.4°; V: 48.5°–16.6°; D: 105.7°–33.6° |
| Zoom optique | 4× |
| Focus Control | Auto; semi-auto; manual |
| Distance mini de mise au point | 1.5 m (4.92 ft) |
| Iris | Fixed |
| Distance DORI | Identify |
| 240 m (787.40 ft) | 24 m (78.74 ft) |
| Pan/Tilt Range | Pan: 0°–355° Tilt: 0°–90° |
| Manual Control Speed | Pan: 0.1°/s–100°/s Tilt: 0.1°/s–60°/s |
| Preset Speed | Pan: 100°/s; Tilt: 60°/s |
| Préréglages | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Idle Motion | Pattern; Preset; Tour |
| PTZ Protocol | SD Pelco-P/D(Auto recognition) |
| PTZ Locked | Yes |
| IVS (protection périmétrique) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| Face Detection | Supports face detection, face track, snapshot, and face enhancement; Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first. |
| SMD (détection humain/véhicule) | Yes |
| Compression vidéo | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+ |
| Flux | 3 streams |
| Résolutions | 4M (2560 × 1440); 3M (2304 × 1296@25fps); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1(704 × 576); CIF(352 × 288); VGA(640 × 480) |
| Fréquence d'images | Main stream: 4M/3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 720p@(1–25/30 fps) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 2816Kbps – 13056Kbps H.265: 1024Kbps – 7936Kbps |
| Jour/Nuit | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| Balance des blancs | Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Auto; manual |
| Réduction du bruit | 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | Yes |
| Defog | Electronic defog |
| Zoom numérique | 16× |
| Rotation de l'image | 180° |
| Rapport signal/bruit | ≥ 55 dB |
| Privacy Mask | Up to 24 areas can be set, with up to 8 areas in the same view; 8 colors available |
| Port réseau | RJ-45 (10/100 Base-T) |
| Protocoles réseau | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS |
| Interopérabilité | ONVIF(Profile S&G&T); P2P; CGI; SDK |
| Streaming Method | Unicast/Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | FTP; Micro SD card (512 GB); NAS |
| Navigateur | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions iOS 10 and later versions. |
| Logiciels de gestion | DMSS; DSS Pro |
| Application mobile | iOS; Android |
| Certifications | CE: CE-LVD: IEC 62368-1/ CE-EMC/EN 55032/EN IEC 61000-3-2/EN55024/EN55035/EN50130-4 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014 |
| Alarm Linkage | Capture; preset; tour; pattern; recordings; alarm digital input; send email |
| Événements d'alarme | Motion/Tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection |
| Alimentation | 12 VDC, 1 A ± 10% POE (802.3af) |
| Consommation | Basic: 2.3 W Max.: 6.1 W |
| Température de fonctionnement | –30 °C to +60 °C (–22 °F to +140 °F) |
| Humidité de fonctionnement | ≤ 95% |
| Température de stockage | –30 °C to +60 °C (–22 °F to +140 °F) |
| Humidité de stockage | ≤ 95% |
| Indice de protection | IP66, IK10 |
| Dimensions | 89 mm × Φ122 mm (3.50" × Φ4.80") |
| Poids net | 0.5 kg (1.10 lb) |
| Poids brut | 0.7 kg (1.54 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD22404DB-GNY · Marque : Dahua
