Description et caractéristiques

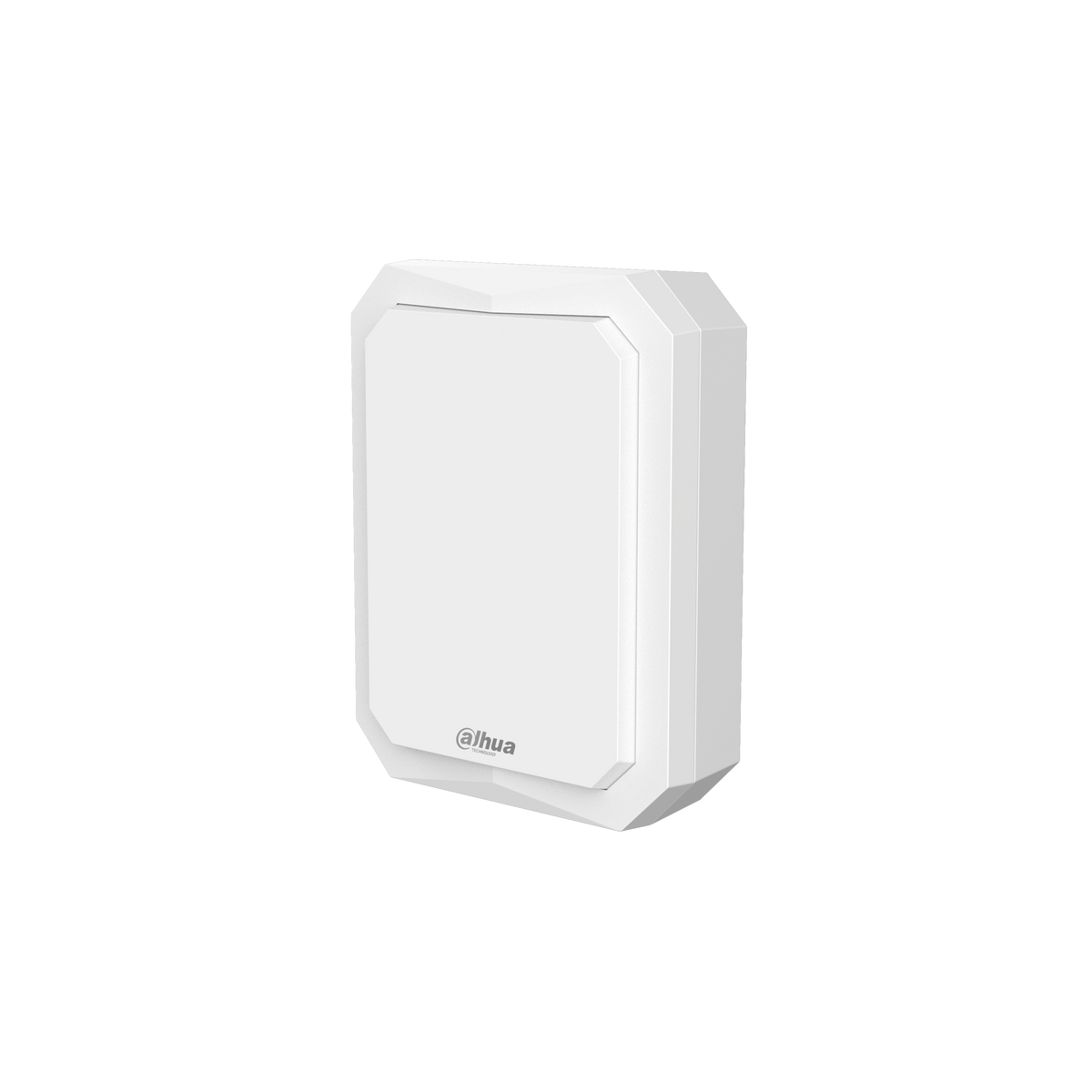

Radar de sécurité de 120 m
- 64 cibles max
- Type de cible: Humain & Véhicule
- IP67
- IK09
Caractéristiques principales
- Distance de détection : 120 m
Fiche technique
| Max. Target Number | 64 |
|---|---|
| Detection Distance | Human: 120.0 m (393.70 ft) Vehicle: 150.0 m (492.13 ft) |
| Detection Angle | Horizontal: 120° Vertical: 26° |
| Max. Detection Speed | 40 km/h, continuous trajectory |
| Min. Detection Speed | 0.6km/h, continuous trajectory |
| Distance Accuracy | ± 1.5 m (± 4.92 ft) |
| Angle Accuracy | ± 1° |
| Max. Area Number | 10 |
| Modulation Type | FMCW |
| Scan Frequency | 10 Hz |
| Operating Frequency | 24 GHz |
| Transmission Power | <20dBm (100mW) |
| Detection Target Type | Human and vehicle |
| Radar+PTZ Smart Tracking | Supported on web manager |
| Track Mode | Tour, distance priority, and time priority |
| Region Setting | Alarm area, pre-warning area, and shield area |
| Environment Mode | General, shrub, and capacious |
| Target Filtering | Human and vehicle filtering |
| Channel Selections | Yes |
| Record Mode | Manual record, scheduled record, and alarm record Record priority: Manual>Alarm>Scheduled |
| Restore Default Settings | Restore default settings with one click |
| Security Mode | Authorized user name and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control |
| Power Output | Support 12 V DC power output with maximum 165mA current and 12 V voltage |
| Map Encoding | Yes |
| Ethernet | RJ-45 (10Base-T/100Base-TX) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, and 802.1x |
| Interopérabilité | ONVIF Profile S&G, CGI |
| Utilisateurs simultanés | 19 |
| Stockage | NAS; local PC; micro SD card (256 G) |
| Navigateur | IE: Versions later than IE7 Google: Versions earlier than Chrome45 Firefox: Versions earlier than Firefox46 |
| Entrée d'alarme | 1 channel (support 5V DC potential and 5mA current) |
| Sortie d'alarme | 4 channels (wet contact; support max 12V DC potential and max 300mA current) 1 channel (dry contact; support max 30V DC potential and max 2A current, and max 250V AC potential and max 2A current) |
| Alarm Linkage | Snapshots, radar-PTZ linkage, SD card record, alarm triggering output, and email sending |
| Événements d'alarme | Radar alarm, scene changing, no SD card, SD card capacity warning, SD card error, network disconnection, IP conflict, full disk, and illegal access |
| SD Card | Yes |
| Indicator Light | Network connection: Yellow Running status: Red/Green Power: Green |
| Alimentation | DC 12V (±30%), AC 24V (±30%), PoE (802.3at) |
| Consommation | Basic: 12W Max.: 14W |
| Température de fonctionnement | –40°C to +70°C (–40°F to +158°F) |
| Humidité de fonctionnement | ≤95% (RH) |
| Température de stockage | –40°C to +80°C (–40°F to +176°F) |
| Humidité de stockage | ≤95% (RH) |
| Ingress Protection | IP67/IK09 |
| ESD | Contact discharge: 6k Air discharge: 8k |
| Surge Protection Grade | Common mode: ± 6kV Differential Mode: ± 2kV |
| Color | White |
| Casing | ADC12+PC |
| Dimensions | 204.9 × 157.9 × 67.1 mm (8.07" × 6.22" × 2.64") |
| Packaging Dimensions | 256.0 × 208.0 × 171.0 mm (10.08"× 8.19" × 6.73") |
| Poids net | 1.7 kg (2.20 lb) |
| Poids brut | 2.2 kg (4.85 lb) |
| Installation Method | Wall-mounted, ceiling-mounted, pole-mounted |
| Installation Height | 3.0 m to 5.0 m (3.0 m recommended) (9.84 ft to 16.40 ft) (9.84 ft recommended) |
| Installation Position | Separate or integrated installation |
| Certifications | CE:EN 50385; EN 55032; EN 55024; EN 55035; EN 50130-4; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 60950-1 CE RED: EN 300440 FCC: FCC Part 15 Subpart B: 2018; ANSI C63.4: 2014 FCC ID: FCC 47 CFR Part 15C |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : PFR4K-E120 · Marque : Dahua
