Description et caractéristiques

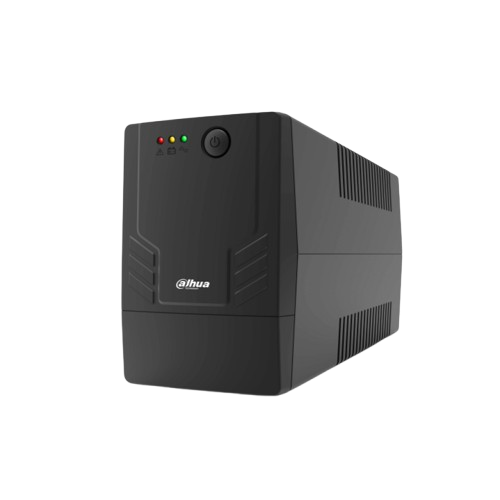

Onduleur noir
- Line-interactive
- 600 VA / 360 W
- Sortie 230 VAC
- Protection surcharge/ court-circuit/ surcharge batterie
- 2 prises sorties standard Europe
- Batterie plomb-acide 7 Ah intégrée
- Indicateurs LED + alarmes sonores
Caractéristiques principales
- Puissance de l'onduleur : Onduleur 600 VA
- Manageable : Non manageable
- Nombre de prises : 2 prises
- Rackable : Onduleur non rackable
- Écran LCD : Pas d'écran LCD
Fiche technique
| Capacity | 600 VA, 360 W |
|---|---|
| Input Voltage | 170–280 VAC |
| Input Current | 2.9 A |
| Rated Input Frequency | 50/60 Hz |
| Power Factor | ≥0.6 |
| Output Voltage | 230 VAC by default |
| Output Current | 2.7 A |
| Output Power | 600 VA, 360 W |
| Output Frequency | 50/60Hz |
| Switch Time | Typical 4 ms–8 ms |
| Output Wave | AC Mode: Pure sine wave; Battery Mode: Simulated sine wave |
| Built-in Battery | Yes |
| Battery Type | Lead-acid battery |
| Qty.of Battery | 1 × 7Ah |
| Charging Current | 1 A |
| Limited Charge Voltage | 13.7 V/pcs |
| Charging Time | 4H–6H to 90% |
| Status Indicator Light | Battery mode: Yellow light flashes once every 10 seconds Mains power mode: Green light solid on Fault mode: Red light solid on |
| Alarm Indicator | Battery Mode: Beeps once every 10 seconds; Low Battery: Beeps once every second; Overload: Beeps once every 0.5 seconds; Battery Replacement: Beeps once every 2 seconds; Fault: Beeps continuously |
| Types of Protection | Protects against overload, battery overcharge, and over-discharge |
| Overload Capacity | AC Mode Overload: 110% + 20%/ – 10%. The UPS shuts down after 5 minutes and reports an overload fault; AC Mode Overload: 120% + 20%/ – 10%. The UPS shuts down immediately and reports an overload fault; Battery Mode Overload: 120% + 20%/ – 10%. The UPS shuts down immediately and reports an overload fault |
| Input Plug | European standard |
| Input Cable Length | 1.2 m (3.94 ft) |
| Socket Standard | European standard |
| Number of Output Sockets | 2 |
| Built-in Fan | NO |
| Dimensions | 298.4 mm × 101.5 mm × 142.2 mm (11.75" × 4" × 5.6") (L × W × H) |
| Packaging Dimensions | 342 mm × 142 mm × 223 mm (13.46" × 5.59" × 8.78") (L × W × H) |
| Matériau du boîtier | Plastic |
| Appearance Color | Black |
| Poids net | 4.4 kg (9.70 lb) |
| Poids brut | 4.6 kg (10.14 lb) |
| Température de fonctionnement | 0 °C to +40 °C (+32 °F to +104 °F) |
| Humidité de fonctionnement | 0%–90%, non-condensing |
| Température de stockage | –15 °C to +55 °C (+5 °F to +131 °F) |
| Humidité de stockage | 0%–90%, non-condensing |
| Certifications | CE LVD: EN IEC 62040-1: 2019+A11: 2021; CE EMC: EN 62040-2: 2006; EN IEC 62040-2: 2018; EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024; EN 61000-3-3: 2013+A1: 2019+A2: 2021 |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : PFM3350-600-EN · Marque : Dahua
