Description et caractéristiques

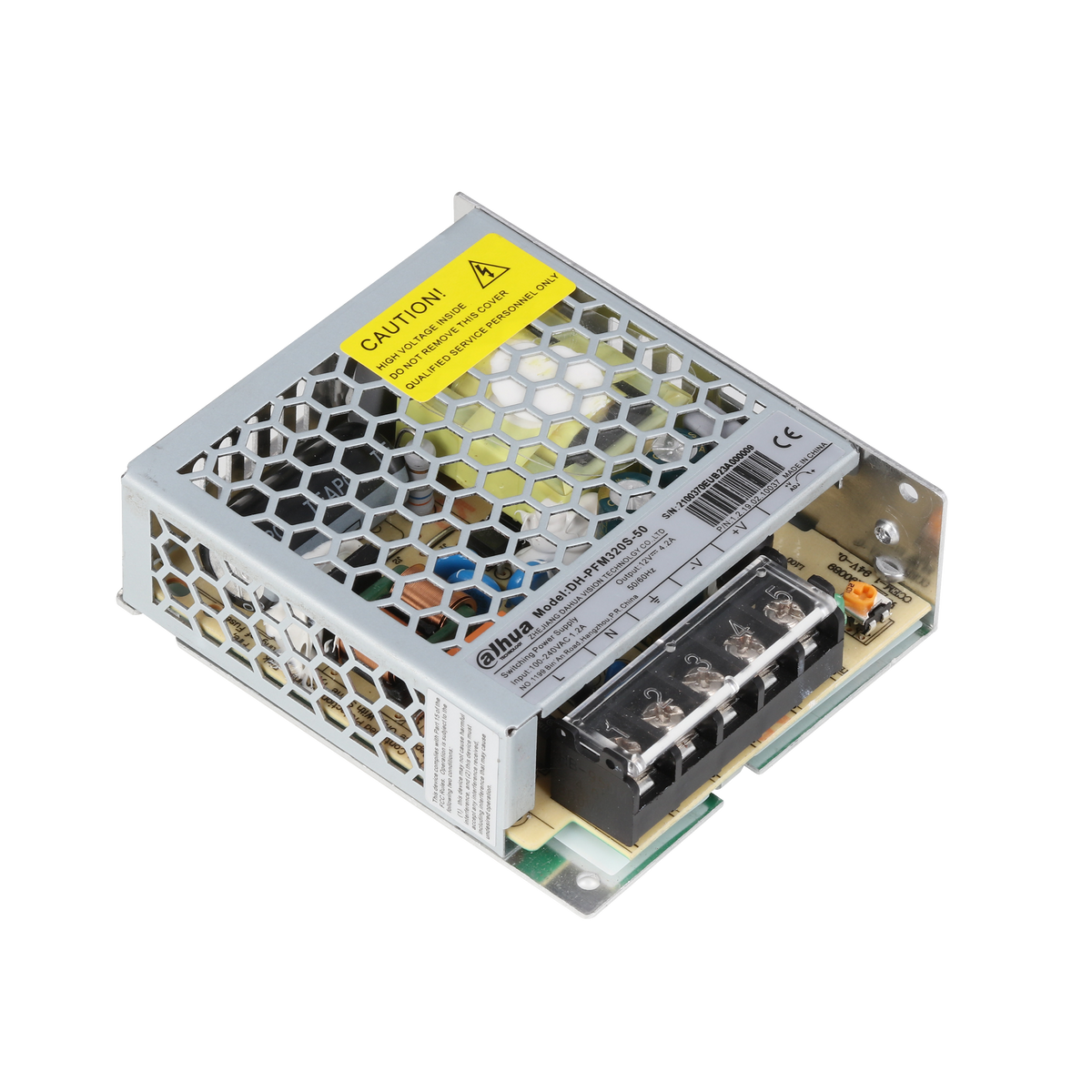

Alimentation à découpage
- Protection contre les surtensions, ESD et décharges électrostatiques
- Plage de tension d'entrée 90-264Vac
- Installation murale ou plafond
- 12V
Fiche technique
| Model | DH-PFM320S-50 |
|---|---|
| Input Voltage Range | 90~264Vac |
| Efficiency | 85.0% (@230Vac) |
| Output Voltage | 12Vdc ( terminal output ) |
| Out Voltage Tolerance | ±5% |
| Adjustable Range for DC Voltage | ±10% (10.8Vdc~13.2Vdc) |
| Rated Output Current | 4.2A |
| Output Power | 50W |
| No Load Power Consumption | <0.3W |
| Surge Protected | Line to ground: ± 2000V Line to line: ± 1000V |
| ESD | Contact discharge: ± 6000V Air discharge: ± 8000V |
| Working Temperature | - 20 ℃ ~ +50 ℃ ( 60% output at +70 ℃ ) -4 ℉ ~+ 122 ℉ ( 60% output at +158 ℉ ) |
| Working Humidity | <90% RH |
| Weight | 0.2kg(0.44lb) |
| Dimension(LxWxH) | 99mmx82mmx30mm (3.9”x3.23“x1.18”) |
| Installation | Wall mount/Ceiling mount |
| Color | Metallic silver |
| Certification | CE, FCC |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : PFM320S-50 · Marque : Dahua
