Description et caractéristiques

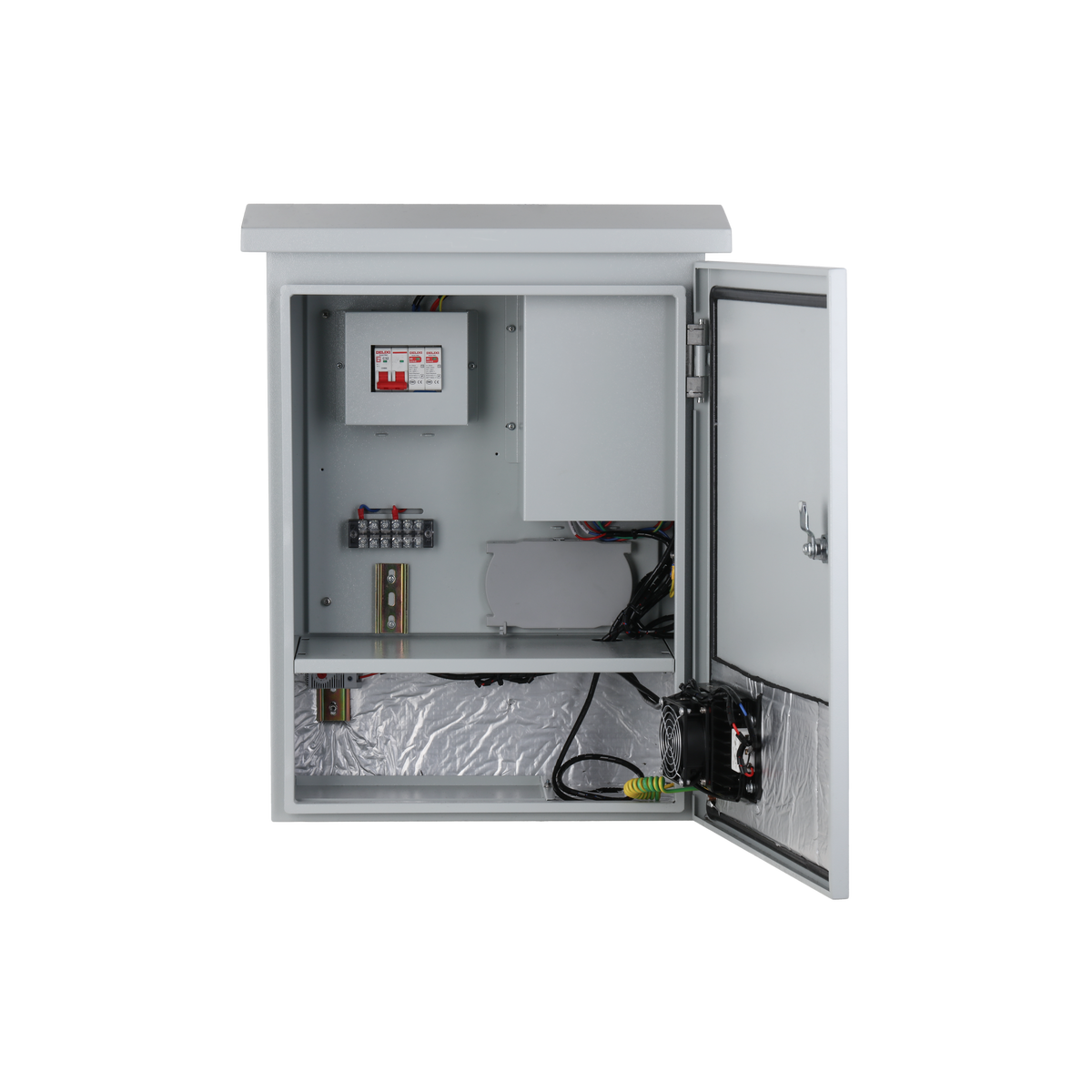

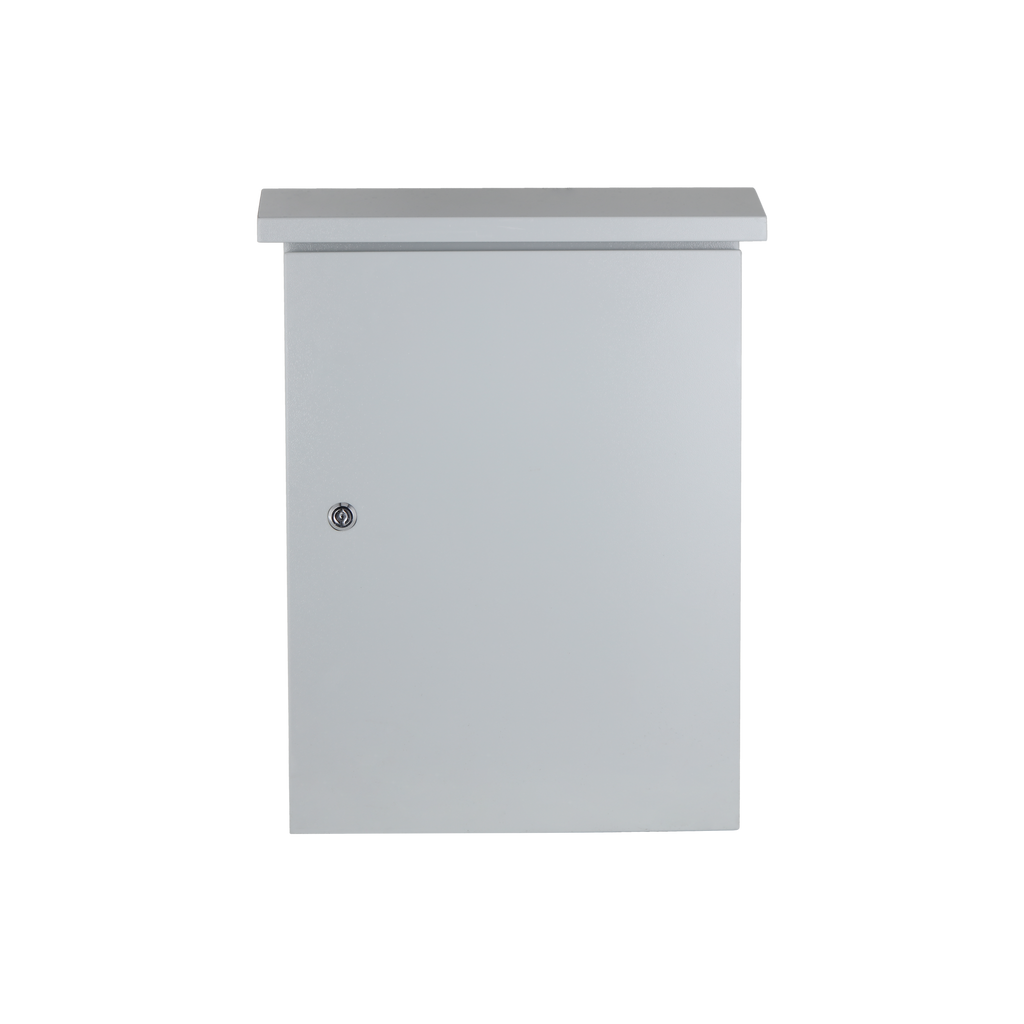

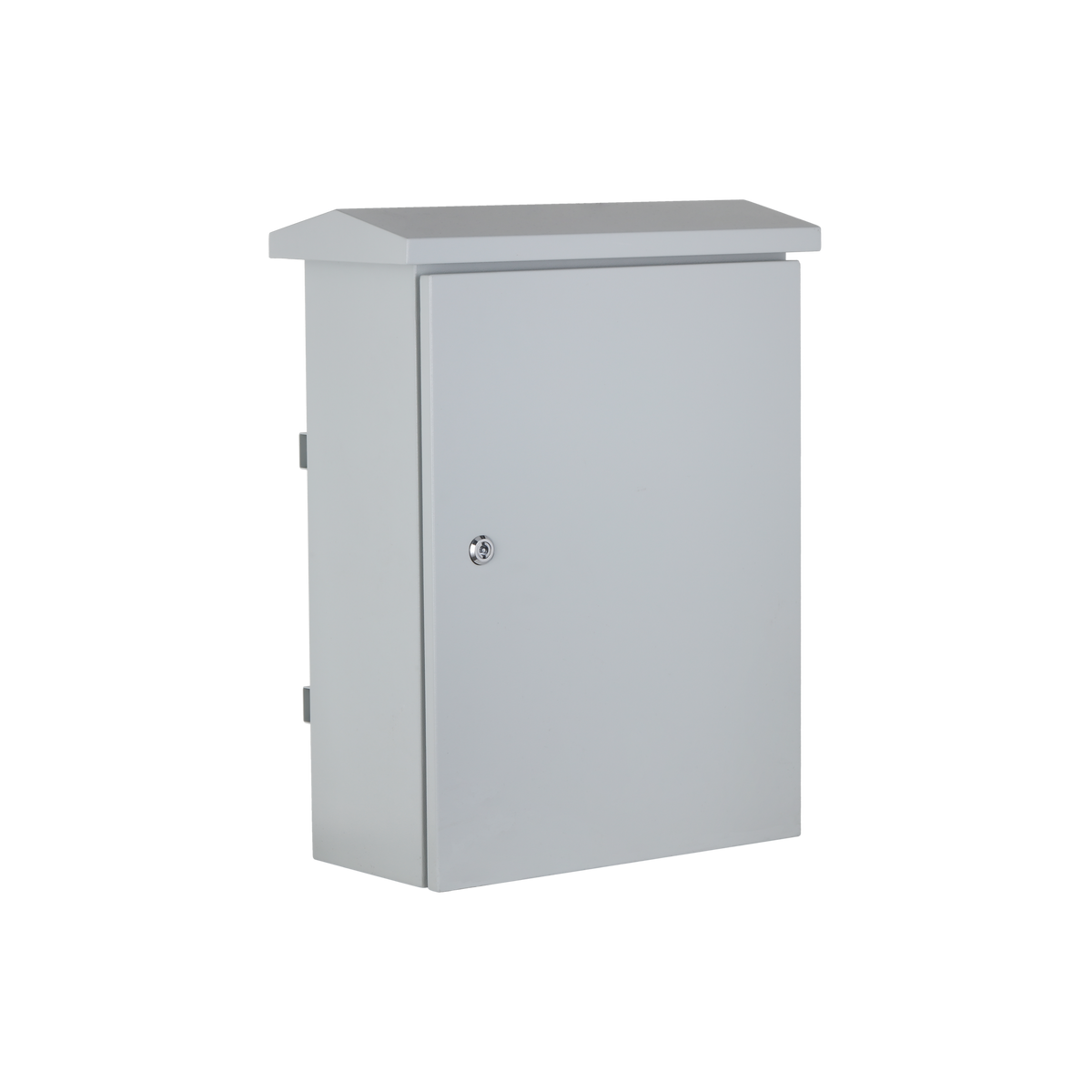

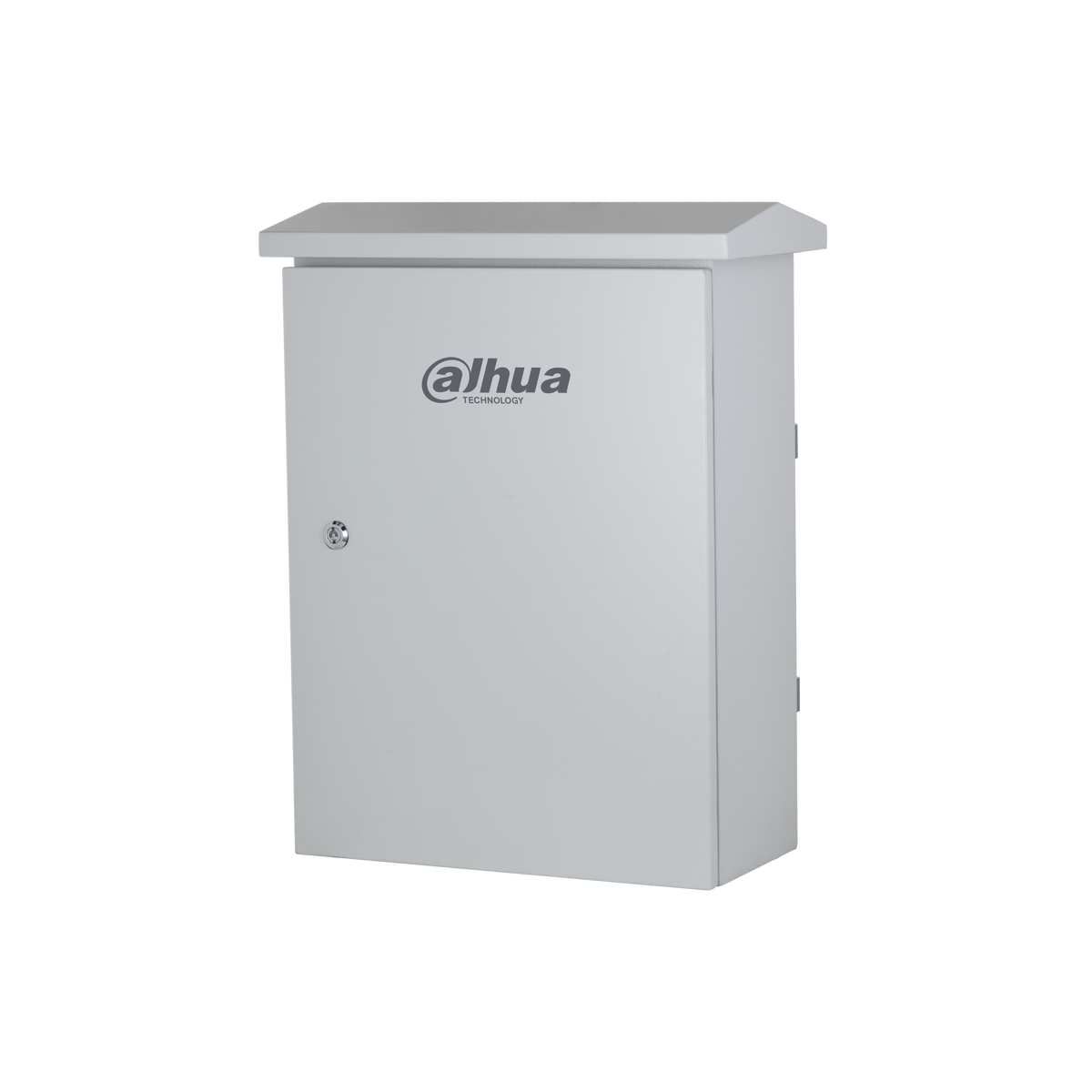

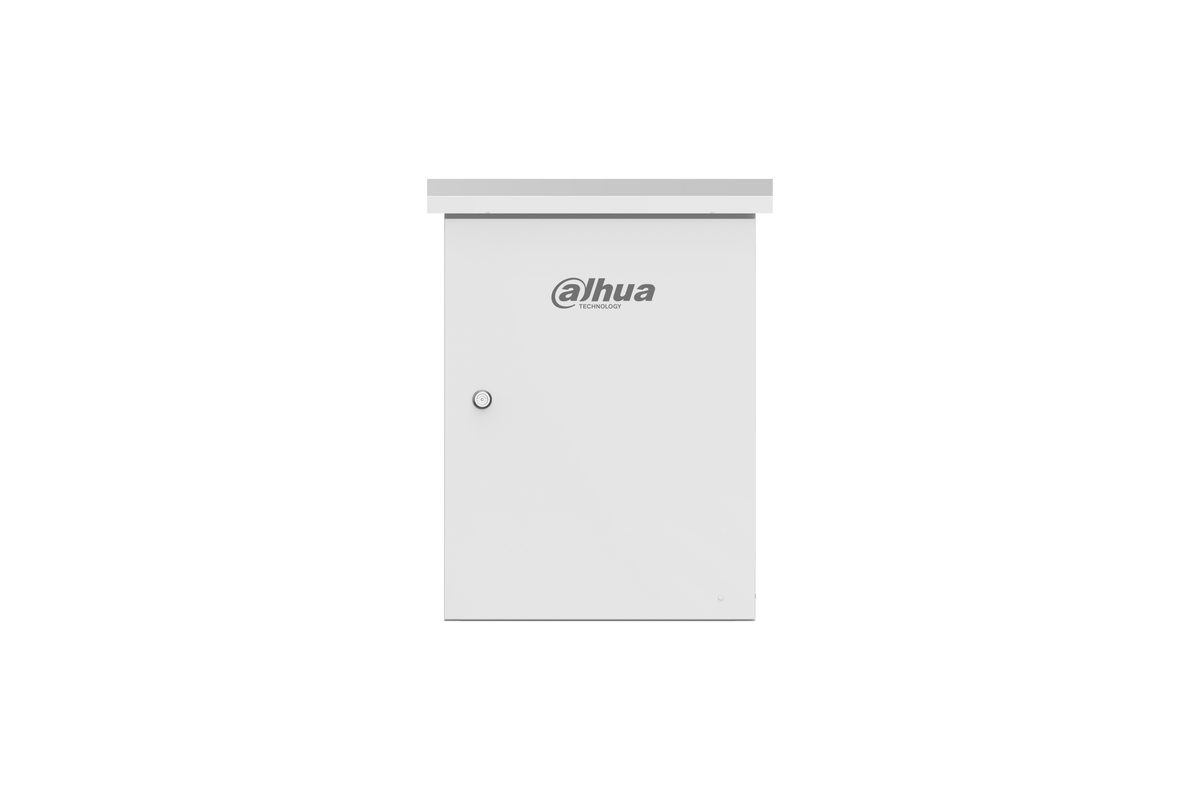

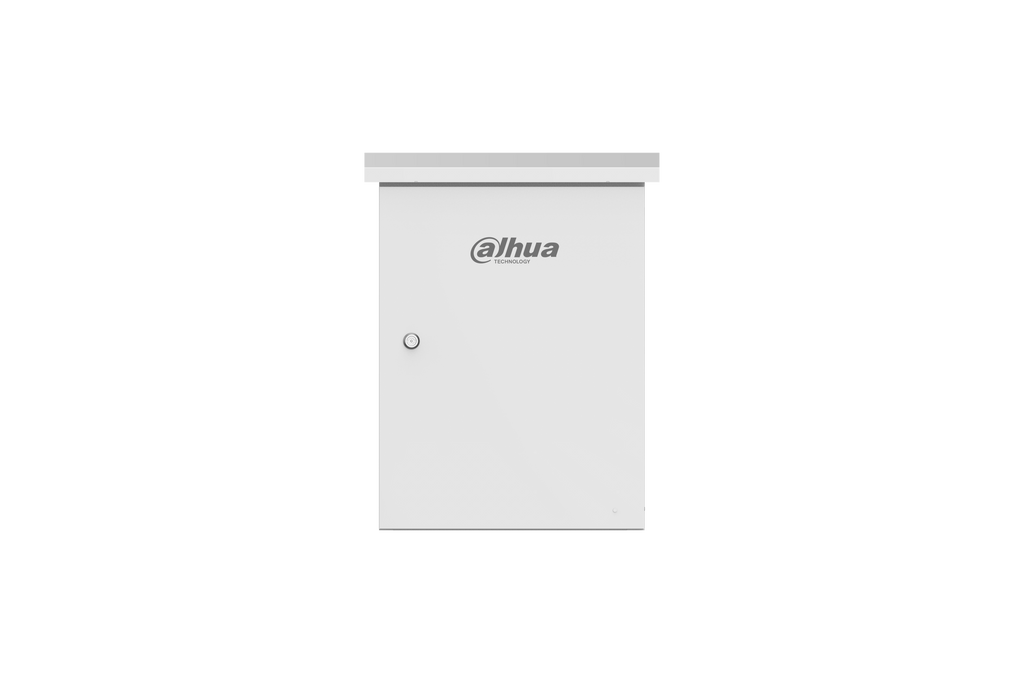

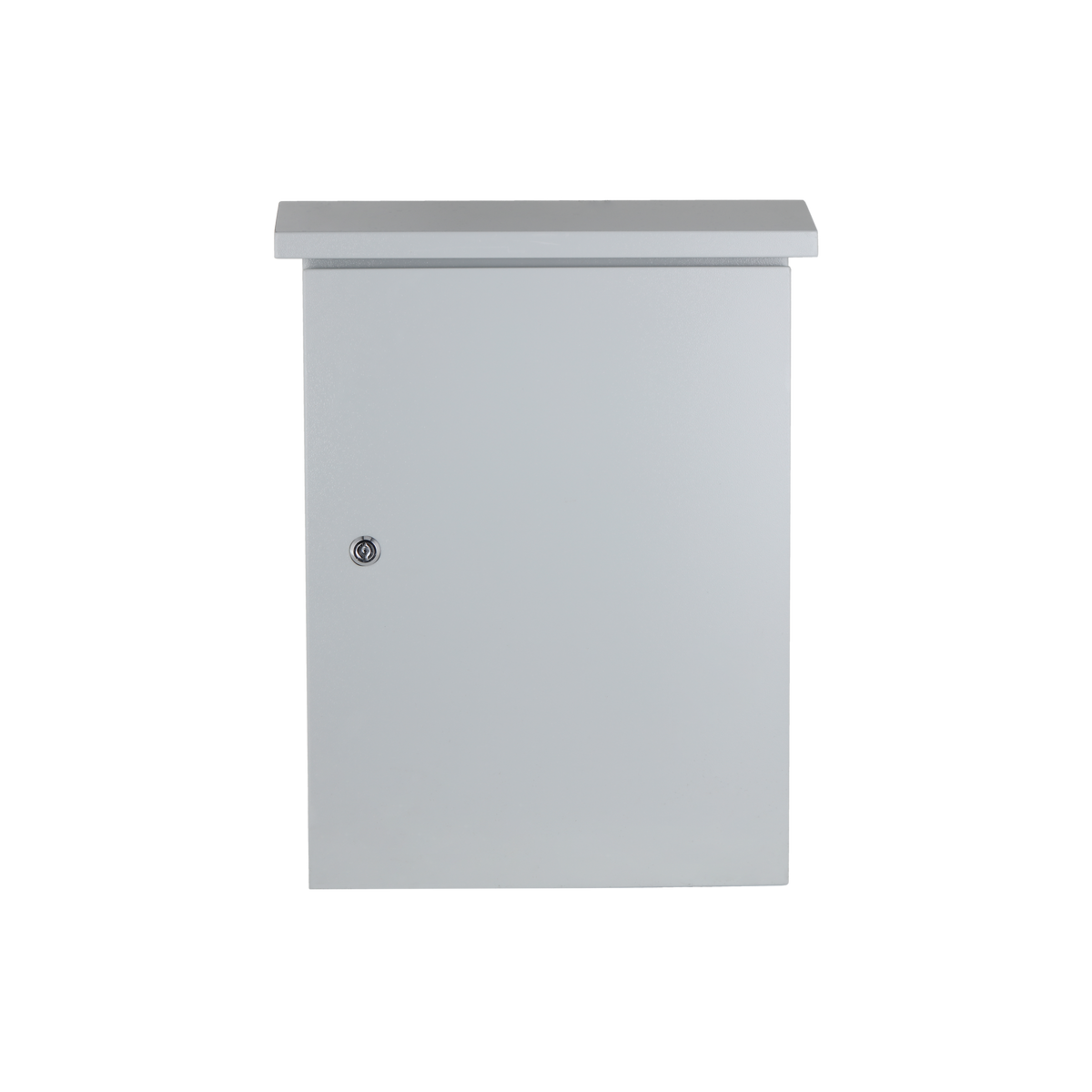

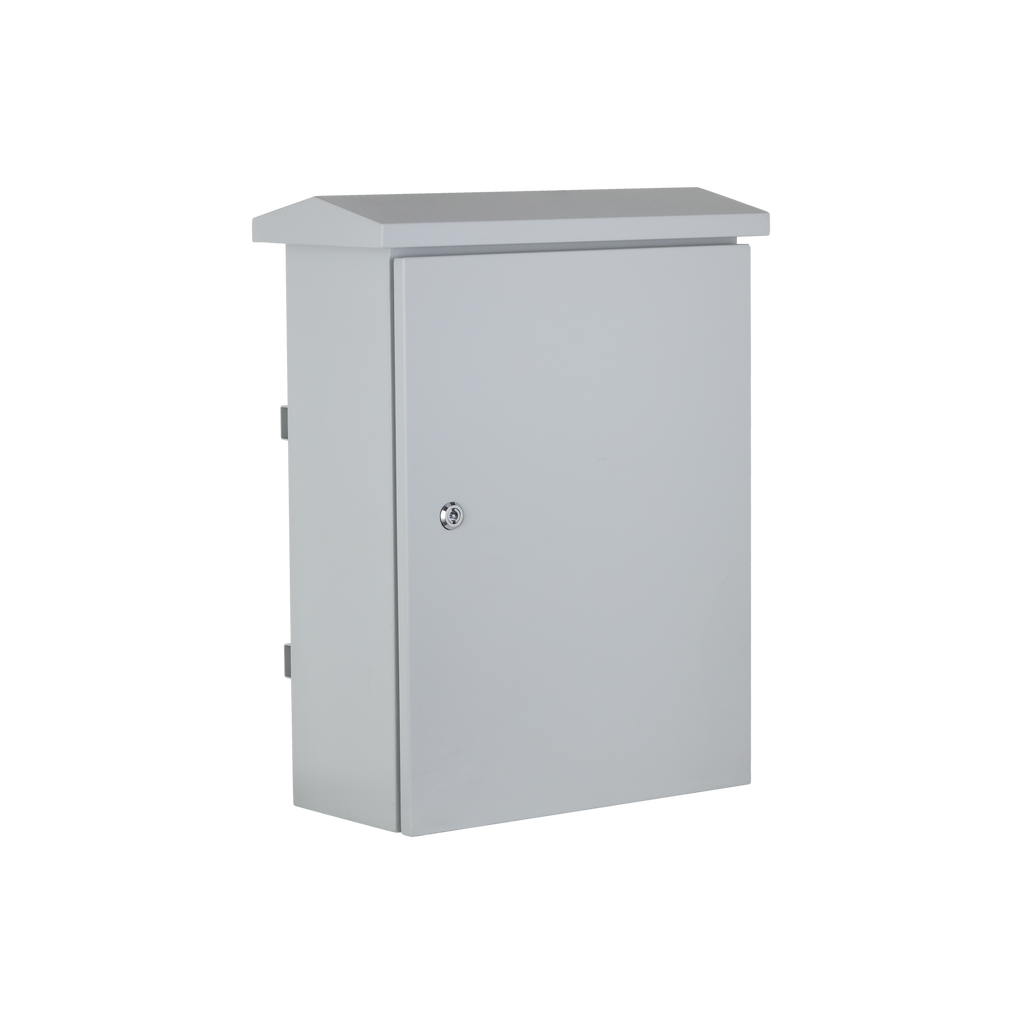

Boîte de distribution
- Chauffage de secours intégré
- Température de fonctionnement : -35°C à +50°C
- IP54
- POE + Alimentation Batterie
- 180–264 V
Fiche technique
| Input Voltage | 180–264 VAC |
|---|---|
| Input Current | 4 A |
| Output Voltage | PoE: 53 VDC ± 0.5 VDC Battery: 57 VDC ± 0.5 VDC |
| Output Current | PoE: max 5 A; Battery: max 1.5 A |
| Input Frequency | 47 Hz–63 Hz |
| Surge Protector | 385 Vac/10 kA × 2 pcs |
| Air Circuit Breaker (ACB) | 230 Vac/32 A × 1 pcs |
| DIN Rail | 35 mm |
| Material | SPCC, the thickness is 1.2 mm |
| Heating & Heat Dissipation | Heating power: 200 W |
| Fiber Optic Splice Tray | Yes |
| Température de fonctionnement | –35 °C to +50 °C (–31 °F to +122°F) |
| Humidité de fonctionnement | 0–95% (RH) |
| Température de stockage | –20 °C to +60 °C (–4 °F to +140 °F) |
| Humidité de stockage | 0–95% (RH) |
| Appearance Color | RAL7035 light grey |
| Dimensions | 500 mm × 240 mm × 640 mm (19.69" × 9.45“ × 25.20") |
| Packaging Dimensions | 540 mm × 280 mm × 680 mm (21.26" × 11.02" × 26.77") |
| Installation | Hose Clamp |
| Pole Diameter | The diameter of the pole that the hose clamp will be installed on: Φ130 mm–Φ240 mm. |
| Cable Hole | 3 |
| Poids net | 24 kg (52.91 lb) |
| Poids brut | 25 kg (55.12 lb) |
| Accessory | M10 × 140 stainless steel outer hexagon bolts × 4 M10 stainless steel outer hexagon nuts × 8 M10 stainless steel spring washers ×4 M10 stainless steel flat washers × 8 Hose clamps × 2 M25 cable gland × 3 User's manual × 1 Legal and regulatory information × 1 |
| Certifications | CE |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : PFC112FB · Marque : Dahua
