Description et caractéristiques

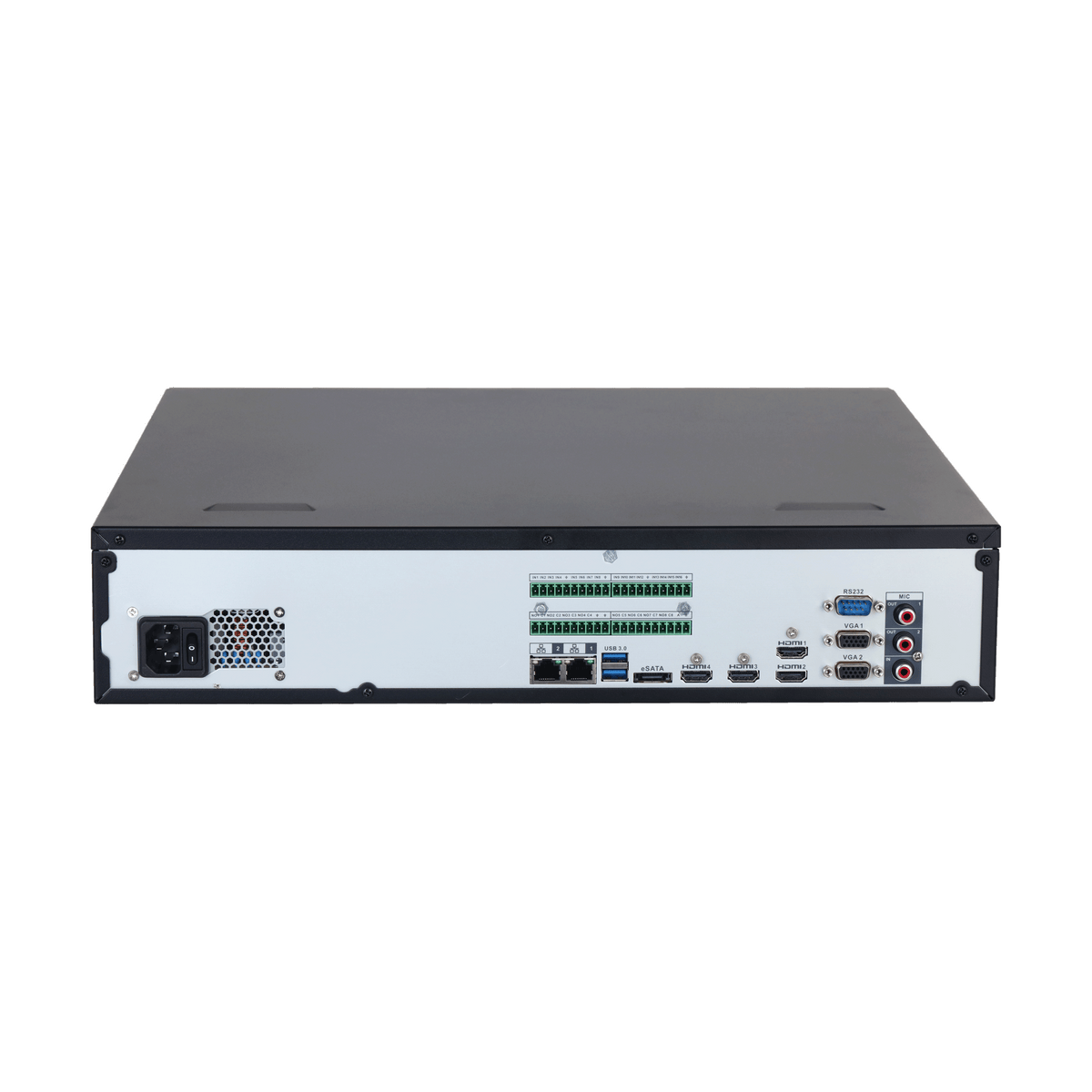

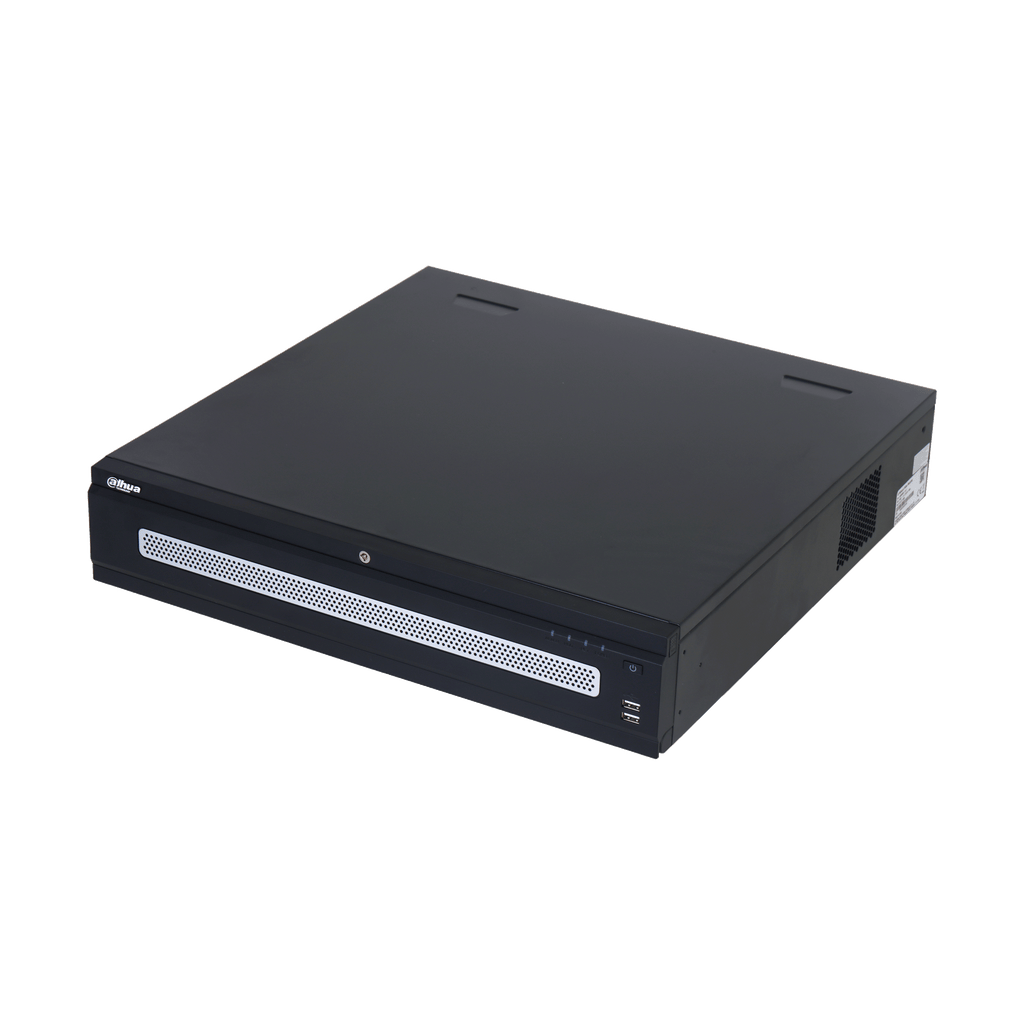

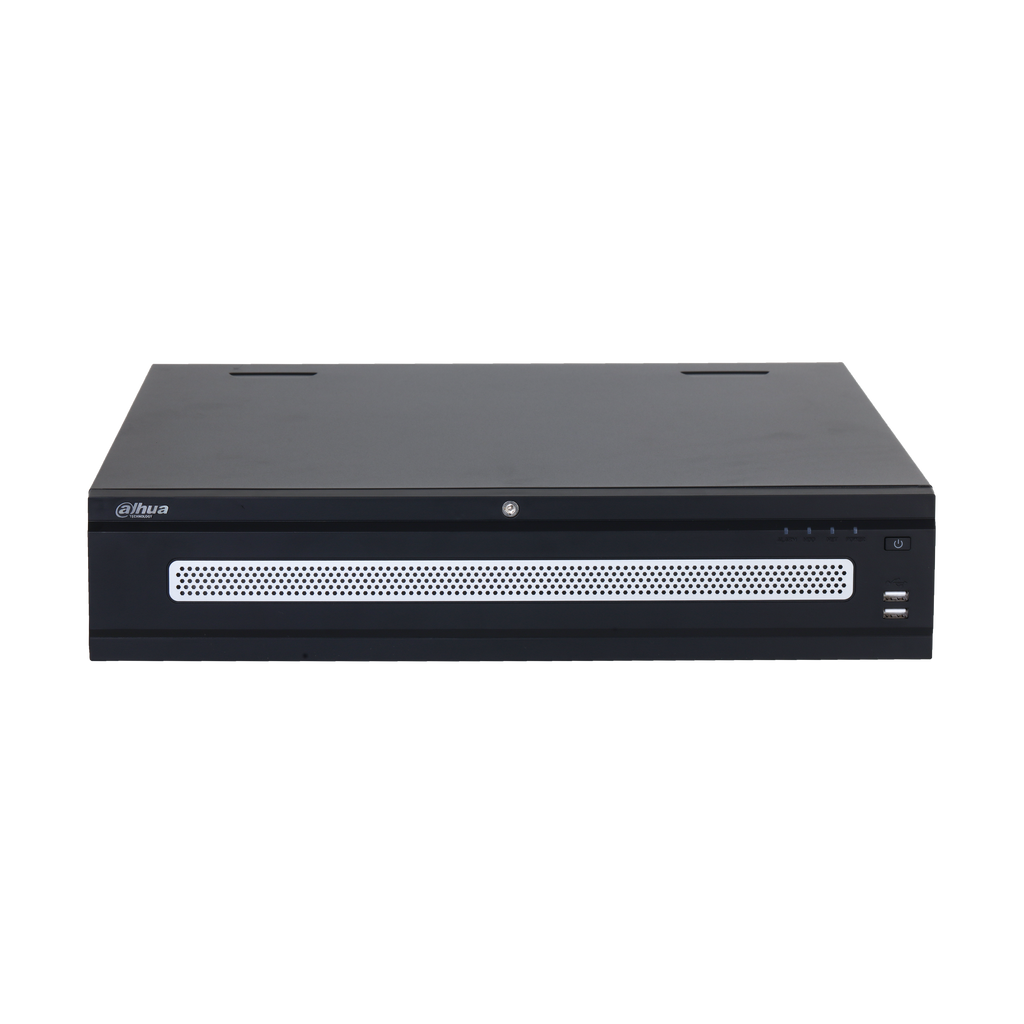

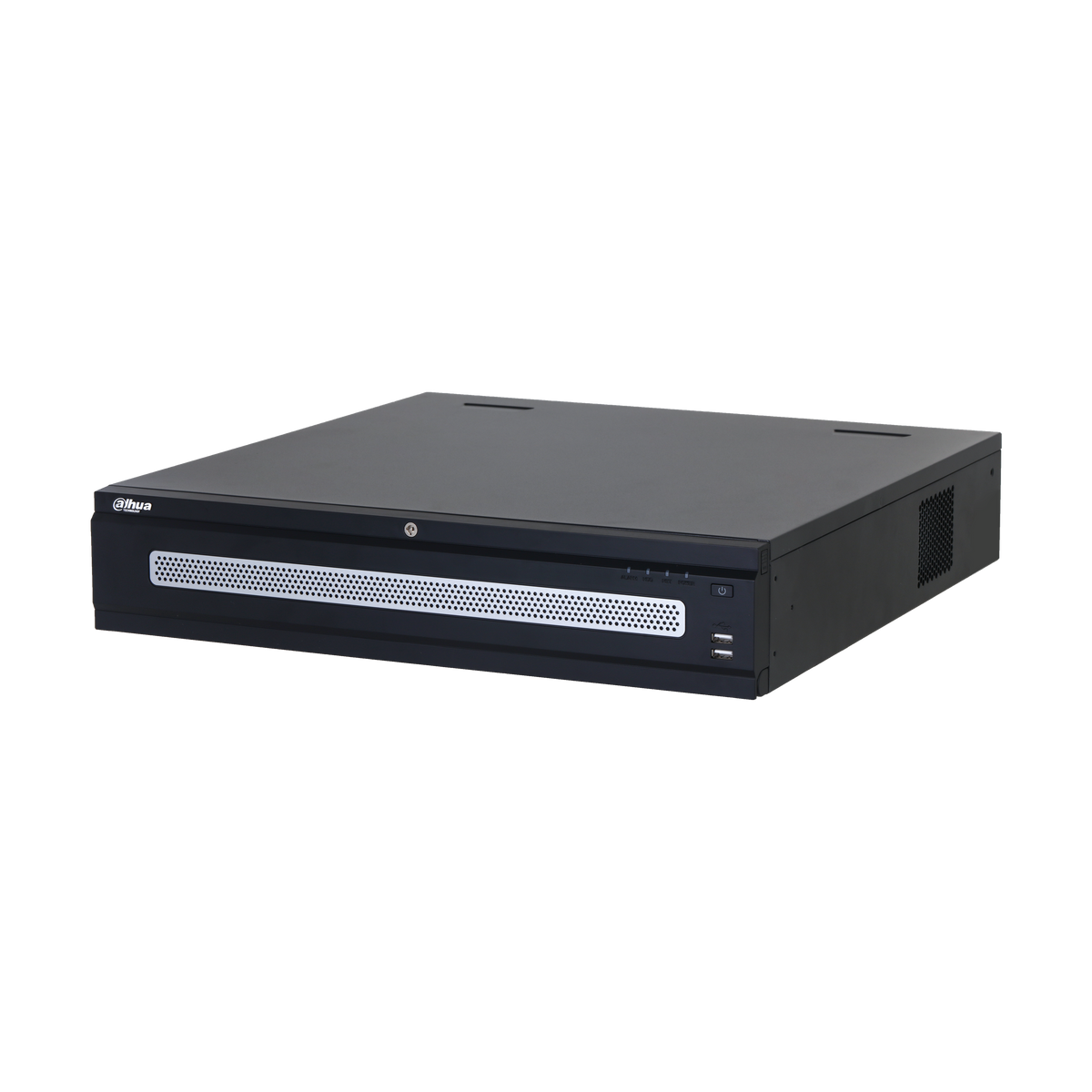

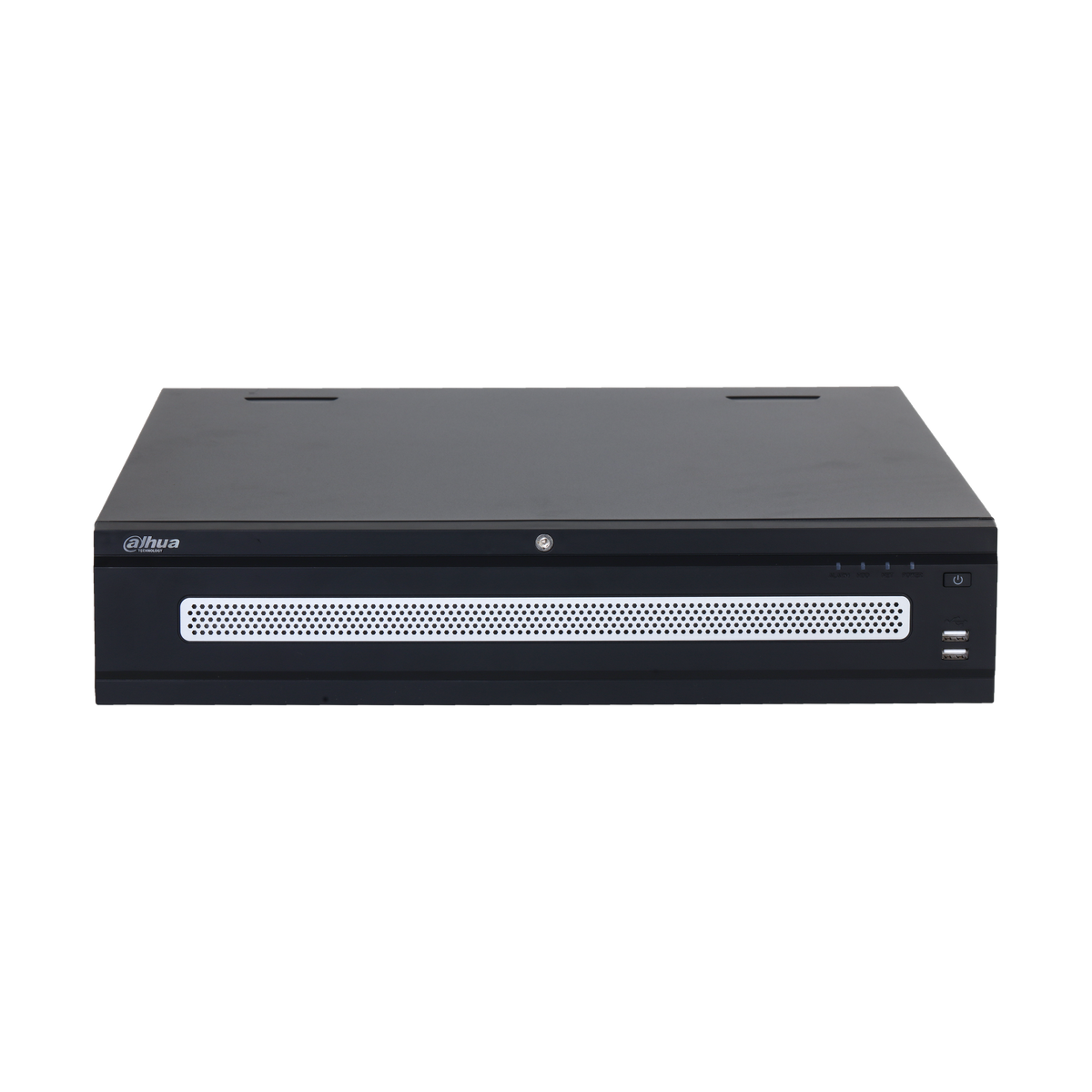

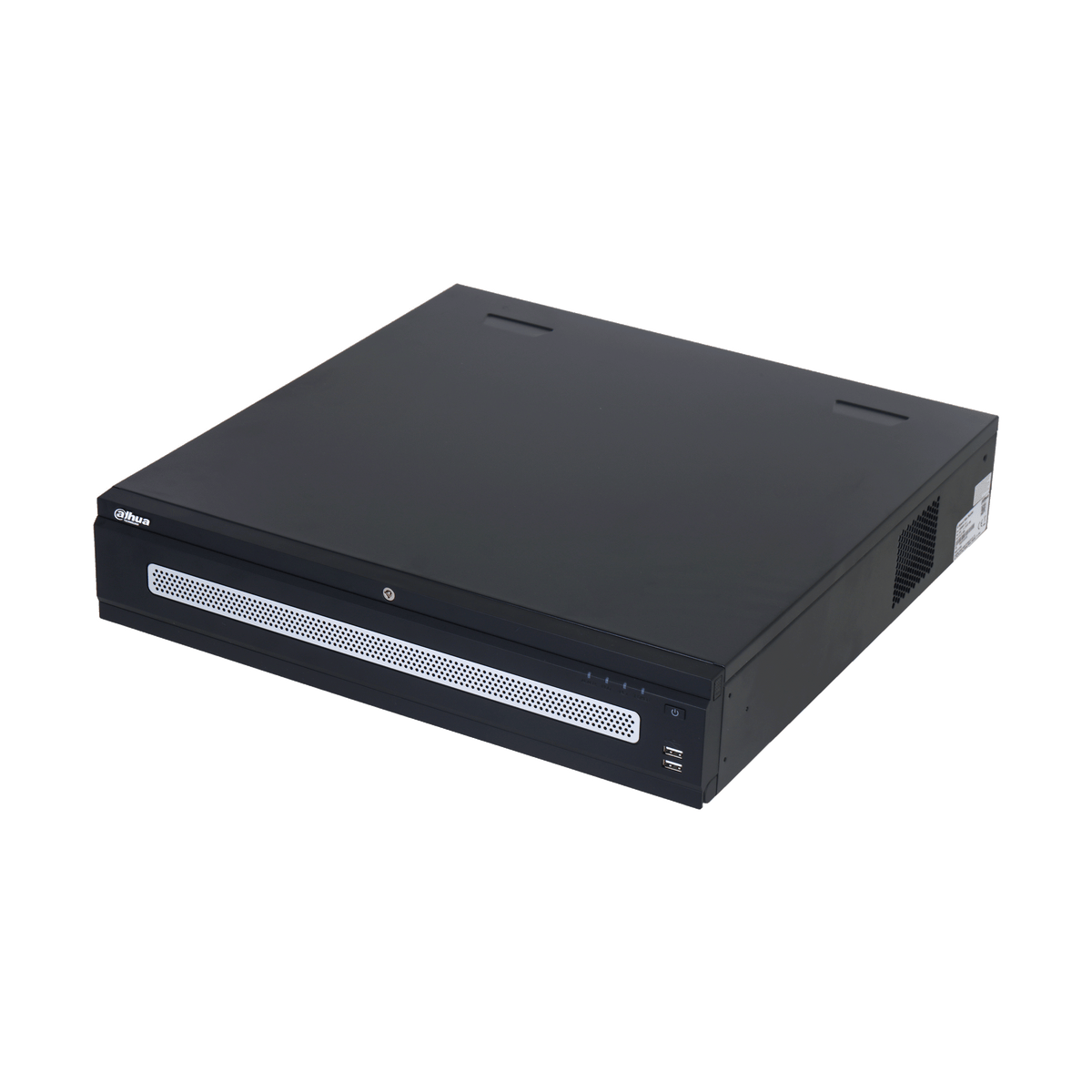

Enregistreur NVR IP
- 32 entrées
- Sorties vidéo 4 x HDMI / 2 x VGA
- 800 Mbps de bande passante
- 8 HDD
- WizMind
- SMD Plus
- IA supporté Détection de visage / Reconnaissance faciale / Comptage de personne / Lecture de plaque
Caractéristiques principales
- Technologie d'enregistreur : NVR - Enregistreurs IP
- Nombre de voies vidéo : 32 voies
- IA de l'enregistreur : Oui, WizMind, Détection de visage, Reconnaissance faciale, SMD Plus
- IA supporté par l'enregistreur : Comptage de personne, Détection de visage, Lecture de plaque, Reconnaissance faciale
- Résolution maximum : 32 MP
Fiche technique
| Processeur | Industrial-grade processor |
|---|---|
| Système d'exploitation | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI by Recorder | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; AcuPick; PPE Detection |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; heat map; PPE detection; AcuPick |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Database Capacity | Up to 40 face databases with 300,000 images, with a total capacity of 48 G. |
| SMD Plus by Recorder | 32-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | All channels (128 targets/s) |
| People Attributes | 9 human body attributes |
| Motor Vehicle Attributes | License plate, plate color, vehicle model, vehicle logo, plate color, ornament, calling, |
| Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet. |
| ANPR by Camera (Number of Channels) | All channels (64 targets/s) |
| License Plate Database Capacity | Blocklist and allowlist: 20,000 |
| Access Channel | 32 channels |
| Network Bandwidth | AI disabled: 1280 Mbps incoming, 1280 Mbps recording and 1024 Mbps outgoing AI enabled: 640 Mbps incoming, 640 Mbps recording and 512 Mbps outgoing |
| Résolutions | 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF |
| Multi-screen Display | Main screen: 1/4/8/9/16/25/36 Sub screen: 1/4/8/9/16/25/36 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Compression vidéo | Smart H.265+; H.265; Smart H.264+; H.264; MPEG4; MJPEG |
| Compression audio | G.711a; G.711u; PCM; G726 |
| Protocoles réseau | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI |
| Mobile Phone Access | iOS; Android |
| Interopérabilité | ONVIF (Profile S/profile T/Profile G); CGI; SDK |
| Navigateur | Chrome IE 9 or later Firefox |
| Network Mode | Multi-address mode, load balance, fault tolerance and other network port binding modes |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | Manual; alarm; motion detection; scheduled |
| Backup Method | USB device and network |
| Playback Mode | 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off |
| Disk Group | Yes |
| RAID | RAID 0/1/5/6/10 |
| Hot Swapping | Yes |
| General Alarm | Motion detection; video tampering; video loss; scene changing, PIR alarm, IPC external alarm |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan |
| Intelligent Alarm | Face detection; face recognition; perimeter protection (intrusion and tripwire); SMD Plus alarms; ANPR; people counting; stereo analysis; crowd distribution; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; buzzer; log, preset; email |
| Entrée audio | 1-channel RCA |
| Sortie audio | 2-channel RCA |
| Entrée d'alarme | 16 channels |
| Sortie d'alarme | 8 channels |
| Disk Interface | 8 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 1 × A/B |
| USB | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) |
| HDMI | 4 |
| VGA | 2 |
| Port réseau | 2 (10/100/1000/2500 Mbps Ethernet port, RJ-45) |
| Alimentation | 100–240 VAC, 50/60 Hz |
| Consommation | <18 W (without HDD) |
| Poids net | 6.40 kg (14.11 lb) (without HDD) |
| Poids brut | 10.35 kg (22.82 lb) (without HDD) |
| Dimensions | 444.0 mm × 456.6 mm × 95.0 mm (17.48" × 17.98" × 3.74") (W × D × H) |
| Packaging Dimensions | 570.0 mm × 570.0 mm × 226.0 mm (22.44" × 22.44" × 8.90")(W × D × H) |
| Température de fonctionnement | –10 °C to +55 °C (+14 °F to +131 °F) |
| Température de stockage | 0 °C to +40 °C (+32 °F to +104 °F) |
| Humidité de fonctionnement | 10%–93% (RH), non-condensing |
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2020, Class A; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55024:2010+A1:2015; EN 55035:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014+A11:2017 |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : NVR608H-32-XI · Marque : Dahua
