Description et caractéristiques

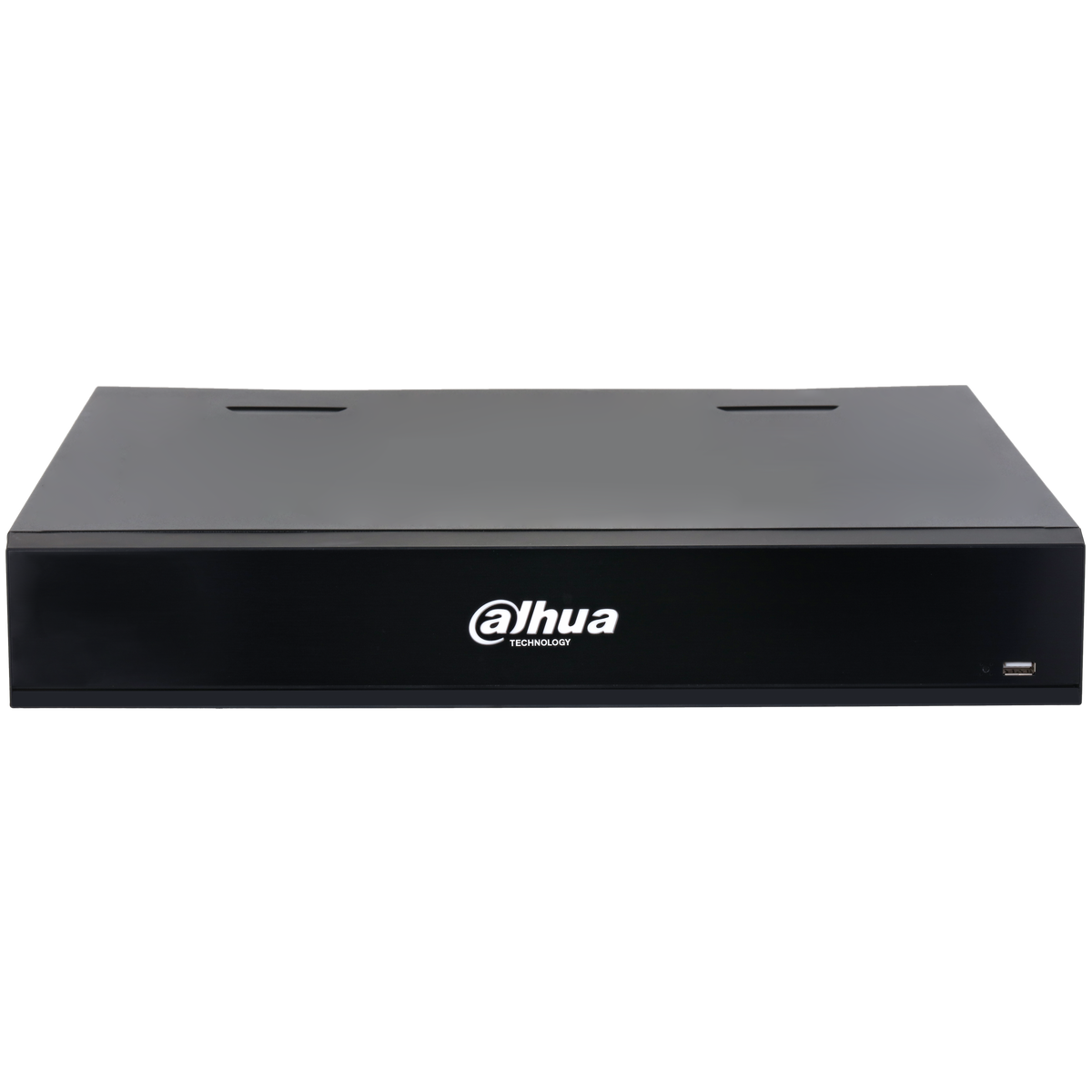

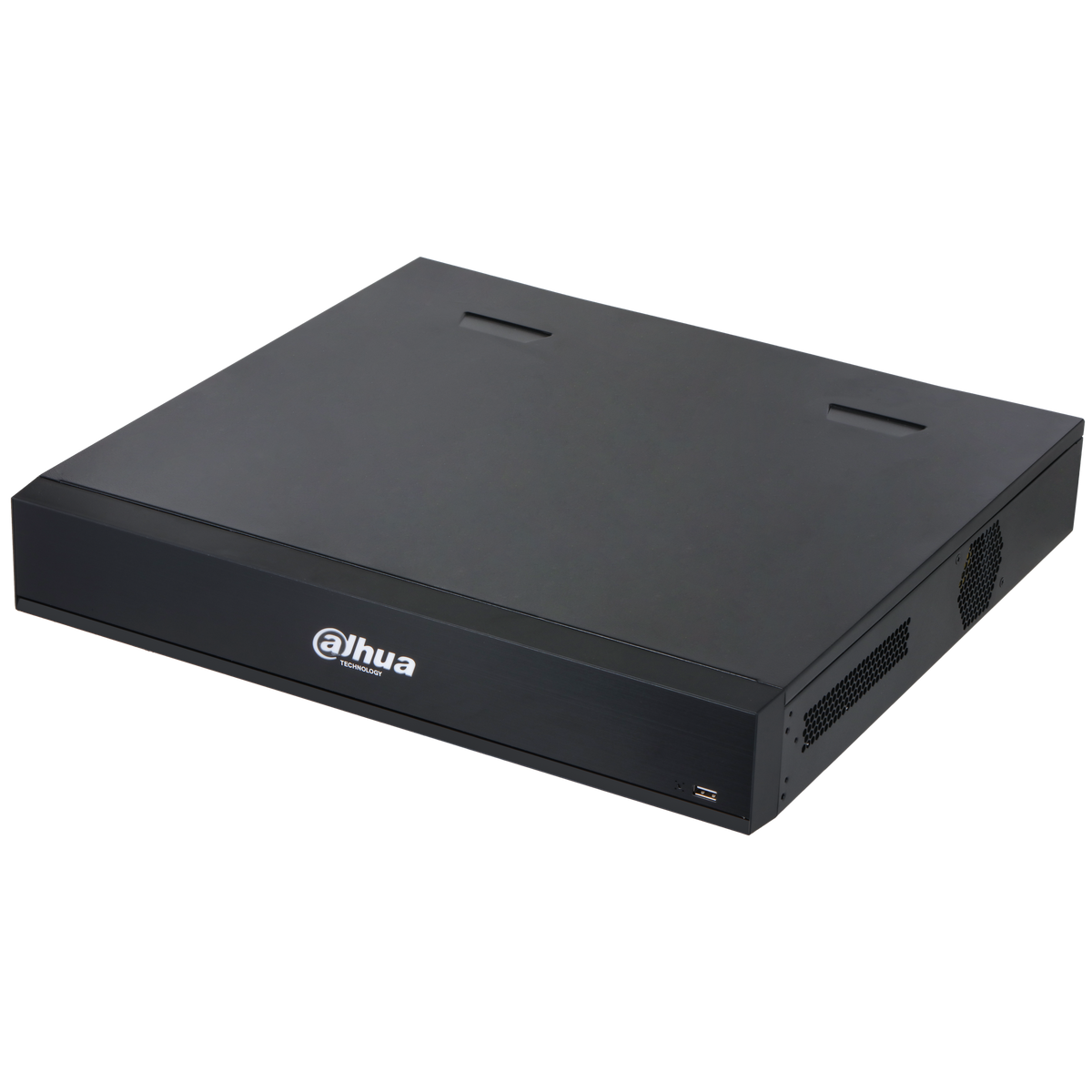

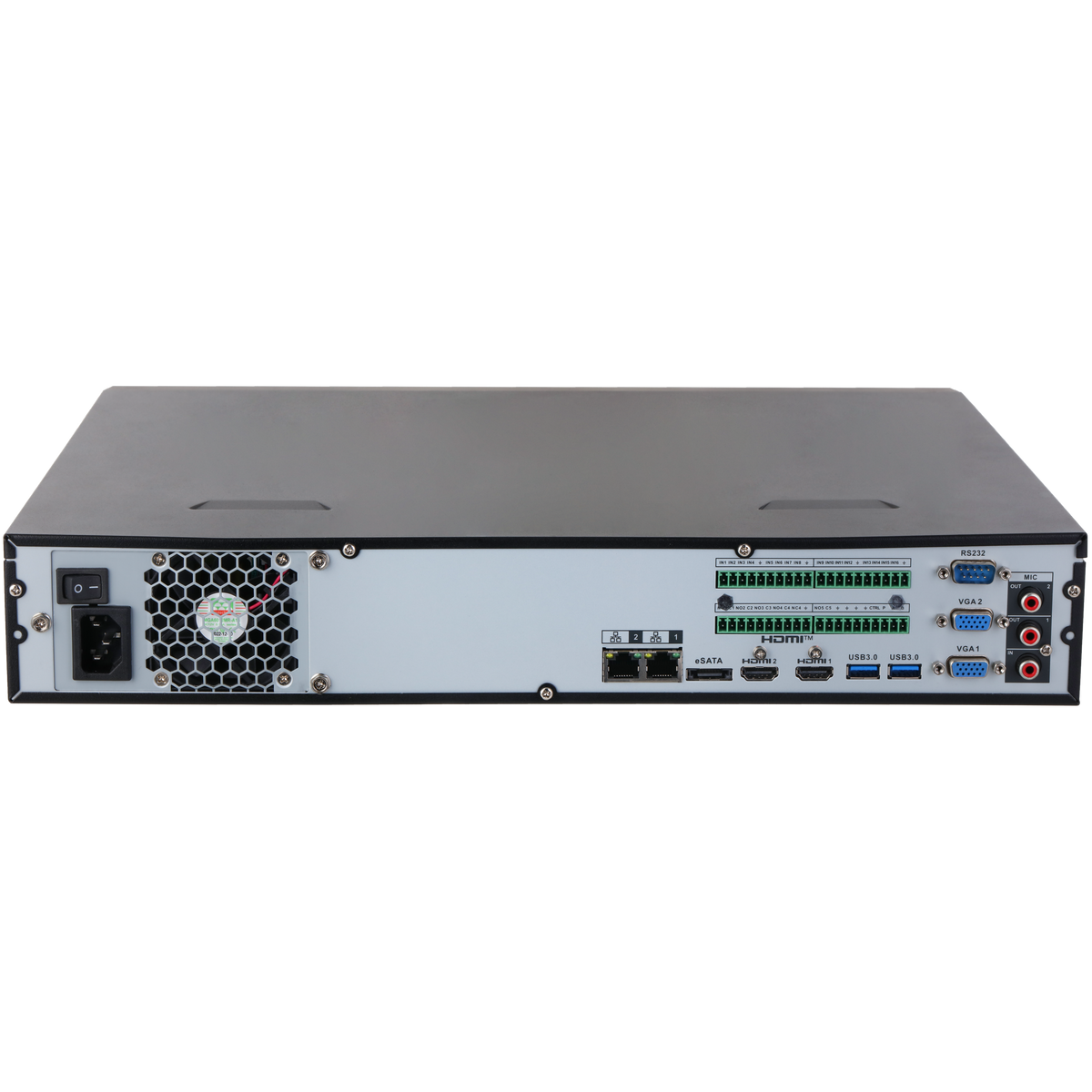

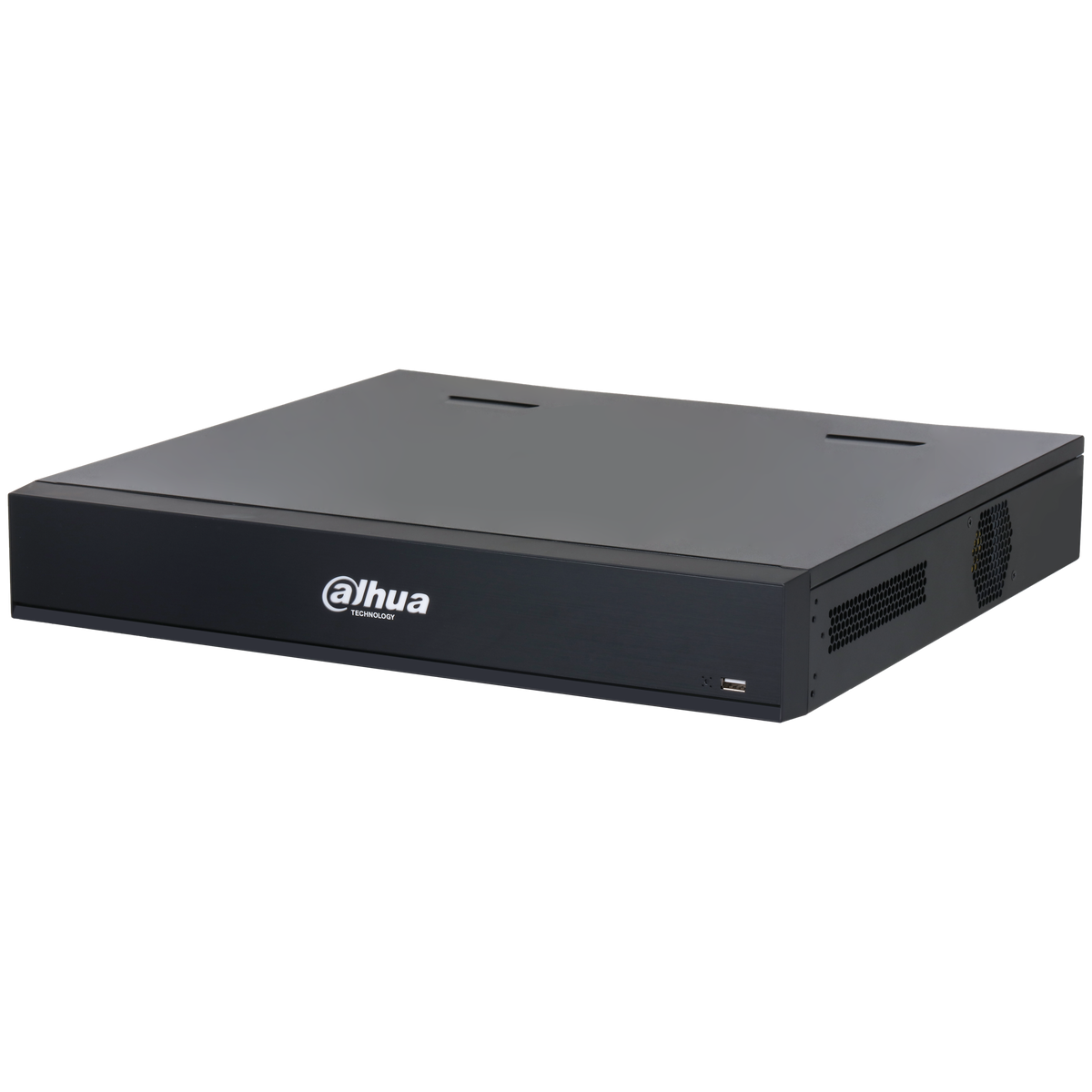

Enregistreur NVR IP
- 16 ports
- 4 ports SATA
- Sortie vidéo HDMI
Fiche technique
| Processeur | Industrial-grade processor |
|---|---|
| Système d'exploitation | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI by Recorder | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; heat map; PPE detection |
| Face Attributes | 6 attributes |
| Face Database Capacity | Up to 20 face databases with 2,000,00 images, with a total capacity of 44 G. |
| SMD Plus by Recorder | 16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | All channels (64 targets/s) |
| People Attributes | 9 human body attributes |
| Motor Vehicle Attributes | 9 attributes |
| Non-motor Vehicle Attributes | 4 attributes |
| ANPR by Camera (Number of Channels) | All channels (32 targets/s) |
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist |
| Access Channel | 16 channels |
| Network Bandwidth | AI disabled: 512 Mbps incoming, 512 Mbps recording and 512 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Résolutions | 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF |
| Video Output | 2 VGA, 2 HDMI VGA:1920 × 1080, 1280 × 1024, 1280 × 720 HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 |
| Multi-screen Display | Main screen: 1/4/8/9/16 Sub screen: 1/4/8/9/16 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Compression vidéo | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Compression audio | G.711a; G.711u; PCM; G726 |
| Protocoles réseau | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); iSCSI |
| Mobile Phone Access | iOS; Android |
| Interopérabilité | ONVIF 23.06(Profile T; Profile S; Profile G); CGI; SDK |
| Navigateur | Chrome; Firefox; IE |
| Network Mode | Multi-address; load balance; fault tolerance |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General; motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Disk Group | Yes |
| General Alarm | Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, RAID exception, low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; camera offline; audio detection |
| Intelligent Alarm | Face detection; face recognition; video metadata (human, motor vehicle, and non-motor vehicle); perimeter protection; license plate comparison |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; audio; buzzer; log, preset; email |
| Entrée audio | 1-channel RCA |
| Sortie audio | 2-channel RCA |
| Entrée d'alarme | 16 channels |
| Sortie d'alarme | 6 channels (1-channel 12 V 1 A output） |
| Disk Interface | 4 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 1 (half-duplex serial communication) |
| USB | 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 2 |
| Port réseau | 2 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Alimentation | 100–240 VAC, 50-60 Hz |
| Consommation | <13 W (without HDD) |
| Poids net | 4.52 kg (9.96 lb) |
| Poids brut | 6.59 kg (14.53 lb) |
| Dimensions | 440.0 mm × 412.7 mm × 76.0 mm (17.32" × 16.25" × 2.99") (W × D × H) |
| Packaging Dimensions | 529.0 mm × 499.0 mm × 211.0 mm (20.83" × 19.65" × 8.31") (W × D × H) |
| Température de fonctionnement | –10 °C to +55 °C (+14 °F to +131 °F) |
| Température de stockage | –20 °C to +60 °C (–4 °F to +140 °F) |
| Humidité de fonctionnement | 10%–93% (RH), non-condensing |
| Certifications | Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : NVR5416-XI · Marque : Dahua
