Description et caractéristiques

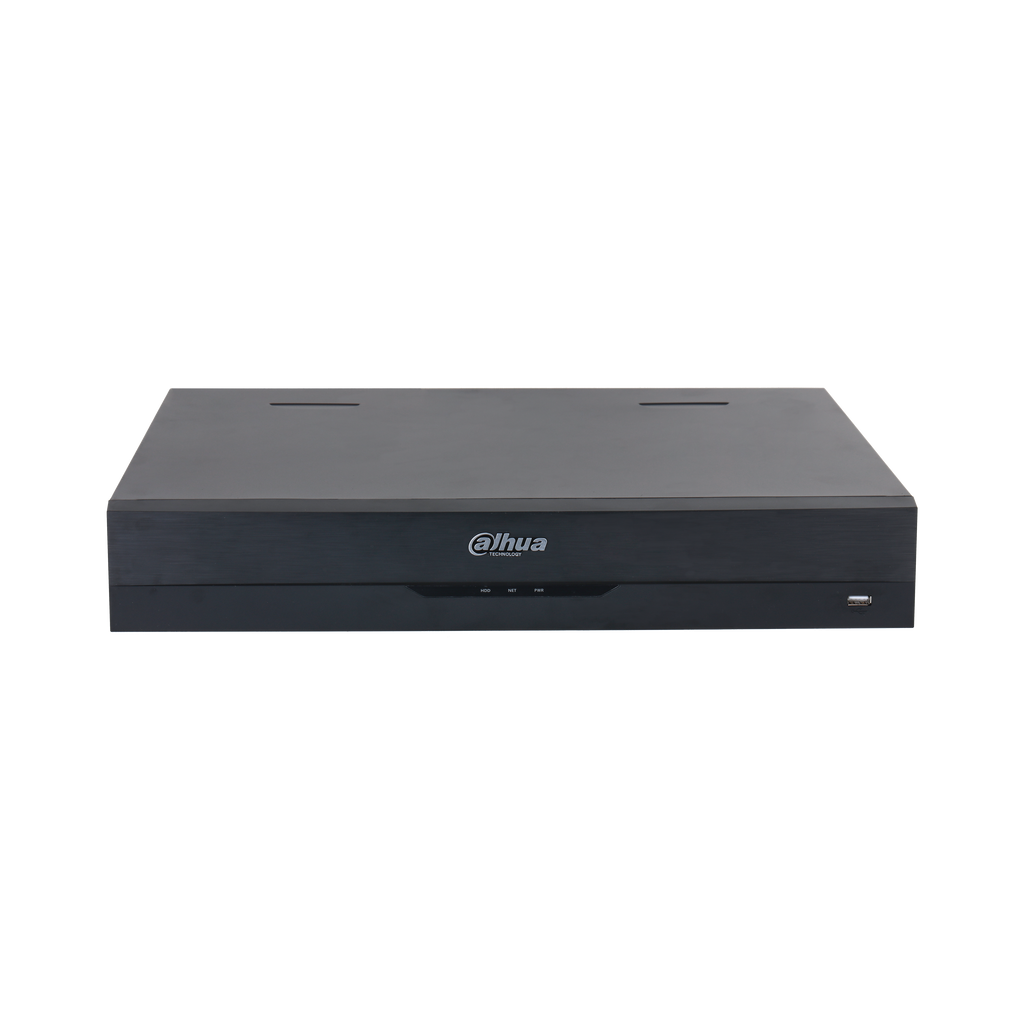

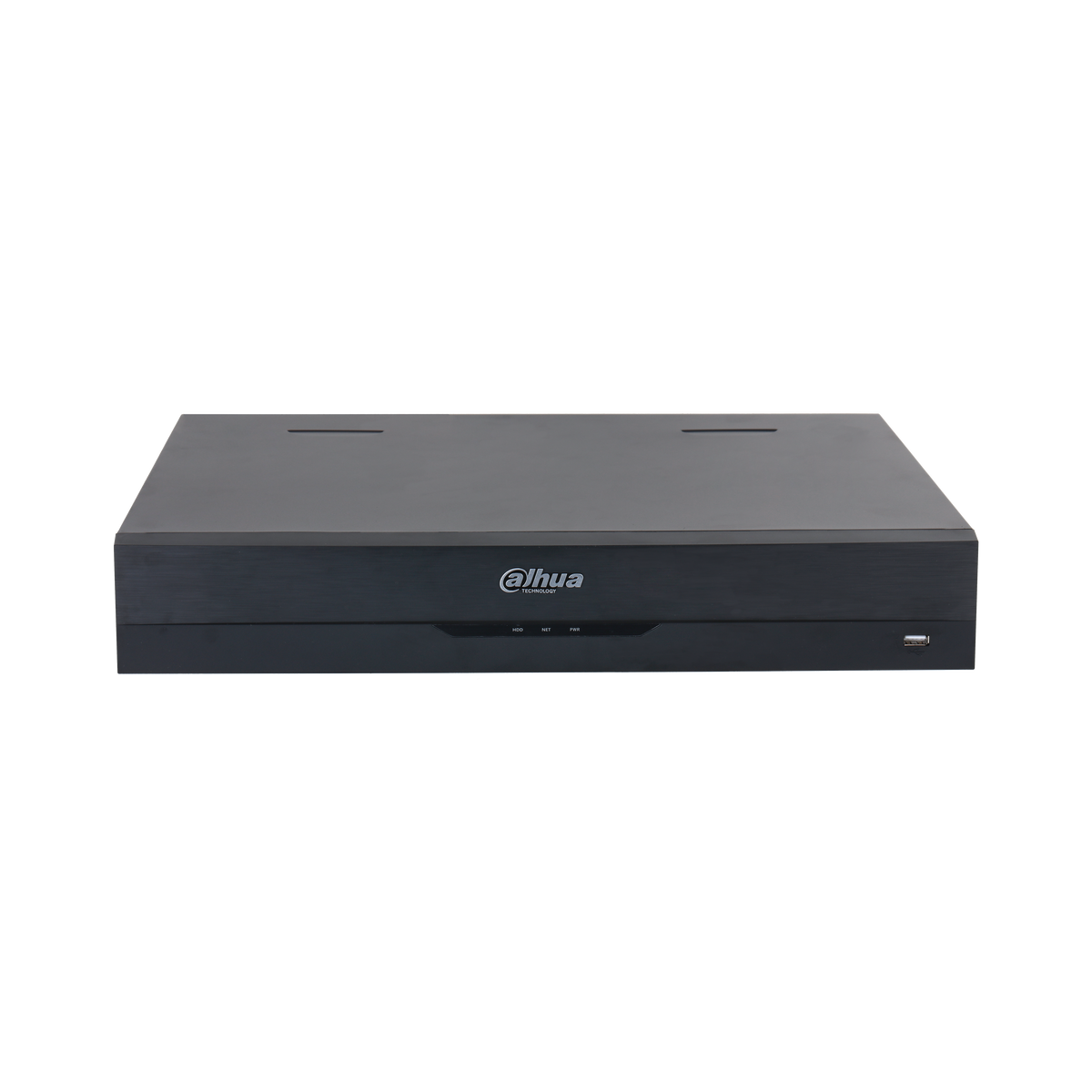

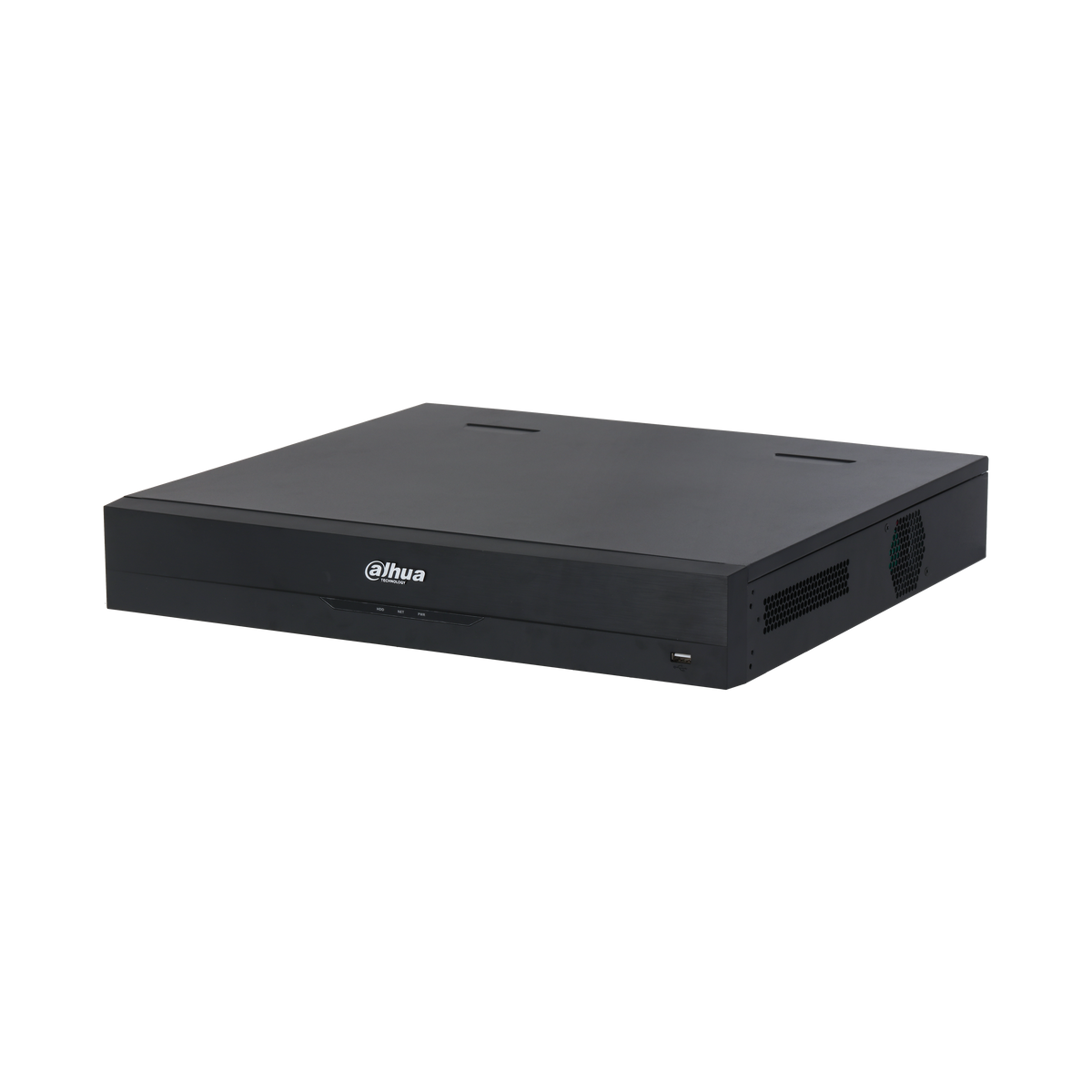

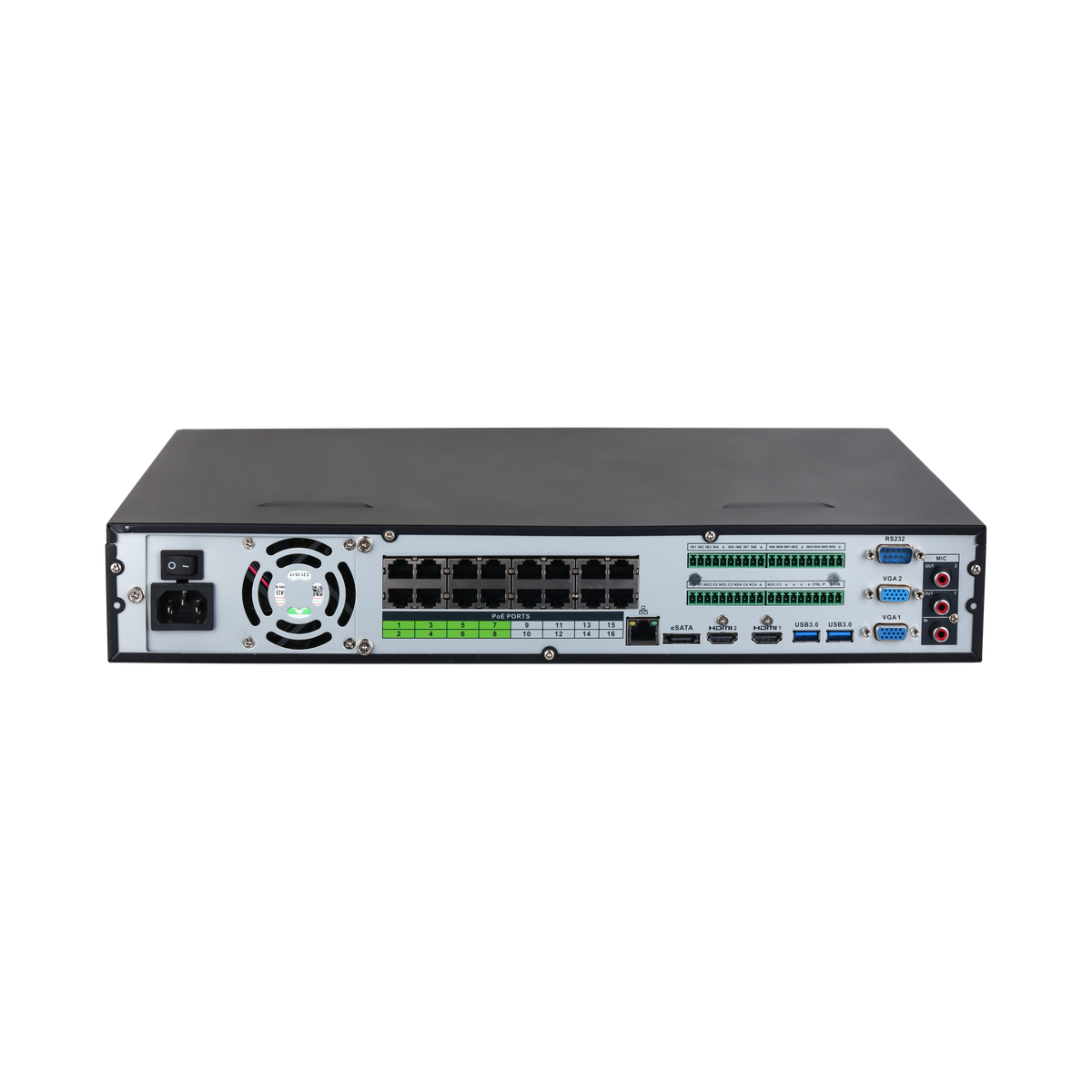

Enregistreur NVR IP
- 16 voies vidéo
- 16 ports POE
- 384 Mbps
- 32 MP
- 4 ports SATA
- Sorties VGA/HDMI
- IA WizSense
- Reconnaissance faciale
- SDM Plus
- Protection périmétrique
- 16 entrées alarme
- 6 sorties relais
Caractéristiques principales
- Technologie d'enregistreur : NVR - Enregistreurs IP
- Nombre de voies vidéo : 16 voies
- IA de l'enregistreur : WizSense, Protection périmétrique, Reconnaissance faciale, SMD Plus
- Résolution maximum : 32 MP
- Compatibilité de l'enregistreur : Compatible IP
Fiche technique
| Processeur | Industrial-grade processor |
|---|---|
| Système d'exploitation | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI by Recorder | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Database Capacity | Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | All channels (32 targets/s) |
| Human Attributes | Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella |
| Motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location. |
| Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet. |
| ANPR by Camera (Number of Channels) | All channels (8 targets/s) |
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist |
| Access Channel | 16 channels |
| Network Bandwidth | AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Résolutions | 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF |
| Video Output | 2 VGA, 2 HDMI VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 |
| Multi-screen Display | Main screen: 1/4/8/9/16 Sub screen: 1/4/8/9/16 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Compression vidéo | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Compression audio | G.711a; G.711u; PCM; G726 |
| Protocoles réseau | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); iSCSI |
| Mobile Phone Access | iOS; Android |
| Interopérabilité | ONVIF 25.06 (Profile T; Profile S; Profile G; Profile M); CGI; SDK |
| Navigateur | Chrome; IE; Safari; Edge; Firefox |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, target video, video clip, tag playback, smart playback (face and motion detection) |
| Disk Group | YES |
| General Alarm | Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm |
| Anomaly Alarm | Error (no disk; disk error; low space; low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; camera offline; audio detection |
| Intelligent Alarm | Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; audio; buzzer; log, preset; email |
| Entrée audio | 1-channel RCA |
| Sortie audio | 2-channel RCA |
| Entrée d'alarme | 16 channels |
| Sortie d'alarme | 6 channels (1-channel 12 V 1 A output） |
| Disk Interface | 4 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 1 (half-duplex serial communication) |
| USB | 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 2 |
| Port réseau | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| PoE Port | 16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE |
| Alimentation | 100–240 VAC, 50-60 Hz |
| Consommation | Total output of NVR is ≤ 13 W (without HDD) Total output power of PoE is 150 W, the maximum output power of a single port is 25.5 W |
| Poids net | 4.82 kg (10.63 lb) |
| Poids brut | 7.09 kg (15.63 lb) |
| Dimensions | 440.0 mm × 415.1 mm × 70.0 mm (17.32" × 16.34" × 2.76") (W × D × H) |
| Packaging Dimensions | 530.0 mm × 500.0 mm × 210.0 mm (20.87" × 19.69" × 8.27")(W × D × H) |
| Température de fonctionnement | –10 °C to +55 °C (+14 °F to +131 °F) |
| Température de stockage | –20 °C to +60 °C (–4 °F to +140 °F) |
| Humidité de fonctionnement | 10%–93% (RH), non-condensing |
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : NVR5416-16P-EI · Marque : Dahua
