Description et caractéristiques

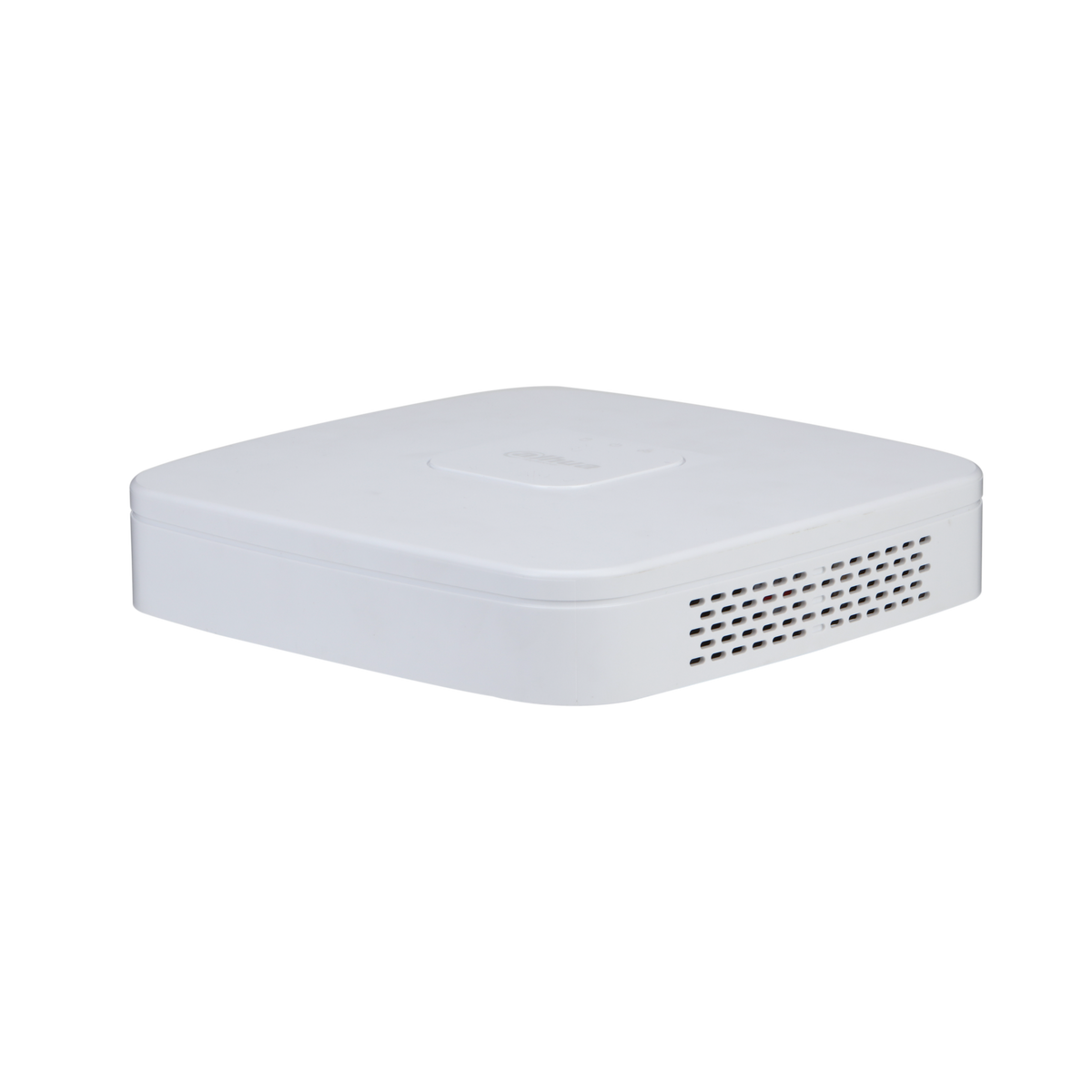

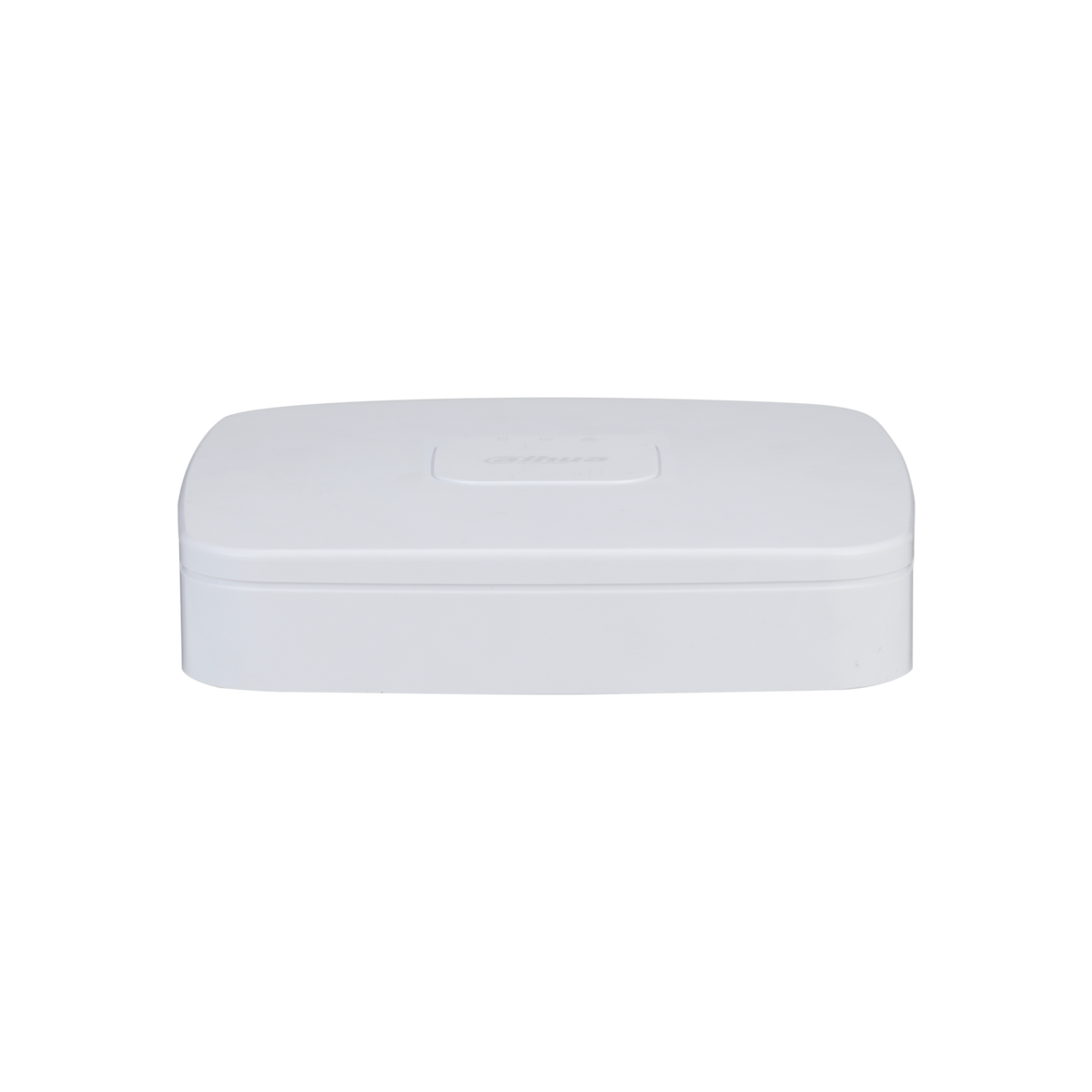

NVR 16 voies 8MP
- Protection périmétrique
- Détection de visage
- Reconnaissance faciale
- Densité de foule
- Comptage de personne
- 1 port SATA
- Sortie HDMI/VGA
- 1 canal d'alarme
Caractéristiques principales
- Technologie d'enregistreur : NVR - Enregistreurs IP
- Nombre de voies vidéo : 16 voies
- IA de l'enregistreur : Comptage de personne, Détection de visage, Densité de la foule, Protection périmétrique, Reconnaissance faciale
- Résolution maximum : 8 MP
- Débit entrant : 160 Mbps
Fiche technique
| Processeur | Industrial-grade processor |
|---|---|
| Système d'exploitation | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI by Recorder | SMD |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD; people counting; stereo analysis; heat map |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | All channels (12 targets/s) |
| Access Channel | 16 channels |
| Network Bandwidth | AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing |
| Résolutions | 12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF |
| Capacité de décodage | AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps |
| Video Output | 1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | Main Screen: 1/4/8/9/16 Sub Screen: 1/4/8/9/16 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Compression vidéo | Smart H.265+; H.265; Smart H.264+; H.264 |
| Compression audio | G.711a; G.711u; PCM; G726 |
| Protocoles réseau | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interopérabilité | ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Navigateur | Chrome; IE; Safari; Edge; Firefox |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback |
| General Alarm | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
| Anomaly Alarm | Error (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline; audio detection |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email |

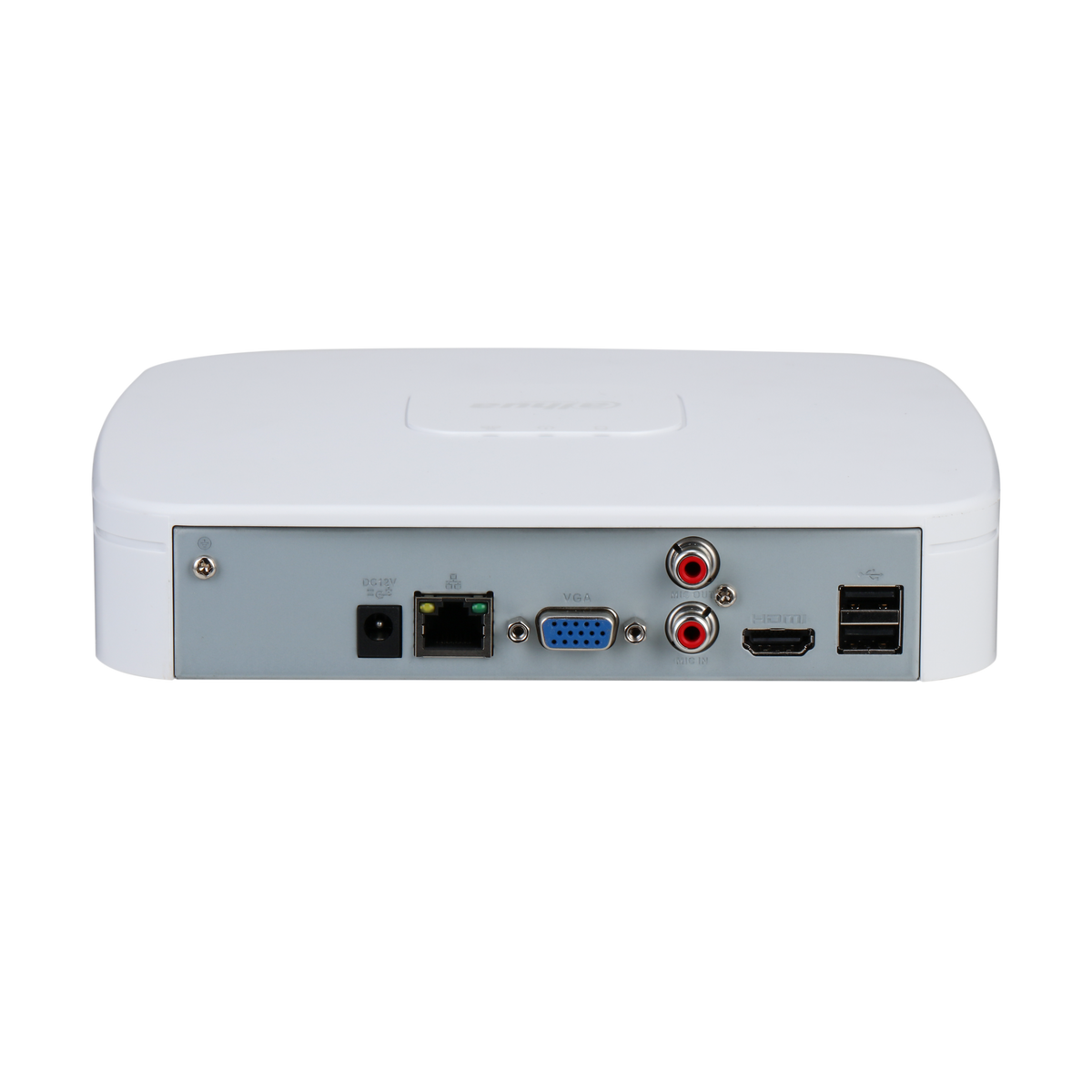

| Entrée audio | 1-channel RCA |
| Sortie audio | 1-channel RCA |
| Entrée d'alarme | NA (2 channels is optional) |
| Sortie d'alarme | NA (1-channel 12 V 1 A output is optional) |
| Disk Interface | 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| USB | 2 (2 rear USB 2.0 ports) |
| HDMI | 1 |
| VGA | 1 |
| Port réseau | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Alimentation | 12 VDC, 2 A |
| Consommation | Total output of NVR is <10 W(without HDD) |
| Poids net | 0.45 kg (0.99 lb) |
| Poids brut | 1.07 kg (2.36 lb) |
| Dimensions | 204.6 mm × 206.4 mm × 45.6 mm (8.06" × 8.12" × 1.80") (W × D × H) |
| Packaging Dimensions | 364 mm × 96 mm × 261 mm (14.33" × 3.78" × 10.26") (W × D × H) |
| Température de fonctionnement | –10 °C to +55 °C (+14 °F to +131 °F) |
| Température de stockage | –20 °C to +60 °C (–4 °F to +140 °F) |
| Humidité de fonctionnement | 10%–93% (RH), non-condensing |
| Certifications | CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : NVR4116-4KS3 · Marque : Dahua
