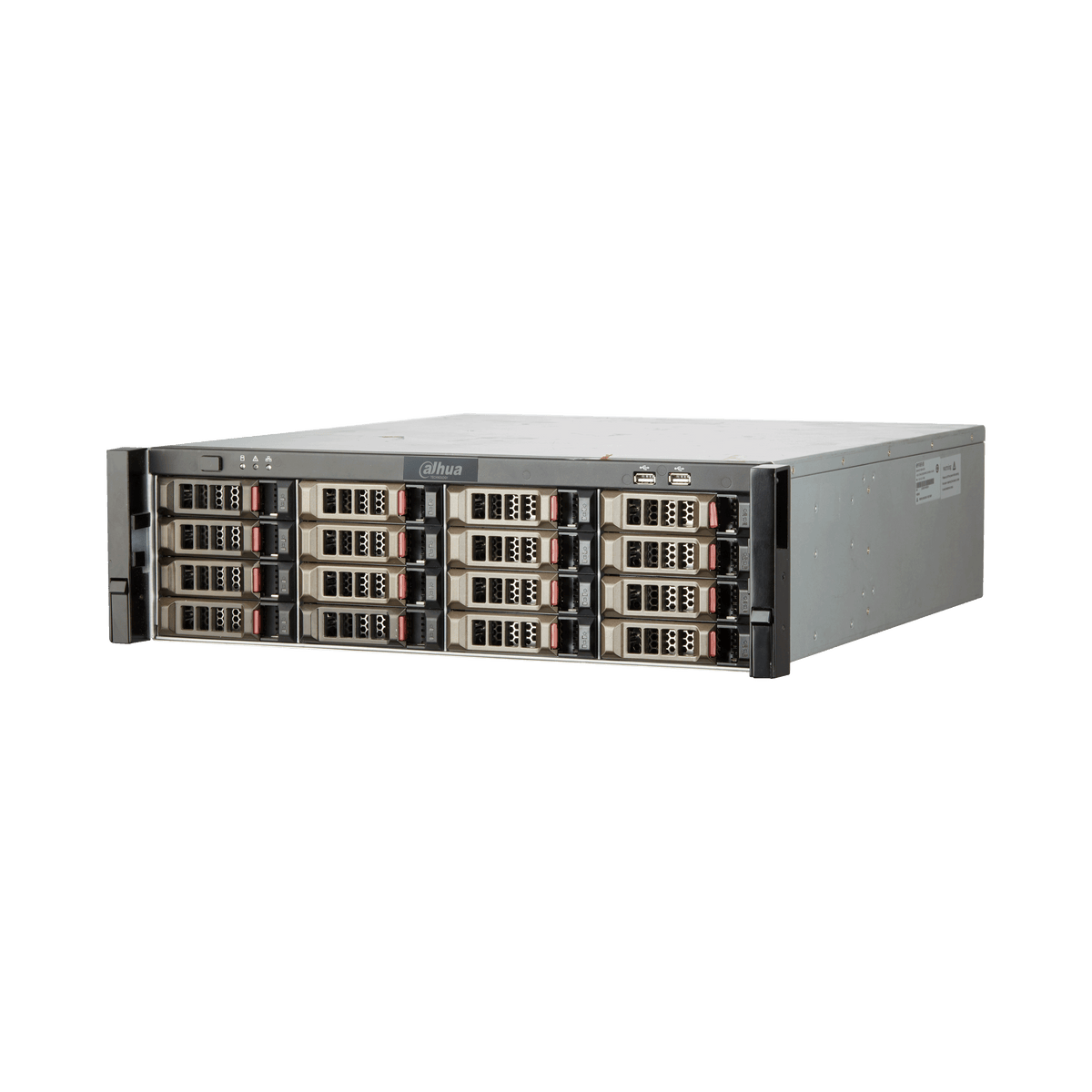

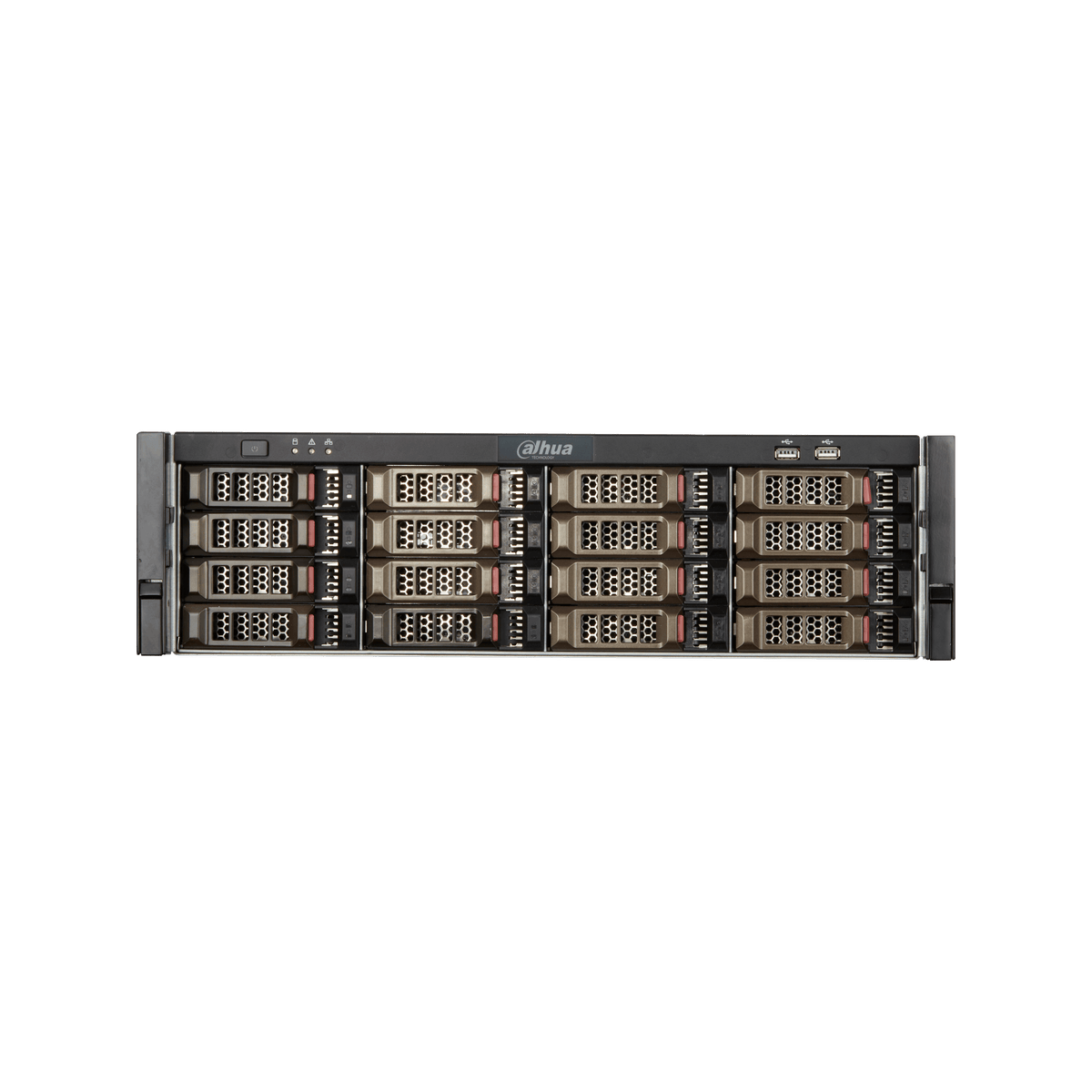

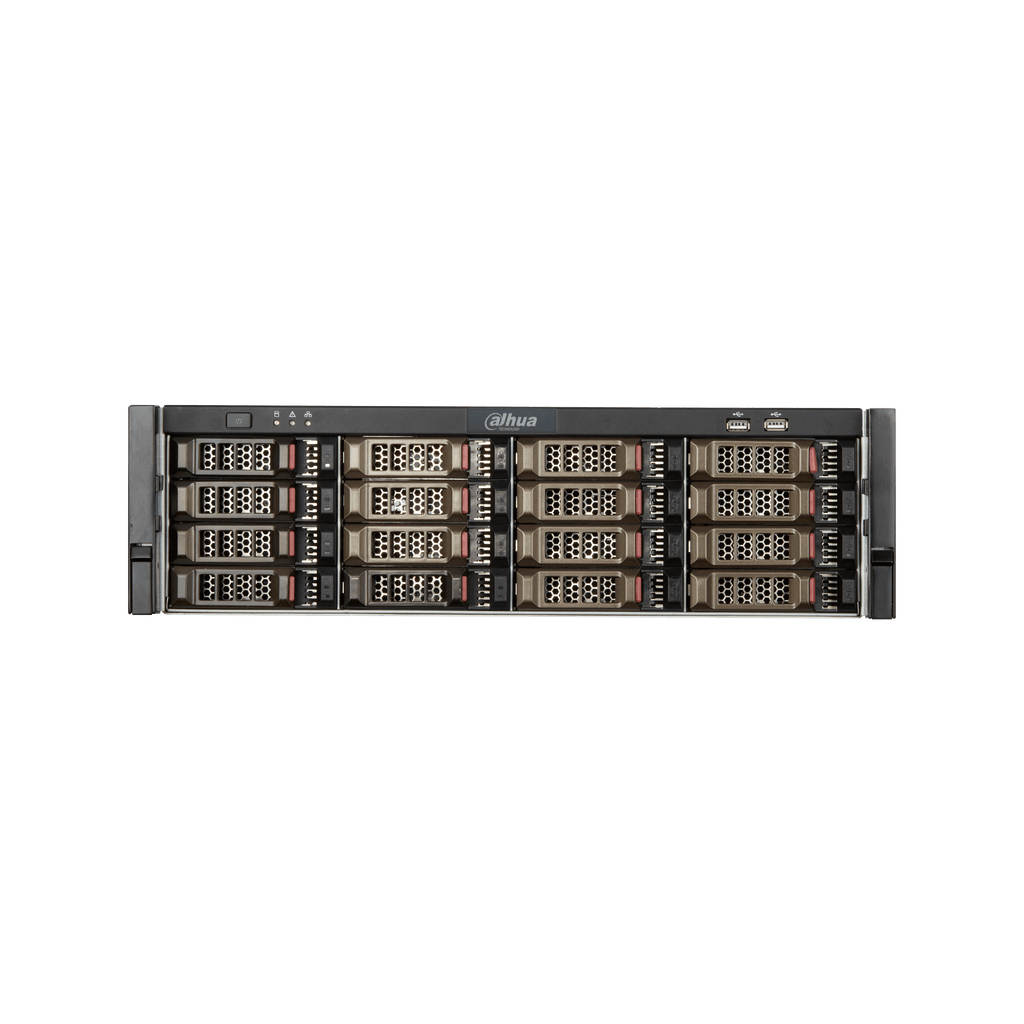

Description et caractéristiques
NVR
- Enregistreur IP
- 256 voies
- Résolution 24 Mpxls max
- Débit entrant 512 Mbps
- 16 ports SATA
- Sortie vidéo HDMI / VGA
- 16 entrée alarme
- 8 sortie relais
- IA supporté Détection de visage / Reconnaissance faciale / Comptage de personne / Lecture de plaque / Vagabondage / Apparition / Disparition d'objet
Caractéristiques principales
- Technologie d'enregistreur : NVR - Enregistreurs IP
- Nombre de voies vidéo : 256 voies
- IA supporté par l'enregistreur : Apparition / Disparition d'objet, Comptage de personne, Détection de visage, Lecture de plaque, Reconnaissance faciale, Vagabondage
- Résolution maximum : 24 MP
- Compatibilité de l'enregistreur : Compatible IP
Fiche technique
| Processeur | Industry embedded micro-controller |
|---|---|
| Système d'exploitation | Embedded Linux OS |
| Operation Interface | WEB (PCAPP), local GUI |
| AI by Camera | Face detection, face recognition, video metadata, IVS (tripwire, intrusion, abandoned object, missing object, fast moving, parking detection, crowd gathering, loitering,parking, and fence-crossing), people counting, smoking detection, call detection |
| Perimeter Function (AI by Camera) | 256-channel |
| Human Face Properties | Supports 6 properties: Gender, age range (6-level), glasses, expression (8 types), mouth mask, and beard |
| Plate Database Capacity | 50 plate databases with 300,000 plate numbers in total Supports allowlist and blocklist |
| Plate Detection Performance | 64-channel |
| Human Body Properties | Gender, age, sleeves length, top color, bottom type, bottom color, bag, rain coat, umbrella, hat, hairstyle, direction, hold a baby, mouth mask |
| Vehicle Properties | Vehicle type, vehicle color, plate color, logo, calling, seatbelt, ornament, region |
| Non-motor Vehicle Properties | Non-motor vehicle type, non-motor vehicle color, number of passengers, umbrella, rain coat, bag , sleeve length, top color, hat, hair style, mouth mask |
| Remote Connection | 256 |
| Network Bandwidth | RAID Incoming bandwidth: 768Mbps Recording bandwidth: 768Mbps Outgoing bandwidth: 768Mbps Single HDD Incoming bandwidth: 768Mbps Recording bandwidth: 512Mbps Outgoing bandwidth: 768Mbps |
| Résolutions | 24MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF/QCIF |
| Capacité de décodage | 2-channel 24MP/3-channel 16MP/6-channel12MP (20fps)/7-channel12MP (15fps)/6-channel8MP (30fps)/12-channel8MP (15fps)/7-channel6MP(30fps)/9-channel5MP(30fps)/11-channel5MP (25fps)/12-channel4MP (30fps)/18-channel4MP (20fps)/19-channel3MP (25fps)/12-channel1080P (60fps)/24-channel1080P (30fps)/36-channel720P (30fps) |
| Video Output | 1-channel VGA output, 3-channel HDMI output, VGA 1/HDMI 1 outputs the same video source. Supports 4K output |
| Multi-screen Display | Customized display. Max. 36-channel local live view. Max. 16-channel PCAPP live view. |
| Third-party Support | Onvif, RTSP, Sony, Panasonic, Axis, Arecont, Pelco,Canon, Samsung |
| Compression vidéo | Smart H.265+/Smart H.264+/H.265/H.264 |
| Compression audio | G.711A/G.711U/PCM/G726 |
| Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P; iSCSI; UPnP; SNMP; IPv6 |
| Mobile Phone | DMSS |
| Interopérabilité | ONVIF (Profile S, T and G), CGI, SDK |
| Navigateur | Chrome, PCAPP, IE9 or higher, Firefox |
| Network Mode | NIC binding mode such as multiple-address mode, load balance, fault-tolerance, etc. |
| Multiple-channel Playback | Max. 16-channel playback |
| Record Search | Search video detection/manual record/IO alarm/intelligent event/all record file |
| Storage Medium | Internal HDD, SAS disk array enclosure |
| Backup Method | HDD, peripheral USB storage device |
| Playback Function | 1. Play/pause/stop/fast forward/fast backward/reverse play/frame by frame play 2. Full-screen, backup (clip/file), snapshot, digital zoom, audio on/off |
| HDD Group | 16 |
| RAID | RAID0/1/5/6/10/50/60 |
| Storage Pool | N/A |
| General Alarm | Motion detect, tampering, local alarm |
| Anomaly Alarm | IPC offline alarm, storage error, HDD full, IP conflict, MAC conflict, login lock, fan malfunction |
| Intelligent Alarm | Human face detection, human face recognition, video metadata (person/vehicle/non-motor vehicle), IVS, plate recognition, people counting, smoking, call |
| Alarm Linkage | Record, picture storage (full image), local external alarm output, IPC external alarm output, access & control, audio prompt, buzzer, log, preset, email |
| Entrée audio | 1-channel(reserved) |
| Sortie audio | 1-channel, speaker output, audio linkage output |
| Entrée d'alarme | 16-channel |
| Sortie d'alarme | 8-channel |
| Disques durs internes | 16 slots, SATA3.0/SAS. Max.16T/HDD |
| eSATA | 1 port |
| SAS | 2 SAS3.0 ports |
| RS-232 | 1 port, for debug or transparent COM data |
| RS-485 | 1 port, control peripheral PTZ and so on. Supports various protocols |
| USB | 4 ports. 2 USB2.0 port at the front panel and 2 USB3.0 port a the rear panel |
| HDMI | 3 ports; support 4K output |
| VGA | 1 port |
| Network | 4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports |
| Power | 1 port |
| PoE | N/A |
| Alimentation | AC100-127V/AC200-240V 50/60Hz |
| Consommation | 100W (without HDD, idling) 292W (all HDDs connected) |
| Poids net | 16 kg (35.27 lb) |
| Poids brut | 17 kg (37.48 lb) |
| Dimensions | Chassis: 444.8 mm × 522.4 mm × 133.2 mm (17.51 " × 20.57 " × 5.24 ") Max. size: 485 mm (with hanger) × 522.4 mm × 133.2 mm (with feet mat) (19.09 " × 20.57 " × 5.24 ") |
| Packaging Dimensions | 689 mm× 779 mm × 464 mm (27.13 " × 30.67 " × 18.27 ") |
| Température de fonctionnement | 0 °C to +45 °C (+32 °F to +113 °F)/10%RH–90% RH |
| Température de stockage | 0 °C to +40 °C (+32 °F to +104 °F)/30%RH–85% RH |
| Humidité de fonctionnement | 10%–90% |
| Humidité de stockage | 30%–85% |
| Operating Altitude | 5000 m (16404.20 ft) |
| Installation Mode | Desktop/rack |
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B UL 60950-1 |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IVSS7016 · Marque : Dahua
