Description et caractéristiques

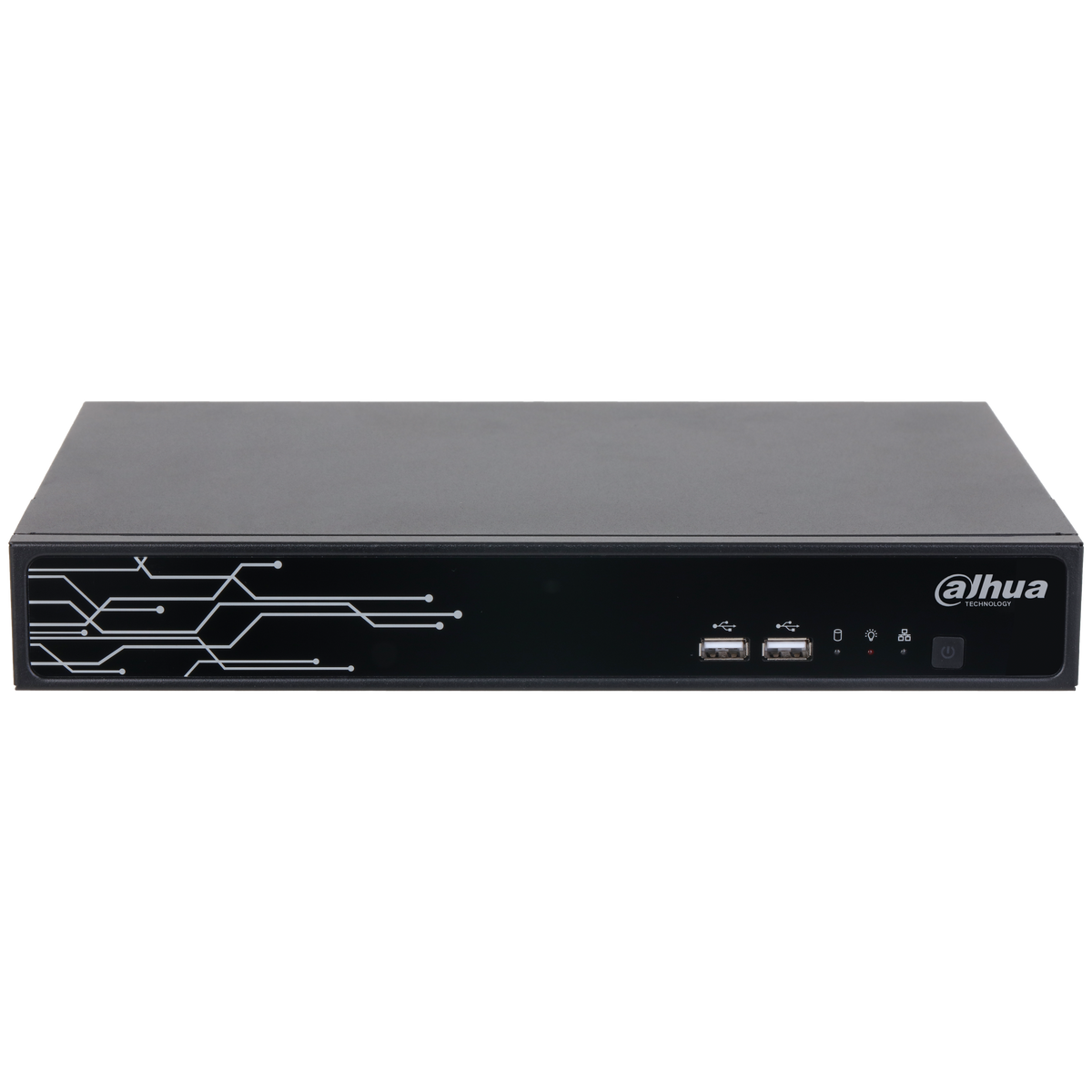

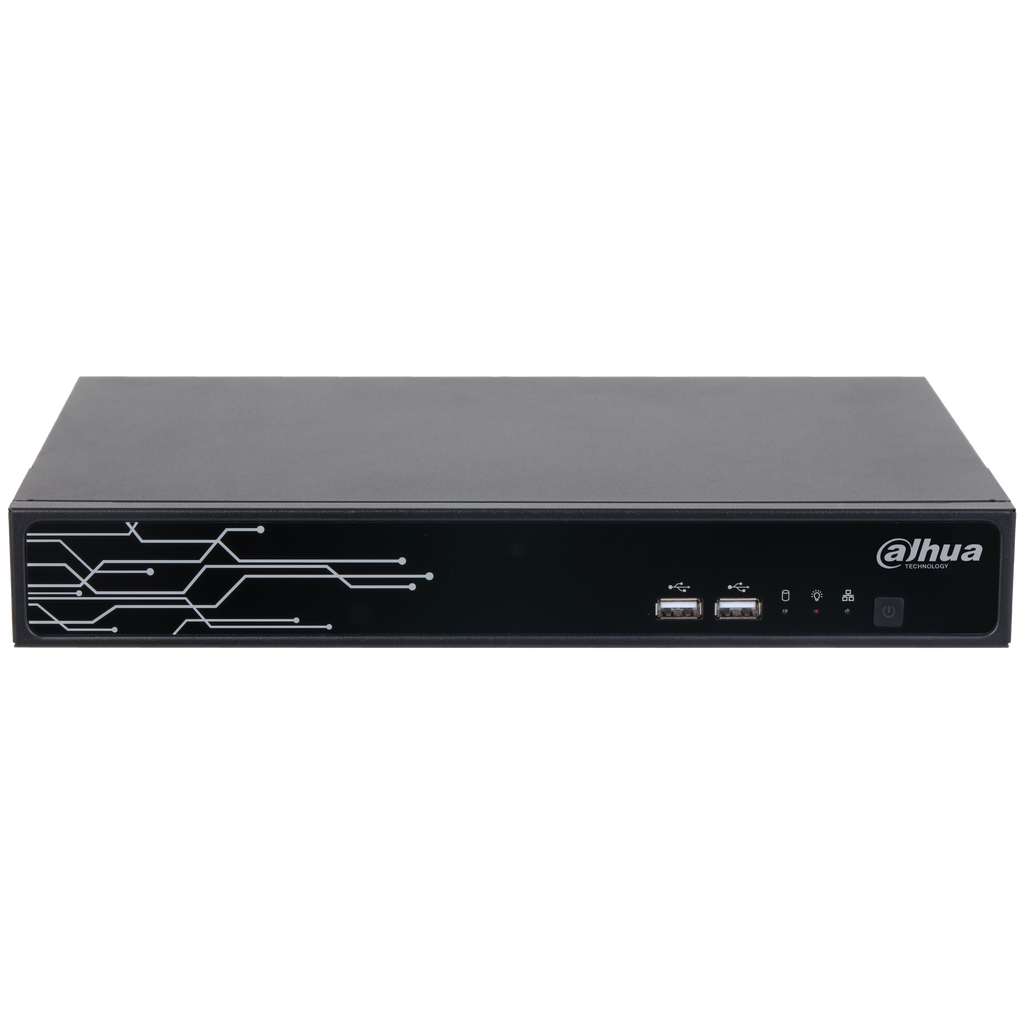

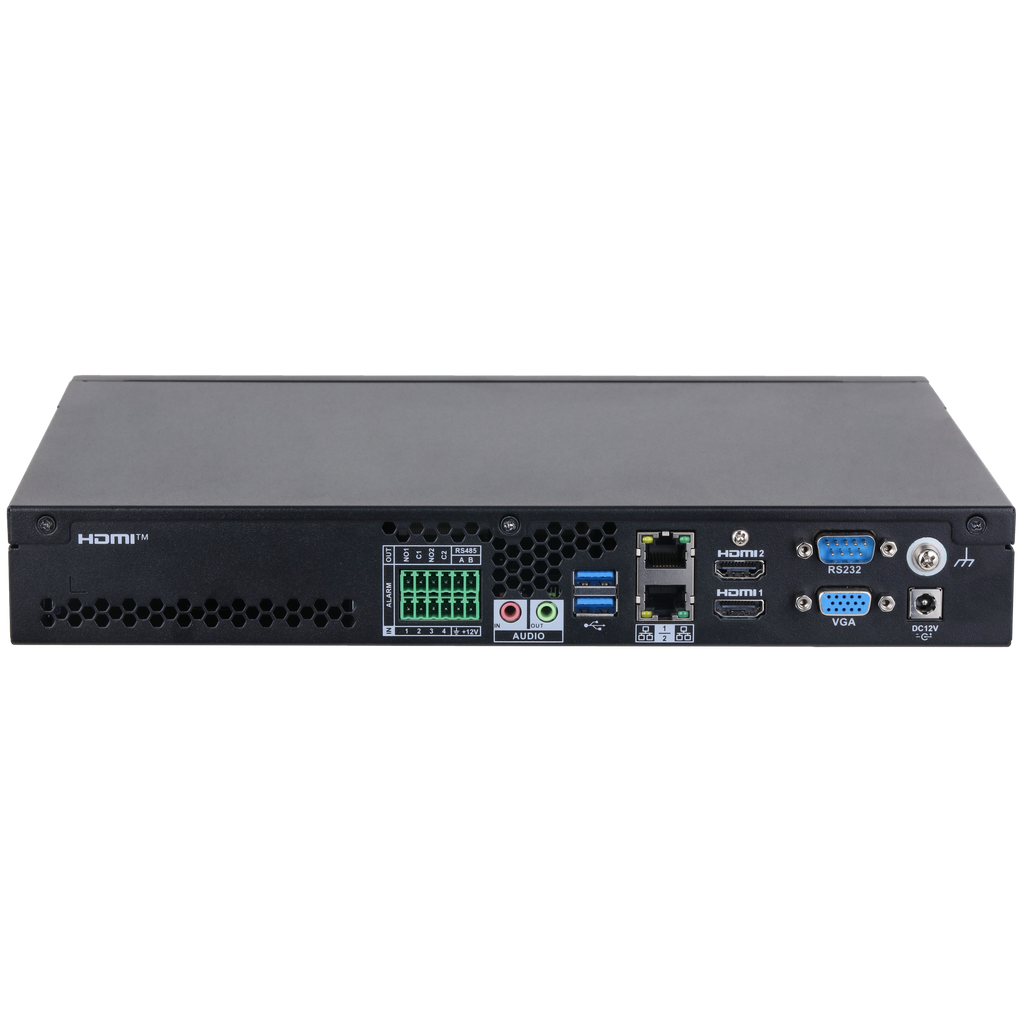

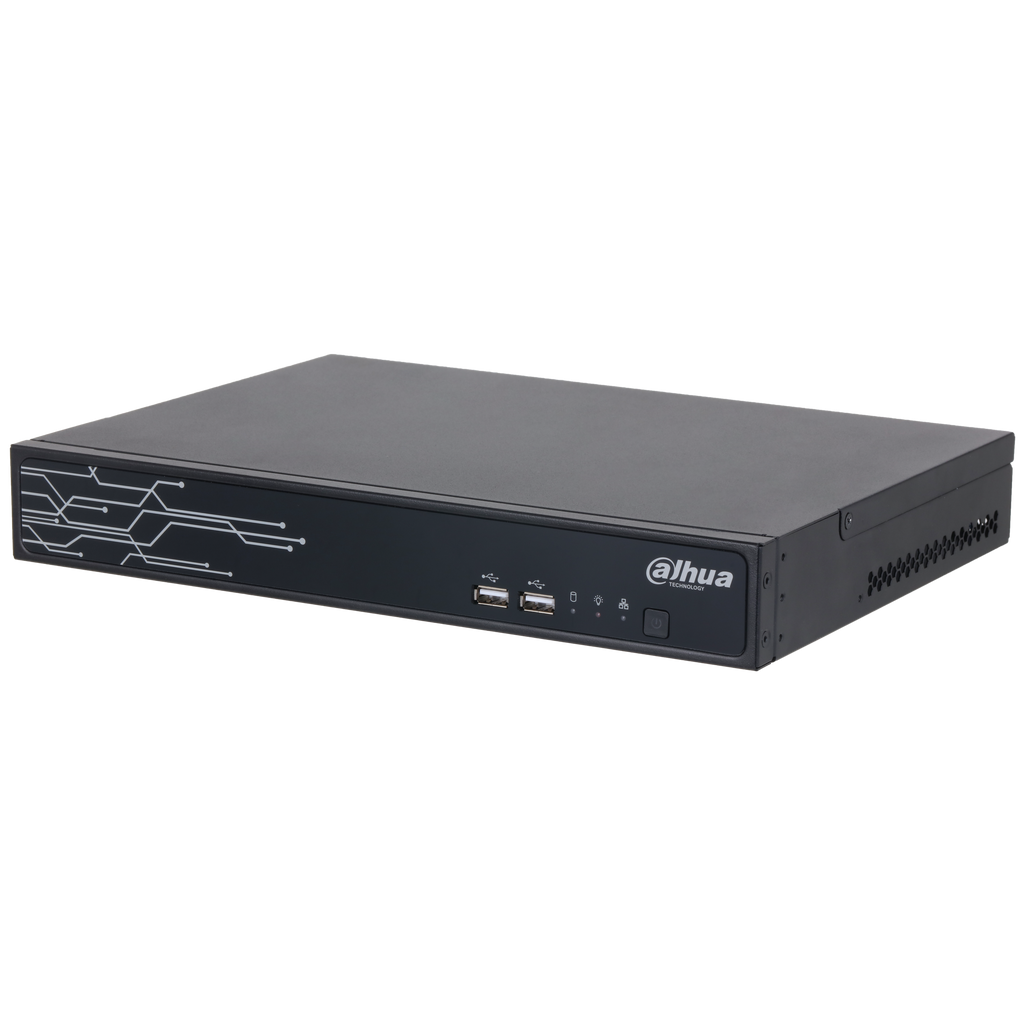

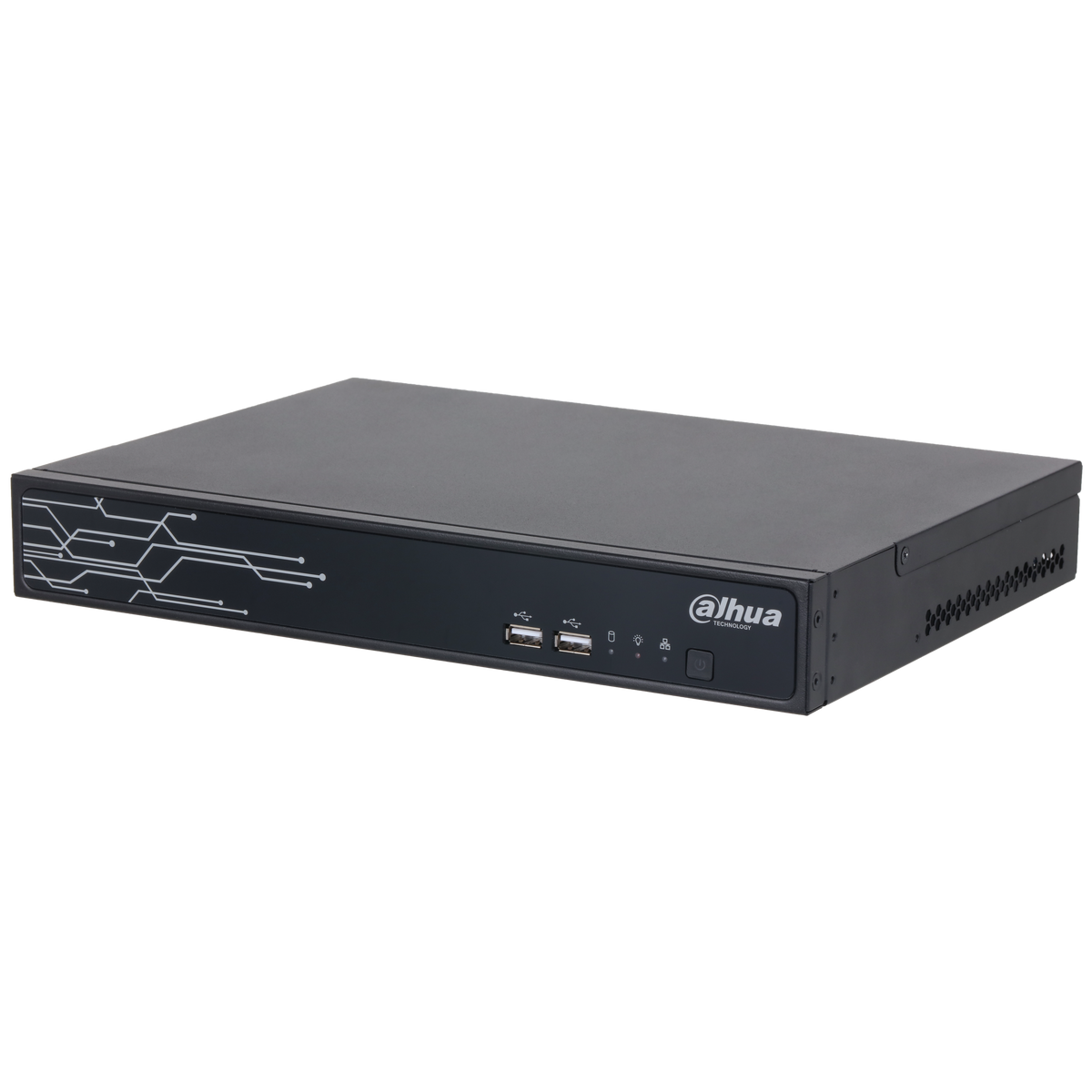

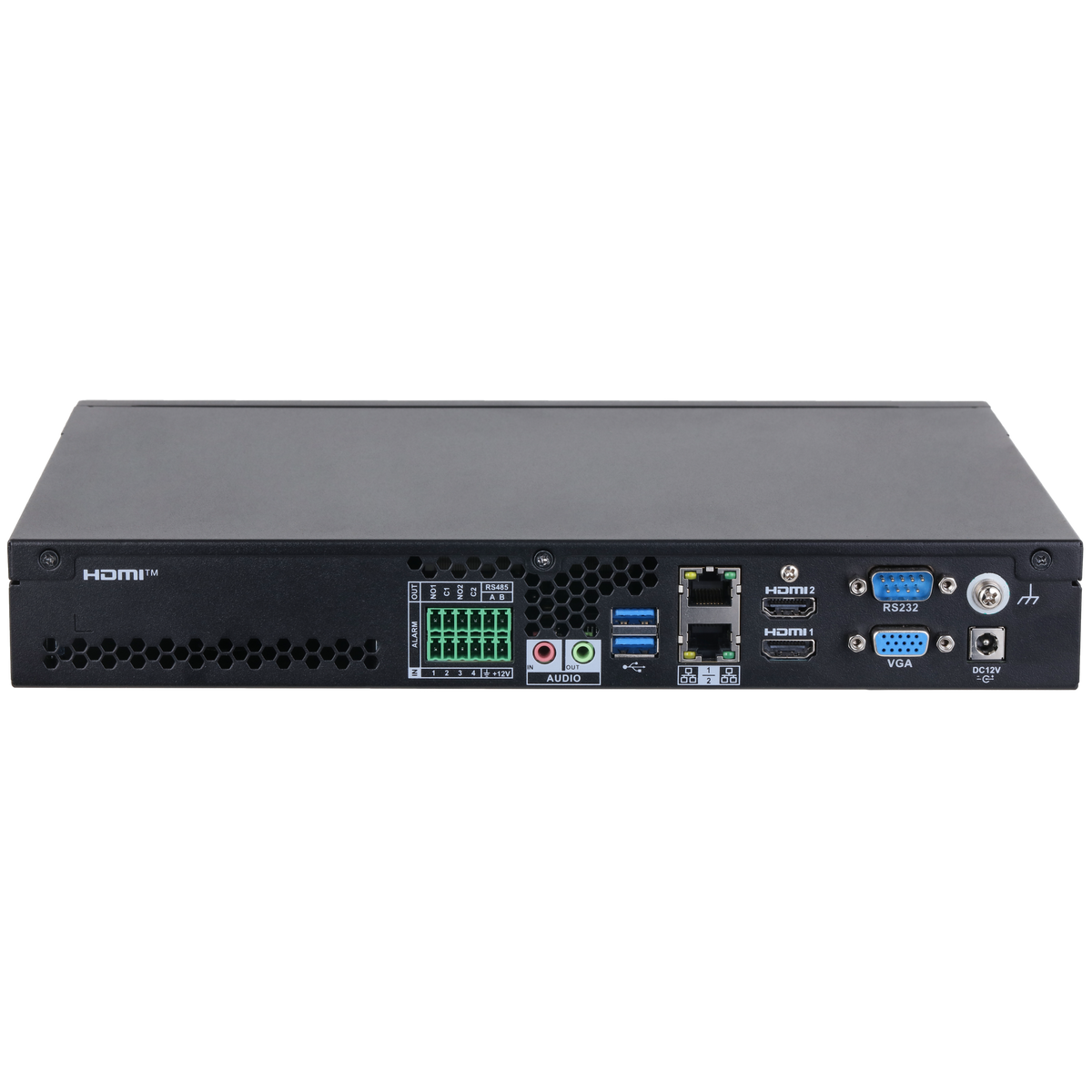

Enregistreur intelligent 1U
- 48 canaux
- WizMind
- 256 Mbps
- AcuPick
- Xinghan
- Détection de visage
- Reconnaissance faciale
- Lecture de plaque
- 1 baie HDD jusqu’à 20 To
- 2 HDMI / 1 VGA
- Audio 1 canal
- 4 entrées / 2 sorties alarme
- USB 2.0/3.0
- ONVIF – Linux embarqué
- Ventilateur intelligent
Caractéristiques principales
- Technologie d'enregistreur : NVR - Enregistreurs IP
- Nombre de voies vidéo : 48 voies
- IA de l'enregistreur : AcuPick, Détection de visage, Reconnaissance faciale
- IA supporté par l'enregistreur : Détection de visage, Lecture de plaque, Reconnaissance faciale
- Résolution maximum : 32 MP
Fiche technique
| Processeur | 64-bit high-performance multi-core processor |
|---|---|
| Système d'exploitation | Embedded Linux |
| Operating Interface | Webpage (PCAPP);Local GUI |
| AI Card | 2, AI card mode is switchable |
| In Multimodal Large Model Engine | Supports all channels (16 targets/s) Wizseek with AcuPick camera |
| In Intelligent Analysis Engine | Supports up to 2 algorithms running simultaneously; Up to 8-ch 2 MP or 4-ch 4 MP or 2-ch 8 MP face recognition/IVS/Video Metadata/AcuPick by recorder; Up to 4-ch 2 MP or 4-ch 4 MP or 2-ch 8 MP PPE Detection/Work Behavior Analysis/People Behavior Analysis/Smart Object Detection by recorder |
| In Compression Engine | Up to 8-ch 2 MP/ 4-ch 4 MP/ 3-ch 5 MP/ 2-ch 8 MP/ 1-ch 12 MP intelligent video compression |
| AI by Camera | Face detection; face recognition; video metadata (human, vehicle, non-motor vehicle); IVS; license plate comparison; tripwire people counting; regional people counting; abnormal number of people in queue; smoking detection; call detection; face & body detection |
| AI by Recorder | Face detection; face recognition; video metadata (human, vehicle, non-motor vehicle); IVS |
| AcuPick | 1. AI by Recorder: Supports 32-channel 2 MP or 32-channel 4 MP resolution(16-channel for each AI card); 2. AI by Camera: Supports 32-channel 2 MP or 32-channel 4 MP resolution |
| Performance | AI by Recorder: 32-ch 2 MP or 32-ch 4 MP or 16-ch 8 MP WizSeek with AcuPick IP camera (Min. 1 AI card for WizSeek modeling); 16-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP WizSeek with normal IP camera (1 AI card for AcuPick by recorder, 1 AI card for WizSeek modeling); Each AI card for WizSeek modeling can analyze 16 targets/s |
| Search Language | English, Italian, Spanish, Russian, French, German, Portuguese, Polish, Czech, Dutch, Korean, Arabic, Turkish, Thai, Indonesian, Vietnamese, Traditional Chinese |
| Face Detection | 1. AI by Recorder: Supports 32-channel 2 MP or 32-channel 4 MP resolution (16-channel for each AI card); 2. AI by Camera: Supports 32-channel 2 MP or 32-channel 4 MP resolution; 3. Supports 6 properties: Gender, age, glasses, expression, face mask, and beard |
| Face Database Capacity | 1. 100 human face databases with 500,000 face pictures in total; 2. 5 passerby databases with 500,000 face pictures in total; The human face database and the passerby database share the total capacity and number of face images |
| Face Recognition | 1. AI by Recorder: 32-channel 2 MP or 32-channel 4 MP with normal IP camera(16-channel for each AI card); 32-channel 2 MP or 32-channel 4 MP with face detection IP camera (Totally 32 × 2 MP or 32 × 4 MP face pictures analyzed per second); 2. AI by Camera: 32-channel 2 MP or 32-channel 4 MP with face recognition IP camera; 3. Supports entries frequency alarm |
| Search by Image | Search by image in the face database, search by face or human body images, and 1:1 face recognition |
| License Plate Database Capacity | 1. 50 plate databases with 300,000 plate numbers in total; 2. Supports allowlist and blocklist |
| Vehicle License Plate Comparison | Supports 32-channel 2 MP or 32-channel 4 MP resolution with ITC |
| Video Diagnosis | Normal CPU Mode: 1. Supports 1-channel tour detection; 2. Supports 13 detection items: blurry video; low contrast; video tampering; video jitter; abrupt image change; image freeze; overexposure detection; video loss; noise detection; scene changing; static noise; interference fringe and color cast; Intelligent CPU Mode: Not supported |
| Industrial Algorithms | The industrial algorithm is an optional installment |
| Work Behavior Analysis | 1. AI by Recorder: Without large model (by default): 16-channel 2 MP/4 MP/8 MP (8-channel for each AI card); With large model (optional): 8-channel 2 MP/4 MP/8 MP (4-channel for each AI card); 2. Rules: AI by Recorder: calling, using mobile phone, sleeping while on duty, leave post detection, smoking and abnormal number of people |
| PPE Detection | 1. AI by Recorder: 16-channel 2 MP/4 MP/8 MP (8-channel for each AI card); 2. Rules: AI by Recorder: hat/safety helmet detection, Balaclava, workwear detection (detect by color attributes or registered database), face mask detection, goggles detection, seatbelt detection, safety vest detection, shoes detection, gloves detection, mask detection, exposed hair detection and arm band detection |
| Smart Object Detection | 1. AI by Recorder: 16-channel 2 MP/4 MP/8 MP (8-channel for each AI card); 2. Rules: AI by Recorder: smart missing object and smart abandoned object; 3. Object Type: non-motor vehicles, luggage, bags and boxes |
| People Behavior Analysis | 1. AI by Recorder: Without large model (by default): 16-channel 2 MP/4 MP/8 MP (8-channel for each AI card); With large model(optional): 8-channel 2 MP/4 MP/8 MP (4-channel for each AI card); 2. Rules: AI by Recorder: fighting detection, fall detection, running detection and tailing detection |
| Access Channel | 48-channel |
| Network Bandwidth | Incoming bandwidth: 256 Mbps Recording bandwidth: 256 Mbps Outgoing bandwidth: 256 Mbps |
| Résolutions | 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p |
| Capacité de décodage | Normal CPU Mode: 1-channel 32 MP; 1-channel 24 MP; 2-channel 16 MP; 4-channel 8 MP@30 fps; 5-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps; 36-channel 720p@30 fps; Intelligent CPU Mode: 4-channel 1080p@30 fps |
| Video Output | Normal CPU Mode: 1-channel VGA output; 2-channel HDMI output; VGA 1/HDMI 1 outputs the same video source; Intelligent CPU Mode: 1-channel VGA output; 1-channel HDMI output; VGA 1/HDMI 1 outputs the same video source |
| Multi-screen Display | Max. 16-channel local live view; Max. 16-channel PCAPP live view |
| Third-party Camera Access | ONVIF;RTSP;Sony;Panasonic;Axis;Arecont;Pelco;Canon;Samsung |
| Compression vidéo | Smart H.265+;H.265;Smart H.264+;H.264 |
| Compression audio | G.711a;G.711u;PCM;G.726 |
| Protocoles réseau | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;P2P;IPv6;UPnP;SNMP |
| Mobile Phone Access | DMSS |
| Interopérabilité | CGI;SDK;ONVIF (Profile S & Profile G & Profile T & Profile M) |
| Navigateur | Chrome; PCAPP; IE9 or higher; Firefox |
| Network Mode | Multi-address mode;Load balance;Fault-tolerance;Link aggregation |
| Multi-channel Playback | 16 channels |
| Record Mode | Video detection;AI event;Thermal;All Video;Instant record;External alarm;Smart motion detection |
| Storage Method | Local hard disk |
| Backup Method | Hard disk;External USB storage device |
| Playback Function | 1. Play; Pause; Stop; Fast forward; Fast backward; Reverse play; Frame by frame; 2. Full-screen; Backup (clip and file); Snapshot; Digital zoom; Audio on and off |
| Record Management | Supports record control (continuous, event-based, scheduled, scheduled & event-based) |
| General Alarm | Motion detection;Video tampering;Local alarm;IPC external alarm;Fire alarm;Temperature alarm;Temperature contrast alarm;Hot spot alarm;Cold spot alarm |
| Anomaly Alarm | IPC offline alarm; storage error; HDD full; IP conflict; MAC conflict; login lock; AI module temperature alarm; AI module offline; fan malfunction; no HDD; power exception |
| Alarm Linkage | Record; snapshot (full image); alarm uploading; remote device alarm output; camera audio; buzzer; log; preset; email; smart tracking. Disarming alarm linkage action by period or one-click sync disarm config with channels |
| Entrée audio | 1 channel |
| Sortie audio | 1 channel |
| Entrée d'alarme | 4 channels |
| Sortie d'alarme | 2 channels |
| Disk Interface | 1 slot, SATA. Max.20 TB/HDD |
| RS-232 | 1 port |
| RS-485 | 1 port |
| USB | 2 × rear-mounted USB 3.0 ports;2 × front-mounted USB 2.0 ports |
| HDMI | 2 ports. Port 1 supports 4K output |
| VGA | 1 |
| Port réseau | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports |
| Power | Single supply |
| Disk Bay | 1 |
| Form Factor | 1U |
| Alimentation | 12 VDC, 5 A |
| Consommation | 23 W (without HDD, idling); 30 W (all HDDs connected) |
| Fan | Intelligent speed controlling fan |
| Poids net | 1.75 kg (3.86 lb) |
| Poids brut | 2.78 kg (6.13 lb) |
| Dimensions | Chassis: 304 mm × 223.8 mm × 43.5 mm (11.97" × 8.11" × 1.71") (W × D × H) |
| Packaging Dimensions | With packaging: 399 mm × 304 mm × 133 mm (15.71" × 11.97" × 23.58") (W × D × H) |
| Température de fonctionnement | –10 °C to +55 °C (+14 °F to +131 °F) |
| Humidité de fonctionnement | 10%–90% (RH), non-condensing |
| Operating Altitude | ≤5,000 m (16,404.20 ft) |
| Installation | Desktop;Rack |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN IEC 61000-3-2, EN 61000-3-3, EN 55032, EN 50130-4, EN 55035 |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IVD5148-2I · Marque : Dahua
