Description et caractéristiques

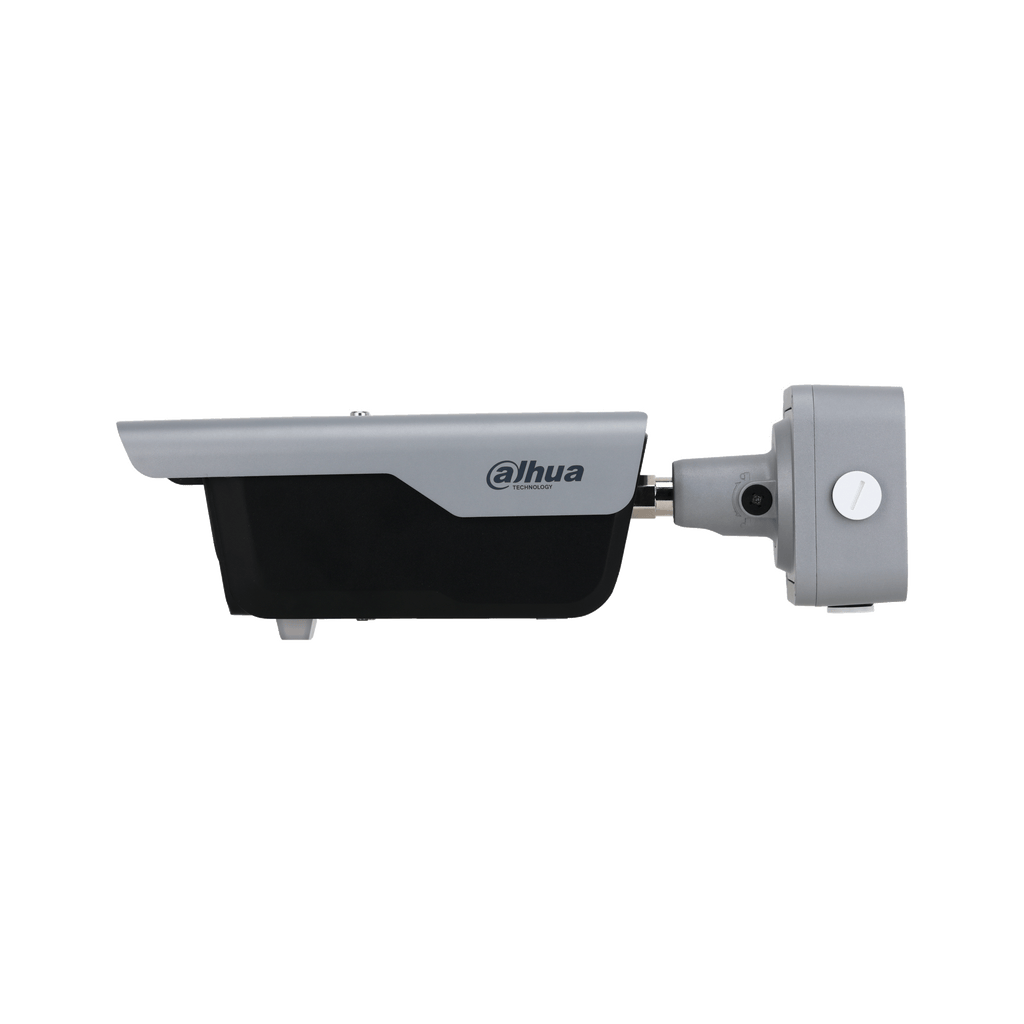

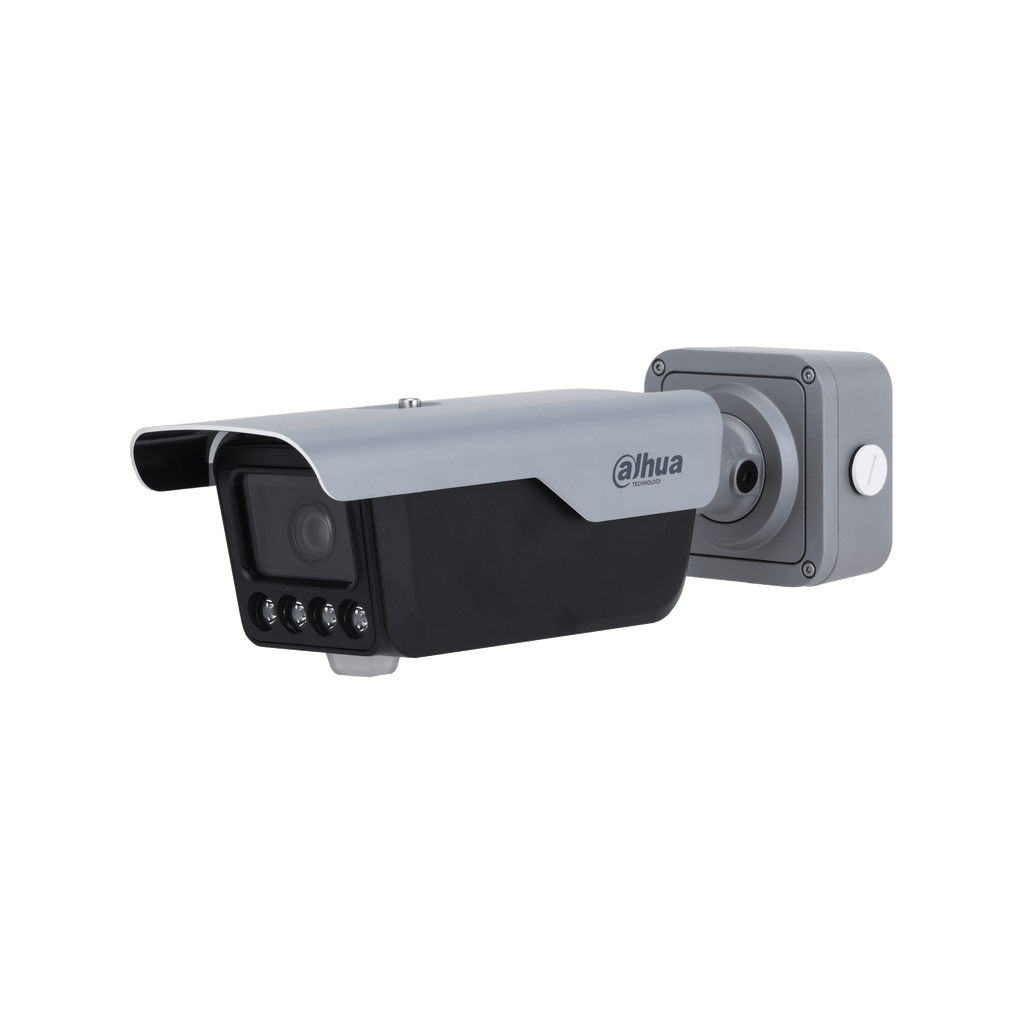

Tube IP Gris
- 4 MP
- VF Motorisée 2.7-12 mm
- IR 30 m
- IA intégrée
- Lecture de plaque
- Micro/HP intégrés
- IP67
- IK10
- 12 V POE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Résolution : 4 MP
- Varifocale : 2.7 - 12 mm
- IR & LED : IR 30 m
- Audio : Entrée audio, Sortie audio, Micro intégré, Haut-parleurs intégré
Fiche technique
| Capteur | 1/1.8" CMOS |
|---|---|
| Image Resolution | 2688 × 1520 |
| Obturateur électronique | Auto/Manual 1/25 s–1/100,000 s |
| Max. Detection Speed | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:80 km/h DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:120 km/h |
| Sensibilité (éclairement min.) | DHI-ITC413-PW4D-Z1,DHI-ITC413-PW4D-IZ1: 0.0004 Lux@F1.4 (Color, 30 IRE); 0.0001 Lux@F1.4 (B/W, 30 IRE); 0 Lux (Illuminator on) DHI-ITC413-PW4D-Z3,DHI-ITC413-PW4D-IZ3: 0.001 Lux@F1.6 (Color, 30 IRE); 0.0002 Lux@F1.6 (B/W, 30 IRE); 0 Lux (Illuminator on) |
| ROM | 4 GB |
| RAM | 1 GB |
| Rapport signal/bruit | >56 dB |
| Balayage | progressive scanning |
| Focale | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1: 2.7 mm–12 mm DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: 8 mm–32 mm |
| Champ de vision | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1: H: 92° (W)—46.1° (T) V: 49° (W)—26.0° (T) D: 109° (W)—52.8° (T) DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: H: 39.9° (W)—15.1° (T) V: 21.8° (W)—8.5° (T) D: 46.6° (W)—17.4° (T) |
| Focus Control | Auto, area focus, manual |
| Number of Lens | 1 |
| Type d'objectif | Motorized Vari-focal |
| Ouverture max. | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:1.4 DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:1.6 |
| Iris | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:DC-Iris DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:P-Iris |
| Distance DORI | Identify |
| W: (DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1) | 6.0 m (19.68 ft) |
| T: (DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1) | 12.9 m (42.32 ft) |
| W: (DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3) | 16.0 m (52.49 ft) |
| T: (DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3) | 40.7 m (133.53 ft) |
| Nombre d'illuminateurs | 4 |
| Contrôle de l'éclairage | Auto, manual |
| Illuminator Type | DHI-ITC413-PW4D-IZ1, DHI-ITC413-PW4D-IZ3:IR (850 nm) DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-Z3:Dual Illuminators (730 nm IR/warm light) |
| Portée de l'éclairage | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1: ANPR: 10 m (32.81 ft) Video monitoring: 30 m (98.43 ft) DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: ANPR: 30 m (98.43 ft) Video monitoring: 60 m (196.85 ft) |
| Éclairage intelligent | According to the brightness of the environment, the camera automatically adjusts the intensity of its light to reveal the details of moving targets. Devices with warm light can automatically adjust the light intensity according to the time. |
| Infrared Wavelength | DHI-ITC413-PW4D-IZ1, DHI-ITC413-PW4D-IZ3:850 nm DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-Z3:730 nm |
| Video Resolution | Main stream: 4M (2688 × 1520)/1080p (1920 × 1080)/720p (1280 × 720) Sub stream: 720p (1280 × 720)/960H (960 × 576, 960 × 480)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240) |
| Stream | PAL: Main stream (2688 × 1520@25 fps, 1920 × 1080@25 fps, 1280 × 720@25 fps), sub stream (1280 × 720@25 fps, 960 × 576@25 fps, 704 × 576@25 fps, 352 × 288@25 fps); NTSC: Main stream (2688 × 1520@30 fps, 1920 × 1080@30 fps, 1280 × 720@30 fps), sub stream (1280 × 720@30 fps, 960 × 480@30 fps, 704 × 408@30 fps, 352 × 240@30 fps) |
| Compression vidéo | H.264H; H.264B; H.264M by default; H.265; MJPEG; H.264M |
| Débit vidéo | H.264B: 2,179 kbps–13,074 kbps H.264M: 2,179 kbps–13,074 kbps H.264H: 2,179 kbps–13,074 kbps H.265: 2,179 kbps–13,074 kbps MJPEG: 6,537 kbps–39,223 kbps |
| Scene Self-adaptation (SSA) | Yes |
| Contrôle du gain | Manual; Auto |
| Réduction du bruit | 3D NR |
| Région d'intérêt (RoI) | Yes, 3 |
| Image Tampering Prevention | Yes. Watermarks can be added to videos and images. The watermark can also be verified. |
| Contrôle du débit | CBR; VBR |
| Stockage | Bult-in TF card port. Supports Kingston 16 G, 32 G, 128 G, 256 G; Dahua card 16 G, 32 G, 128 G, 256 G; SanDisk 16 G, 32 G, 128 G, 256 G |
| Restricted List/Trusted List | Allowlist: 110,000 Blocklist: 110,000 |
| IVS | Intrusion detection, loitering detection, up to 4 areas can be set. |
| Basic Event | Alarms for events of defocus, no storage card, storage card no space, storage card error, network disconnection, IP conflict, and illegal access. |
| Sound and Light Alarm | Yes, blue & red indicator, and supports broadcasting custom audio. |
| Alarm Linkage | Upload to FTP/Memory card, notify monitoring center, send e-mail, trigger alert output, snapshot and active deterrence |
| Automatic Network Replenishment (ANR) | Yes, platform/FTP |
| Capture Distance | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1: 3 m–8 m (9.84 ft–26.25 ft) DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: 8 m–30 m (26.25 ft–98.43 ft) |
| Detected Width | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1: 3 m–4 m (9.84 ft–13.12 ft) DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: 6 m–8 m (19.69 ft–26.25 ft) |
| Protocoles réseau | HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP; PPPoE |
| API | Yes |
| SDK | Yes |
| Interopérabilité | ONVIF (Profile S/Profile T/Profile M); CGI; ITSAPI; P2P |
| Logiciels de gestion | DSS Pro; DSS Express; Cybercity; Smart PSS;DMSS |
| Sécurité | Username and password; MAC address; HTTPS; IEEE 802.1x; network access control |
| Navigateur | Plug in: IE 9, 10, 11. Chrome 52 and earlier versions Firefox 42 and earlier versions No plug in: Chrome 92 and later versions |
| Image Encoding Format | JPEG |
| Image Setting | Brightness; contrast; saturation; gamma; sharpness; gain; white balance |
| Jour/Nuit | IR filter, support three modes: color/B/W/auto |
| WDR | 140 dB |
| HLC | Yes |
| BLC | Yes |
| Balance des blancs | Auto; Regional Custom; Manual; Outdoor; Natural; Street Lamp |
| Digital Detail Enhancement (DDE) | Yes |
| OSD Overlay | Supports overlay of time; address (position of channel), lane (number/direction), plate (number and color), vehicle (color, type) |
| Audio Port | Yes |
| Micro intégré | Yes; Pick-up distance: 3 m (9.84 ft), Sampling Rate: 48 k. |
| Built-in Speaker | Yes; Power: 2 W |
| Sortie audio | 1 channel (RCA port) |
| Port réseau | RJ-45 (10/100 Mbps Ethernet port) |
| Entrée d'alarme | 2, optocoupler input (wet node on-off value: 5 V) |
| Sortie d'alarme | 2, relay output (2A 30 VDC/0.5A 125 VAC), which can connect to devices such as barriers |
| RS-485 | 2 (half duplex,Transparent,DHRS,Push Data through Serial Port) |
| Reset Button | Yes |
| Wiegand | 1 channel, SHA-1 26 bit |
| Maximum Number of Passed Vehicles | 10,000 |
| Max. Number of Connections | 10 |
| AI Recognition | Recognizes vehicle types, vehicle signs, vehicle color, vehicle plate, plate, vehicle without plate. |
| Video Metadata | Displays the intelligent frame, plate and vehicle paths. |
| Vehicle Brand | Recognizes 147 vehicle logos. |
| Vehicle Color | Recognizes 12 colors: Grey, black, white, silver, blue, green, purple, red, orange, pink, brown, and yellow. |
| Vehicle Type Recognition | Recognizes 10 vehicle types: Large Bus, Heavy Truck, Medium Truck, Sedan, Van, Light Truck, Medium Bus, SUV, MPV, Pickup |
| Capture Rate | In the recommended installation and lighting condition, the vehicle capture rate ≥ 99% |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : ITC413-PW4D-IZ1 · Marque : Dahua
