Description et caractéristiques

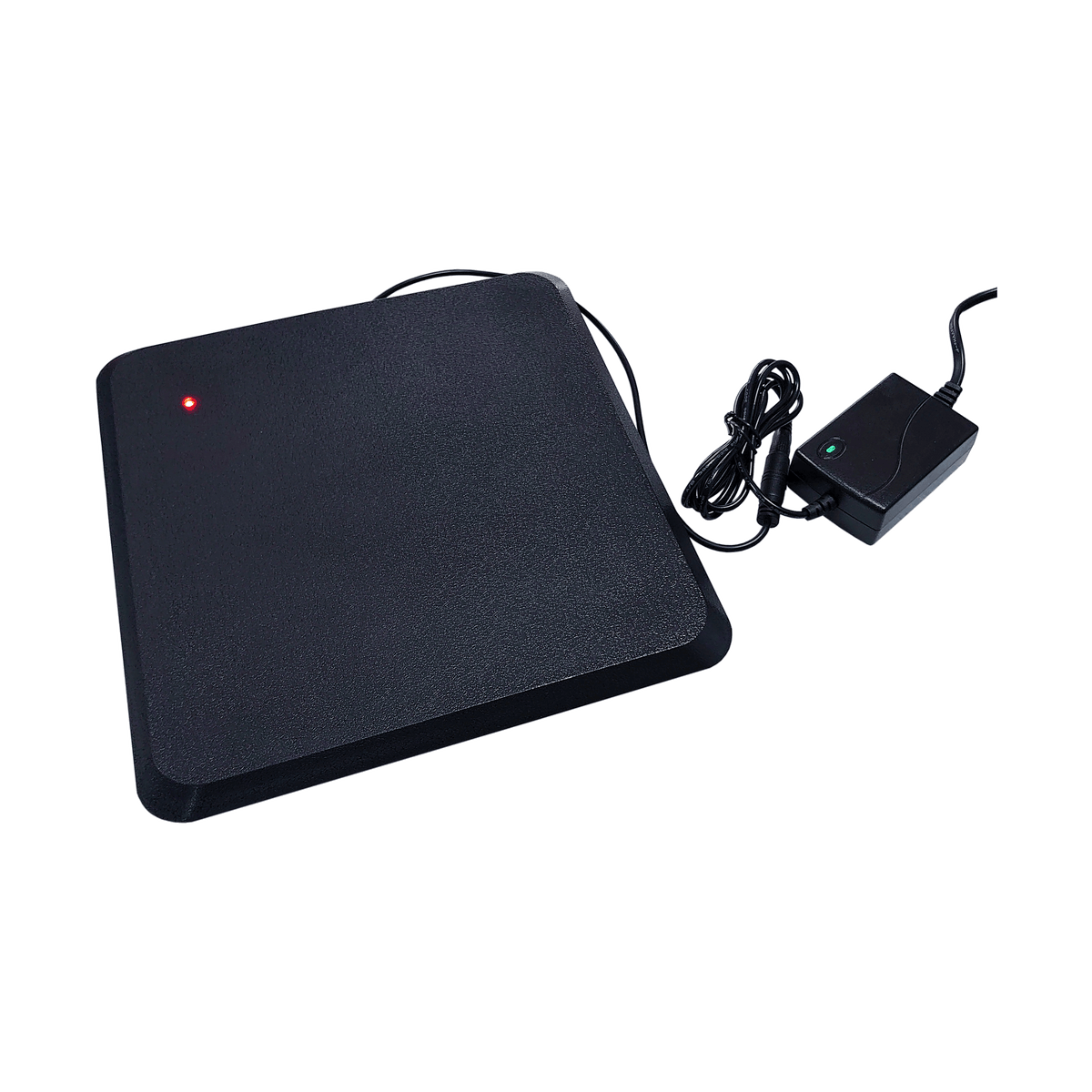

Désactivateur RF Dahua
- 8.2 MHz
- Désactivation sans contact jusqu'à 10 cm
- 120 étiquettes/min
- Indicateur LED et sonore
- Alimentation 100-240V
Caractéristiques principales
- Type de produit : Périphérique
Fiche technique
| Technology | Radio-Frequency (RF) |
|---|---|
| Detection Frequency | 8.2 MHz ± 0.4 MHz |
| Label Deactivating Distance | ≤ 200 mm |
| Shell Material | Acrylonitrile Butadiene Styrene (ABS) |
| Certifications | Conform with RoHS & CE Directive 2011/65/EU, 2015/863/EU and REACH regulations as defined in EC No 1907/2006 and subsequent amendments. |
| Power Input | 100 - 240 V ~ 50 / 60 Hz 1.0 A MAX |
| Power Output | 24 VDC |
| Rated Power | 5 W |
| Power Plugs Standard | European Standard |
| Color | Black |
| Length | 242 mm (9.53'') ± 0.5 mm (0.02'') |
| Width | 232 mm (9.13'') ± 0.5 mm (0.02'') |
| Thickness | 27 mm (1.06'') ± 0.5 mm (0.02'') |
| Installation Dimension | 222 mm × 210 mm (8.74'' × 8.27'') |
| Inner Packaging | 1 pcs per box |
| Inner Box Dimension | 260 mm × 260 mm × 80 mm (10.24' × 10.24'' × 3.15'') |
| Inner Box Weight | 1.04 kg (2.29 lb) |
| Packaging | 10 boxes per carton |
| Carton Dimension | 540 mm × 280 mm × 420 mm (21.26'' × 11.02'' × 16.54'') |
| Carton Weight | 11.4 kg (25.13 lb) |
| Minimum Order Quantity | 1 box |
| Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Humidity | 10 % –90 % (RH) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : ISC-EDR-100 · Marque : Dahua
