Description et caractéristiques
Tube IP blanc
- 2x 4 MP
- FF 2.8mm
- IR 30m / LED 30m
- WizSense
- AcuPick
- TIOC PRO
- Protection périmétrique
- Détection de visage
- Smart Dual Light
- Active Deterrence
- Micro et haut-parleurs intégrés
- IP67
- 12 V DC PoE+
Fiche technique
| Capteur | 1/2.7" CMOS |
|---|---|
| Résolution max. | 4320 (H) × 1944 (V) |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.003 lux@F1.4 (Color, 30 IRE) 0.0003 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | >56 dB |
| Portée de l'éclairage | 2.8 mm: Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
| Contrôle de l'éclairage | Auto;Manual |
| Nombre d'illuminateurs | 4 (Multi-core (IR + warm) light) |
| Réglage angulaire | Pan: 0° to 360° Tilt: –20° to 90° Rotation: 0° to 360° |
| Type d'objectif | Fixed-focal |
| Monture | M12 |
| Focale | 2.8 mm |
| Ouverture max. | F1.4 |
| Champ de vision | 2.8 mm: H: 180°; V: 72° |
| Iris | Fixed |
| Distance mini de mise au point | 2.8 mm: 0.8 m (2.62 ft) |
| Distance DORI | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Objectif | Identify |
| IVS (protection périmétrique) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. |
| SMD (détection humain/véhicule) | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection (Full Image) | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face exposure; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization duration setting. |
| Recherche intelligente | Works together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| AI Coding | Super AI Coding (H.265); Super AI Coding (H.264) *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Fréquence d'images | Main stream: 4320 × 1944@(1–20 fps) Sub stream: 1200 × 536@(1–20 fps) Third stream: 1920 × 860@(1–20 fps) *The values above are the max frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Flux | 3 streams |
| Résolutions | 8M (4320 × 1944/4096 × 1860); 1920 × 860; 1200 × 536; 960 × 432; D1 (704 × 576/704 × 480) |
| Contrôle du débit | VBR;CBR;ABR |
| Débit vidéo | H.264: 6 kbps–16384 kbps; H.265: 6 kbps–16384 kbps |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| Balance des blancs | Auto; Natural; Street Lamp; Outdoor; Manual; Regional Custom |
| Contrôle du gain | Manual;Auto |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Éclairage intelligent | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Masques de confidentialité | 8 areas |
| Micro intégré | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker;Max power consumption: 2 W; max sound level at 10 cm: 110 dB * Test results from laboratory |
| Compression audio | PCM; G.711a; G.711Mu; G.726; G.723 |
| Événements d'alarme | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; loitering detection; stay detection; face detection (full image); scene changing; audio detection; voltage detection; defocus detection; SMD; security exception |
| Port réseau | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Protocoles réseau | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour; Auto Registration |
| Interopérabilité | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| Utilisateurs simultanés | 20 (Total bandwidth: 64 M) |
| Stockage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Navigateur | IE; Chrome; Firefox |
| Logiciels de gestion | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Application mobile | iOS;Android |
| Sécurité | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Light Warning | Light Warning: Red and blue light warning Flash/Solid on duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Sound Warning: Offers 11 sound alarms and supports importing custom sound alarms Sound: 0-100 Play times can be set from 1 to 10 |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Sortie d'alarme | 1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Alimentation | 12 VDC (±30%); PoE+ (802.3at) |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Consommation | Basic: 4.9 W (12 VDC);6.8 W (PoE); Max.: 13.3 W (12 VDC); 16.1 W (PoE) (H.265 + WDR + warm light + sound and light active deterrence + intelligence on) |
| Température de fonctionnement | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidité de fonctionnement | ≤95% (RH), non-condensing |
| Température de stockage | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidité de stockage | ≤95% (RH), non-condensing |
| Indice de protection | IP67 |
| Niveau anticorrosion | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Matériau du boîtier | Metal |
| Dimensions | 183.1 mm × 99.0 mm × 78.0 mm (7.21" × 3.90" × 3.07") (L × W × H) |
| Poids net | 0.695 kg (1.53 lb) |
| Poids brut | 0.870 kg (1.92 lb) |
📄 Télécharger la fiche technique (PDF)

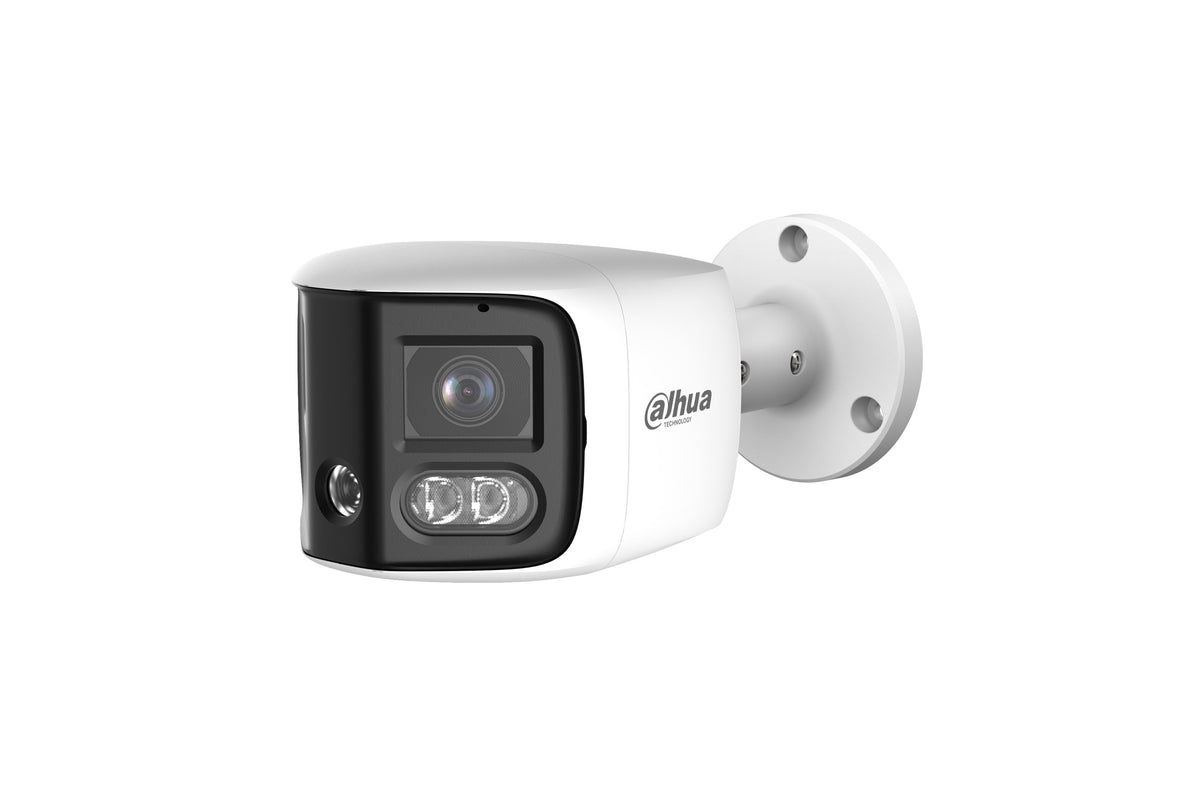

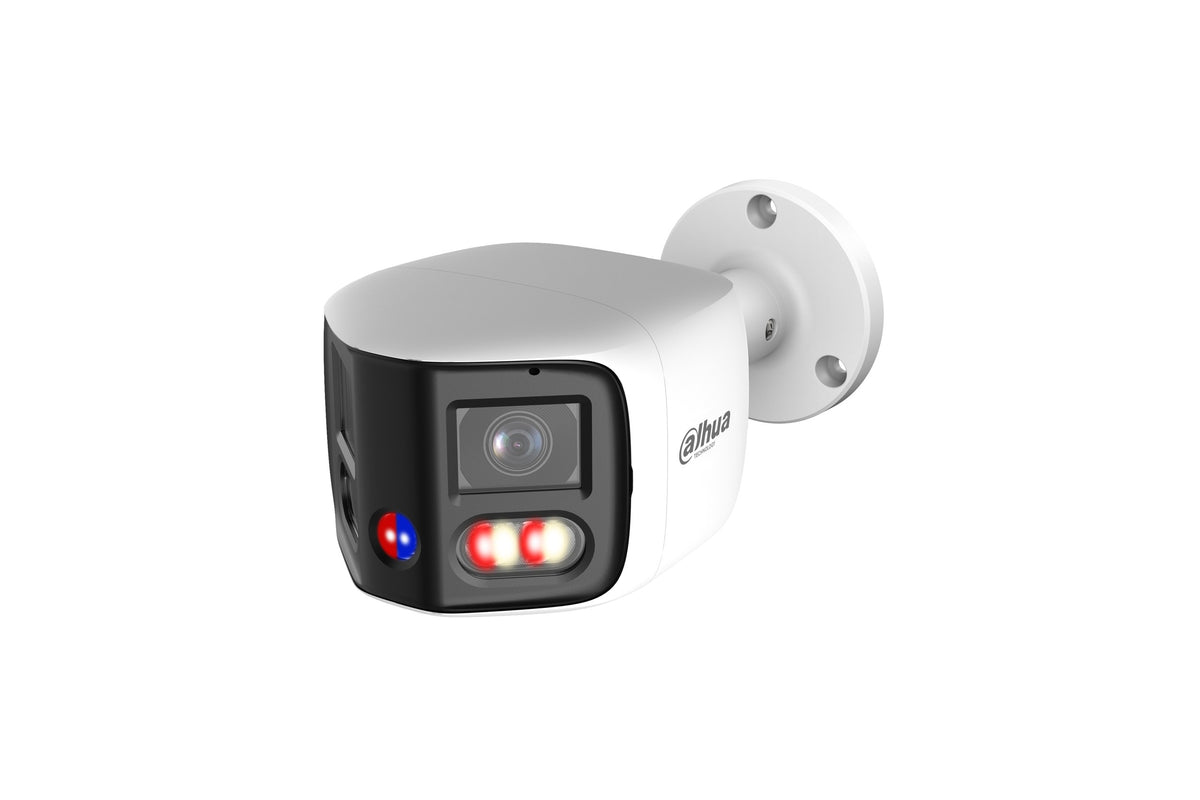

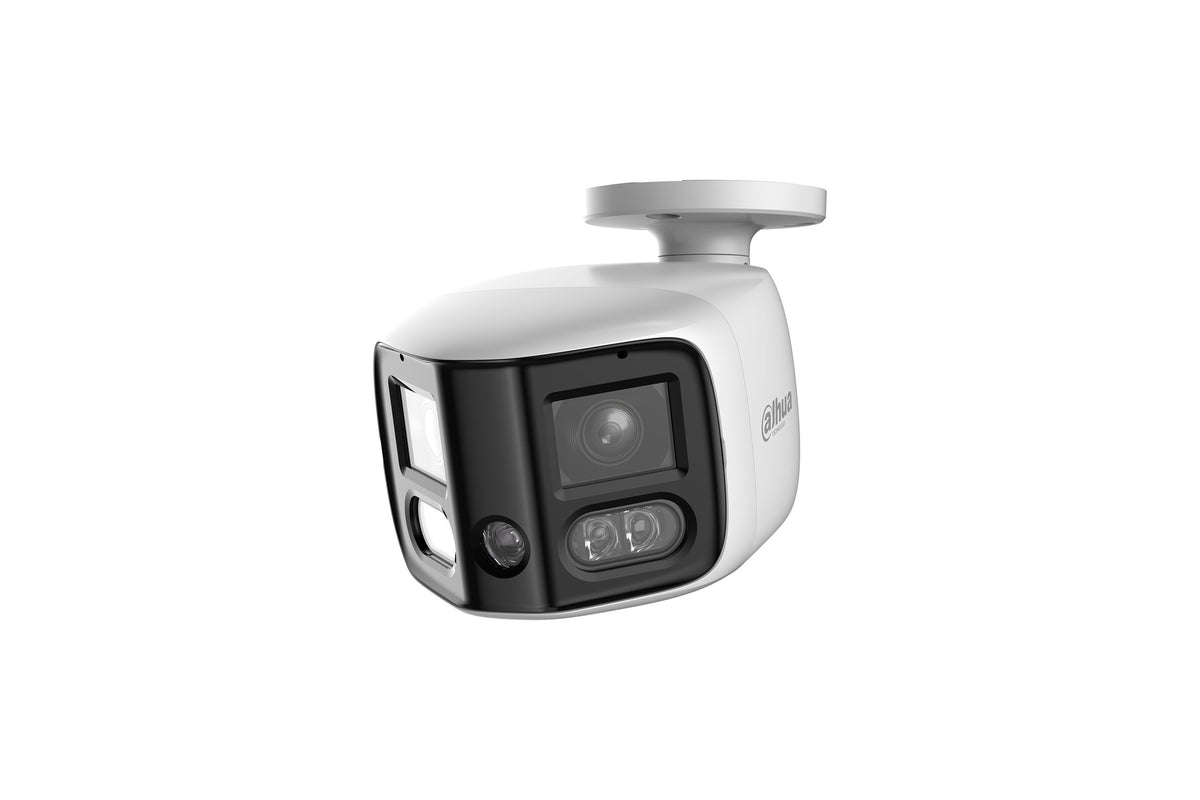

Référence fabricant : IPC-PFW3859S-A180-AS-PV · Marque : Dahua
