Description et caractéristiques

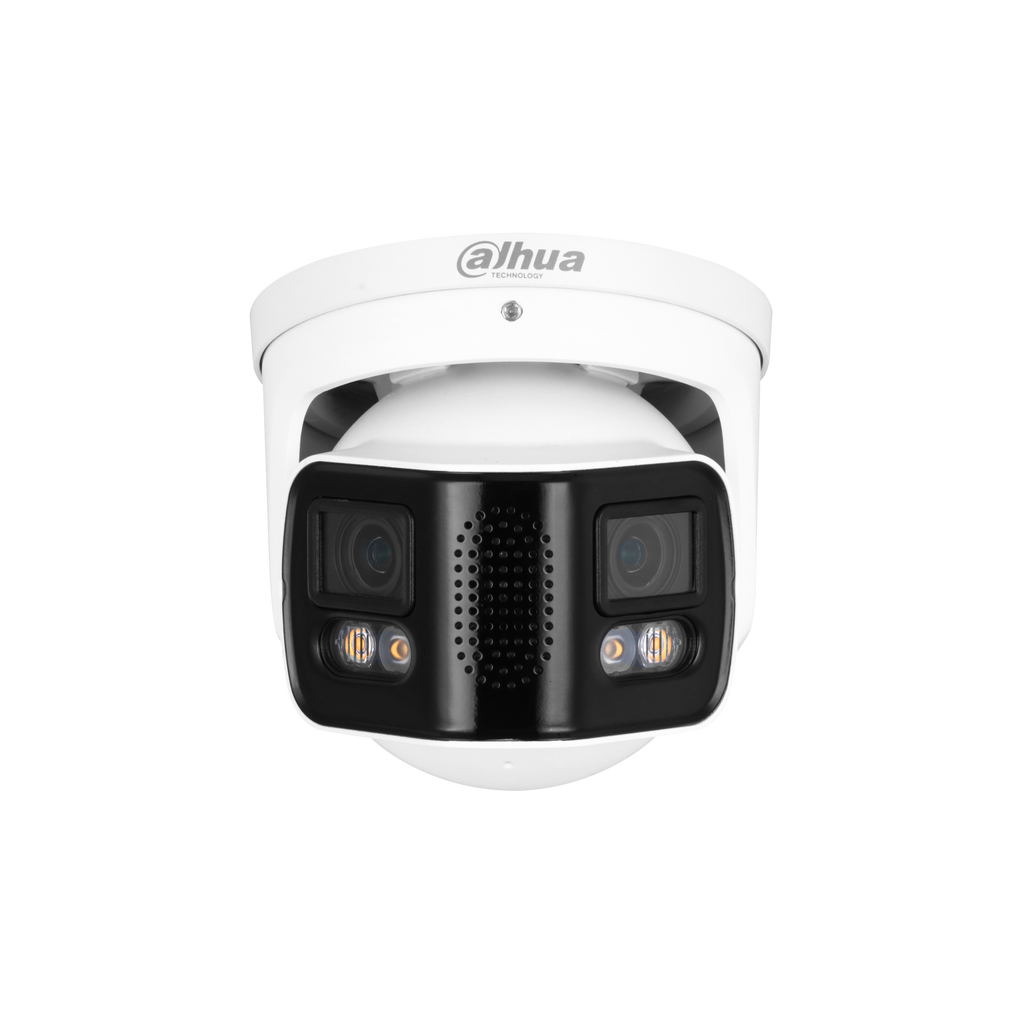

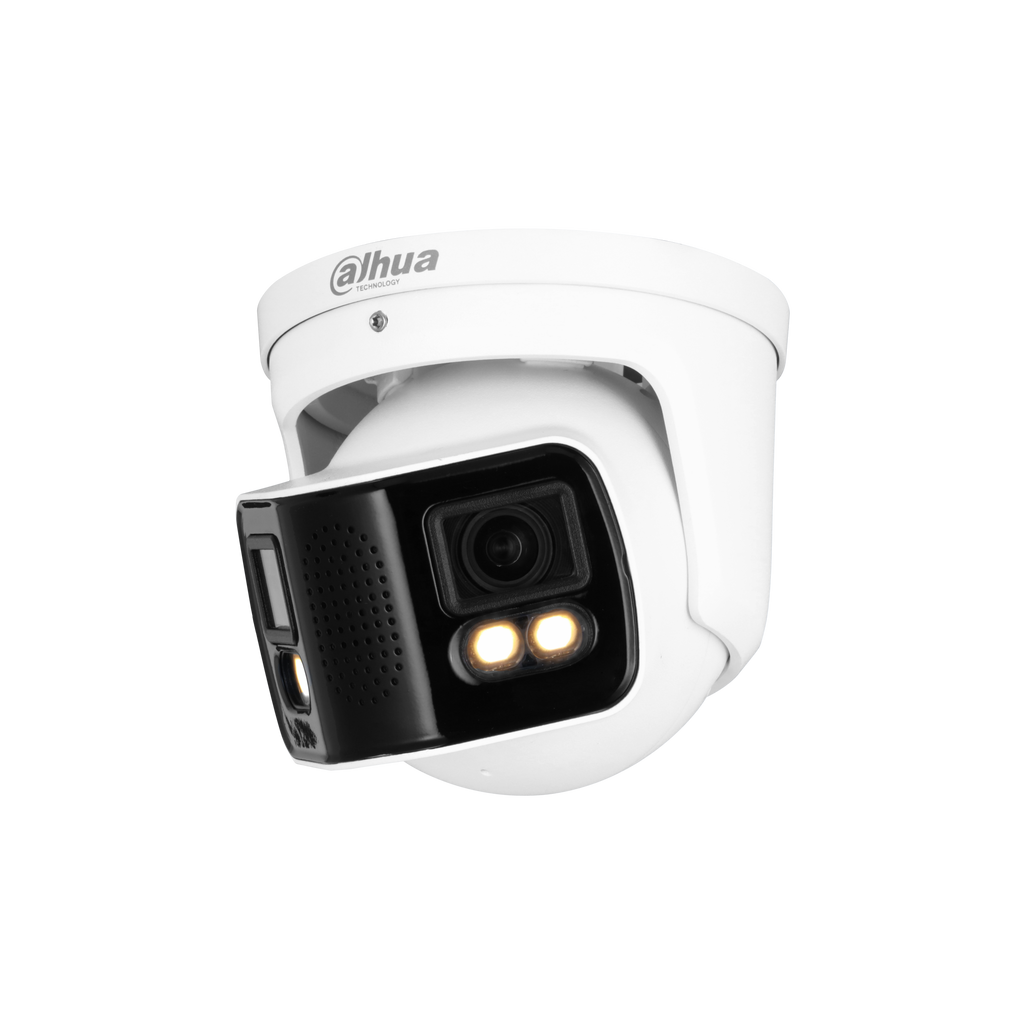

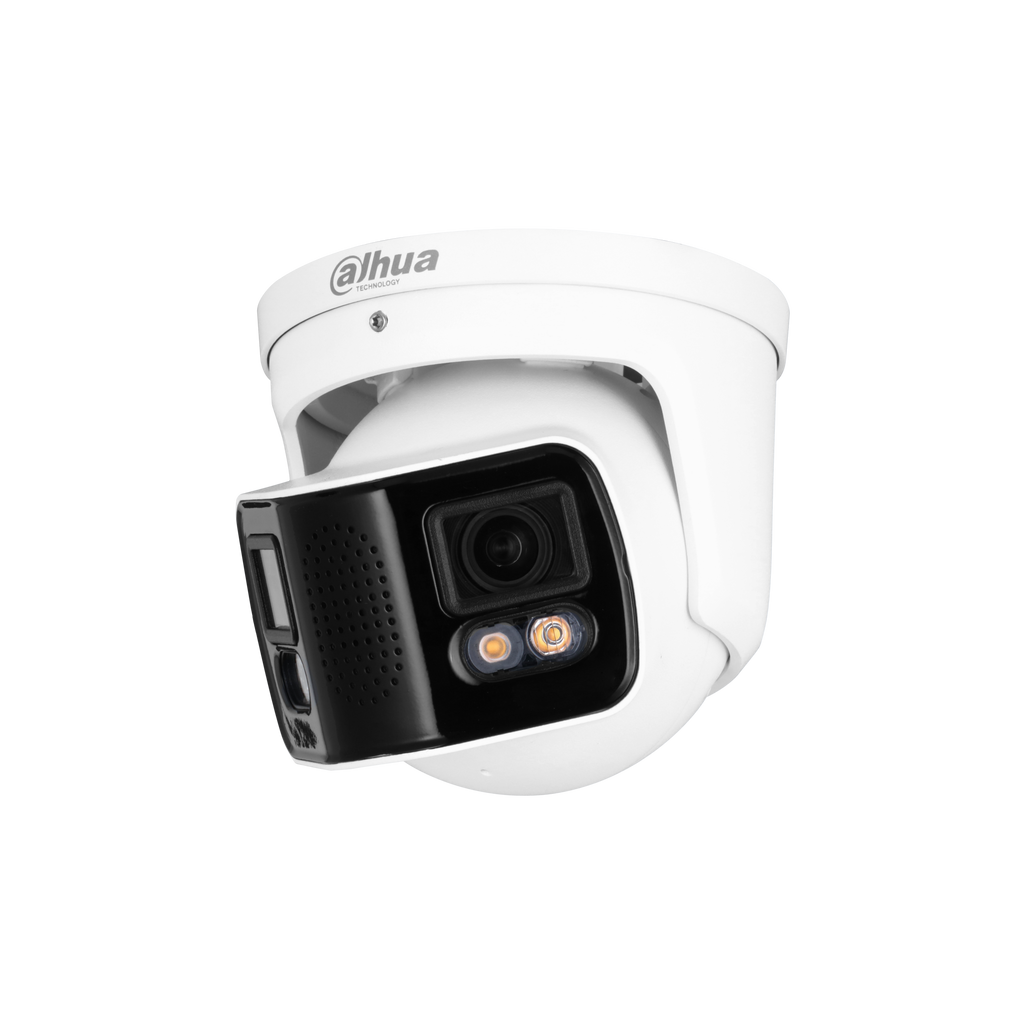

Eyeball IP blanc
- 4 Mp
- FF 3.6 mm
- IA WizMind
- FullColor
- Panoramique 180°
- Micro intégré
- 12V/POE+
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Full Color, Panoramique 180 °
- Intelligence Artificielle : WizMind, Protection périmétrique
- Résolution : 4 MP
- Focale Fixe : 3.6 mm
Fiche technique
| Capteur | Dual 1/1.8" CMOS |
|---|---|
| Résolution max. | 4096 (H) × 1800 (V) |
| ROM | 128 MB |
| RAM | 1 GB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.0005 lux@F1.0 (Color, 30 IRE) 0.0002 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | >56 dB |
| Portée de l'éclairage | 40 m (131.23 ft) |
| Contrôle de l'éclairage | Auto |
| Nombre d'illuminateurs | 4 (Warm light) |
| Plage pan/tilt/rotation | Pan: 0°–360° Tilt: 4°–90° Rotation: 0°–360° |
| Type d'objectif | Fixed-focal |
| Monture | M16 |
| Focale | 3.6 mm |
| Champ de vision | H: 180°±10° V: 48° |
| Ouverture max. | F1.0 |
| Iris | Fixed |
| Distance mini de mise au point | 3.6 m (11.81 ft) |
| Distance DORI | Identify |
| IVS (protection périmétrique) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| Heat Map | Yes |
| Smart Object Detection | Smart abandoned object; smart missing object |
| People Counting | Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm. |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Fréquence d'images | WDR Off: Main stream: 4096 × 1800 @ (1–25 fps) sub stream: 1024 × 452 @ (1–25 fps) third stream: 1920 × 832 @ (1–25 fps) WDR On: Main stream: 4096 × 1800 @ (1–20 fps) sub stream: 1024 × 452 @ (1–20 fps) third stream: 1920 × 832 @ (1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Flux | 3 streams |
| Résolutions | 8M (4096 × 1800); 6.5M (3840 × 1680); 4M (3840 × 1080); 4M (2880 × 1264); 1.6M (1920 × 832); 0.7M (1280 × 560); 0.5M (1024 × 452) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 9 kbps–8192 kbps H.265: 9 kbps–8192 kbps |
| Jour/Nuit | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation (SSA) | Yes |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Masques de confidentialité | 4 areas |
| Defog | Yes |
| Micro intégré | Yes |
| Compression audio | G.711a; G.711Mu; PCM; G.726; G.723 |
| Port réseau | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Protocoles réseau | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour |
| Interopérabilité | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone |
| Utilisateurs simultanés | 20 (Total bandwidth: 80 M) |
| Stockage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Navigateur | IE: IE 11 and later Chrome Firefox |
| Logiciels de gestion | Smart PSS; DSS; DMSS |
| Application mobile | iOS; Android |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 1 channels in: 5 mA 3 V–5 VDC |
| Sortie d'alarme | 1 channel out: 300 mA 12 VDC |
| Alimentation | 12 VDC (±30%)/PoE+ (802.3at)/ePoE |
| Consommation | Basic: 4.8 W (12 VDC); 5.5 W (PoE) Max. (WDR + intelligence + warm light + SPK): 10.5W (12 VDC); 11.8 W (PoE) |
| Température de fonctionnement | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidité de fonctionnement | ≤95% |
| Température de stockage | –40 °C to +60 °C (–40 °F to +140 °F) |
| Indice de protection | IP67 |
| Casing | Metal |
| Dimensions | Φ122 mm × 131.9 mm (Φ4.80" × 5.19" ) |
| Poids net | 990 g (2.18 lb) |
| Poids brut | 1150 g (2.54 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-PDW5849P-A180-E2-ASTE-0360B · Marque : Dahua
