Description et caractéristiques

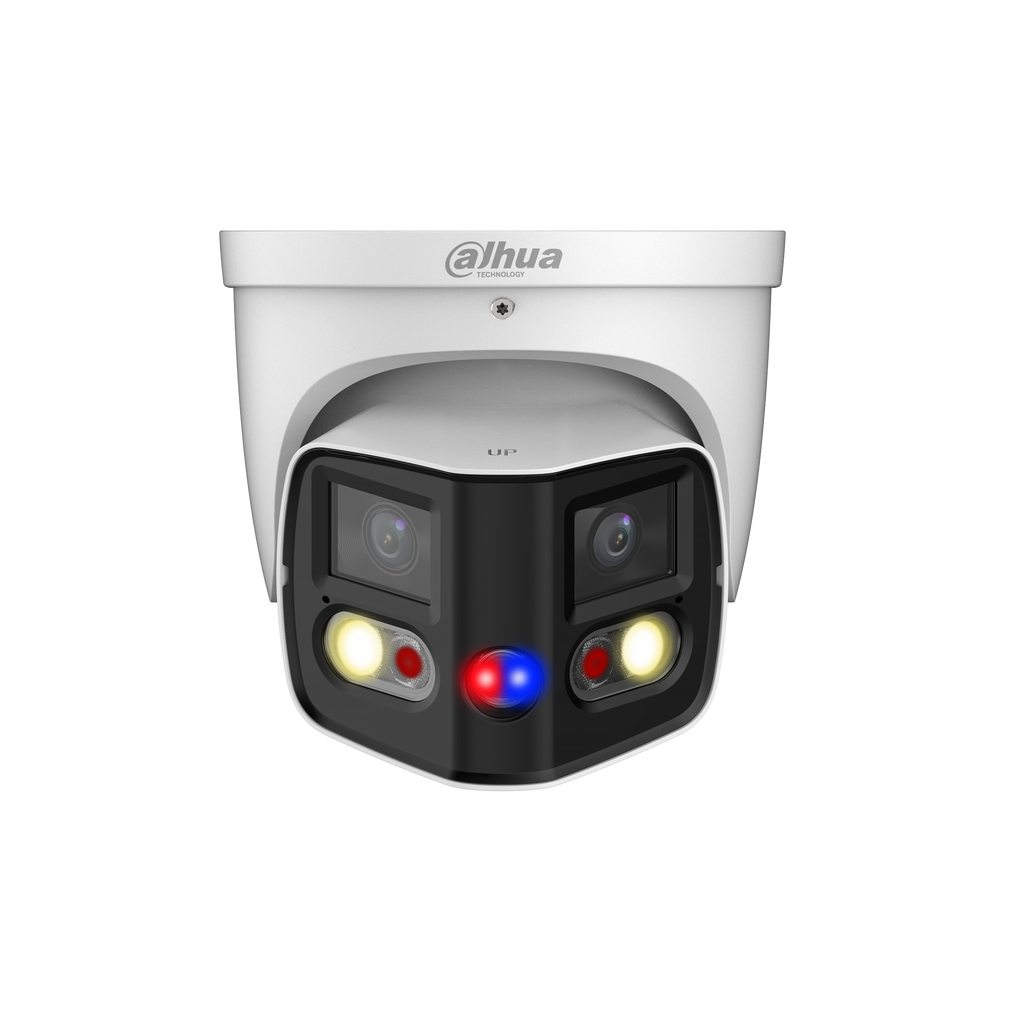

Eyeball IP Blanc
- 8 Mp
- FF 2.8mm
- TioC 2.0
- Panoramique 180°
- IR 25m
- Protection périmétrique
- WizSense
- Micro intégré
- 12V POE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : TIOC 2.0, Panoramique 180 °
- Intelligence Artificielle : WizSense, Protection périmétrique
- Résolution : 8 MP
- Focale Fixe : 2.8 mm
Fiche technique
| Capteur | Dual 1/2.7" CMOS |
|---|---|
| Résolution max. | 4096 (H) × 1860 (V) |
| ROM | 128 MB |
| RAM | 1 GB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | >56 dB |
| Portée de l'éclairage | Up to 25 m (82.02 ft) (IR LED) Up to 20 m (65.62 ft) (Warm light) |
| Contrôle de l'éclairage | Auto; Manual |
| Nombre d'illuminateurs | 2 (IR LED); 2 (Warm light) |
| Réglage angulaire | Pan: 0°–360° Tilt: 0°–77° Rotation: 0°–360° |
| Type d'objectif | Fixed-focal |
| Monture | M12 |
| Focale | 2.8 mm |
| Champ de vision | Horizontal: 180°; Vertical: 86° |
| Ouverture max. | F1.4 |
| Iris | Fixed |
| Distance mini de mise au point | 0.8 m (2.62 ft) |
| Distance DORI | Identify |
| IVS (protection périmétrique) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection |
| SMD (détection humain/véhicule) | SMD 4.0 |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events. |
| Recherche intelligente | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| EPTZ | Enlarge and track the targets of intelligent alarms |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265; AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Fréquence d'images | Main stream: 4096 × 1860@(1–20 fps ) Sub stream: 1200 × 530@(1–20 fps) Third stream: 1920 × 860@(1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Flux | 3 streams |
| Résolutions | 8M (4096 × 1860); 6M (3632 × 1632); 4M (3040 × 1368); 1200 × 530; 1920 × 860; 960 × 432; D1 (704 × 576/704 × 480) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 6 kbps –16384 kbps H.265: 6 kbps –16384 kbps |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Masques de confidentialité | 4 areas |
| Defog | Yes |
| Micro intégré | Yes, built-in dual Mic |
| Built-in speaker | Yes, built-in speaker Max power consumption: 2 W; max sound level at 10 cm: 110 dB * Test results from laboratory |
| Compression audio | G.711a; G.711Mu; PCM; G.726; G.723 |
| Événements d'alarme | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; stay detection; loitering detection; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
| Port réseau | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Sécurité | Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Protocoles réseau | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interopérabilité | ONVIF (Profile S/Profile G/Profile T); CGI |
| Utilisateurs simultanés | 20 (Total bandwidth: 64 M) |
| Stockage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Navigateur | IE: IE 8 and later Chrome Firefox |
| Logiciels de gestion | Smart PSS Lite; DSS; DMSS |
| Application mobile | iOS; Android |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 1 channel in: wet contact, 5 mA 3 V–5 VDC |
| Sortie d'alarme | 1 channel out: wet contact, 300 mA 12 VDC |
| Alimentation | 12 VDC (±30%); PoE (802.3af) |
| Consommation | Basic: 3.95 W (12 VDC); 4.95 W (PoE) Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.7 W (12 VDC); 10.85 W (PoE) |
| Température de fonctionnement | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidité de fonctionnement | ≤95% |
| Température de stockage | –40 °C to +60 °C (–40 °F to +140 °F) |
| Indice de protection | IP67 |
| Casing | Metal |
| Dimensions | Φ122 mm × 135.2 mm (Φ4.80" × 5.32" ) |
| Poids net | 990 g (2.18 lb) |
| Poids brut | 1150 g (2.54 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-PDW3849P-A180-E2-AS-PV-0280B · Marque : Dahua
