Description et caractéristiques

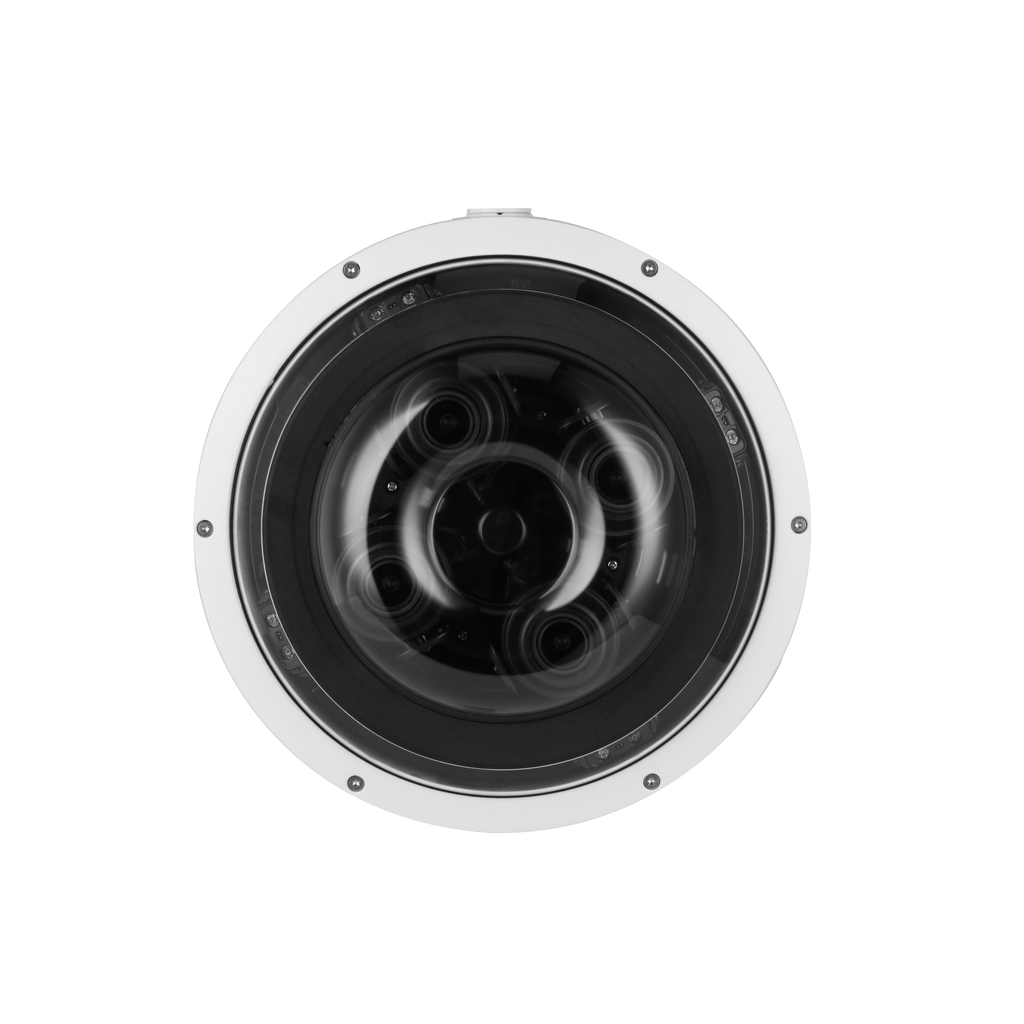

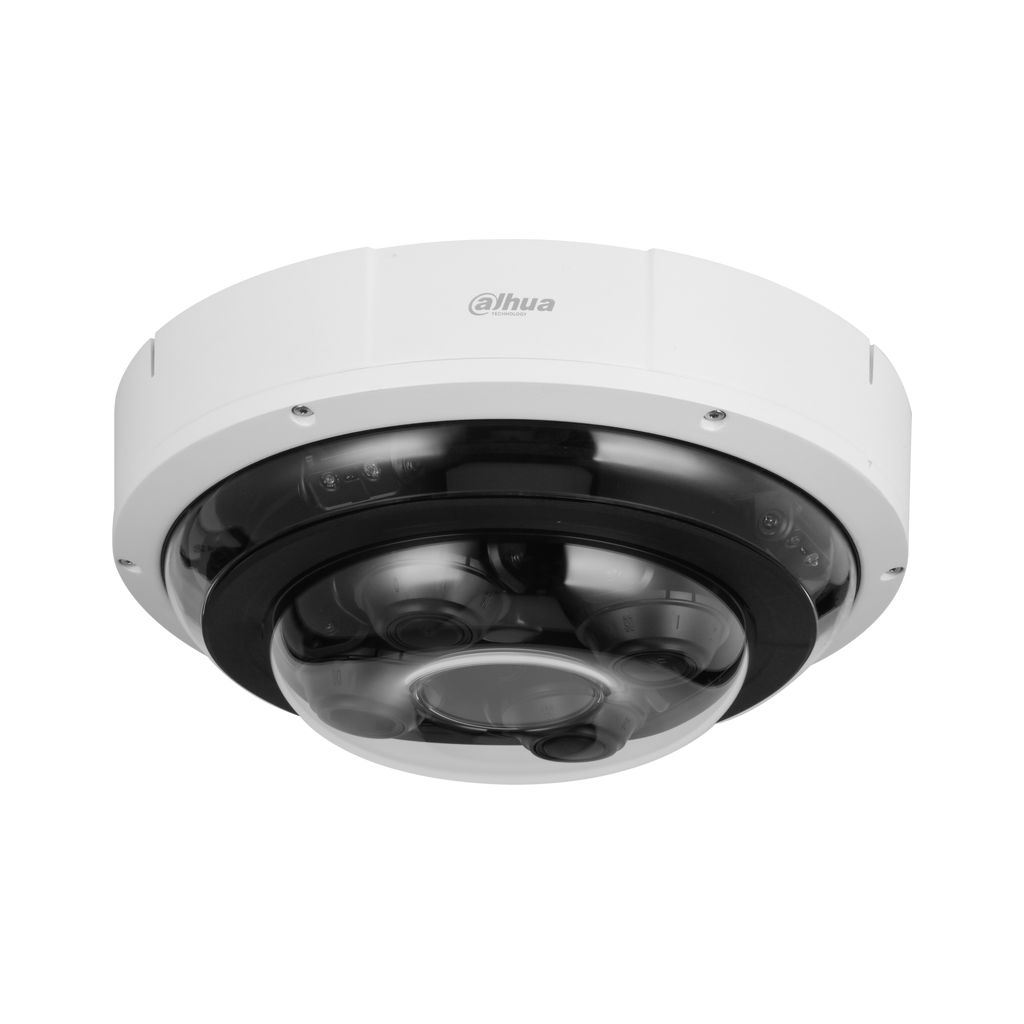

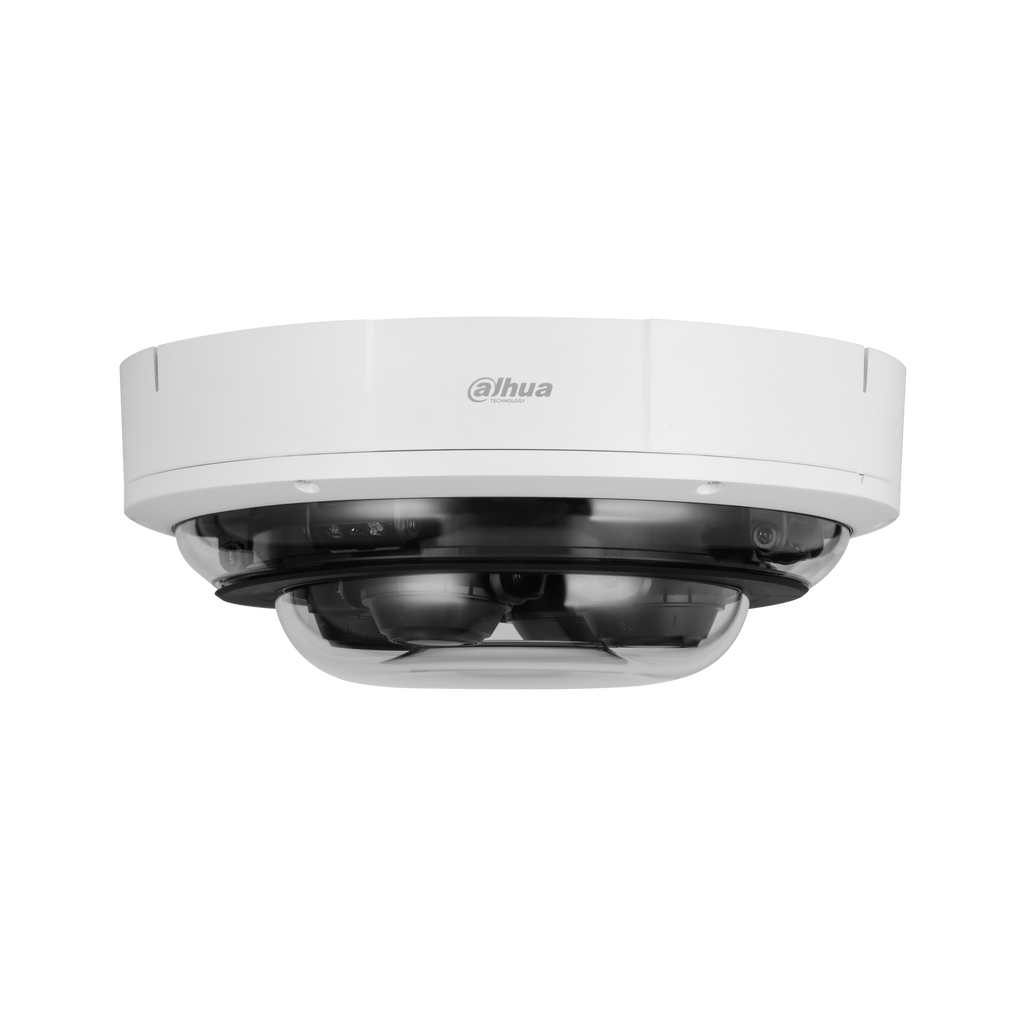

Dôme Panoramique IP
- 4x5 Mégapixels
- Varifocale motorisée 2.8-12mm
- Technologie WizSense (Protection périmétrique )
- IP67 et IK10.
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Panoramique 360 °
- Intelligence Artificielle : WizMind, Protection périmétrique, Reconnaissance faciale
- Résolution : 5 MP
- Varifocale : 2.8 - 12 mm
Fiche technique
| Capteur | 1/2.7" CMOS |
|---|---|
| Résolution max. | 2592 (H) × 1944 (V) |
| ROM | 8 GB |
| RAM | 4 GB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.005 lux@F1.7 (Color,30 IRE); 0.0005 lux@F1.7 (B/W,30 IRE); 0 lux (Illuminator on) |
| Rapport signal/bruit | >56dB |
| Portée de l'éclairage | 30 m (98.43 ft) (IR LED) |
| Contrôle de l'éclairage | Auto;Manual |
| Nombre d'illuminateurs | 8 (IR LED) |
| Plage pan/tilt/rotation | Pan: 0°–360° Tilt: 0°–75° Rotation: 0°–355° |
| Type d'objectif | Motorized vari-focal |
| Monture | φ14 |
| Focale | 2.8 mm–12 mm |
| Ouverture max. | F1.7 |
| Champ de vision | H: 100°–42°; V: 74°–32°; D: 133°–53° |
| Iris | Fixed |
| Distance mini de mise au point | 0.8 m (2.62 ft) |
| Distance DORI | Identify |
| 66 m–140.4 m (216.54 ft–460.63 ft) | 6.6 m–14 m (21.65 ft–45.93 ft) |
| IVS | Abandoned object; missing object |
| IVS (protection périmétrique) | Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection |
| People Counting | Tripwire people counting and people counting in area; generating and exporting report (day/month/year); queue management and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Recherche intelligente | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Flux | 3 streams |
| Résolutions | Single Stream: 5M (2592 × 1944); 2560 × 1440; 3M (2048 × 1536); 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240); Flex Stream: 8M (3296 × 2472); 5M (2592 × 1944); UXGA (1600 × 1200); 1080p (1920 × 1080); 1.3M (1280 × 960); D1 (704 × 576/704 × 480); VGA (640 × 480; CIF (352 × 288/352 × 240) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 32 kbps–17152kbps H.265: 12 kbps–10240 kbps |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto;Manual |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Yes |
| Rotation de l'image | Yes |
| Miroir | Yes |
| Masques de confidentialité | 8 areas |
| Compression audio | PCM; G.711a; G.711Mu; G.726; G.723 |
| Port réseau | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Protocoles réseau | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interopérabilité | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P |
| Utilisateurs simultanés | 20 |
| Stockage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Navigateur | IE: IE9 and later Chrome: Chrome 42 and later Firefox: Firefox 48.0.2 and later |
| Logiciels de gestion | Smart PSS; DSS; DMSS |
| Sécurité | Trusted execution; Digest; security logs; WSSE; Account lockout; syslog; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; generation and importing of X.509 certification |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 3 channels in: 5 mA 3–5 VDC |
| Sortie d'alarme | 2 channels out: 300 mA 12 VDC |
| Alimentation | 12 VDC/PoE+( 802.3at ) |
| Consommation | Basic power consumption: 7.4 W (12 VDC); 9.3W (PoE) Max. power consumption (basic + WDR + IR intensity+ lens switch+ power output): 21.3W (12 VDC); 24.7 W (PoE+) |
| Température de fonctionnement | –30 °C to +60 °C (–22 °F to +140 °F) |
| Humidité de fonctionnement | ≤95% |
| Température de stockage | –30 °C to +60 °C (–22 °F to +140 °F) |
| Indice de protection | IP67; IK10; anti-corrosion protection (optional) |
| Niveau anticorrosion | Moderate Protection(Only supported by -ATC model) *The products feature high-grade anti-corrosion protection, making them well-suited for environments with standard corrosion resistance requirements. They perform reliably from 2 km (1.24 mi) and above in coastal areas and in locations prone to acid rain exposure. |
| Matériau du boîtier | Metal + plastic |
| Dimensions | 111.3 mm × Φ286.1 mm (4.38"× Φ11.26") |
| Poids net | 2.75 kg (6.06 lb) |
| Poids brut | 4.5 kg (9.92 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-PDBW82041P-B360-E4-2812-S2 · Marque : Dahua
