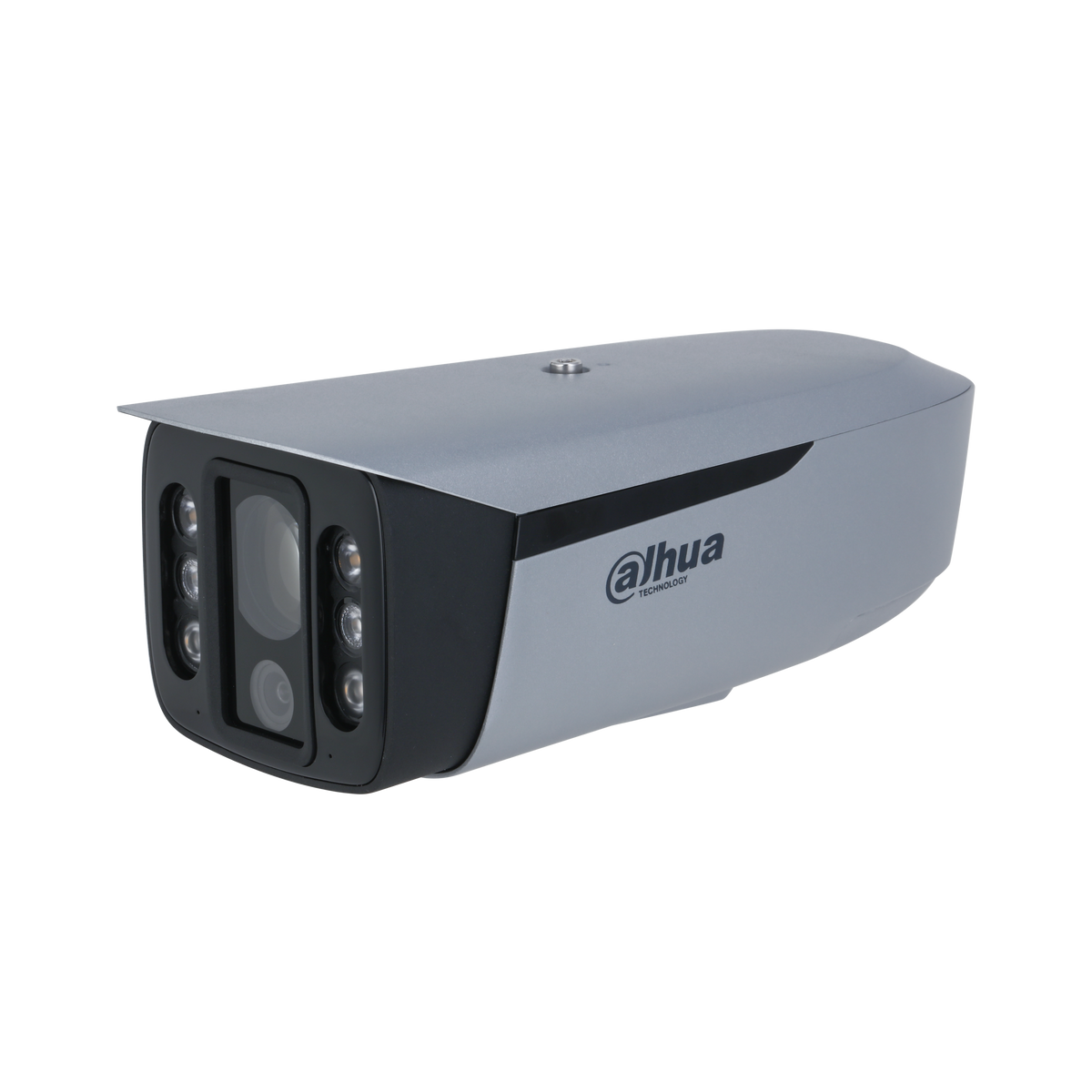

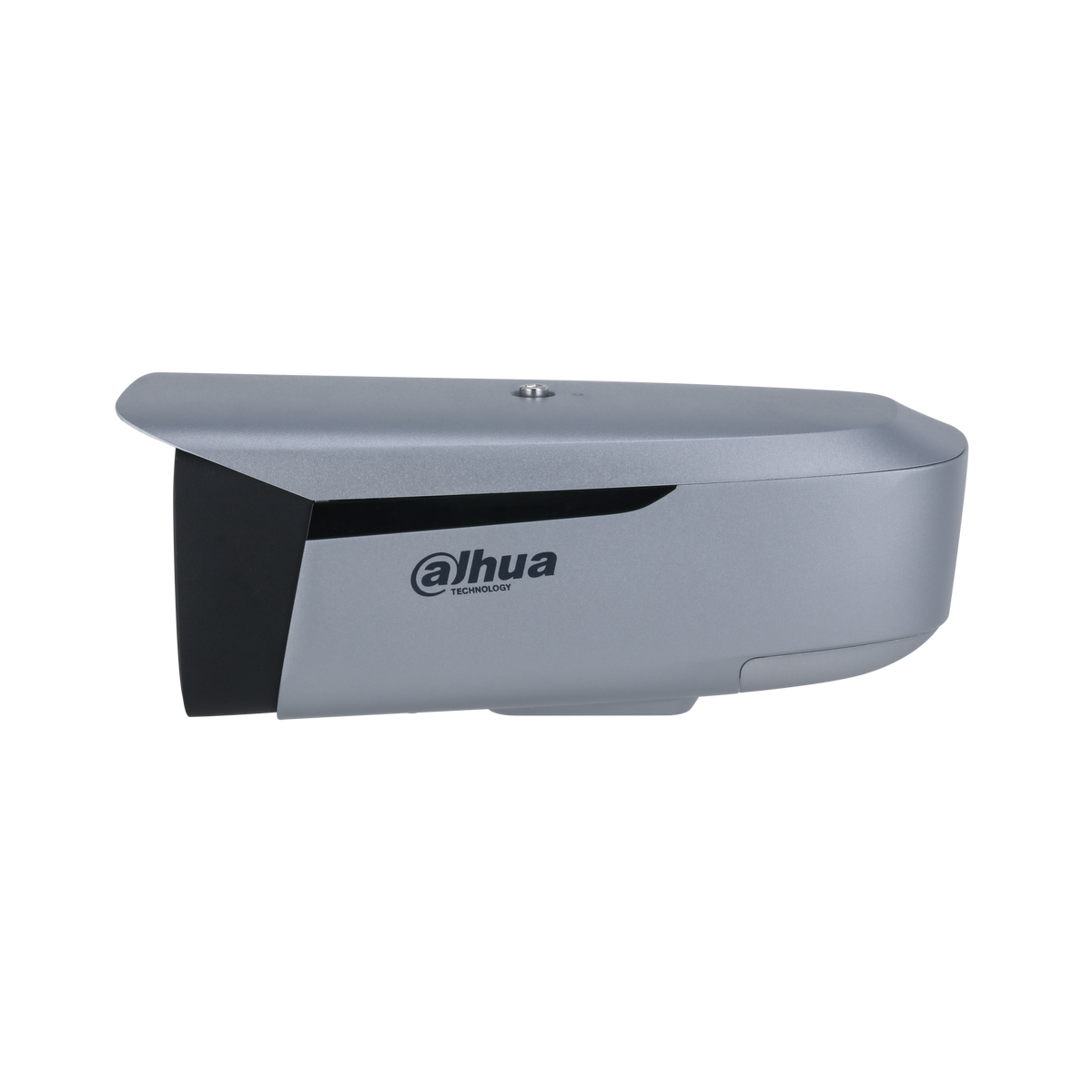

Description et caractéristiques
Tube IP gris
- 8 MP
- FF 3.6mm
- VF motorisée 8-56mm
- IR 120m
- IA WizSense
- Starlight
- Protection périmétrique
- Gestion file d'attente
- Comptage
- HP
- IP67
- POE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight
- Intelligence Artificielle : WizMind, Protection périmétrique, Gestion de file d'attente, Comptage de personne
- Résolution : 8 MP
- Focale Fixe : 3.6 mm
Fiche technique
| Capteur | Channel 1: 1/1.7" CMOS Channel 2: 1/2.7" CMOS |
|---|---|
| Résolution max. | 3840 (H) × 2160 (V) |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | Channel 1: 0.0015 lux @F1.2 (Color, 30IRE) 0.0003 lux @F1.2 (B/W, 30IRE) 0 lux (Illuminator on) Channel 2: 0.002 lux @F1.0 (Color, 30IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | > 56 dB |
| Portée de l'éclairage | Channel 1: 120 m (393.70 ft) (IR)80 m (262.47 ft) (warm light) Channel 2: 20 m (65.62 ft) (warm light) |
| Nombre d'illuminateurs | Channel 1: 4 (Mixed (IR + warm) light) Channel 2: 2 (warm LED) |
| Type d'objectif | Channel 1: Motorized vari-focal Channel 2: Fixed-focal |
| Monture | Channel 1: Module Channel 2: M12 |
| Focale | Channel 1: 8 mm–56 mm Channel 2: 3.6 mm |
| Ouverture max. | Channel 1: F1.2 Channel 2: F1.0 |
| Champ de vision | Channel 1: Horizontal: 40° (W)–9° (T) Vertical: 22° (W)–5° (T) Diagonal: 46° (W)–10° (T) Channel 2: Horizontal: 81° Vertical: 43° Diagonal: 95° |
| Distance mini de mise au point | Channel 1: W: 1 m (3.28 ft); T: 2 m (6.56 ft) Channel 2: 2 m (6.56 ft) |
| Distance DORI | Identify |
| W | Channel 1: 8 mm–56mm 21.5 m (70.54 ft) Channel 2: 3.6 mm 8 m (26.25 ft) |
| T | Channel 1: 8 mm–56mm 95 m (311.68 ft) |
| IVS | Abandoned object; missing object |
| IVS (protection périmétrique) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| People Counting | Tripwire people counting, people counting in area and queue management, generating and exporting report (day/month/year); 4 rules can be set for tripwire, people counting in area and queue management |
| Recherche intelligente | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Résolutions | Main Stream: 3840 × 2160; 3072 × 2048; 3072 × 1728; 2592 × 1944; 2688 × 1520 (default); 2304 × 1296; 1920 × 1080; 1280 × 960; 1280 × 720 Sub Stream 1: 704 × 576 (default); 640 × 480; 352 × 288 Sub Stream 2: 1920 × 1080; 1280 × 720; 704 × 576 (default); 640 × 480 |
| Débit vidéo | H.264: 32 kbps–8192 kbps H.265: 32 kbps–8192 kbps |
| Jour/Nuit | Channel 1: Auto(ICR)/Color/B/W Channel 2: Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Réduction du bruit | 3D NR |
| Région d'intérêt (RoI) | 4 areas |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Yes |
| Rotation de l'image | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.) |
| Masques de confidentialité | 8 areas |
| Compression audio | PCM; G.711A; G.711Mu; G.726; MPEG2-Layer2; G.722.1; G.729; G.723 |
| Port réseau | RJ-45 (10/100/1000 Base-T) |
| Protocoles réseau | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour |
| Interopérabilité | ONVIF (Profile S/Profile G/Profile T); CGI |
| Utilisateurs simultanés | 20 (Total bandwidth: 240 M) |
| Stockage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Navigateur | Plug-in: IE: IE 9 and later Chrome: Chrome 86 and earlier Firefox: Firefox 86 and earlier Without Plug-in: Edge Chrome: Chrome 86 and later Firefox: Firefox 86 and later |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Entrée audio | 2 channels (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 3 channels in: 5 mA 3 V–5 VDC |
| Sortie d'alarme | 2 channels out: 300 mA 12 VDC |
| Alimentation | 12 VDC/PoE |
| Consommation | Basic: 5.5 W (12 VDC); 6.4 W (PoE) Max. (ICR + vari-focal + IR intensity): 19.2 W (12 VDC); 24.6 W (PoE) |
| Température de fonctionnement | –30 °C to +60 °C (–22 °F to 140 °F) |
| Humidité de fonctionnement | ≤ 95% |
| Température de stockage | –40 °C to +70 °C (–40 °F to +158 °F) |
| Indice de protection | IP67 |
| Casing | Metal + plastic |
| Dimensions | 283.1 mm × 123.2 mm × 109.5 mm (11.14" × 4.85" × 4.31") (L × W × H) |
| Poids net | 1,905 g (4.20 lb) |
| Poids brut | 2,185 g (4.82 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-MFW7842K1P-Z-0856-T20-0360B · Marque : Dahua
