Description et caractéristiques

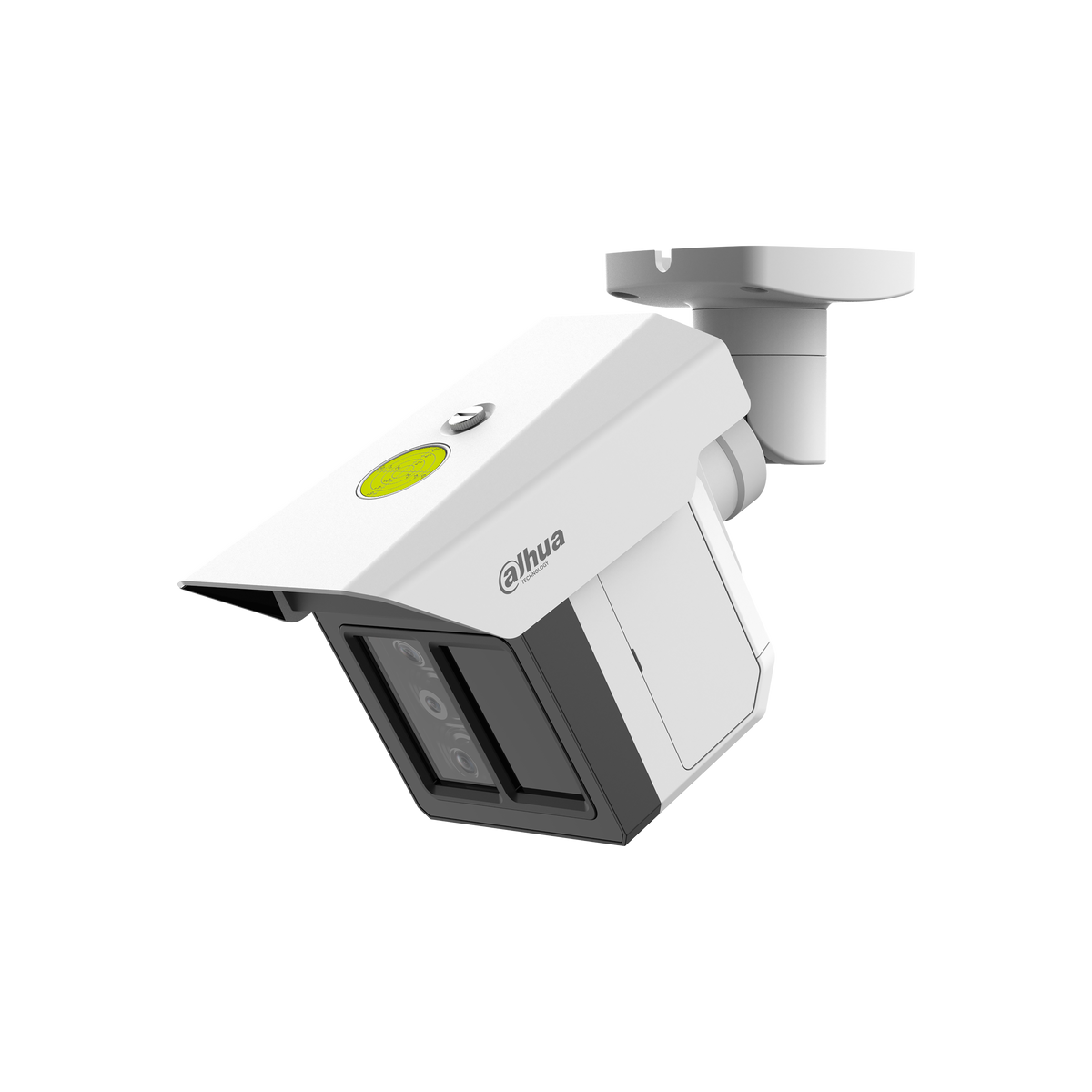

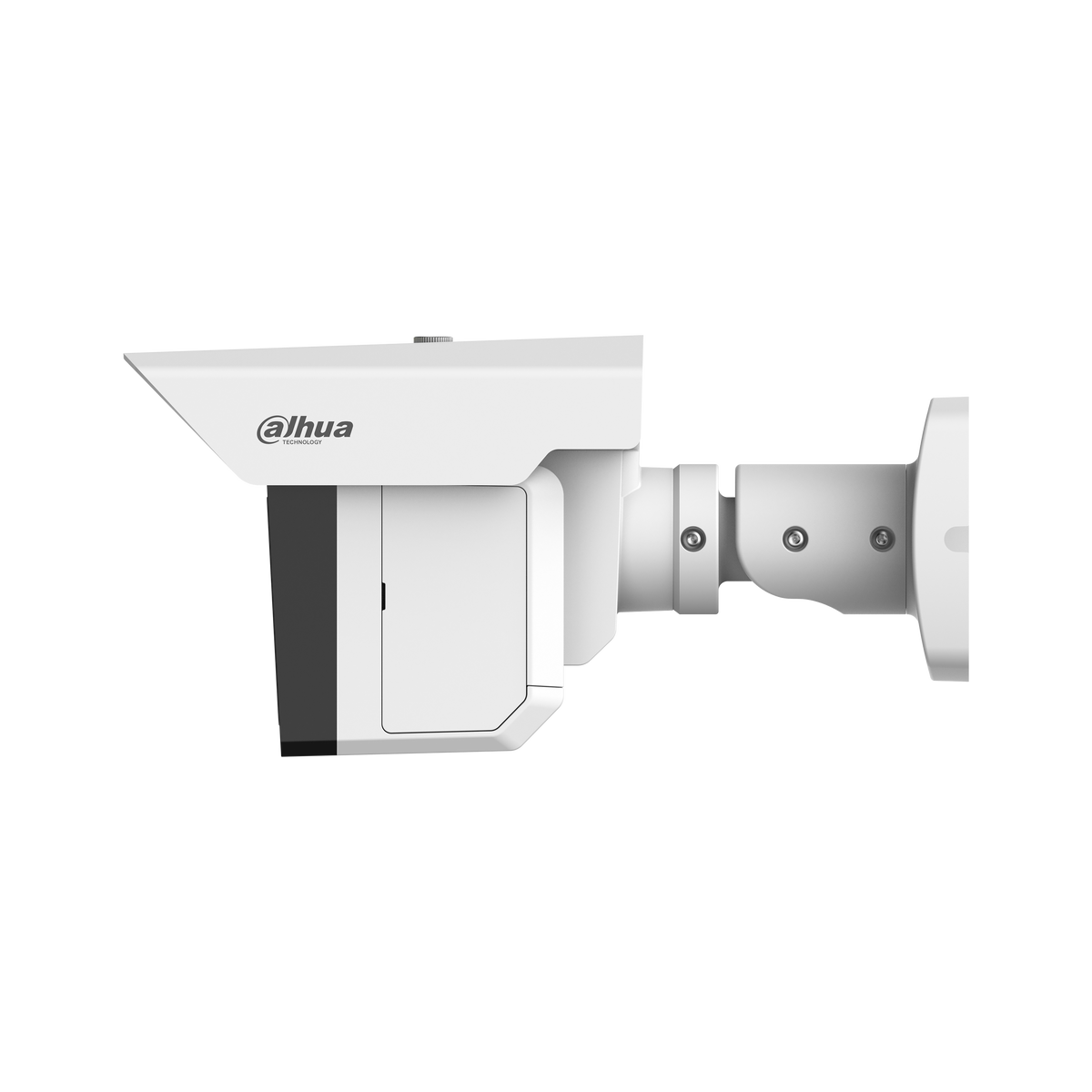

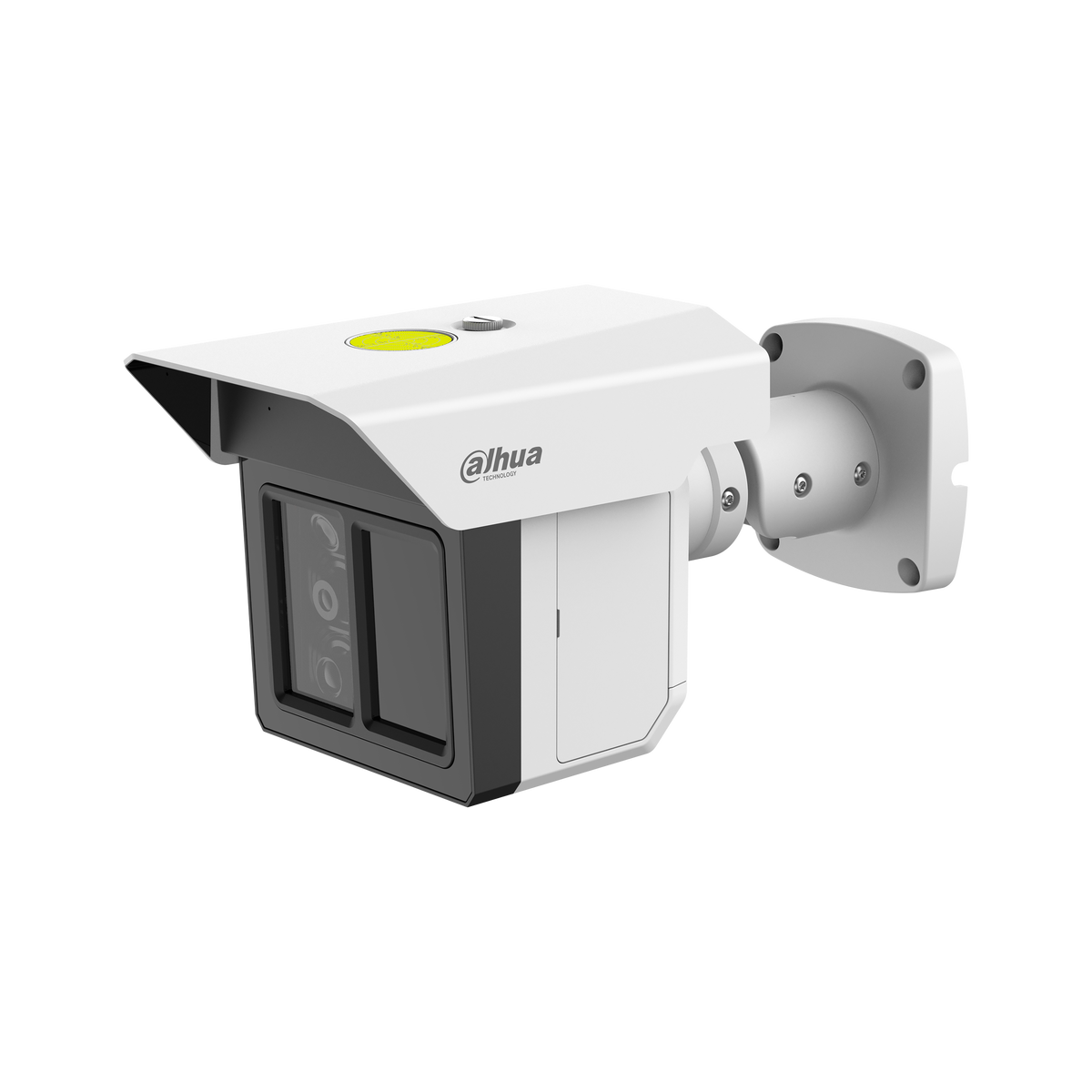

Tube Micro-PTZ IP blanc
- 3 × 2 MP
- Multicapteurs FF 36 mm / 12 mm / 25 mm IR 100 m
- WizMind
- Protection périmétrique
- Entrée/Sortie audio
- Micro/Haut-parleurs intégrés
- IP67
- IK10
- 12V POE+ ePOE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Multicapteurs
- Intelligence Artificielle : WizMind, Protection périmétrique
- Résolution : 3 x 2 MP
- Focale Fixe : 3.6 mm, 12 mm, 25 mm
Fiche technique
| Capteur | Channel 1-3: 1/2.8" CMOS |
|---|---|
| Résolution max. | Channel 1-3: 1920 (H) × 1080 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | Channel 1: 0.0007 lux@F1.6 (Color, 30 IRE) 0.0004 lux@F1.6 (B/W,30 IRE) 0 lux (Illuminator on) Channel 2: 0.004 lux@F2.0 (Color, 30 IRE) 0.0005 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) Channel 3: 0.008 lux@F2.8 (Color, 30 IRE) 0.0008 lux@F2.8 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | >56 dB |
| Portée de l'éclairage | Up to 120 m (393.70 ft) (IR) |
| Contrôle de l'éclairage | Auto;Manual |
| Nombre d'illuminateurs | 8 (IR LED) |
| Réglage angulaire | Triaxial adjustment: Pan: 0°–360° Tilt: 0°–70° Rotation: 0°–360° Micro PTZ: Tilt: -5°–10° |
| Gradienter | The horizontal gradient is visualized, simplifying installation. |
| Type d'objectif | Fixed-focal |
| Monture | M12 |
| Focale | Channel 1: 3.6 mm Channel 2: 12 mm Channel 3: 25 mm |
| Ouverture max. | Channel 1: F1.6 Channel 2: F2.0 Channel 3: F2.8 |
| Champ de vision | Channel1: D: 100.4°; H: 85.9°; V: 46.7° Channel2: D: 29.5°; H: 25.7°; V: 14.4° Channel3: D: 14.9°; H: 13°; V: 7.4° |
| Iris | Channel 1-3: Fixed |
| Distance mini de mise au point | Channel 1: 1.1 m (3.61 ft) Channel 2: 8.6 m (28.22 ft) Channel 3: 19.6 m (64.30 ft) |
| Distance DORI | Identify |
| Channel 1 | 5.4 m (17.72 ft) |
| Channel 2 | 17.2 m (56.43 ft) |
| Channel 3 | 33.1 m (108.60 ft) |
| Intelligence Notes | Channel 1–3: Perimeter protection *Alarms are output through channel 1. |
| IVS (protection périmétrique) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) The maximum detection distance in the daytime can reach up to 140 meters. *Result based on standard setup and test environment |
| Recherche intelligente | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| Fréquence d'images | Channel 1-3: Main stream: 1920 × 1080@(1–25 fps) sub stream: 704 × 576@(1–25 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Flux | 2 streams |
| Résolutions | Channel 1-3: 1080p (1920 × 1080) |
| Contrôle du débit | VBR;CBR |
| Débit vidéo | Channel 1-3: H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| Scene Self-adaptation (SSA) | Yes |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto/Manual |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Illumination By Area | Yes, 6 areas |
| Éclairage intelligent | Yes |
| Defog | Yes |
| Masques de confidentialité | 8 areas |
| Micro intégré | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Compression audio | G.711a; G.711Mu; PCM; G.726; G.723 |
| Événements d'alarme | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; security exception; scene changing; audio detection; voltage detection; external alarm |
| Port réseau | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocoles réseau | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour |
| Cyber Security | Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Interopérabilité | ONVIF (Profle S & Profle G & Profle T & Profle M); CGI |
| Utilisateurs simultanés | 20 (Total bandwidth: 80 M) |
| Stockage | FTP; SFTP; Micro SD card (support max. 1 TB); NAS |
| Navigateur | IE: IE 9 and later Edge: Edge 79 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Logiciels de gestion | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 2 channels in: wet contact, 5 mA 3–5 VDC |
| Sortie d'alarme | 2 channels out: wet contact, 300 mA 12 VDC |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Alimentation | 12 VDC (±30%); PoE+(802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Consommation | Basic: 4.3 W (12 VDC); 5.5 W (PoE) Max.: 22.1 W (12 VDC); 23.6 W (PoE) (intelligence on + IR on + speaker on) |
| Température de fonctionnement | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidité de fonctionnement | ≤95% (RH), non-condensing |
| Température de stockage | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidité de stockage | ≤95% (RH), non-condensing |
| Indice de protection | IP67; IK10 |
| Matériau du boîtier | Metal |
| Dimensions | 278.6 mm × 124.0 mm × 140.4 mm (10.97" × 4.88" × 5.53") (L × W × H) |
| Poids net | 2.4 kg (5.29 lb) |
| Poids brut | 3.06 kg (6.75 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-MFW5241T2-E3-ASE · Marque : Dahua
