Description et caractéristiques

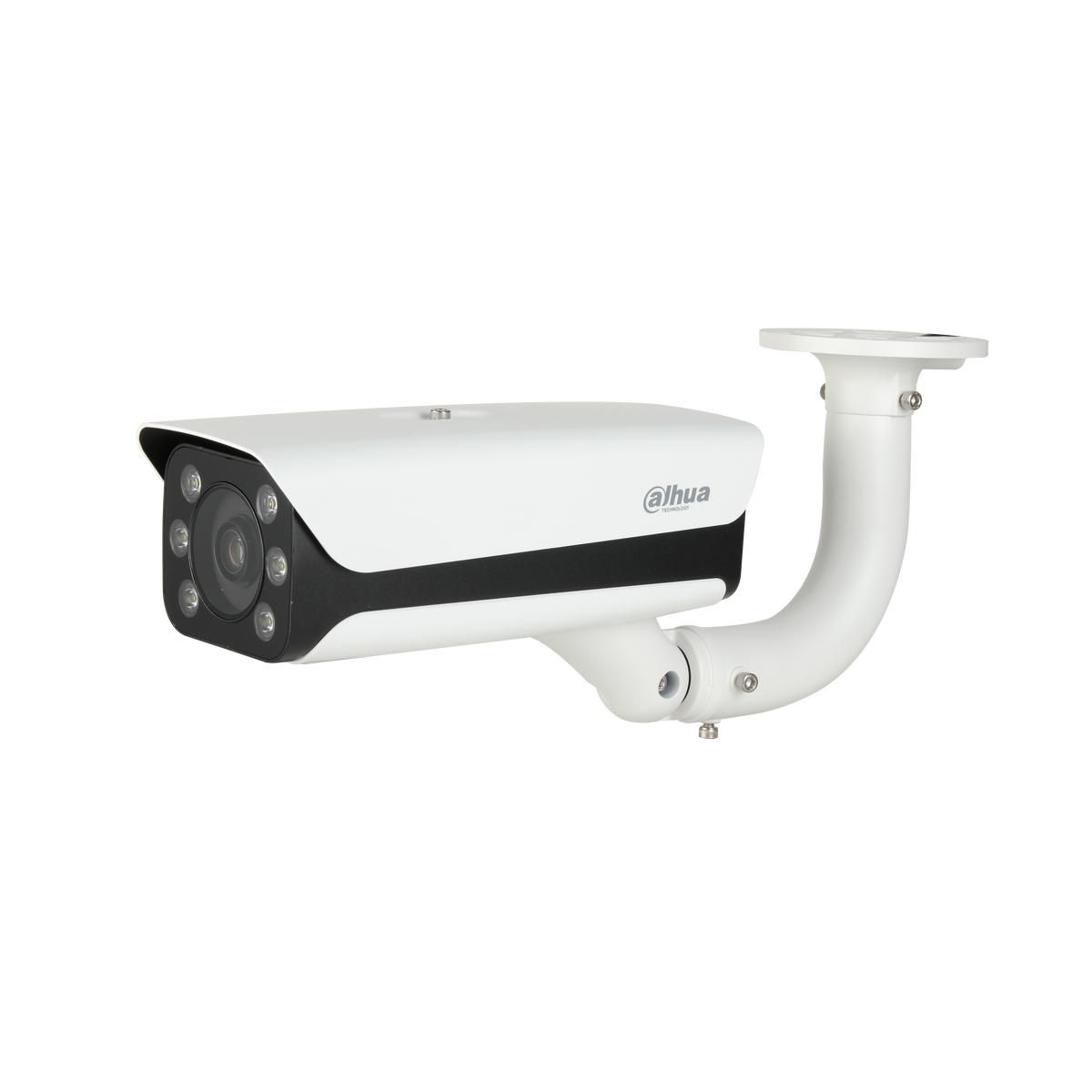

Tube IP blanc
- 2 MP
- VF motorisée 8-32mm Zoomx4 LED 10 m
- Starlight
- Smart codec
- Détection de visage
- Reconnaissance faciale
- IP67
- IK10
- 12V POE+
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight
- Intelligence Artificielle : Détection de visage, Reconnaissance faciale
- Résolution : 2 MP
- Varifocale : 8 - 32 mm
Fiche technique
| Capteur | 1/1.8” 2Megapixel progressive scan CMOS |
|---|---|
| Effective Pixels | 1920(H)x1080(V) |
| RAM/ROM | 2048MB/4096MB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual, 1/3~1/100000s |
| Minimum Illumination | 0.002Lux/F1.53( Color,1/3s,30IRE) 0.01Lux/F1.53( Color,1/30s,30IRE) 0Lux/F1.53(LED on) |
| Rapport signal/bruit | More than 50dB |
| LED Distance | Distance up to 10m(33ft) |
| LED On/Off Control | Auto/Manual |
| LEDs | 6 |
| Type d'objectif | Motorized |
| Mount Type | Board-in |
| Focale | 8~32mm motorized |
| Ouverture max. | F1.53 |
| Angle of View | H: 40°~12.9° V : 22 °~7.2° |
| Zoom optique | 4x |
| Focus Control | Motorized |
| Distance mini de mise au point | 3m(9.84ft) |
| Distance DORI | Identify |
| W | 10m(32ft) |
| T | 32m(105ft) |
| Plage pan/tilt/rotation | Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚ |
| Face Capture | Support face image capture |
| Face Attributes | Support 6 kinds of face attributes extraction: Age, Gender, Expression(Jolly, Calm, Surprise, Sad, Rage), Glasses, Mouth Mask, Moustache & Beard |
| Face Recognition | Support face images matching, support up to 10000 face images and 5 image libraries management; |
| Event Trigger | Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly |
| General Intelligence | Tripwire, Intrusion, Object Abandoned/Missing, People Counting, Heat Map |
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
| Smart Codec | Support H.265+/H.264+ |
| Flux | 3 Streams |
| Résolutions | 1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ VGA(640x480) |
| Frame Rate | Main Stream: 1080P(1~50/60fps) |
| Contrôle du débit | CBR/VBR |
| Bit Rate | H.264: 24~ 10240Kbps H.265: 14~ 6144Kbps |
| Jour/Nuit | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / WDR(120dB)/ SSA |
| Balance des blancs | Auto/Manual |
| Contrôle du gain | Auto/Manual |
| Réduction du bruit | 3D DNR |
| Détection de mouvement | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic Image Stabilization (EIS) | Support |
| Smart IR | N/A |
| Defog | Support |
| Zoom numérique | N/A |
| Flip | 0°/90°/180°/270° |
| Miroir | Off / On |
| Masques de confidentialité | Off / On (4 Area, Rectangle) |
| Ethernet | RJ-45 (100/1000Base-T) |
| Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S NMP;TLS |
| Interopérabilité | ONVIF Profile S&G, API |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users/20 Users |
| Edge Storage | NAS Local PC for instant recording Micro SD card 128GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Logiciels de gestion | Smart PSS, DSS, DMSS |
| Smart Phone | IOS, Android |
| Certifications | CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
| Video Interface | 1 port(BNC,1Vp-p,75Ω ) |
| Audio Interface | 1/1 channel In/Out |
| RS485 | 1 port |
| Alarm | 3 channel In: 5mA 5VDC 2 channel Out: 1A 30VDC / 0.5A 50VAC |
| Power Out | 165mA 12VDC |
| Alimentation | DC12V, PoE+(802.3at)(Class 4) |
| Consommation | DC12V:5W 20W(IR on) PoE:5W 21W(IR on) |
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Storage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Casing | Metal |
| Dimensions | 457mm*124.3mm*108mm(18 ” ×4.89 ” ×4.25 ” ) |
| Poids net | 1.87Kg (4.12lb) |
| Poids brut | 3.43Kg (7.56lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HFW8242E-Z4FR-IRA-LED · Marque : Dahua
