Description et caractéristiques

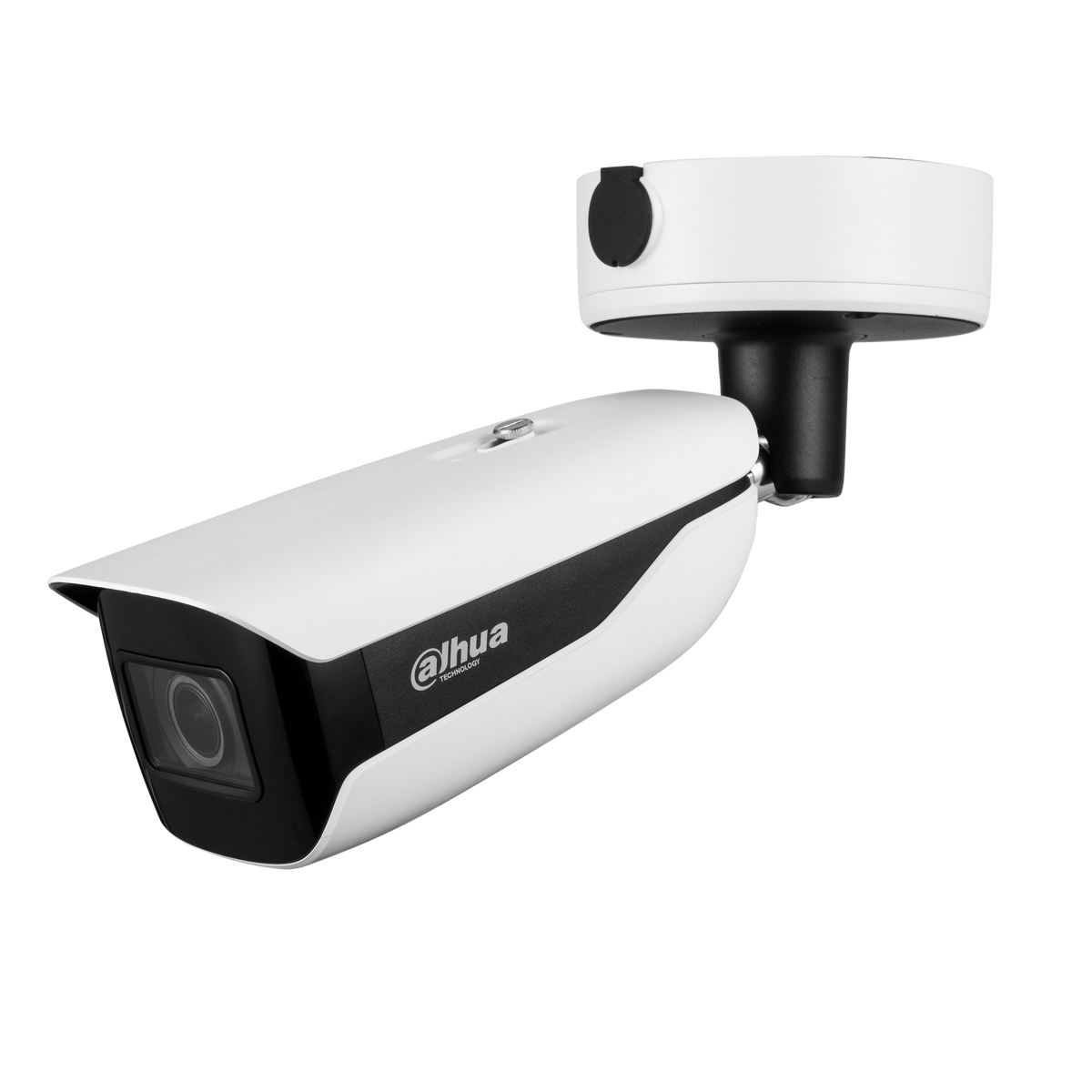

Tube IP blanc
- 4 Mp
- VF Motorisée 8-32 mm
- IR 120 m
- IA WizMind
- Starlight
- Protection périmétrique
- Comptage
- Anti-corrosion
- IP67
- IK10
- 24/12V
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight
- Intelligence Artificielle : WizMind, Protection périmétrique, Reconnaissance faciale, Comptage de personne
- Résolution : 4 MP
- Varifocale : 8 - 32 mm
Fiche technique
| Capteur | 1/1.8" CMOS |
|---|---|
| Résolution max. | 2688 (H) × 1520 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.001 lux@F1.6 (Color, 30 IRE) 0.0002 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | >56 dB |
| Portée de l'éclairage | 120 m (393.70 ft) |
| Contrôle de l'éclairage | Auto; Manual; Zoomprio |
| Nombre d'illuminateurs | 4 (IR LED) |
| Plage pan/tilt/rotation | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Type d'objectif | Motorized vari-focal |
| Monture | Module interface |
| Focale | 8-32 mm |
| Ouverture max. | F1.6 (Constant) |
| Champ de vision | Horizontal: 41° (W)–15° (T) Vertical: 22° (W)–9° (T) Diagonal: 48° (W)–18° (T) |
| Iris | Auto; P-iris |
| Distance mini de mise au point | 1.0 m (3.28 ft) |
| Distance DORI | Identify |
| W | 16 m (52.49 ft) |
| T | 40.7 m (133.53 ft) |
| IVS | Abandoned object; missing object |
| IVS (protection périmétrique) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| People Counting | Tripwire people counting and people counting in area; generating and exporting report (day/month/year); queue management and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Recherche intelligente | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Compression vidéo | H.265; H.264; H.264H; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Fréquence d'images | Main Stream: 2688 × 1520 (1–50/60 fps) Sub stream: 704 × 576 (1–25 fps); 704 × 480 (1–30 fps) Third stream: 1920 × 1080 (1–25/30 fps) Fourth stream: 1920 × 1080 (1–25/30 fps) Fifth stream: 704 × 576 (1–25 fps);704 × 480 (1–30 fps) |
| Flux | 5 streams |
| Résolutions | 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 32 kbps–16384 kbps H.265: 12 kbps–9984 kbps |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation (SSA) | Yes |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto; Manual |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Éclairage intelligent | Yes |
| Defog | Yes |
| Rotation de l'image | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Miroir | Yes |
| Masques de confidentialité | 4 areas |
| Compression audio | PCM; G.711A; G.711Mu; G.726; G.723 |
| Port réseau | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Protocoles réseau | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interopérabilité | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P |
| Utilisateurs simultanés | 20 (Total bandwidth: 80 M) |
| Stockage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Navigateur | IE: IE9 and later Chrome: Chrome 42 and later Firefox: Firefox 48.0.2 and later |
| Logiciels de gestion | Smart PSS; DSS; DMSS |
| Application mobile | iOS; Android |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14; UL 50E NEMA Type 4X (optional) |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 3 channels in: 5 mA 3 V–5 VDC |
| Sortie d'alarme | 2 channels out: 1,000 mA 30 VDC/500 mA 50 VDC |
| Alimentation | 12 VDC/24 VAC/PoE+ (802.3at) |
| Consommation | Basic power consumption: 5.11 W (12 VDC); 6.82 W (24 VAC); 7.62 W (PoE) Max. power consumption (Max. stream + intelligent function + IR LED + focus): 16.8 W (12 VDC); 20.7 W (24 VAC); 21.3 W (PoE) Heat power consumption: 3.3 W (12 VDC); 5.5 W (24 VAC); 5.5 W (PoE) |
| Operating Conditions | –40 °C to +65 °C (–40 °F to +149 °F)/Less than 95% RH |
| Storage conditions | –40 °C to +65 °C (–40 °F to +149 °F) |
| Protection Grade | IP67, IK10, Anti-Corrosion Protection: NEMA 4X (optional) |
| Casing | Metal + plastic |
| Dimensions | 340.1 mm × 108.5 mm × 92.9 mm (13.39" × 4.27" × 3.66") (L × W × H) |
| Poids net | 1.54 kg (3.40 lb) |
| Poids brut | 2.44 kg (5.38 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HFW7442HP-Z-0832-DC12AC24V-S2 · Marque : Dahua
