Description et caractéristiques

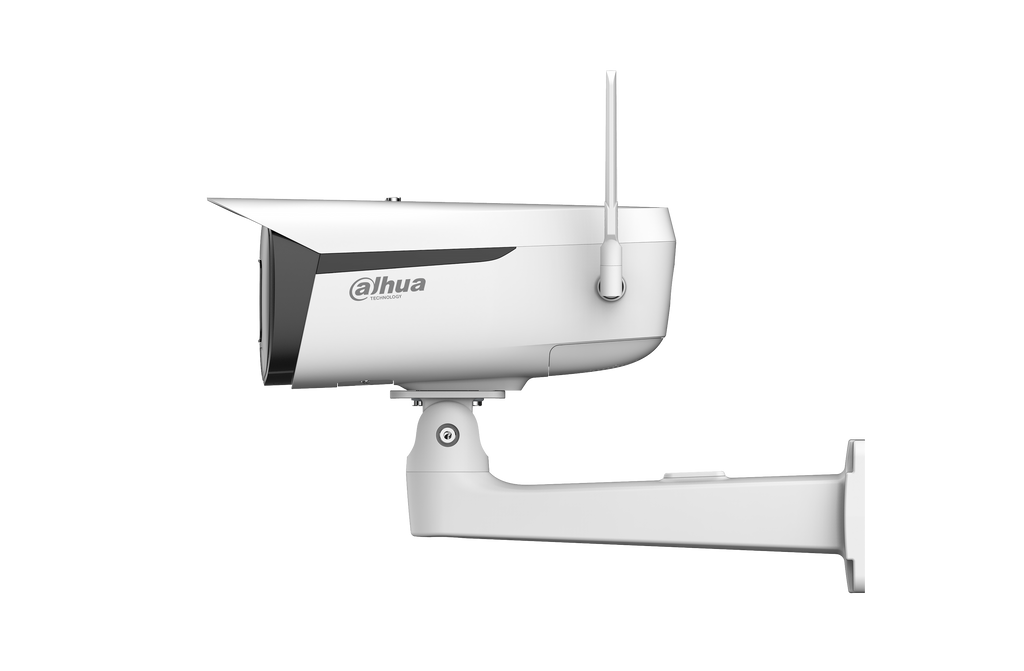

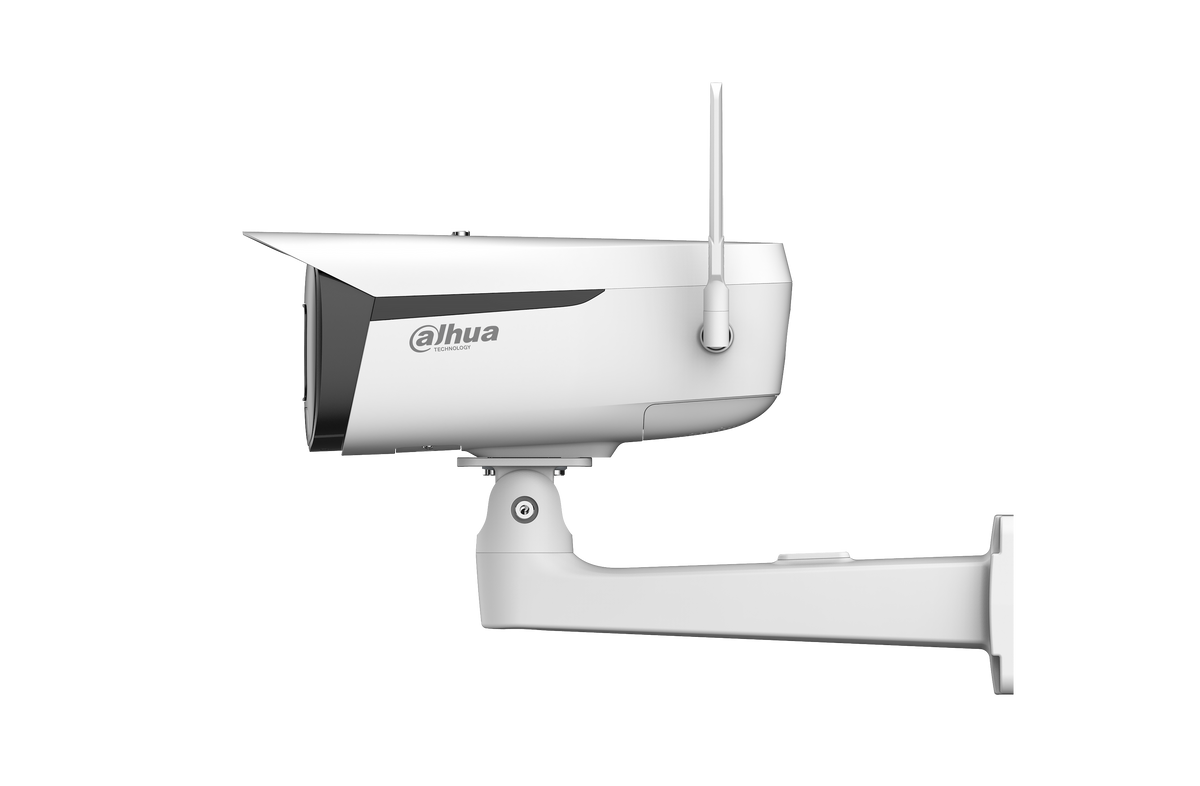

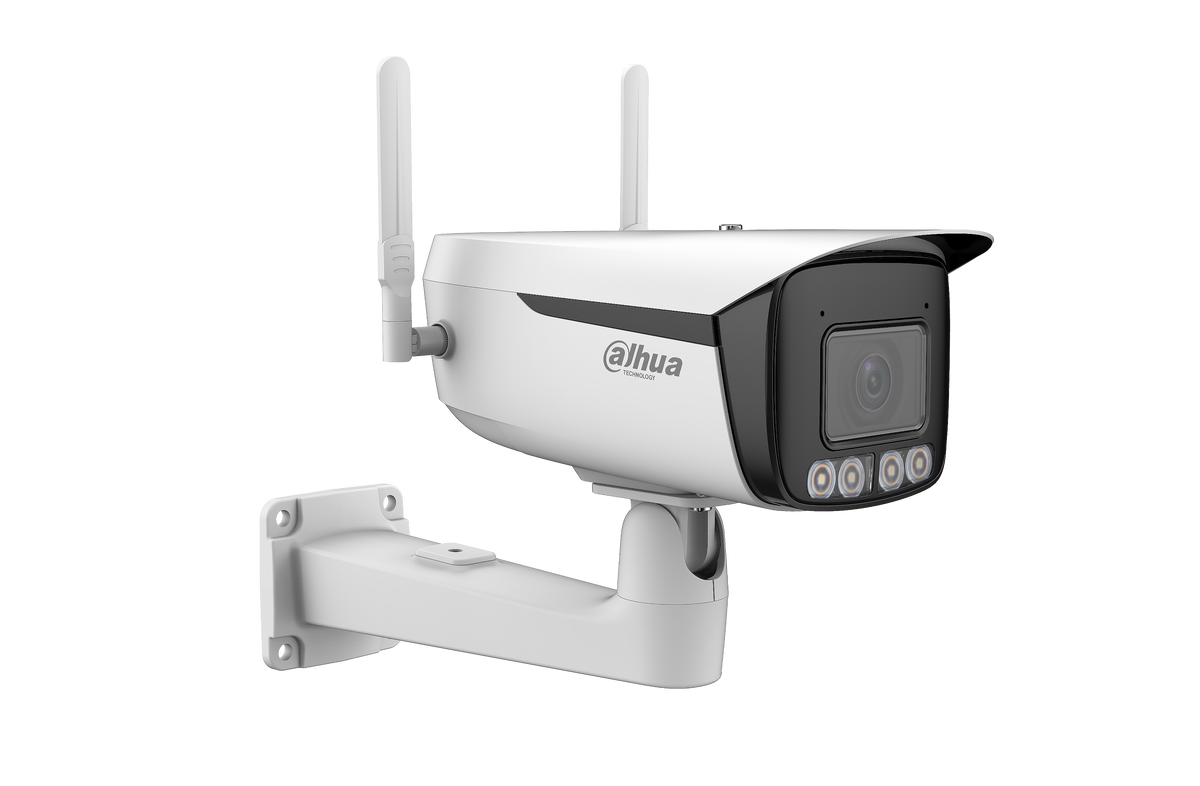

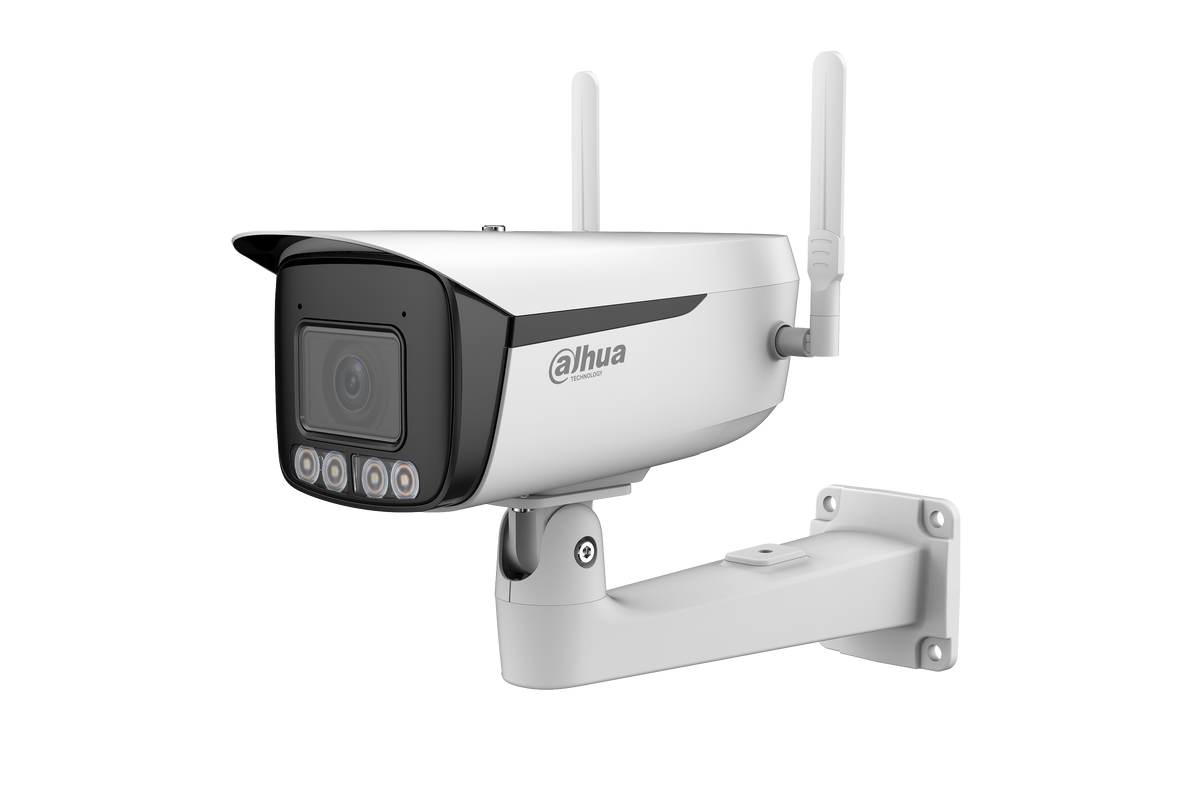

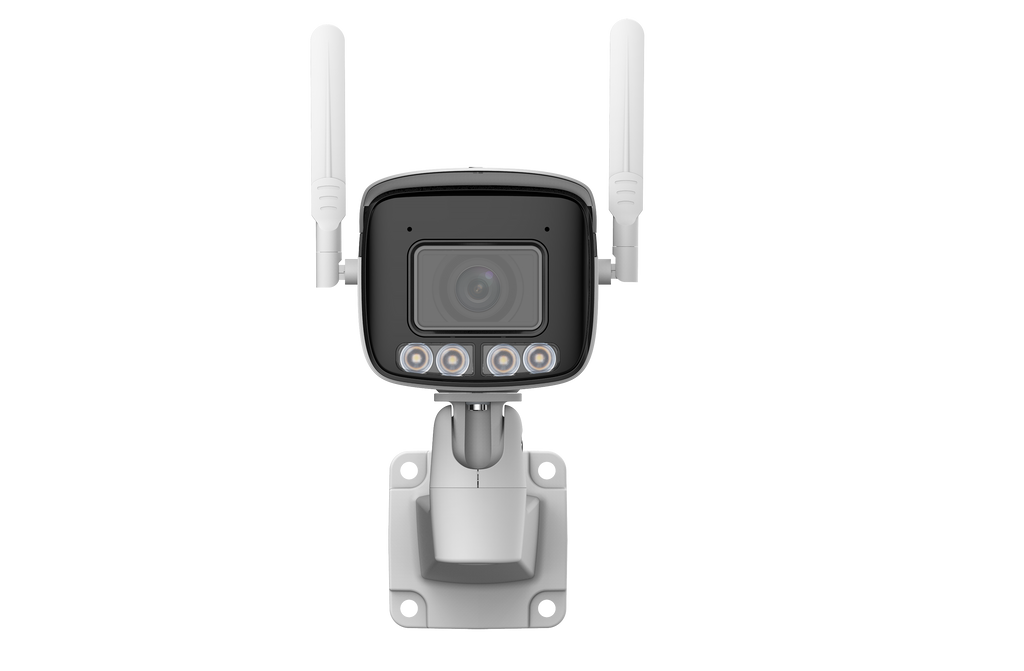

Tube IP blanc
- 8 Mp
- VF motorisée 8-32 mm
- IR 60m
- IA WizMind
- Solution 5G
- Protection périmétrique
- Comptage
- Micro
- haut-parleurs
- IP67
- 12V
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Solution 5G
- Intelligence Artificielle : WizMind, Protection périmétrique, Comptage de personne
- Résolution : 8 MP
- Varifocale : 8 - 32 mm
Fiche technique
| Capteur | 1/1.8" CMOS |
|---|---|
| Résolution max. | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.005 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | >56 dB |
| Portée de l'éclairage | Up to 120 m (393.70 ft) (IR) Up to 60 m (196.85 ft) (Warm light) |
| Contrôle de l'éclairage | Auto; Zoomprio; Manual |
| Nombre d'illuminateurs | 4 (IR LED); 4 (Warm light) |
| Type d'objectif | Motorized vari-focal |
| Monture | Module |
| Focale | 8 mm–32 mm |
| Ouverture max. | F1.6 |
| Champ de vision | H: 42°–14.9° V: 23.3°–8.6° D: 48.5°–16.9° |
| Iris | Auto |
| Distance mini de mise au point | 3 m (9.84 ft) |
| Distance DORI | Identify |
| W | 21.3 m (69.89 ft) |
| T | 57.28 m (187.93 ft) |
| IVS (protection périmétrique) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| Heat Map | Yes |
| Smart Object Detection | Smart abandoned object; smart missing object |
| People Counting | Tripwire people counting and people counting in area, queue management; 4 rules can be set for tripwire, people counting in area and queue management |
| Recherche intelligente | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265 (Compression rate≥25%) AI H.264 (Compression rate≥25%) |
| Fréquence d'images | Main stream: 3840 × 2160@(1–25/30 fps) sub stream: D1@(1–25/30 fps) third stream: 1080p@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Flux | 3 streams |
| Résolutions | 3840 × 2160; 3072 × 2048; 3072 ×1728; 2592 × 1944; 2688 × 1520; 2560 × 1440; 2048 × 1536; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Éclairage intelligent | Yes |
| Defog | Yes |
| Rotation de l'image | 0°/90°/180°/270° (Support 90°/270° with 4M resolution and lower) |
| Miroir | Yes |
| Masques de confidentialité | 4 areas |
| Micro intégré | Yes |
| Built-in Speaker | Yes |
| Compression audio | PCM; G.711a; G.711Mu; G.726; G.723 |
| Événements d'alarme | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; scene changing; audio detection; voltage detection; external alarm; face detection; security exception |
| Port réseau | RJ-45 (10/100 Base-T) |
| Frequency | 5G: SA: N1/N3/N7/N8/N20/N28/N38/N40/N41/N75/N76/ N77/N78 NSA: N1/N3/N7/N8/N20/N28/N38/N40/N41/N77/N78 Applicable regions: Europe, Australia, Middle East, Africa 4G: FDD-LTE: B1/B3 /B7 /B20 TDD-LTE: B41 Applicable regions: Europe, Australia, Middle East, Africa 3G: WCDMA: B1 /B8 Applicable regions: Europe, Australia, Middle East, Africa |
| SDK and API | Yes |
| Protocoles réseau | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
| Interopérabilité | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P |
| Utilisateurs simultanés | 20 (Total bandwidth: 80 M) |
| Stockage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Navigateur | IE: IE9 and later Chrome Firefox Safari: Safari 12 and later |
| Logiciels de gestion | Smart PSS; DSS; DMSS |
| Application mobile | iOS; Android |
| Certification | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 CE RED |
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 3 channels in: 5mA 3V–5V DC |
| Sortie d'alarme | 2 channels out: 300mA 12V DC |
| Alimentation | 12 VDC (±30%) |
| Consommation | Basic: 6.6 W (12 VDC) Max. (H.265 + WDR + max. stream + intelligence on+ illuminator on + active deterrence + vari-focal + power output): 20 W (12 VDC) |
| Température de fonctionnement | –30 °C to +60 °C (–22 °F to +140 °F) |
| Humidité de fonctionnement | ≤95% |
| Température de stockage | –40 °C to +60 °C (–40 °F to +140 °F) |
| Indice de protection | IP67 |
| Matériau du boîtier | Metal + plastic |
| Dimensions | 281.3 mm × 171.8 mm × 191.7 mm (11.07" × 6.76" × 7.55") (L × W × H) |
| Poids net | 2074 g (4.57 lb) |
| Poids brut | 2290 g (5.05 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HFW5842DK1P-Z-5G-FM16-0832 · Marque : Dahua
